DELL
DELL PowerEdge R730xd 12LFF Xeon E5-2680v4 2.4GHz 14C 192GB DDR4 No Drive
12-bay 3.5-inch rack server with a 14-core 2.4 GHz Xeon E5-2680v4 and 192 GB DDR4, no drives included
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.4GHz
- # of Processors Installed1
- MAX Processors2
- Installed Memory Size192GB
- 12-drive 3.5-inch bays enable high-density local storage
- 14-core Xeon E5-2680v4 at 2.4 GHz delivers strong multi-threaded throughput
- 192 GB DDR4 ECC registered memory supports large virtualisation workloads
- PERC H730 SAS controller provides hardware RAID with cache protection
- Dual 10 GbE plus dual 1 GbE ports offer flexible network connectivity

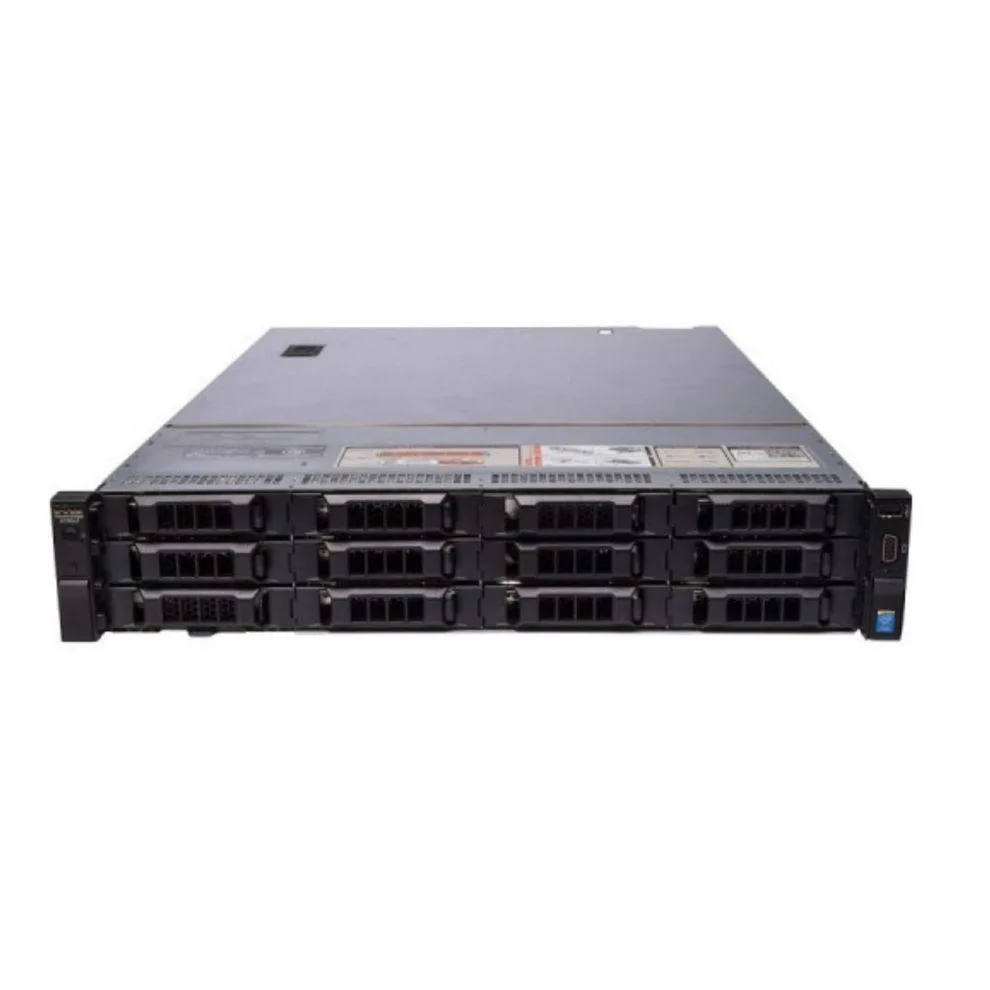

12-bay 3.5" rack server
This Dell PowerEdge R730xd is a 2U rack-mount server system built for dense local storage. It ships with one Intel Xeon E5-2680v4 processor running at 2.4 GHz with 14 cores and 192 GB of DDR4 ECC registered memory. The chassis supports up to twelve 3.5-inch drives and includes a PERC H730 SAS controller. Remote management is handled by iDRAC8 with an Enterprise licence.
Storage-focused workloads
The twelve-bay chassis suits workloads that prioritise high-capacity hard-disk arrays such as backup repositories, archival storage or media libraries. The single-socket configuration leaves a second processor socket open for future expansion. Buyers who need more than twelve drive bays or a larger installed memory footprint out of the box should evaluate other platforms.
PERC H730 SAS controller
The installed PERC H730 RAID controller governs every drive connection in this server. It provides hardware RAID across SAS and SATA drives and defines the maximum array configuration. Confirm that this controller matches your RAID-level requirements before purchase.
Points forts
- 12-drive 3.5-inch bays enable high-density local storage
- 14-core Xeon E5-2680v4 at 2.4 GHz delivers strong multi-threaded throughput
- 192 GB DDR4 ECC registered memory supports large virtualisation workloads
- PERC H730 SAS controller provides hardware RAID with cache protection
- Dual 10 GbE plus dual 1 GbE ports offer flexible network connectivity
Caractéristiques
| Brand | DELL |
|---|---|
| Series | PowerEdge |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.4GHz |
| # of Processors Installed | 1 |
| MAX Processors | 2 |
| Installed Memory Size | 192GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 768GB |
| Hard Drive (Installed) | 20,00 |
| Storage Controller | Dell PERC H730 SAS Controller |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | iDRAC8 - Enterprise License |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions sur cet article
Should I pick the 12-bay 3.5" chassis or a smaller 10-bay version?
The 12-bay 3.5" chassis gives you the maximum drive count available on this platform; the 10-bay variant simply reduces capacity without changing the CPU or memory limits.
What does the 2.4 GHz 14-core Xeon E5-2680v4 deliver in daily use?
2.4 GHz across 14 cores with 35 MB cache handles virtualisation and database workloads; a second socket can be added later to double the core count.
Does the PERC H730 SAS controller limit me to SATA speeds or can it run SAS drives at full rate?
The PERC H730 supports both SAS and SATA drives; SAS devices run at their native 12 Gb/s link speed while SATA drives operate at 6 Gb/s.
