DELL
DELL PowerEdge R740 2U rack server 1x Gold 6132 14C 32GB 4x 960GB SAS SSD H730P
2U rack server with one 14-core 2.6 GHz processor, 32 GB DDR4, four 960 GB SAS SSDs and H730P RAID
- TypeRack
- Rack Height2U
- CPU TypeIntel
- Installed Memory Size32GB
- Hard Drive (Installed)4x 960GB SAS SSD
- Storage ControllerH730P
- 14-core Intel Gold 6132 at 2.6 GHz drives demanding workloads
- 32 GB DDR4 memory handles multi-tasking smoothly
- Four 960 GB SAS SSDs on H730P RAID deliver fast, protected storage
- iDRAC9 Enterprise enables full remote server management
- Eight PCIe Gen 3 slots plus 2×10 Gb and 2×1 Gb Ethernet for expansion

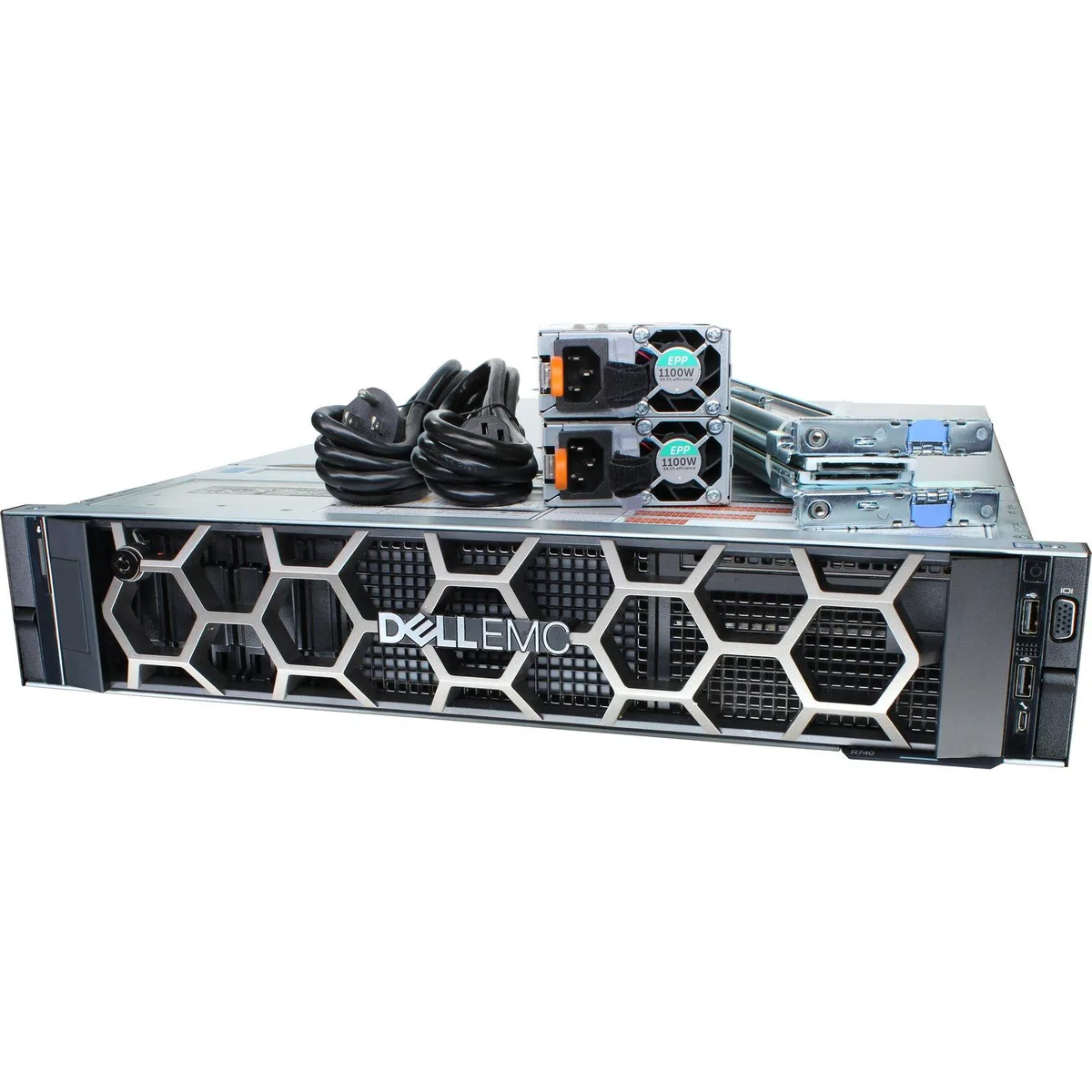

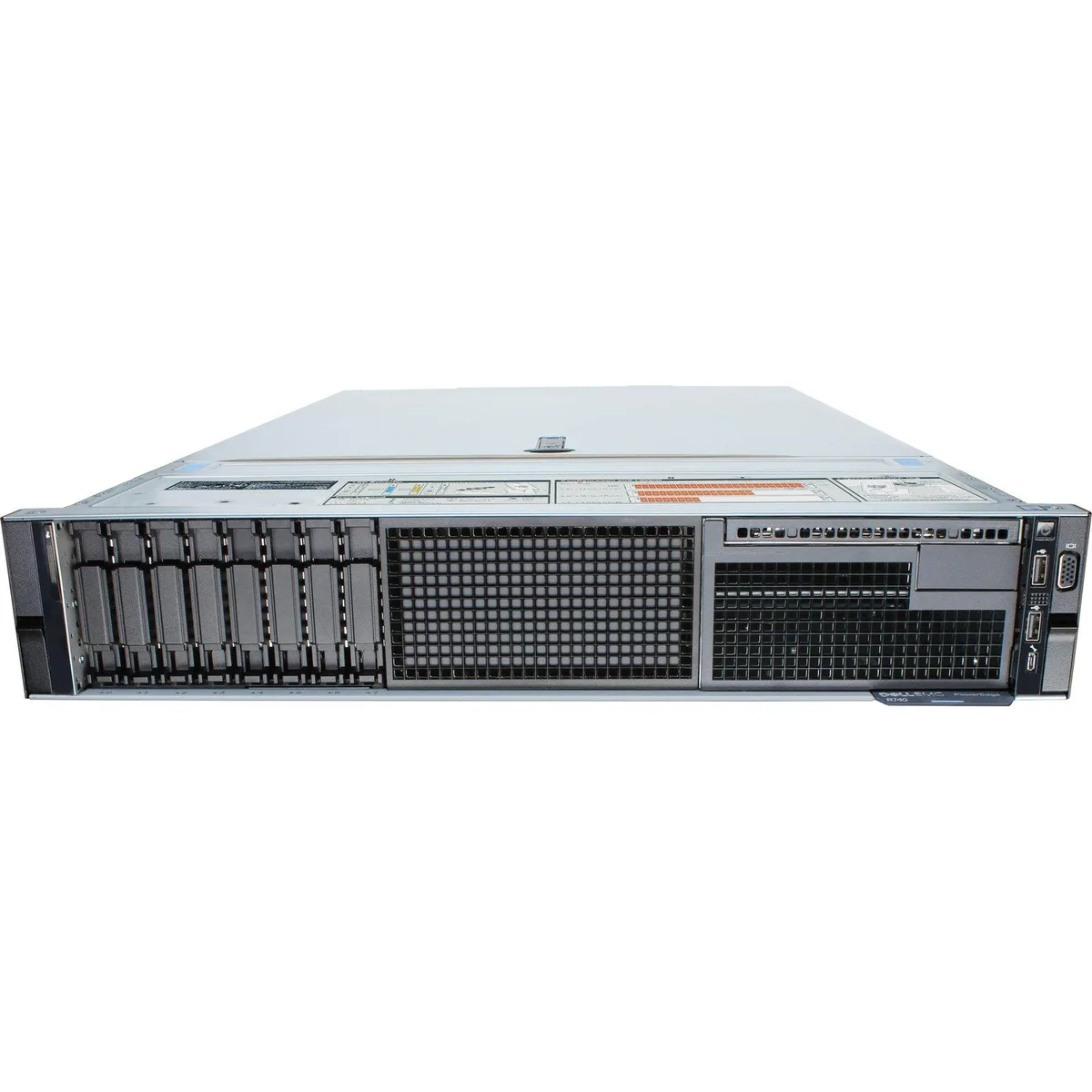

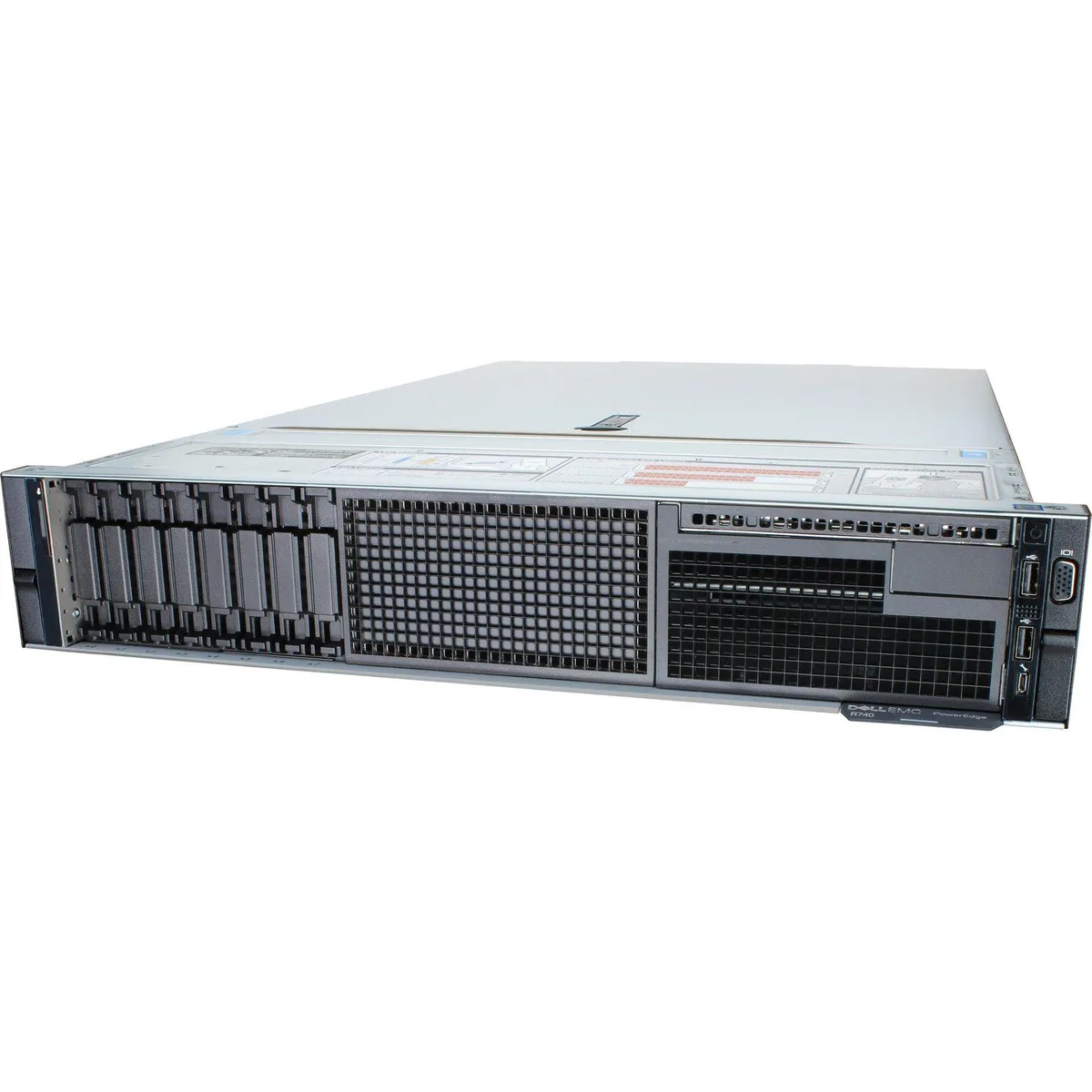

2U rack server with Gold 6132
This 2U rack server ships with a single Intel Gold 6132 processor that delivers 14 cores at 2.6 GHz and 19.25 MB cache. It includes 32 GB of DDR4 memory in two 16 GB modules running at 2666 MT/s. The chassis provides eight 2.5-inch drive bays and up to eight PCIe Gen 3 slots for expansion.
Sustained load behaviour
The H730P RAID controller manages four 960 GB SAS SSDs for consistent throughput under continuous workloads. Dual 10 Gb RJ45 and dual 1 Gb RJ45 ports from the Intel X550 NDC maintain network bandwidth during prolonged transfers. Redundant 1100 W power supplies keep the system running if one unit fails. iDRAC9 Enterprise enables remote monitoring and firmware updates without physical access.
Practical limits of SAS and PCIe Gen 3
SAS SSDs top out at the controller and drive firmware limits, so capacity expansion stops at eight 2.5-inch bays. PCIe Gen 3 slots cap add-in card bandwidth at the generation ceiling, restricting newer accelerators that require Gen 4 or higher. The single-socket configuration leaves the second CPU socket empty, limiting total core count and memory channels to half the platform maximum. No optical drive is fitted.
Points forts
- 14-core Intel Gold 6132 at 2.6 GHz drives demanding workloads
- 32 GB DDR4 memory handles multi-tasking smoothly
- Four 960 GB SAS SSDs on H730P RAID deliver fast, protected storage
- iDRAC9 Enterprise enables full remote server management
- Eight PCIe Gen 3 slots plus 2×10 Gb and 2×1 Gb Ethernet for expansion
Caractéristiques
| Brand | DELL |
|---|---|
| Model | R740 |
| Type | Rack |
| Rack Height | 2U |
| CPU Type | Intel |
| Installed Memory Size | 32GB |
| Hard Drive (Installed) | 4x 960GB SAS SSD |
| Storage Controller | H730P |
| Max HDD Capacity | 8x 2.5" Drive Bays |
| Remote Management | iDRAC9 Enterprise |
Questions sur cet article
How much power does the 1100W redundant supply draw when the Gold 6132 14C processor and four 960GB SAS SSDs run continuously?
The server includes a 1100W redundant power supply; actual draw varies with workload but the supply is rated for that output.
What cables or rails are needed to install the 2U R740 chassis in a standard rack?
Rails and power cords are included with the chassis for rack mounting.
Can the H730P controller manage the four 960GB SAS SSDs alongside older SAS drives in the remaining 2.5-inch bays?
The H730P supports SAS drives; the chassis provides 8x 2.5-inch bays so additional SAS drives can be added.
