DELL
DELL PowerEdge R740 2U rack server 1x Gold 6148 20C 32GB 4x 300GB SAS H730P
2U rack server with one 20-core Intel Gold 6148 at 2.4 GHz, 32 GB DDR4, four 300 GB 10K SAS drives and H730P RAID
- TypeRack
- Rack Height2U
- CPU TypeIntel
- Installed Memory Size32GB
- Hard Drive (Installed)4x 300GB 10K SAS
- Storage ControllerH730P
- 20-core Intel Gold 6148 handles heavy workloads
- 32 GB DDR4 memory supports virtualization density
- 4 x 300 GB 10K SAS drives deliver fast storage access
- H730P RAID controller protects data with hardware RAID
- iDRAC9 Enterprise enables remote server management
2U rack server for virtualisation workloads

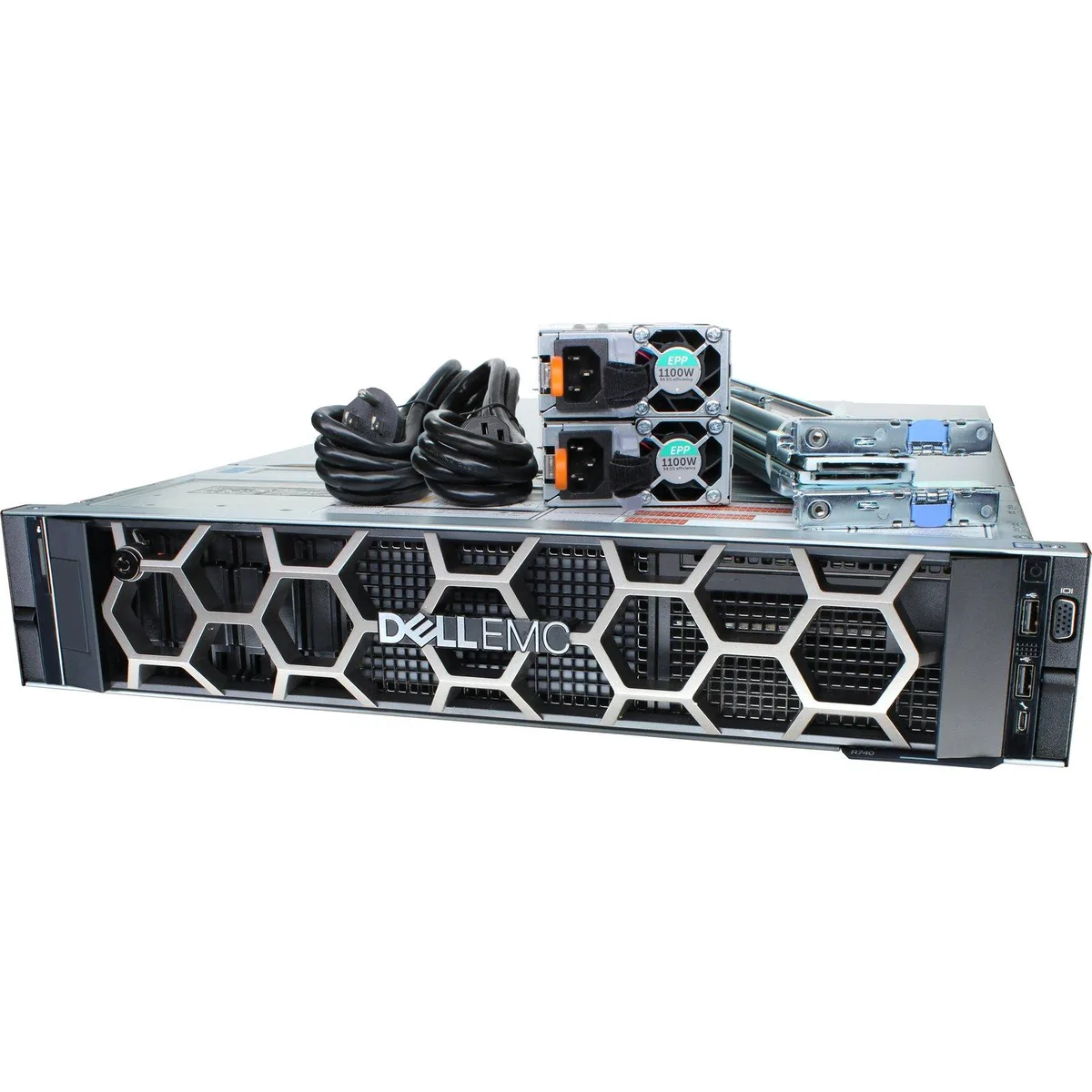

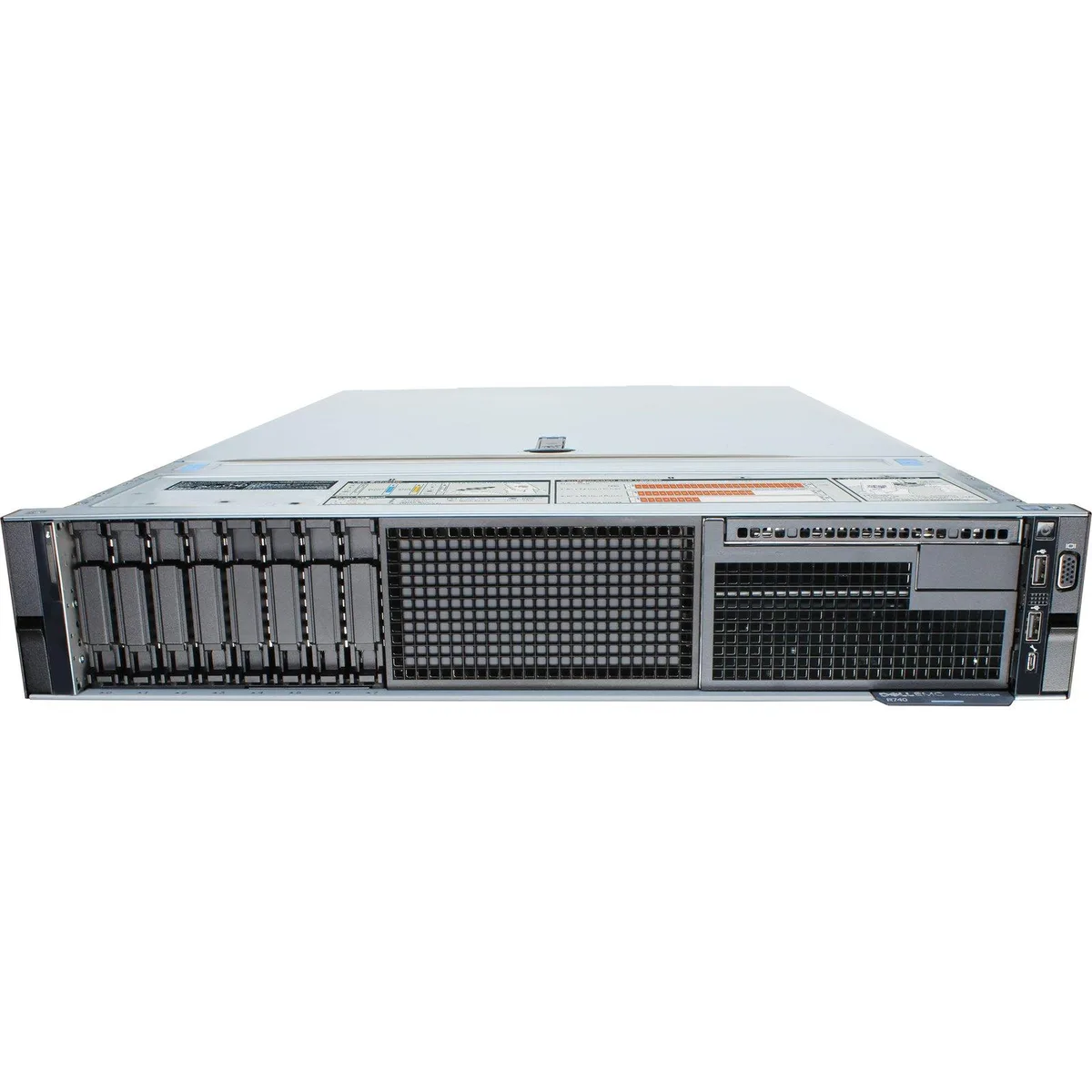

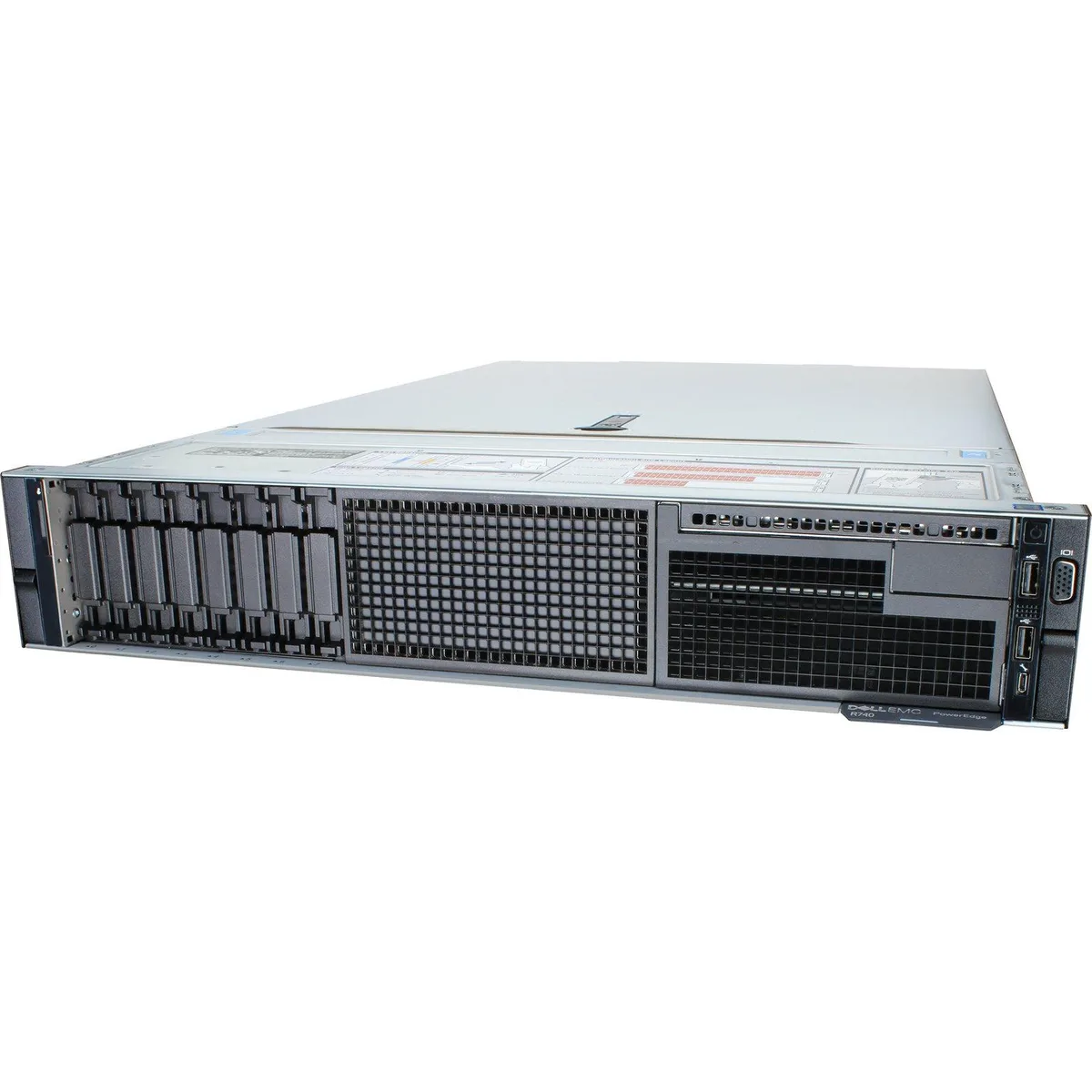

The Dell EMC PowerEdge R740 fits in a standard 2U rack space and ships with one Intel Gold 6148 processor running at 2.4 GHz with 20 cores. Memory is 32 GB of DDR4 supplied as two 16 GB PC4-2666 modules. Four 300 GB 10K SAS drives are pre‑configured behind an H730P RAID controller. Up to eight 2.5 inch drive bays and eight PCIe Gen 3 slots provide room for expansion. Remote management is handled by iDRAC9 Enterprise.
Sustained multi‑threaded throughput
The single Gold 6148 delivers 20 cores at a base frequency of 2.4 GHz and 27.5 MB cache, maintaining consistent performance across long compute jobs. Dual 1100 W redundant power supplies keep the system running if one unit fails. The H730P controller supports RAID levels that protect data during continuous write workloads. Ten‑gigabit and gigabit Ethernet ports from the Intel X550 NDC sustain high network throughput without throttling.
Front‑to‑back airflow cooled by dual redundant
Cooling fans pull air through the 2U chassis across the CPU, memory and drive bays before exhausting it at the rear. The redundant 1100 W power supplies share the load, reducing per‑unit heat output and fan speed during typical operation. iDRAC9 Enterprise monitors temperatures, fan speeds and power draw in real time, alerting administrators before thermal thresholds are reached. No optical drive is present, leaving the front panel unobstructed for airflow.
Points forts
- 20-core Intel Gold 6148 handles heavy workloads
- 32 GB DDR4 memory supports virtualization density
- 4 x 300 GB 10K SAS drives deliver fast storage access
- H730P RAID controller protects data with hardware RAID
- iDRAC9 Enterprise enables remote server management
Caractéristiques
| Brand | DELL |
|---|---|
| Model | R740 |
| Type | Rack |
| Rack Height | 2U |
| CPU Type | Intel |
| Installed Memory Size | 32GB |
| Hard Drive (Installed) | 4x 300GB 10K SAS |
| Storage Controller | H730P |
| Max HDD Capacity | 8x 2.5" Drive Bays |
| Remote Management | iDRAC9 Enterprise |
Questions sur cet article
How loud and hot does the 1100W redundant PSU run when the Gold 6148 20C CPU is under full load all day?
The 1100W redundant power supply is designed for continuous operation with the Gold 6148 20C processor at 2.4GHz; fan speed scales with thermal load and the 2U chassis airflow handles the 27.5M cache CPU heat output.
What rack rails and network cabling do I need to install this R740 with its Intel X550 2x 10Gb and 2x 1Gb RJ45 ports?
Rails and power cords are included; you supply Cat6a or better for the 10Gb RJ45 links and Cat5e for the 1Gb links, plus a 2U rack space with front-to-rear airflow clearance.
Can I keep using my existing SAS drives and PCIe Gen 3 cards in the 8 available slots alongside the H730P controller?
Yes — the H730P RAID controller manages the 4x 300GB 10K SAS drives in the 2.5" bays, and up to 8 PCIe Gen 3 slots accept compatible add-in cards you already own.
