DELL

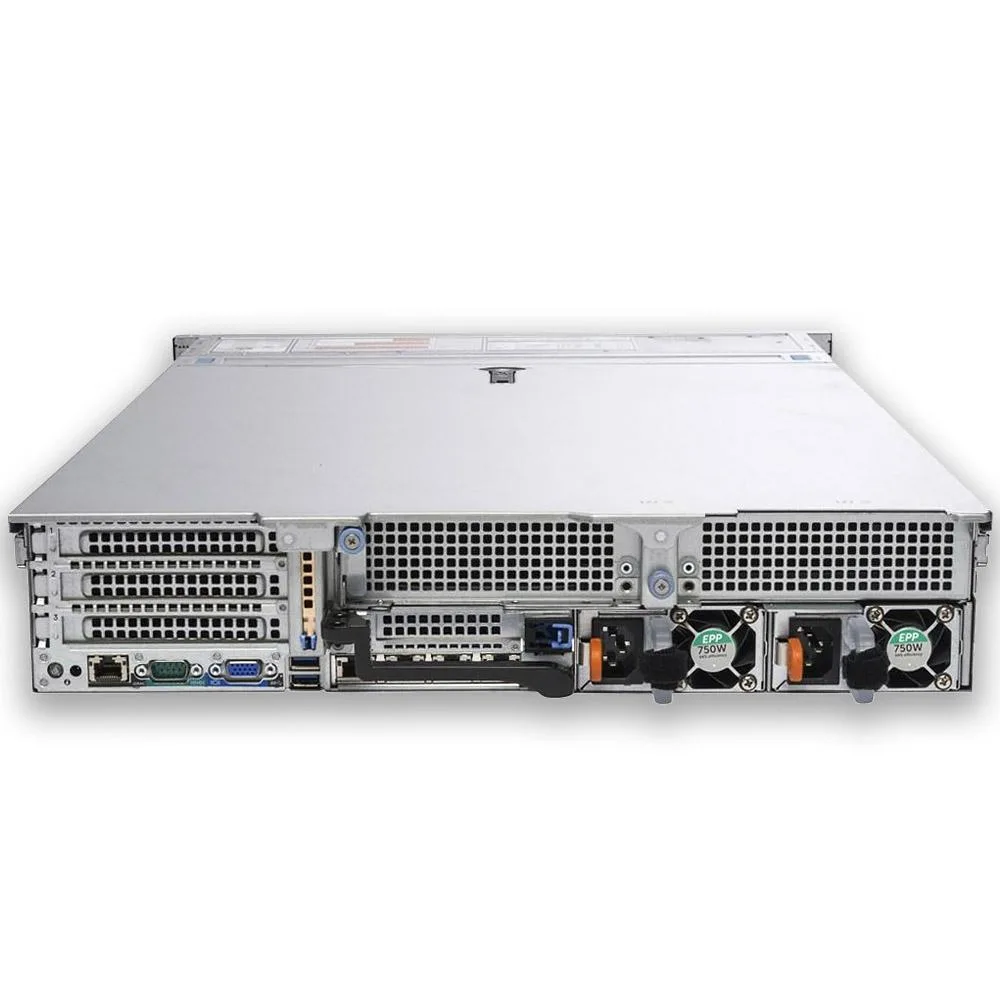

DELL PowerEdge R740 2U rack server 2x Silver 4210R 10C 2.4GHz 64GB 6x 1.2TB SAS H730P
2U rack server with dual 10-core Silver 4210R CPUs at 2.4GHz, 64GB DDR4, six 1.2TB 10K SAS drives and H730P RAID controller
- TypeRack
- Rack Height2U
- CPU TypeIntel
- Installed Memory Size64GB
- Hard Drive (Installed)6x 1.2TB 10K SAS
- Storage ControllerH730P
- Dual 10-core Silver 4210R CPUs at 2.4GHz for multi-threaded throughput
- 64GB DDR4 in four 16GB modules running at 2666 MT/s
- Six 1.2TB 10K SAS drives on H730P RAID for fast redundant storage
- Up to eight PCIe Gen 3 slots plus dual 10Gb and dual 1Gb Ethernet
- iDRAC9 Enterprise remote management with redundant 1100W power supplies included
Purpose-built rack server
The Dell PowerEdge R740 is a 2U rack server configured with two Intel Silver 4210R processors, each delivering ten cores at 2.4GHz. Sixty-four gigabytes of DDR4 memory are installed across four 16GB modules running at 2666 MT/s. Six 1.2TB 10K SAS drives provide high-speed storage managed by an H730P RAID controller. This specification targets virtualisation hosts, database nodes and compute clusters that demand dense processing and fast local storage in a standard rack footprint.
Thermals and power in operation
Dual 1100W redundant power supplies share the load and maintain uptime if one unit fails. The 2U chassis uses managed airflow to cool both CPUs, memory and the drive cage under sustained workloads. Fan speeds adjust automatically through iDRAC9 Enterprise policies, keeping acoustic output appropriate for a data-centre aisle rather than an office desk. Power draw scales with CPU utilisation and drive activity, so capacity planning should reflect the actual application profile.
Included accessories and management
The shipment includes a front bezel without an LCD panel, sliding rails for rack mounting and power cords for immediate deployment. iDRAC9 Enterprise is licensed on the system board, enabling remote console, virtual media, hardware inventory and automated firmware updates without an additional subscription. Up to eight PCIe Gen 3 slots remain available for network, storage or accelerator cards, while the Intel X550 NDC already provides two 10Gb RJ45 and two 1Gb RJ45 ports. No optical drive is fitted.
Points forts
- Dual 10-core Silver 4210R CPUs at 2.4GHz for multi-threaded throughput
- 64GB DDR4 in four 16GB modules running at 2666 MT/s
- Six 1.2TB 10K SAS drives on H730P RAID for fast redundant storage
- Up to eight PCIe Gen 3 slots plus dual 10Gb and dual 1Gb Ethernet
- iDRAC9 Enterprise remote management with redundant 1100W power supplies included
Caractéristiques
| Brand | DELL |
|---|---|
| Model | R740 |
| Type | Rack |
| Rack Height | 2U |
| CPU Type | Intel |
| Installed Memory Size | 64GB |
| Hard Drive (Installed) | 6x 1.2TB 10K SAS |
| Storage Controller | H730P |
| Max HDD Capacity | 8x 2.5" Drive Bays |
| Remote Management | iDRAC9 Enterprise |
Questions sur cet article
How do I install the 2.5-inch SAS drives into the 8-bay chassis and what step is often missed?
Slide each 1.2 TB drive into an empty bay until the latch clicks, then use iDRAC9 Enterprise to create a virtual disk on the H730P controller before the OS sees the volume.
Which components will need replacement first during the server's life?
The six 10 K SAS drives and the two 1100 W redundant power supplies are the primary field-replaceable units; fans and the iDRAC9 module are also serviceable.
What thermal or power limit appears first when both Silver 4210R CPUs run at 2.4 GHz continuously?
The 1100 W redundant power supply rating and the 2U chassis airflow set the practical ceiling before CPU throttling occurs.
