DELL PowerEdge R740 2U Rack Server 2x Xeon Platinum 8160 2.1GHz 24-Core 128GB DDR4 8x 1.2TB SAS H730P

Dual Xeon Platinum 8160 2U Server

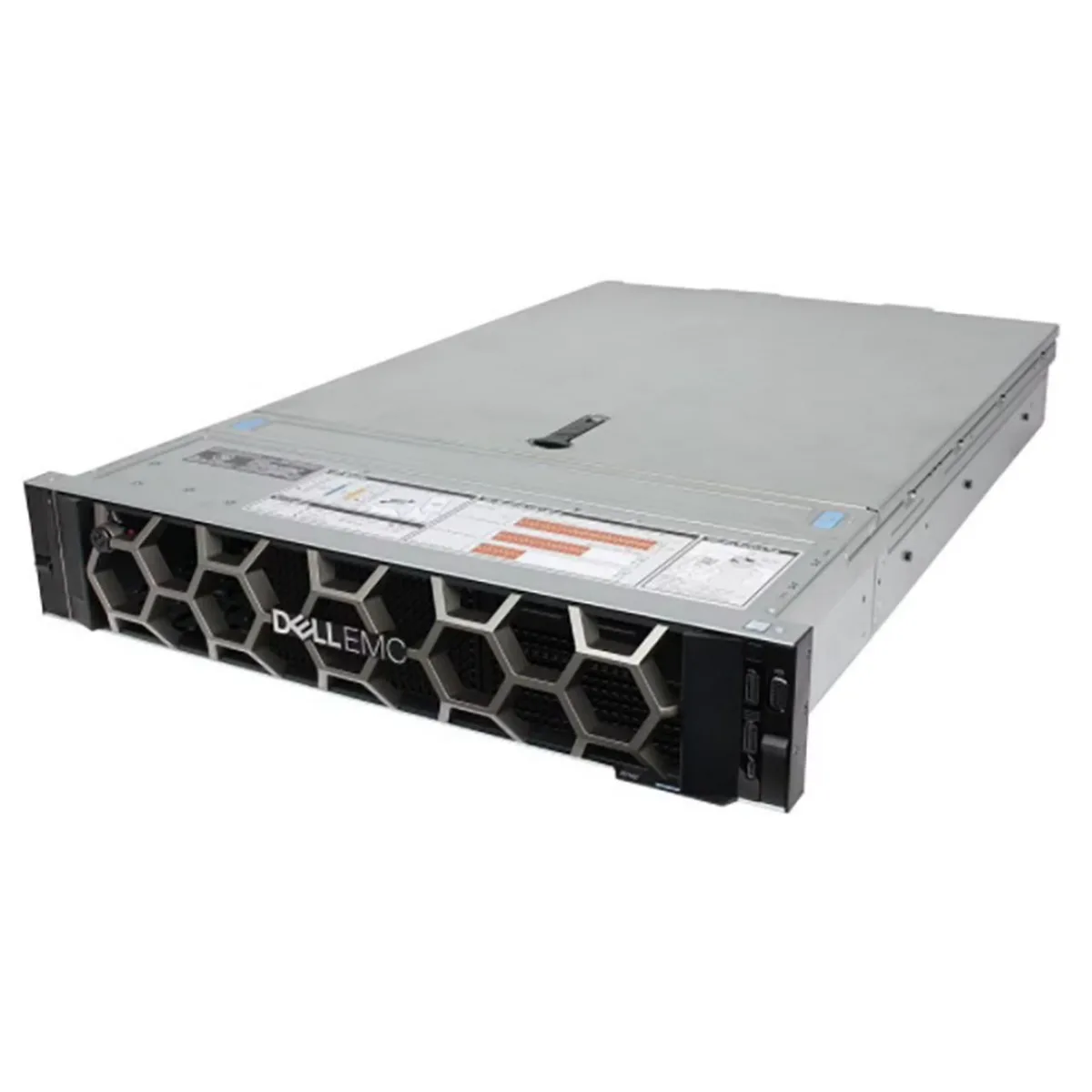

The Dell PowerEdge R740 is a 2U rackmount server system built around two Intel Xeon Platinum 8160 processors running at 2.1 GHz with 24 cores each. It ships with 128 GB of DDR4 registered ECC memory across eight 16 GB modules. Eight 1.2 TB 10K SAS drives connect through a PERC H730P controller with 2 GB cache. Redundant 750 W platinum power supplies, iDRAC9 Enterprise, quad-port networking and rails are included.

Virtualisation hosts and database nodes

This configuration suits workloads that need high core counts, large memory capacity and SAS storage redundancy in a 2U footprint. The dual 24-core CPUs and 24 DIMM slots support up to 3 TB of DDR4 for dense virtualisation or in-memory databases. Buyers who need more than two sockets, GPU accelerator density beyond the 2U form factor, or a different drive interface should evaluate alternative chassis.

24 DIMM slots and 3 TB DDR4 ceiling

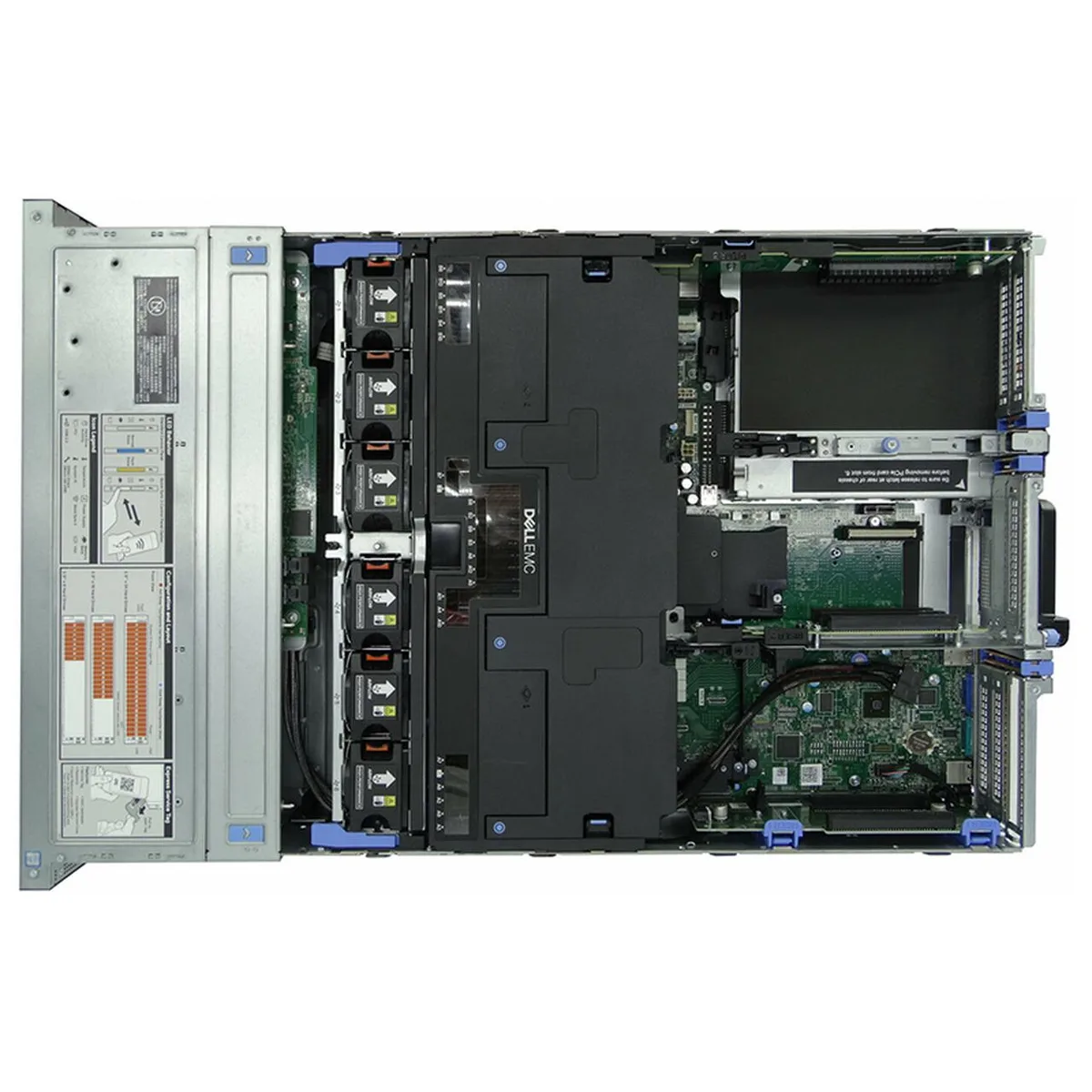

The motherboard provides 24 DDR4 slots with a maximum supported capacity of 3 TB, so the installed 128 GB leaves ample room for future expansion. Memory must be registered ECC DDR4 to match the platform. The PERC H730P handles RAID 0, 1, 5, 6, 10, 50 and 60 across the eight 2.5-inch SAS bays.
