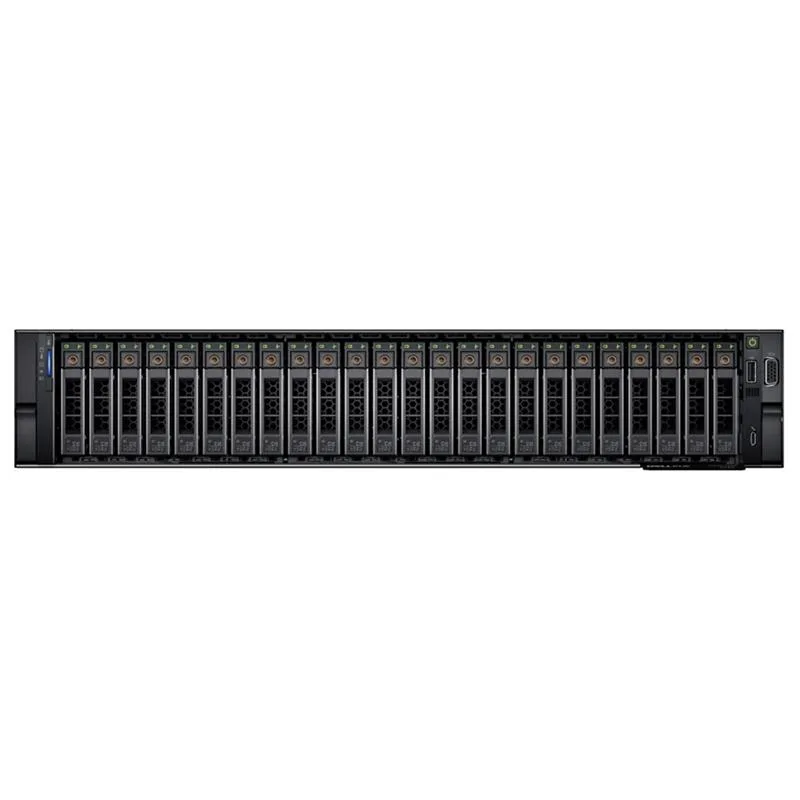

Black 2U rack server with twenty-four 2.5-inch drive bays and front bezel

DELL

Dell PowerEdge R750 2U 24-Bay 2.5" 2x Xeon Gold 6330 28C 128GB DDR4 H755 2x 1400W

SKU CH-N2DH-PXDV1

2U rack server with 24 hot-swap 2.5-inch bays, dual 28-core Xeon Gold 6330 CPUs, 128GB DDR4 ECC memory, PERC H755 RAID controller, dual 10GbE SFP+ networking, iDRAC9 Enterprise.

  • TypeRack
  • Rack Height2U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.00 GHz
  • CPU SocketLGA 4189
  • Dual Xeon Gold 6330 28-core CPUs at 2.0 GHz base and 3.1 GHz turbo for heavy workloads
  • 128GB DDR4 2933MHz ECC memory across 8 modules for fast data access
  • PERC H755 RAID controller with 8GB NV cache supports RAID 0/1/5/6/10/50/60
  • 24 front 2.5" SAS/SATA trays plus OCP 3.0 dual 10GbE SFP+ networking
  • iDRAC9 Enterprise remote management with dual 1400W platinum PSUs and rails included

Dual Xeon Gold 6330 Server

The Dell PowerEdge R750 is a 2U rack server built for enterprise workloads that demand high core counts and large memory capacity. Two Intel Xeon Gold 6330 processors provide 28 cores each at 2.0 GHz with 3.1 GHz turbo. The system ships with 128 GB of DDR4 2933 MHz registered ECC memory across eight 16 GB modules. It targets virtualization, database, and analytics deployments.

24-Bay Storage and Redundant Power

Twenty-four front-accessible 2.5-inch trays accept SAS or SATA drives and are managed by a PERC H755 controller with 8 GB NV cache and battery backup supporting RAID 0, 1, 5, 6, 10, 50 and 60. A Broadcom 57412 dual-port 10 GbE SFP+ OCP 3.0 adapter handles network connectivity. Dual 1400 W platinum power supplies and iDRAC9 Enterprise enable hot-swap maintenance and remote management. Rails and bezel are included.

Verify Rack Space and Memory Expansion

Confirm the rack can accommodate a 2U chassis and that the power distribution units deliver sufficient current for dual 1400 W supplies. The motherboard offers 32 DDR4 slots; eight are populated, leaving room for additional registered ECC modules up to the platform maximum. Ensure switch ports support SFP+ transceivers for the 10 GbE links and that the operating environment meets thermal requirements for sustained high-core operation.

Points forts

  • Dual Xeon Gold 6330 28-core CPUs at 2.0 GHz base and 3.1 GHz turbo for heavy workloads
  • 128GB DDR4 2933MHz ECC memory across 8 modules for fast data access
  • PERC H755 RAID controller with 8GB NV cache supports RAID 0/1/5/6/10/50/60
  • 24 front 2.5" SAS/SATA trays plus OCP 3.0 dual 10GbE SFP+ networking
  • iDRAC9 Enterprise remote management with dual 1400W platinum PSUs and rails included

Caractéristiques

BrandDELL
SeriesPowerEdge R750
ModelR750
TypeRack
Rack Height2U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.00 GHz
CPU SocketLGA 4189
Number of CPU Cores28-Core Processor
CPU FeaturesGold 6330
# of Processors Installed2
MAX Processors2
Chipset0
Installed Memory Size128GB
Memory TypeDDR4
Max Memory Capacity0
Number of Memory Slots32
Storage ControllerDell Perc H755 Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
Max HDD CapacityNone
Media Drives0
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell EMC 15G Broadcom 57412 Dual Port 10GbE SFP+ OCP 3.0 Network Card
LAN Ports2 x Ports
Expansion Slots0
Management PortRJ 45
Operating SystemNo
Features24 x 2.5" SATA/SAS Hot-Plug Drive Bays

Questions sur cet article

Does the OCP 3.0 network card deliver 10 GbE over SFP+?

The Broadcom 57412 dual-port 10GbE SFP+ OCP 3.0 card provides two 10 GbE links over SFP+ transceivers.

What rail kit is included for mounting the 2U chassis?

Dell Ready Rails are supplied for tool-less mounting in standard four-post racks.

How are the CPUs and memory installed, and which step is often missed?

Two Xeon Gold 6330 processors are pre-installed; the 128 GB of DDR4 2933 MHz registered ECC memory occupies eight of the 32 DIMM slots, and the step often missed is populating the remaining slots in the correct per-channel sequence for optimal performance.
