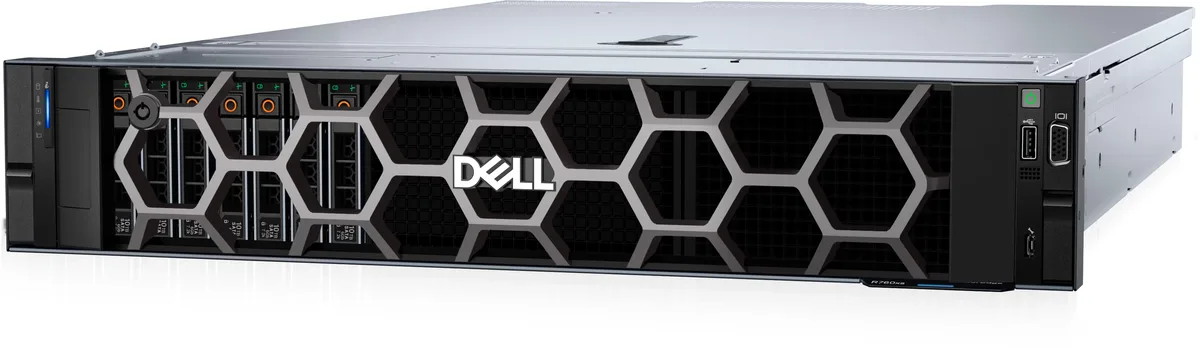

Silver 2U rack server with front drive bays and rear handles

DELL

DELL PowerEdge R760xs 2U rack server DDR5 1.5TB max

SKU CH-P66K-EATQQ MPN PowerEdge_R760xs

A 2U rack server supporting up to two Xeon processors, 1.5TB DDR5 memory, and flexible front storage with 12 3.5" or 16 2.5" bays plus NVMe

  • WorkloadVirtualization, Medium density VM / VDI and SDS Node
  • TypeRack
  • Rack Height2U
  • SecurityCryptographically signed firmware Data at Rest Encryption (S
  • CPU TypeIntel Xeon Scalable
  • # of Processors Installed0
  • Handles virtualization and VDI workloads with up to two Xeon Scalable processors
  • Scales memory to 1.5TB using 16 DDR5 slots at 5200 MT/s
  • Flexible front storage: 12 x 3.5" or 16 x 2.5" bays plus 8 NVMe drives
  • Adds GPU acceleration with support for two single-wide cards
  • Hardware-rooted security including Silicon Root of Trust and signed firmware

2U rack server for virtualization workloads

The DELL PowerEdge R760xs is a 2U rack server built for virtualization, medium-density VDI and software-defined storage nodes. It ships without processors, memory or drives so you can configure the exact specification your workload demands.

1.5 TB DDR5 memory ceiling

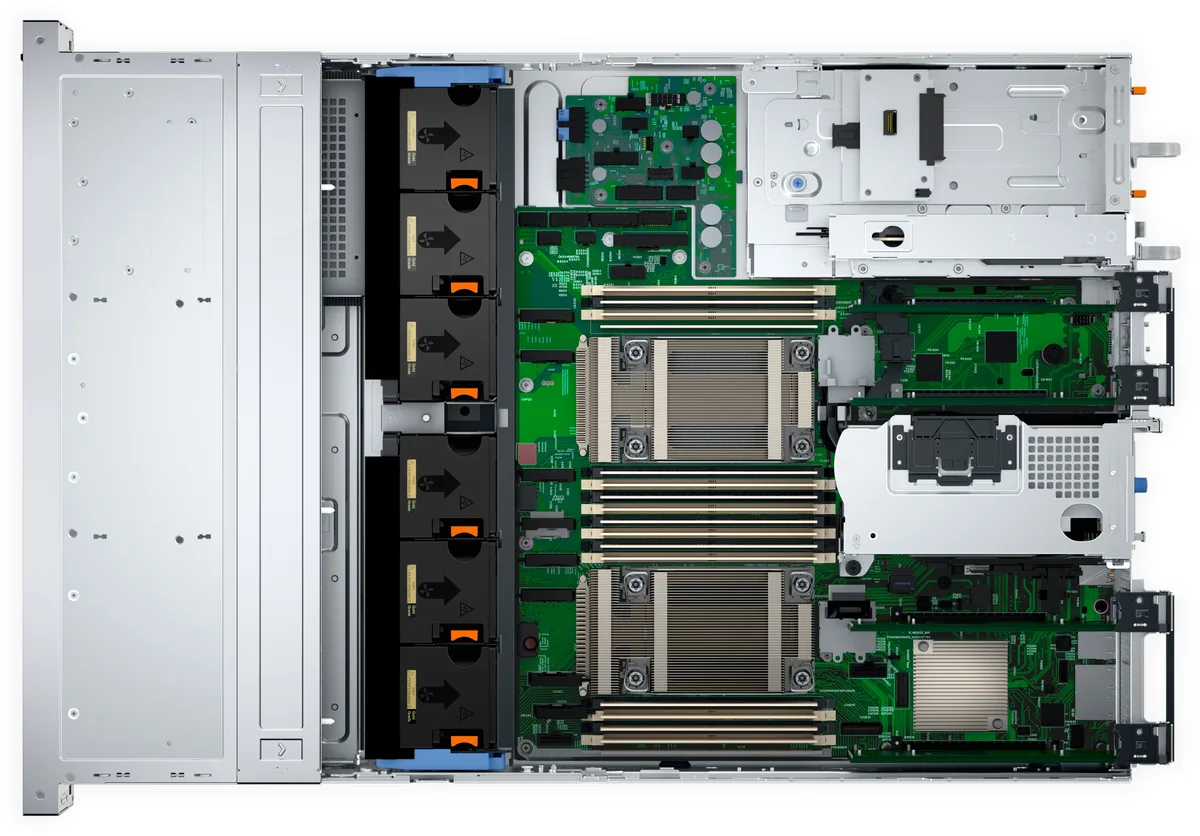

The platform supports up to 1.5 TB of registered ECC DDR5 across 16 DIMM slots running at speeds up to 5200 MT/s. That ceiling decides whether the chassis can hold the working set your VMs or VDI sessions require.

Dual single-wide GPU support and flexible drive bays

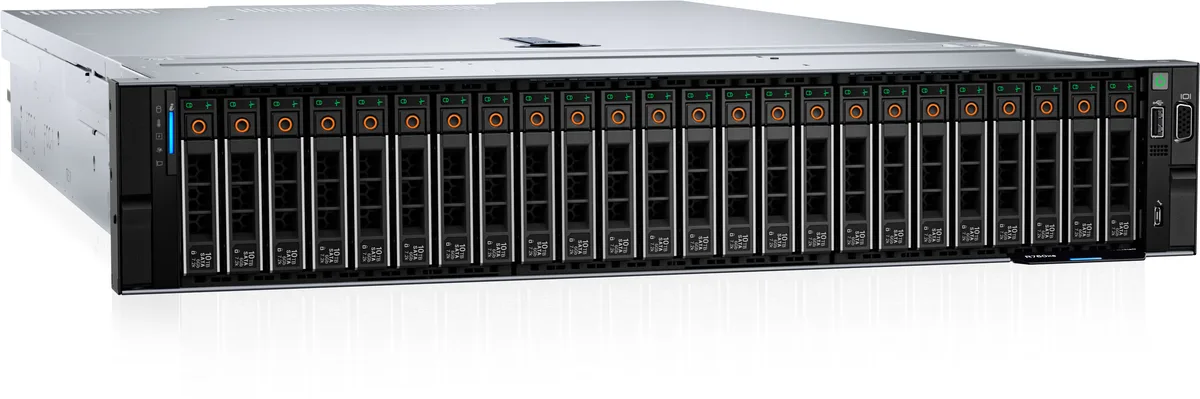

Two single-wide GPUs can be installed for accelerated VDI or compute tasks. The front bay accepts either 12 x 3.5 inch or 16 x 2.5 inch drives plus up to 8 NVMe drives, while the rear adds 2 x 2.5 inch bays, letting you match capacity and performance to the dataset.

Points forts

  • Handles virtualization and VDI workloads with up to two Xeon Scalable processors
  • Scales memory to 1.5TB using 16 DDR5 slots at 5200 MT/s
  • Flexible front storage: 12 x 3.5" or 16 x 2.5" bays plus 8 NVMe drives
  • Adds GPU acceleration with support for two single-wide cards
  • Hardware-rooted security including Silicon Root of Trust and signed firmware

Caractéristiques

BrandDELL
SeriesPowerEdge R760xs
WorkloadVirtualization, Medium density VM / VDI and SDS Node
TypeRack
Rack Height2U
SecurityCryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secure Erase
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
CPU TypeIntel Xeon Scalable
# of Processors Installed0
MAX Processors2
Installed Memory SizeNo
Memory TypeDDR5
Max Memory Capacity1.5TB
Memory FeaturesSpeeds up to 5200 MT/s, supports registered ECC DDR5 DIMMs only
Number of Memory Slots16
Hard Drive (Installed)None
HDD InterfaceSATA/SAS
SSD (Installed)No
GPU TypeSupport 2 x Single-Wide GPUs
Expansion BaysFront: 12 x 3.5" or 16 x 2.5" plus up to 8x NVMe drives
Rear: 2 x 2.5"
Operating SystemNo
Dimensions3.41" x 18.97" x 28.4"
Weight63 lbs.
Poids d’expédition22.68 kg
Dimensions du colis762 × 635 × 254 mm

Questions sur cet article

What does the 1.5 TB maximum memory mean once the server is populated?

The chassis holds 16 DDR5 RDIMM slots running up to 5200 MT/s; filling every slot with supported modules reaches the 1.5 TB limit.

How do the SATA, SAS and NVMe drive interfaces limit storage performance?

Front bays accept 12 x 3.5" or 16 x 2.5" SATA/SAS drives plus up to 8 NVMe drives; rear bays add 2 x 2.5" SATA/SAS slots.

What physical space and mounting does the 2U rack chassis need?

Dimensions are 3.41" high, 18.97" wide and 28.4" deep, fitting a standard 2U rack opening.
