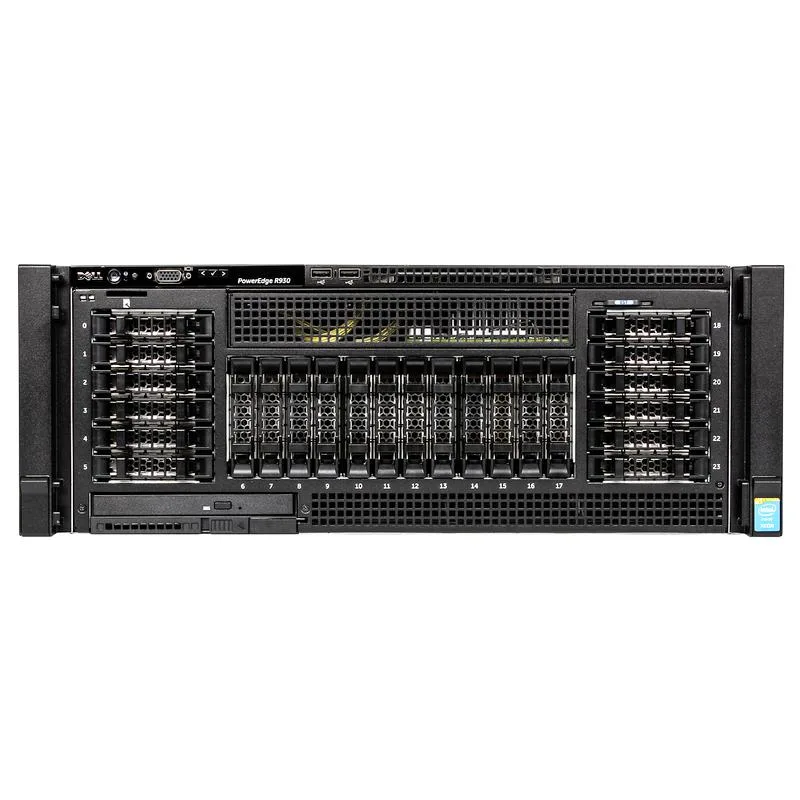

Dell PowerEdge R930 4U rack server front view with bezel and drive bays

DELL

DELL PowerEdge R930 4U rack server 4x Xeon E7-8867 v4 2.4GHz 16-core 3TB DDR4 4x 1.92TB SSD H730P

SKU CH-6T9F-QC3PB

A 4U rack server with four 16-core Xeon processors at 2.4 GHz, 3 TB DDR4 memory, H730P RAID controller and four 1.92 TB SATA SSDs

  • Rack Height4U
  • CPU TypeIntel Xeon
  • CPU Speed2.40 GHz
  • CPU SocketLGA 2011
  • Number of CPU Cores16-Core Processor
  • # of Processors Installed4
  • Four Xeon E7-8867 v4 16-core CPUs at 2.4 GHz base
  • 3 TB DDR4 ECC memory across 96 DIMM slots
  • PERC H730P controller supports RAID 0/1/5/6/10/50/60
  • Four 1.92 TB SATA SSDs with hot-plug 2.5" bays
  • Dual 10 Gb SFP+ and dual 1 GbE ports on X520/I350 card

Enterprise 4U server with four Xeon processors

The Dell PowerEdge R930 is a 4U rack server equipped with four Intel Xeon E7-8867 v4 processors, each running at 2.4 GHz with 16 cores. It ships with 3 TB of DDR4 registered ECC memory across 96 slots and four 1.92 TB SATA SSDs managed by a PERC H730P controller. The platform targets organisations running memory-intensive databases, virtualisation clusters or analytics workloads that require high core counts and large memory capacity in a single chassis.

Tool-less rails and hot-plug drive bays simplify

Ready Rails and a front bezel are included for tool-less rack mounting, while the 2.5-inch drive bays support hot-plug SATA or SAS devices. The PERC H730P controller offers battery-backed cache for RAID levels 0, 1, 5, 6, 10, 50 and 60, reducing the risk of data loss during unexpected power events. Common issues arise when mixing drive types without verifying controller firmware compatibility or when memory population rules for the 96 DIMM slots are not followed.

Verify rack depth, power circuits

The 4U form factor requires a rack with sufficient depth and airflow clearance for four 1100 W power supplies, which need appropriate PDU connections. The Intel X520/I350 daughter card provides two 1 GbE and two 10 Gb SFP+ ports, so confirm that your top-of-rack switches have matching transceivers and cabling. Ensure the operating system and hypervisor versions support the Xeon E7-8867 v4 and the H730P controller to avoid driver conflicts.

Points forts

  • Four Xeon E7-8867 v4 16-core CPUs at 2.4 GHz base
  • 3 TB DDR4 ECC memory across 96 DIMM slots
  • PERC H730P controller supports RAID 0/1/5/6/10/50/60
  • Four 1.92 TB SATA SSDs with hot-plug 2.5" bays
  • Dual 10 Gb SFP+ and dual 1 GbE ports on X520/I350 card

Caractéristiques

BrandDELL
SeriesPowerEdge R930
Rack Height4U
CPU TypeIntel Xeon
CPU Speed2.40 GHz
CPU SocketLGA 2011
Number of CPU Cores16-Core Processor
# of Processors Installed4
MAX Processors4
ChipsetIntel C602J
Installed Memory Size3TB
Memory TypeDDR4
Max Memory Capacity12TB
Number of Memory Slots96
Storage ControllerDell Perc H730P 2GB Controller
HDD InterfaceSATA
SSD (Installed)4 x 1.92TB SATA SSD
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I verify the PERC H730P controller sees all four 1.92 TB SSDs and reports the chosen RAID level?

During POST the controller BIOS lists each detected drive and its RAID status; after boot, open the iDRAC8 Enterprise web interface and check the storage tab for a green OK on all four SSDs and the configured RAID 0, 1, 5, 6, 10, 50 or 60 volume.

Which components ship with the server and which must be sourced separately?

The box contains the 4U chassis, four Xeon E7-8867 v4 16-core processors, 3 TB DDR4 (96 × 32 GB), PERC H730P with battery, four 1.92 TB SATA SSDs, X520/I350 quad-port NIC (two 1 GbE, two 10 Gb SFP+), iDRAC8 Enterprise, four 1100 W 80+ Platinum PSUs, ReadyRails and front bezel. No extra parts are required for basic operation.

Should I choose this 3 TB memory configuration or plan for the 12 TB maximum?

The system arrives with all 96 DIMM slots filled with 32 GB modules for 3 TB total. Reaching 12 TB requires replacing every module with higher-capacity DIMMs, so keep 3 TB if current workloads fit, or order the larger configuration up front to avoid a full memory swap.
