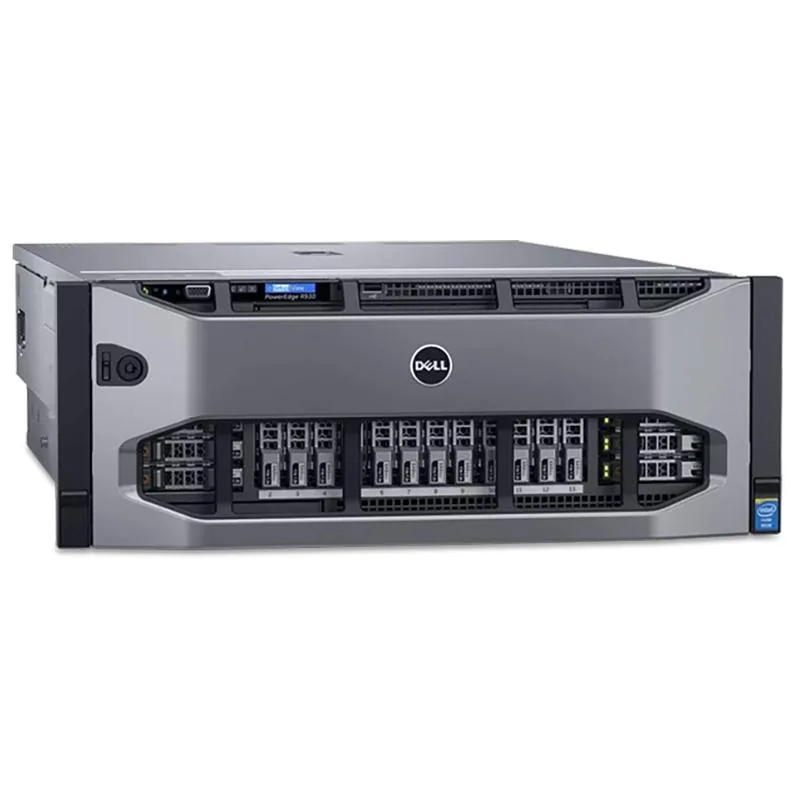

Silver 4U rack server front with 24 drive bays and bezel

DELL

DELL PowerEdge R930 4U Rack Server 4x Xeon E7-8867 v4 2.4GHz 16C 768GB DDR4 24x 1.8TB SAS

SKU CH-CH5M-ABR3J

A 4U rack server with four 16-core Xeon processors at 2.4 GHz, 768 GB DDR4 memory, and 24 hot-plug 1.8 TB SAS drives

  • Rack Height4U
  • CPU TypeIntel Xeon
  • CPU Speed2.40 GHz
  • CPU SocketLGA 2011
  • Number of CPU Cores16-Core Processor
  • # of Processors Installed4
  • Four Xeon E7-8867 v4 processors deliver 2.4 GHz base and 3.30 GHz turbo performance
  • 768 GB DDR4 registered ECC memory across 48 modules supports large-scale virtualization
  • 24 hot-plug 2.5" 1.8 TB 10K SAS drives provide high-capacity enterprise storage
  • Dual 10 Gb SFP+ and dual 1 GbE ports on Intel X520/I350 enable flexible networking
  • iDRAC 8 Enterprise with four 1100 W 80+ Platinum PSUs ensures resilient remote management

Enterprise compute density

The Dell PowerEdge R930 is a 4U rack server fitted with four Intel Xeon E7-8867 v4 processors, each running at 2.4 GHz with 16 cores. It targets organisations that run large-scale databases, virtualisation clusters or analytics workloads requiring high core counts and memory capacity in a single chassis.

Memory and storage headroom

The system ships with 768 GB of DDR4 registered ECC memory across 48 slots, leaving 48 additional slots to reach the 12 TB maximum. Twenty-four 1.8 TB 10K SAS drives provide raw capacity through the PERC H330 controller, which supports RAID 0, 1, 5, 10 and 50 for redundancy or performance.

Interface and expansion limits

The H330 controller operates at 12 Gb/s SAS and SATA speeds, while the Intel X520/I350 daughter card adds two 1 GbE and two 10 Gb SFP+ ports. The 4U chassis fills its 24 front drive bays with the installed drives, so further internal storage would require external enclosures. iDRAC 8 Enterprise handles remote management independently of the operating system.

Points forts

  • Four Xeon E7-8867 v4 processors deliver 2.4 GHz base and 3.30 GHz turbo performance
  • 768 GB DDR4 registered ECC memory across 48 modules supports large-scale virtualization
  • 24 hot-plug 2.5" 1.8 TB 10K SAS drives provide high-capacity enterprise storage
  • Dual 10 Gb SFP+ and dual 1 GbE ports on Intel X520/I350 enable flexible networking
  • iDRAC 8 Enterprise with four 1100 W 80+ Platinum PSUs ensures resilient remote management

Caractéristiques

BrandDELL
SeriesPowerEdge R930
Rack Height4U
CPU TypeIntel Xeon
CPU Speed2.40 GHz
CPU SocketLGA 2011
Number of CPU Cores16-Core Processor
# of Processors Installed4
MAX Processors4
ChipsetIntel C602J
Installed Memory Size768GB
Memory TypeDDR4
Max Memory Capacity12TB
Number of Memory Slots96
Storage ControllerDell Perc H330 Controller
HDD InterfaceSAS
SSD (Installed)No
Raid LevelRAID 0/1/5/10/50
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerDell Intel X520/I350 Quad Port 2x 1GbE 2x 10Gb SFP+ Network Daughter Card
LAN Ports4 x Ports
Expansion Slots1 x PCIe 3.0 x16 Slot, Single Riser Included (Riser 3)
Management PortRJ 45
Operating SystemNo

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the four Xeon E7-8867 v4 processors and 768 GB DDR4 memory work with my existing LGA 2011 motherboards?

The server uses four Xeon E7-8867 v4 processors in LGA 2011 sockets with 768 GB DDR4 registered ECC memory. Each processor has 16 cores at 2.4 GHz with 3.30 GHz turbo. The system supports up to 12 TB total memory across 96 slots.

How can I verify the PERC H330 controller and 24 SAS drives are operating correctly after installation?

Use iDRAC8 Enterprise remote management to monitor the PERC H330 RAID controller status and the 24 x 1.8 TB 10K SAS drives. The controller supports RAID 0, 1, 5, 10, 50. Check drive health, array status and controller firmware version through the iDRAC interface.

Which components are included and what must I source separately for the 24-bay 2.5-inch chassis?

Included: 4U chassis with 24 drive bays, four Xeon E7-8867 v4 processors, 768 GB DDR4 (48 x 16 GB), PERC H330 controller, 24 x 1.8 TB SAS HDDs, Intel X520/I350 quad-port network card (2x 1GbE, 2x 10Gb SFP+), iDRAC8 Enterprise, four 1100 W 80+ Platinum PSUs, ready rails, front bezel. No additional components listed.
