DELL

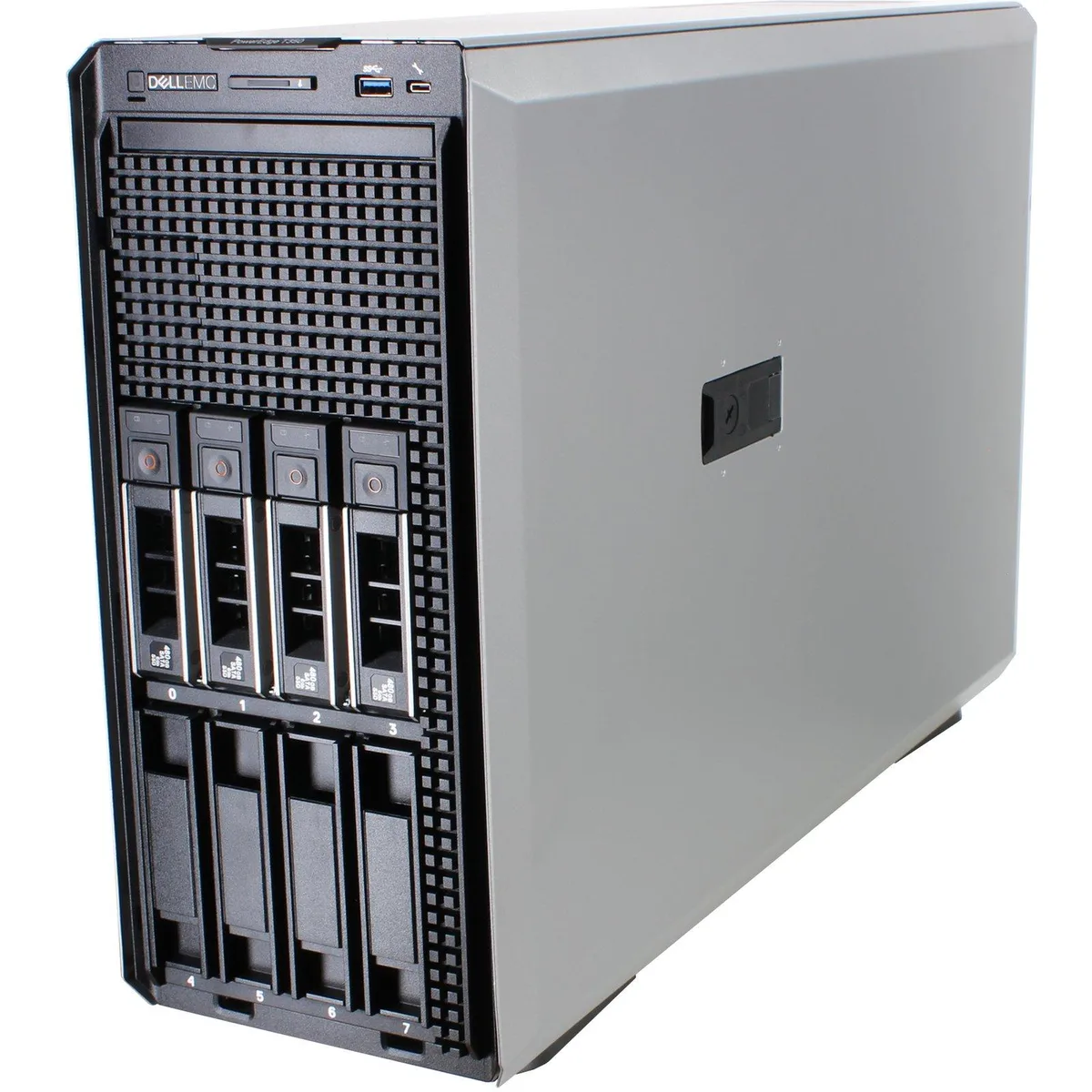

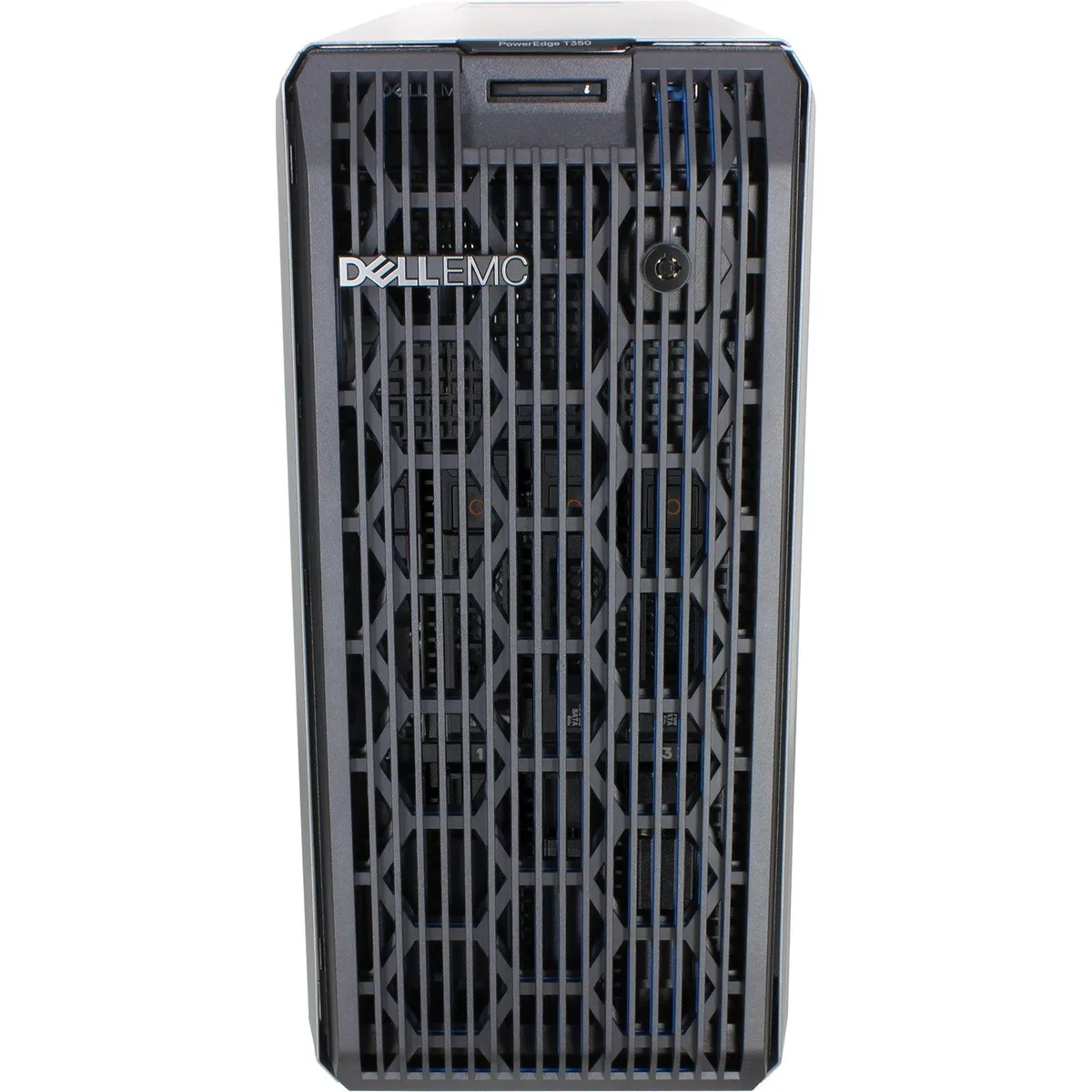

DELL PowerEdge T350 rack server E-2374G 32GB 2x 4TB 7.2K H755
A 5U rack server with an Intel E-2374G four-core processor, 32 GB DDR4 memory, two 4 TB 7.2K SATA drives and an H755 RAID controller
- TypeRack
- Rack Height5U
- CPU TypeIntel
- Hard Drive (Installed)2x 4TB 7.2K SATA
- Storage ControllerH755
- Max HDD Capacity8x 3.5" Drive Bays
- Intel E-2374G 4-core 3.7 GHz processor drives responsive compute performance
- 32 GB DDR4 3200 MHz memory supports smooth multitasking and virtualization
- 2 x 4 TB 7.2K SATA drives on H755 RAID controller deliver protected capacity
- 8 x 3.5-inch bays in 5U chassis allow storage growth without extra enclosures
- iDRAC9 Enterprise with OpenManage enables remote monitoring and automated management
Target workloads
The Dell PowerEdge T350 is a 5U rack server built around a single Intel E-2374G processor with four cores at 3.7GHz and 32GB of DDR4 memory. It ships with two 4TB 7.2K SATA drives managed by an H755 RAID controller. The platform suits small-business virtualisation, file serving or line-of-business applications that need internal storage expansion within eight 3.5-inch bays.
Installation notes
The chassis includes a 600W redundant power supply, bezel and power cords so the hardware is ready to rack. Four PCIe slots (two Gen 4.0, two Gen 3.0) accept additional controllers or network cards. Remote deployment is handled through iDRAC9 Enterprise with OpenManage Enterprise Advanced+. The internal dual SD module with a 16GB card provides a boot target, but the board only offers two onboard 1GbE ports for networking.
Storage and interface limits
The H755 controller manages SATA drives across the eight available 3.5-inch bays, capping internal capacity at the number of physical slots. PCIe Gen 4.0 bandwidth is limited to two slots, while the remaining two operate at Gen 3.0 speeds. Onboard networking is restricted to dual 1GbE, so heavier traffic demands a discrete adapter. The single-socket design fixes the maximum core count at four.
Points forts
- Intel E-2374G 4-core 3.7 GHz processor drives responsive compute performance
- 32 GB DDR4 3200 MHz memory supports smooth multitasking and virtualization
- 2 x 4 TB 7.2K SATA drives on H755 RAID controller deliver protected capacity
- 8 x 3.5-inch bays in 5U chassis allow storage growth without extra enclosures
- iDRAC9 Enterprise with OpenManage enables remote monitoring and automated management
Caractéristiques
| Brand | DELL |
|---|---|
| Model | T350 |
| Type | Rack |
| Rack Height | 5U |
| CPU Type | Intel |
| Hard Drive (Installed) | 2x 4TB 7.2K SATA |
| Storage Controller | H755 |
| Max HDD Capacity | 8x 3.5" Drive Bays |
| Remote Management | iDRAC9 Enterprise |
Questions sur cet article
How do I confirm the Intel E-2374G processor and 32GB DDR4 memory are recognised after powering on the Dell PowerEdge T350?
Use iDRAC9 Enterprise to view the system inventory; it will show the 3.7 GHz 4-core CPU, the four 8 GB PC4-3200 modules and the H755 controller with the two 4 TB 7.2K SATA drives.
What ships with the server and what must I purchase separately to add more storage?
The box includes the 5U chassis with 8x 3.5" bays, 1 x E-2374G CPU, 32 GB DDR4, H755 RAID card, 2 x 4 TB SATA drives, 600 W redundant PSU, iDRAC9 Enterprise, dual SD module with 16 GB card, bezel and power cords; buy additional 3.5" SATA drives to populate the six empty bays.
Which RAID level should I select on the H755 for the two installed 4 TB 7.2K SATA drives?
With two drives the H755 supports RAID 0 for maximum capacity and speed or RAID 1 for mirroring; choose RAID 1 if data redundancy is the priority.
