Dell PowerEdge T350 Rack Server E-2374G 64GB 4x 16TB H755

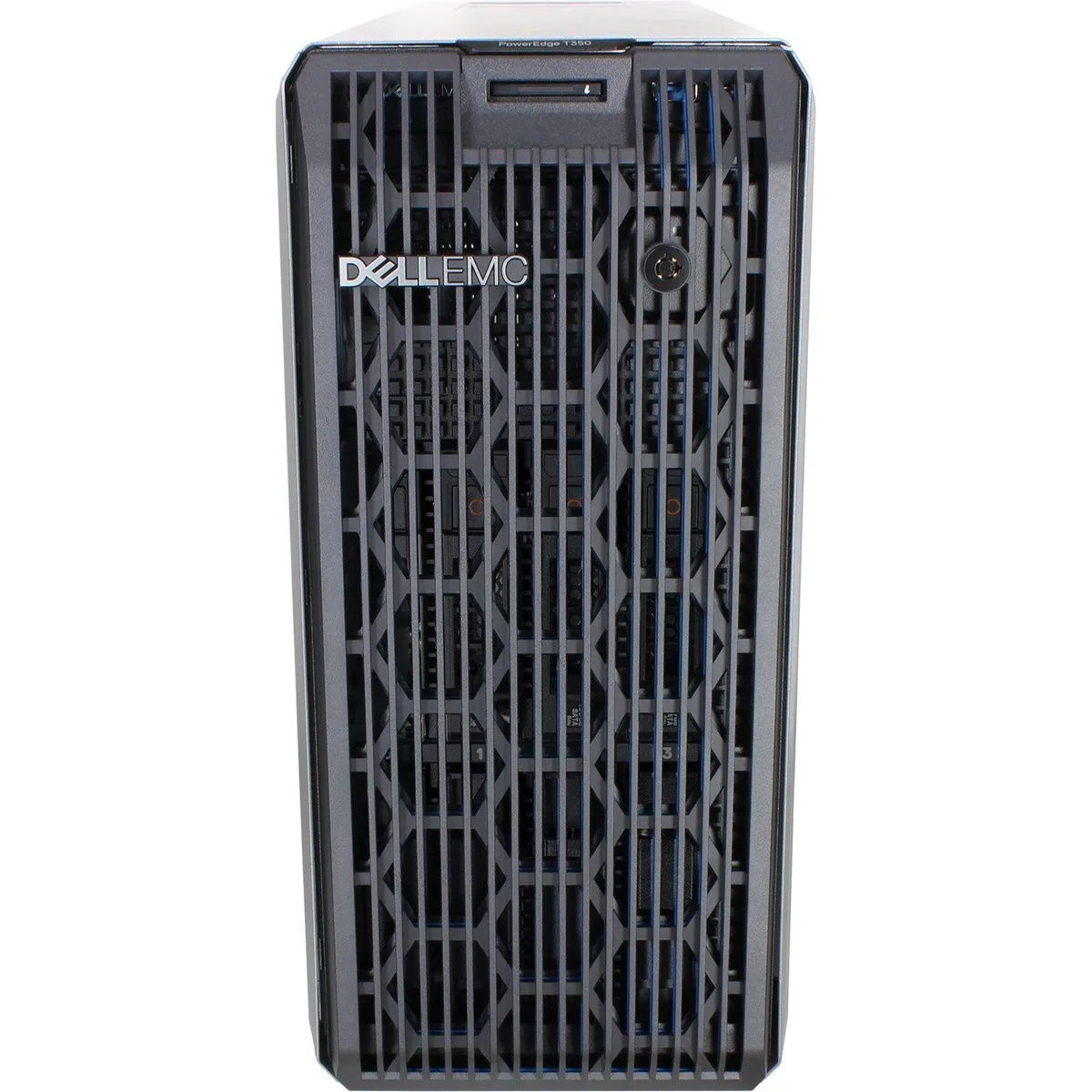

Dell PowerEdge T350 Tower Server

The Dell PowerEdge T350 is a 5U tower server built around a single Intel E-2374G four-core processor running at 3.7 GHz with 8 MB cache. It ships with 64 GB of DDR4 memory in four 16 GB modules operating at PC4-3200 speed. The system includes a PERC H755 RAID controller managing four 16 TB 7.2K SATA drives installed in an eight-bay 3.5-inch chassis. Remote management is handled by iDRAC9 Enterprise with OpenManage Enterprise Advanced Plus.

Sustained Load Behaviour

Dual redundant 600 W power supplies keep the platform running during extended workloads without a single point of failure. The H755 controller maintains consistent throughput across the four SATA drives while the DDR4 memory operates at rated PC4-3200 speeds under continuous demand. PCIe Gen 4.0 slots provide higher bandwidth for add-in cards that sustain heavy I/O, while Gen 3.0 slots handle less intensive peripherals. TPM 2.0 secures the platform during long-term operation.

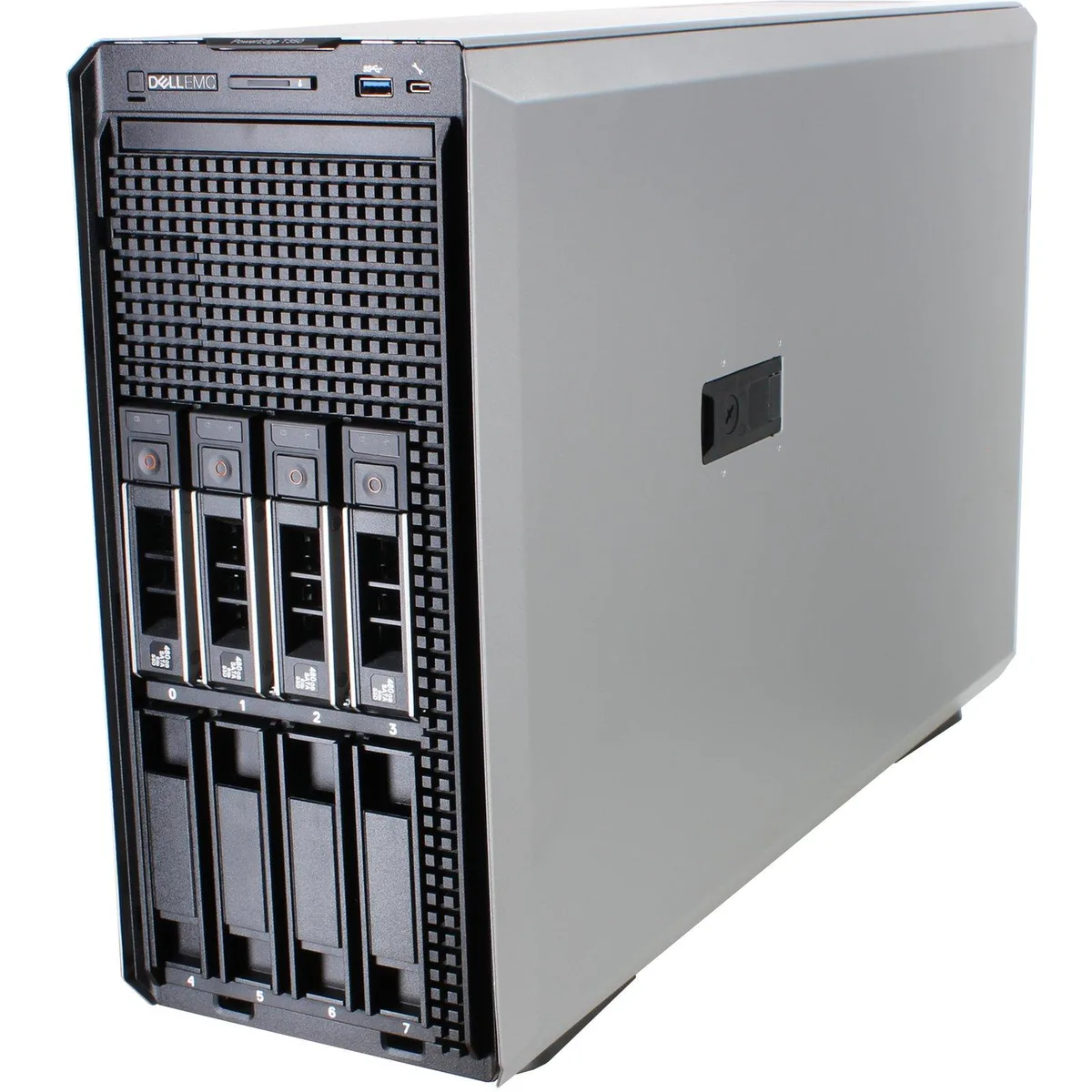

Storage Interface Limits

The SATA interface on the 7.2K drives caps sequential transfer rates well below PCIe-based alternatives, making the array suited for capacity-focused workloads rather than low-latency transaction processing. Four populated bays leave four 3.5-inch slots open for future expansion within the same chassis. The PERC H755 supports RAID levels that protect data across the installed drives, but the SATA link remains the bottleneck for random I/O performance. Onboard dual 1 GbE ports limit network throughput to gigabit speeds.
