DELL PowerEdge T440 5U rack server 2x Xeon Silver 4116 2.1GHz 12 Core 16GB DDR4 HBA330 4x 1.92TB 2x 750W

Dual Xeon Silver 4116 5U server

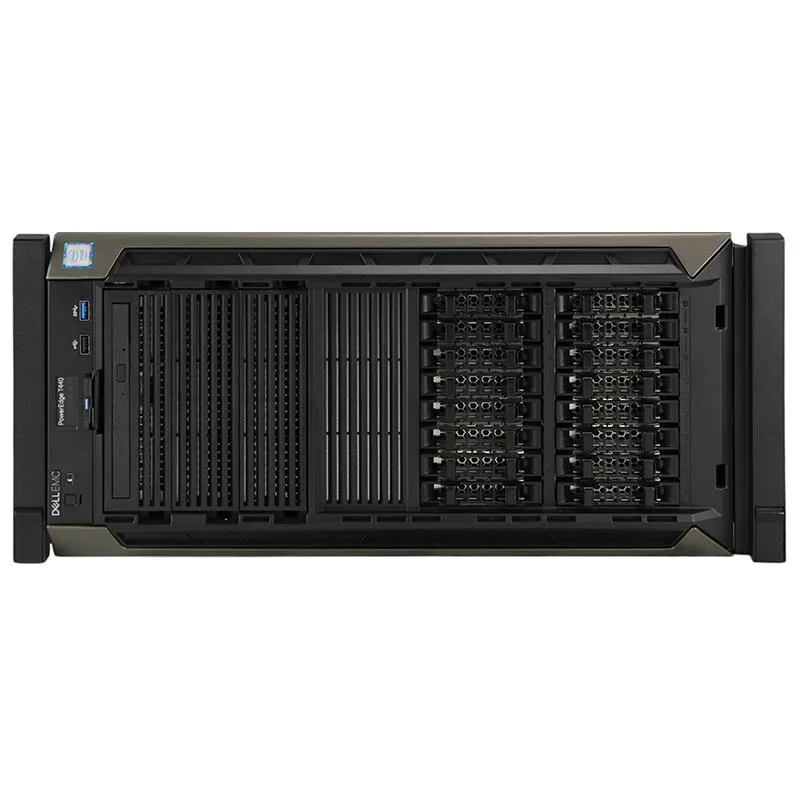

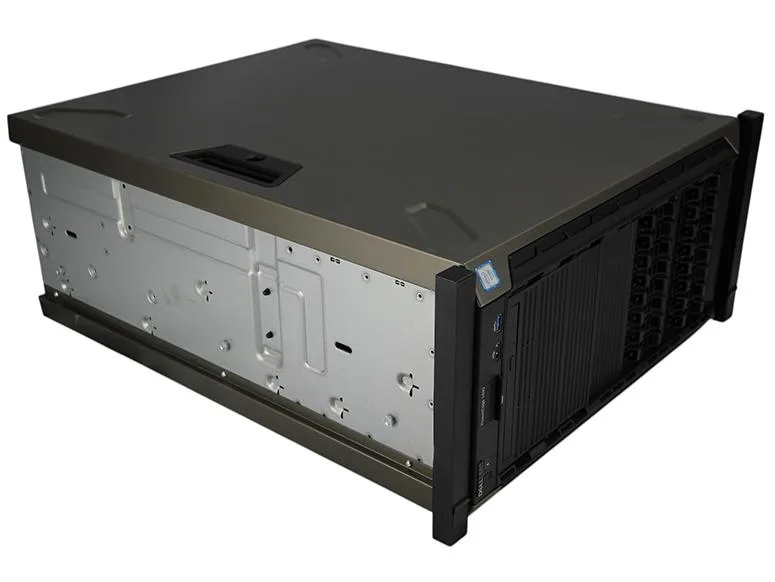

The Dell PowerEdge T440 is a 5U tower server fitted with two Intel Xeon Silver 4116 processors, each running at 2.1 GHz with a 3.0 GHz turbo and twelve cores. It ships with 16 GB of DDR4-2400 ECC registered memory across sixteen DIMM slots, expandable to 1 TB. The system includes a PERC HBA330 storage controller and four 1.92 TB SATA solid-state drives installed in 2.5-inch hot-swap bays. Dual 750 W platinum power supplies provide redundancy.

SATA SSD and HBA330 throughput limits

The four installed 1.92 TB drives connect through the HBA330 controller using the SATA 6 Gb/s interface, which caps sustained sequential throughput at the bus limit. The controller also supports SAS devices, but the current drives operate at SATA speeds. Sixteen 2.5-inch bays are available in total, so additional drives will share the same controller bandwidth. Network connectivity is provided by a dual-port gigabit Ethernet adapter, limiting external transfer rates to one gigabit per second per port.

Tool-less drive bays and rail kit omission

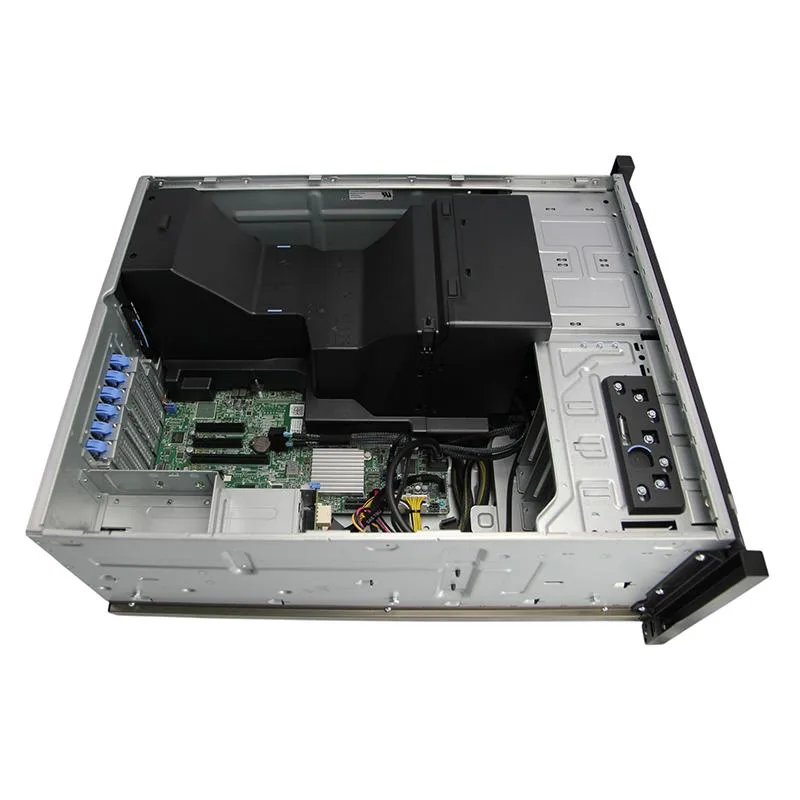

Hot-swap drive carriers allow drive installation without tools once the server is racked or positioned. The front bezel and ready rails are not included, so a separate rail kit must be sourced for rack mounting. Memory upgrades require opening the chassis and populating the remaining fourteen DDR4 slots in matched pairs for optimal performance. The iDRAC 9 Express module enables remote hardware management before the operating system loads.
