DELL
DELL Precision T7810 2x Xeon E5-2650 v3 2.3GHz 20-Core 64GB DDR4 Quadro K4000 1TB HDD
Dual 10-core Xeon workstation with 64GB DDR4, Quadro K4000 graphics and 1TB HDD for professional design and rendering tasks
- TypeBusiness Desktops & Workstations
- Form FactorTower
- ColorBlack
- MonitorMonitor not included
- Operating SystemNo
- Software IncludedNo OS
- Dual Xeon E5-2650 v3 CPUs deliver 20 cores for heavy multitasking
- 64GB DDR4 memory handles large project files smoothly
- Quadro K4000 with 3GB GDDR5 drives professional CAD and rendering
- 1TB HDD stores extensive datasets and project archives
- No OS pre-installed lets you choose your preferred platform

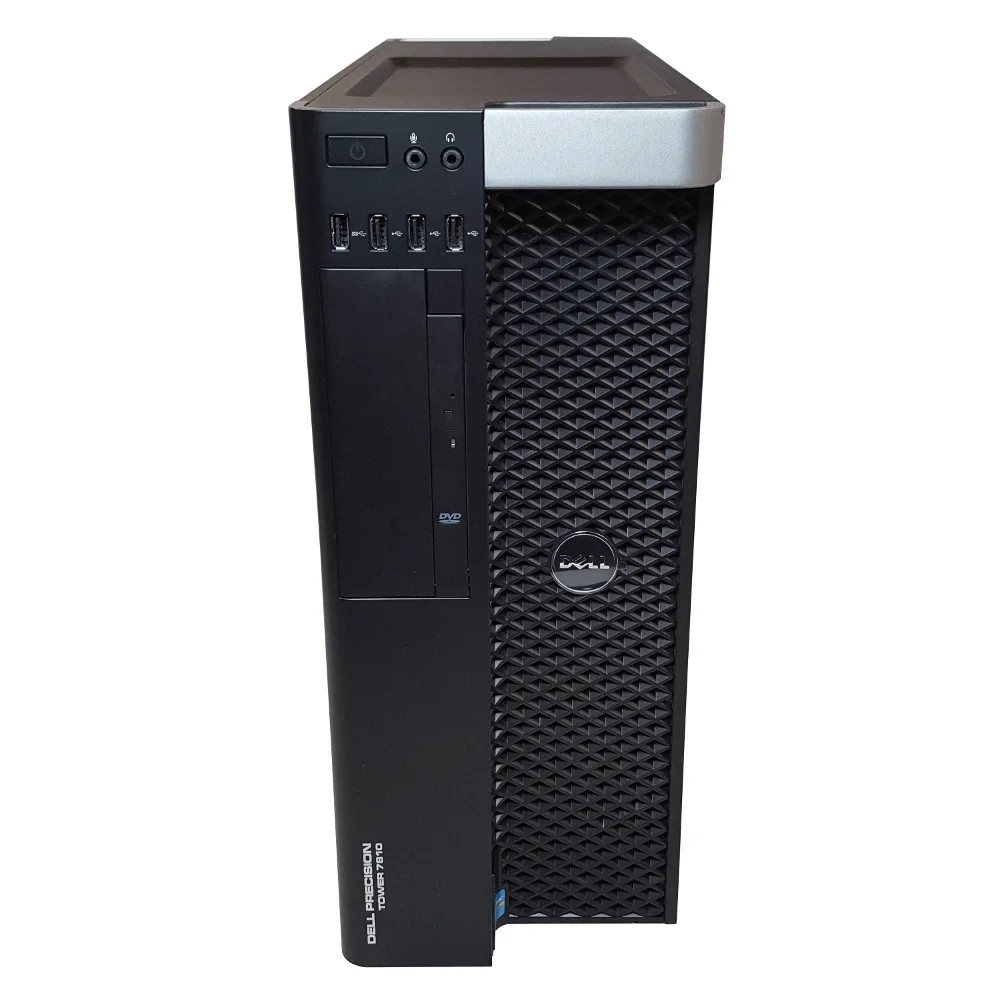

Precision T7810 dual Xeon workstation
The Dell Precision T7810 is a tower workstation built for professional design, engineering and rendering tasks. It ships with two Intel Xeon E5-2650 v3 processors running at 2.3GHz, each providing ten cores for a total of twenty. The system includes 64GB of DDR4 memory and a 1TB hard drive for project storage.
Quadro K4000 3GB GDDR5 graphics limits
The installed NVIDIA Quadro K4000 carries 3GB of GDDR5 memory and targets CAD, content creation and multi-display workflows. Its memory capacity and GPU architecture set practical limits on scene complexity, texture resolution and the number of high-resolution monitors that can be driven simultaneously. The card uses a legacy interface generation that does not support modern compute or ray-tracing APIs.

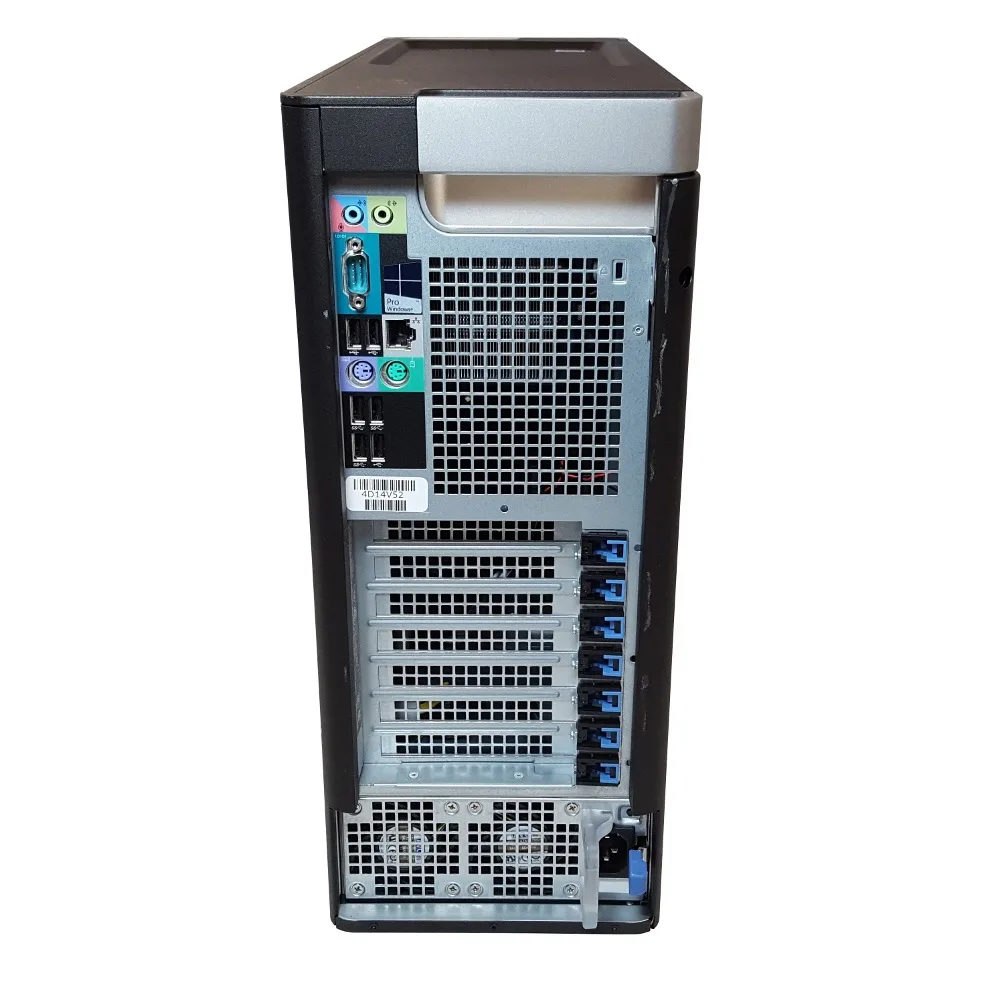

Tower form factor eases internal access
The full-size tower chassis allows straightforward access to the LGA 2011-3 sockets, memory slots and PCIe expansion bays. Dual-processor installation requires matched CPUs and correct population order, while the Intel C612 chipset expects registered DDR4 modules in specific channel configurations. No operating system is included, so the builder must provide installation media and drivers for the chosen platform.
Points forts
- Dual Xeon E5-2650 v3 CPUs deliver 20 cores for heavy multitasking
- 64GB DDR4 memory handles large project files smoothly
- Quadro K4000 with 3GB GDDR5 drives professional CAD and rendering
- 1TB HDD stores extensive datasets and project archives
- No OS pre-installed lets you choose your preferred platform
Caractéristiques
| Brand | DELL |
|---|---|
| Series | Precision |
| Model | T7810 |
| Type | Business Desktops & Workstations |
| Form Factor | Tower |
| Color | Black |
| Monitor | Monitor not included |
| Operating System | No |
| Software Included | No OS |
| Chipset | Intel C612 |
| CPU Type | Intel Xeon |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| CPU Name | Intel Xeon E5-2650 v3 |
| CPU Socket Type | LGA 2011-3 |
| GPU/VGA Type | NVIDIA Quadro K4000 |
| GPU Memory | 3GB GDDR5 |
| Graphics Card | Quadro K4000 |
| Memory Capacity | 64GB DDR4 |
| Memory Speed | DDR4 |
| Memory Slot (Total) | 8 |
| Memory Slots (Available/Total) | 8 |
| Maximum Memory Supported | 256GB |
| SSD | No |
| HDD | 1TB |
| HDD Interface | SATA |
| Screen Size | No Screen |
| Front USB | 3x USB 2.0, 1x USB 3.0 |
| Front Audio Ports | 1x Microphone, 1x Headphone |
| Video Ports | 2x DisplayPort, 1x DVI |
| Rear USB | 3x USB 3.0, 3x USB 2.0 |
| RJ45 | 1 |
| Rear Audio Ports | 1x Line In, 1x Line Out |
| External Bays | 1 |
| Internal Bays | 2 |
| PCIe Slots | 6 |
Questions sur cet article
Should I pick a single or dual Xeon configuration for this T7810?
This unit already includes two Xeon E5-2650 v3 processors, giving 20 cores total at 2.3 GHz. The board supports a maximum of two, so no further CPU upgrade is possible.
How does the 20-core 2.3 GHz Xeon setup perform in actual rendering and CAD workloads?
The dual 10-core Xeons deliver strong multi-threaded throughput for CPU-based rendering, simulation and large assembly work in professional applications.
What does the Quadro K4000's 3 GB GDDR5 limit in practice?
The 3 GB frame buffer restricts the maximum model and texture size that can reside on the GPU, so very large scenes may need CPU fallback or reduced detail.
