Full-height graphics card with silver fan shroud and dual-slot bracket

DELL

DELL Quadro FX 3800 KYR71 1GB 256-bit GDDR3 PCI Express 2.0 x16 workstation graphics card

SKU CH-30H3-ZNYQR

Workstation GPU with 192 CUDA cores, 1GB GDDR3 on a 256-bit bus, dual DisplayPort plus DVI, PCI Express 2.0 x16 interface

  • InterfacePCI Express 2.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUQuadro FX 3800
  • CUDA Cores192
  • Memory Size1GB
  • Memory Interface256-bit
  • 192 CUDA cores accelerate professional compute tasks
  • 1GB GDDR3 memory on a 256-bit bus handles large datasets
  • PCI Express 2.0 x16 interface fits Precision T5500 workstations

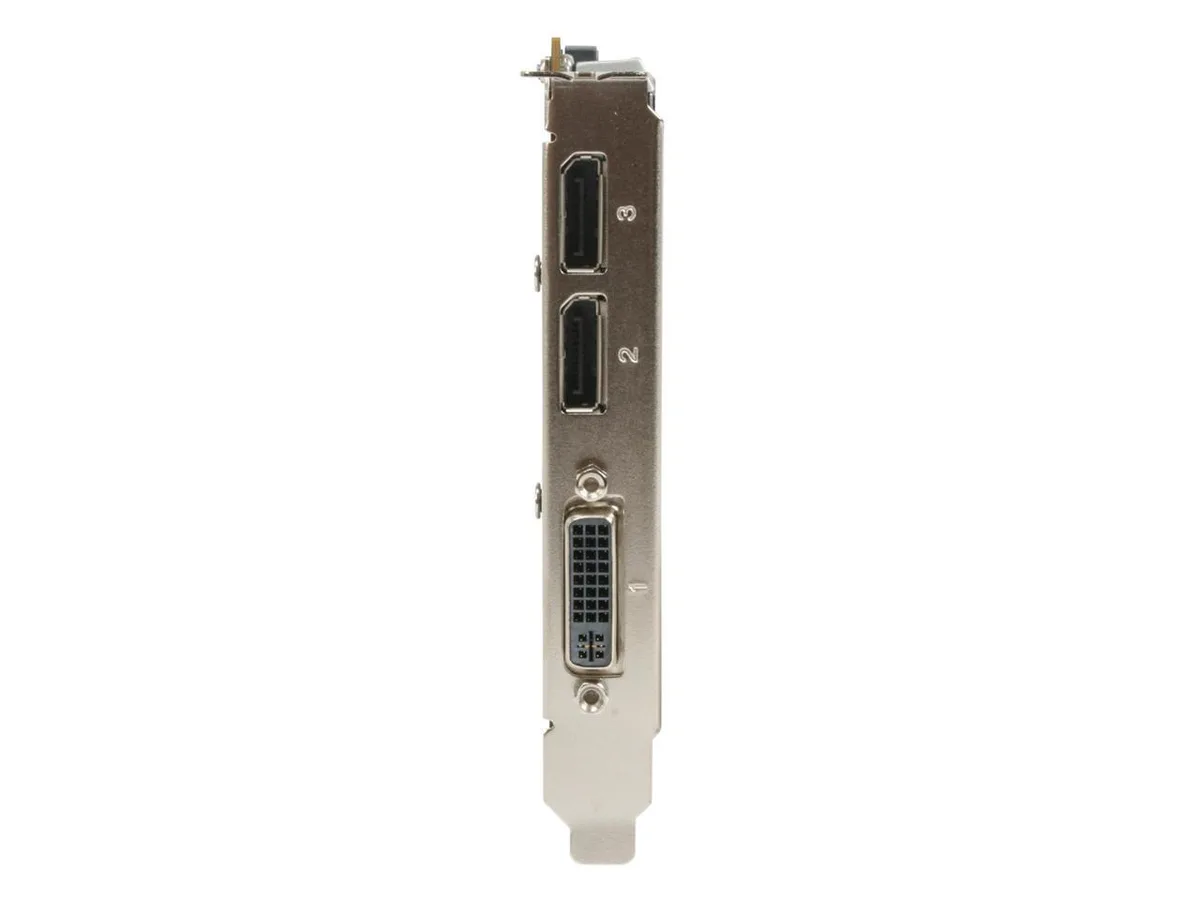

  • Dual DisplayPort plus DVI drives up to 2560 x 1600 resolution
  • SLI support enables multi-GPU scaling for demanding workflows

Dell Precision T5500 workstation GPU

This Dell Quadro FX 3800 KYR71 is a workstation graphics card built for the Precision T5500 platform. It connects through a PCI Express 2.0 x16 slot and draws up to 108W. The board carries 1GB of GDDR3 memory across a 256-bit bus with 192 CUDA cores.

Professionals maintaining legacy 3D pipelines

Suits engineers and designers who need a direct replacement for a Precision T5500 workstation running DirectX 10 or OpenGL 3.0 applications. Not suited for buyers who require DirectX 11 or later feature levels, more than 1GB of video memory, or modern compute APIs such as CUDA versions beyond what this architecture provides.

1GB GDDR3 frame buffer on a 256-bit interface

The single specification that decides fit is the 1GB GDDR3 memory subsystem on a 256-bit bus. It caps texture capacity and bandwidth for professional viewports at 2560 x 1600 digital resolution. If your workload needs larger models or higher resolutions, this card will not meet the requirement.

Points forts

  • 192 CUDA cores accelerate professional compute tasks
  • 1GB GDDR3 memory on a 256-bit bus handles large datasets
  • PCI Express 2.0 x16 interface fits Precision T5500 workstations
  • Dual DisplayPort plus DVI drives up to 2560 x 1600 resolution
  • SLI support enables multi-GPU scaling for demanding workflows

Caractéristiques

BrandDell
SeriesPrecision T5500
ModelKYR71
InterfacePCI Express 2.0 x16
Chipset ManufacturerNVIDIA
GPUQuadro FX 3800
CUDA Cores192
Memory Size1GB
Memory Interface256-bit
Memory TypeGDDR3
DirectXDirectX 10
OpenGLOpenGL 3.0
DisplayPort2
DVI1
Digital Resolution2560 x 1600
SLI SupportedYes
CoolerWith Fan
Dual-Link DVI SupportedYes
Operating Systems SupportedWindows 7 (64-bit and 32-bit), Windows Vista (64-bit and 32-bit), Windows XP (64-bit and 32-bit) and Windows 2000 Linux (64-bit and 32-bit) Solaris
System Requirements108W Maximum Power Consumption
Auxiliary Power Connector6 Pin
Slot WidthSingle Slot

Questions sur cet article

How can I confirm the card is running at the full PCI Express 2.0 x16 link speed after installation?

In GPU-Z or NVIDIA Control Panel check that the bus interface reads PCIe 2.0 x16 and that the GPU core and 1GB GDDR3 memory clocks match the Quadro FX 3800 reference values.

What display cables or adapters are included, and what must I source separately for my monitors?

The card ships with a dual-link DVI port and two DisplayPort connectors; cables or active adapters for DVI, DisplayPort, HDMI or VGA are not included and must be purchased separately.

Which Dell workstation models are validated for the KYR71 Quadro FX 3800 with its 108W power draw?

The KYR71 is listed for the Precision T5500 series; verify your chassis has a PCIe 2.0 x16 slot and a power supply rated for at least 108W additional load before ordering.
