Black ATX full-tower case with dual tempered-glass side panels and pre-installed ARGB fans

DIYPC

DIYPC Vanguard-F2-BK ATX Full Tower PC Case Black

SKU CH-R2Z5-SP7BD MPN Vanguard-F2-BK

Full-tower steel chassis with tempered-glass panels, four pre-installed 140 mm ARGB PWM fans, room for 455 mm GPUs and 360 mm top radiators, plus eight 2.5-inch and three 3.5-inch drive bays

  • TypeATX Full Tower
  • ColorBlack
  • Case MaterialSteel / Tempered Glass
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityATX / Micro ATX / Mini ITX

Options Vanguard-F2 (Black)

  • Four pre-installed ARGB PWM fans deliver vibrant cooling out of the box
  • Ten total fan mounts let you scale airflow for any build
  • Top and motherboard-side radiator support up to 420 mm for high-end liquid cooling

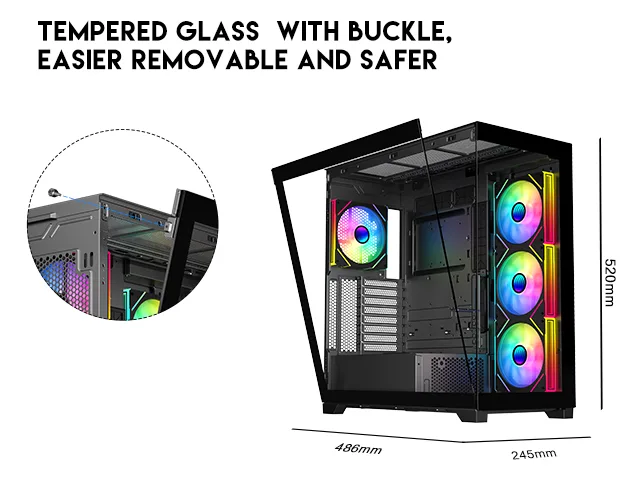

  • Tool-free removal on front, top and both side panels speeds assembly

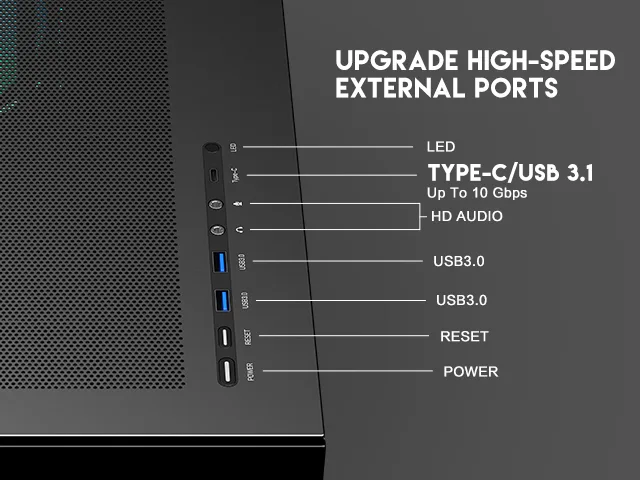

  • Top I/O includes two USB 3.0 ports and one Type-C for fast peripheral access

Full-tower chassis for ATX builds

The DIYPC Vanguard-F2-BK is a black ATX full-tower case built from steel with tempered glass side panels. It accepts ATX, Micro-ATX and Mini-ITX motherboards and provides three internal 3.5-inch drive bays plus eight 2.5-inch bays. Eight expansion slots give room for long graphics cards and additional add-in cards.

Sustained cooling with pre-installed ARGB fans

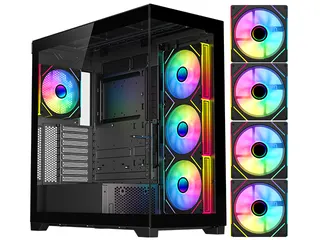

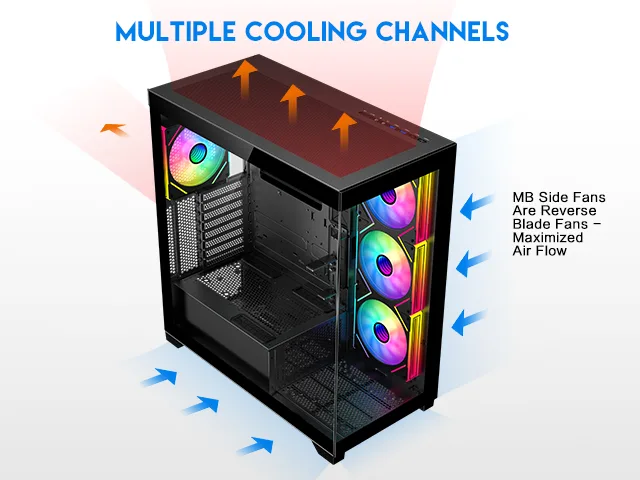

Four 140mm ARGB PWM fans come pre-installed, three on the motherboard side with reverse blades and one at the rear, delivering consistent airflow under continuous load. Ten fan positions in total allow up to three optional 120mm fans at the top and three at the bottom for extra intake or exhaust. A top radiator mount supports up to 360mm for liquid-cooling loops that must dissipate heat over long sessions.

Practical limits of the ATX form factor

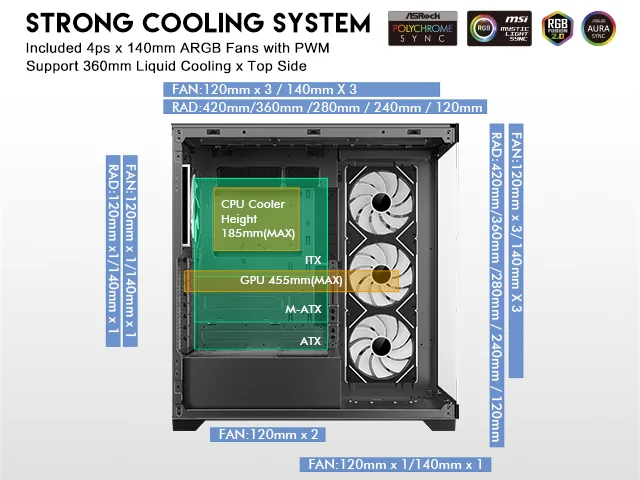

Maximum graphics-card length is 455mm, CPU cooler height is capped at 185mm and power-supply length at 270mm. The motherboard tray offers 38mm of cable-routing space behind it. Front-panel I/O includes two USB 3.0 ports and one USB Type-C connector for high-speed external storage or peripherals.

Points forts

  • Four pre-installed ARGB PWM fans deliver vibrant cooling out of the box
  • Ten total fan mounts let you scale airflow for any build
  • Top and motherboard-side radiator support up to 420 mm for high-end liquid cooling
  • Tool-free removal on front, top and both side panels speeds assembly
  • Top I/O includes two USB 3.0 ports and one Type-C for fast peripheral access

Caractéristiques

BrandDIYPC
ModelVanguard-F2-BK
TypeATX Full Tower
ColorBlack
Case MaterialSteel / Tempered Glass
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityATX / Micro ATX / Mini ITX
Side Panelwith Side Window
LEDARGB
Internal 3.5" Drive Bays3
Internal 2.5" Drive Bays8
Expansion Slots8
Fan OptionsTop: 3 x 120mm fan (Optional)
Bottom: 3 x 120mm fan (Optional)
MB Side: 3 x 140mm ARGB Reverse Blade PWM Fan (pre-installed)
Rear: 1 x 140mm ARGB PWM Fan (pre-installed)
Radiator OptionsTop - Up to 360mm
Max GPU Length455 mm
Max CPU Cooler Height185 mm
Max PSU Length270 mm
Poids d’expédition13.52 kg
Dimensions du colis584 × 578 × 330 mm

Autres versions de ce modèle

2 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How loud do the four pre-installed 140 mm ARGB PWM fans run when the system is under load all day?

The four pre-installed 140 mm ARGB PWM fans adjust speed automatically via PWM, so noise stays proportional to the cooling demand of your components.

Which power supply do I need to supply myself because the case ships without one?

You must provide an ATX power supply up to 270 mm long; the case has a bottom-mounted PSU bay but includes no power supply.

Will my existing 360 mm top-mount radiator fit alongside the motherboard-side fans?

The top supports radiators up to 360 mm, and the motherboard side accepts up to 420 mm, so a 360 mm unit fits in either location.
