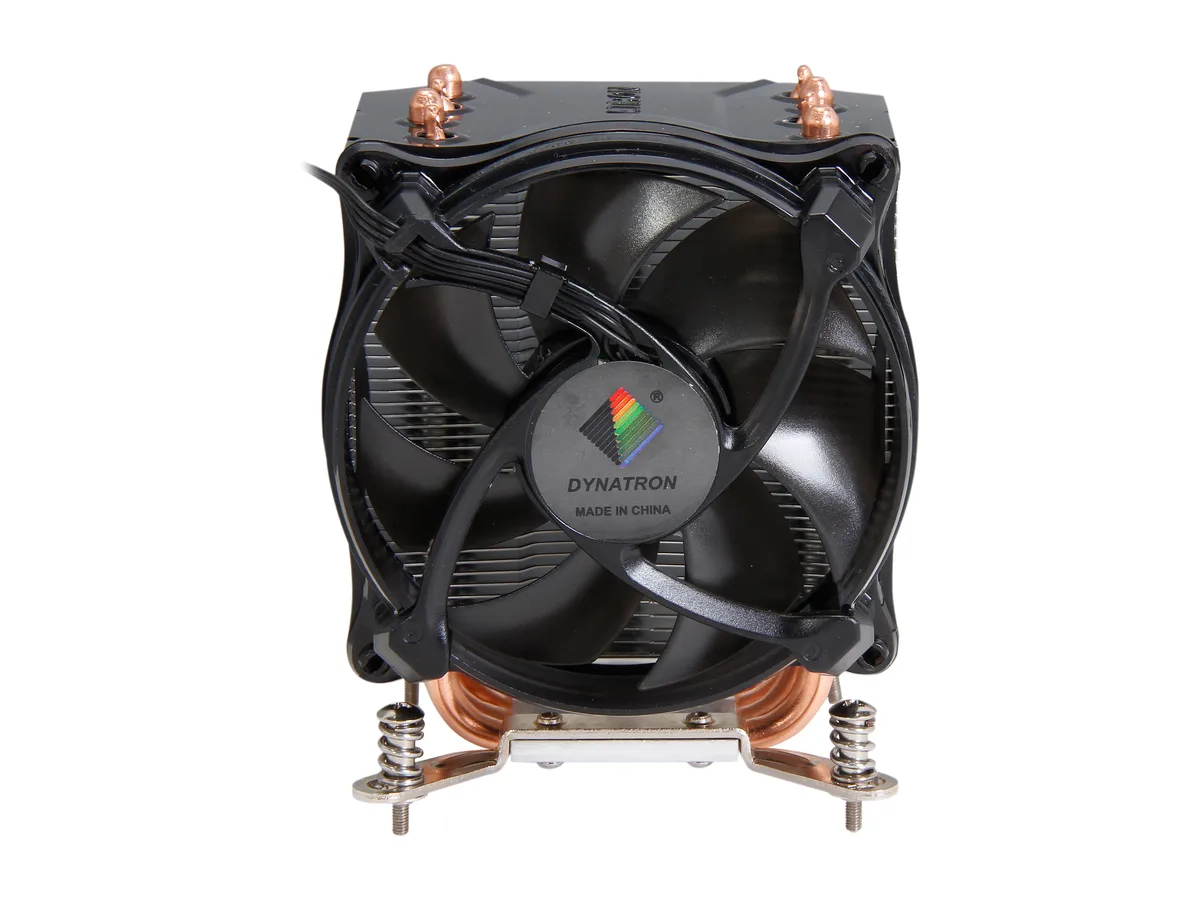

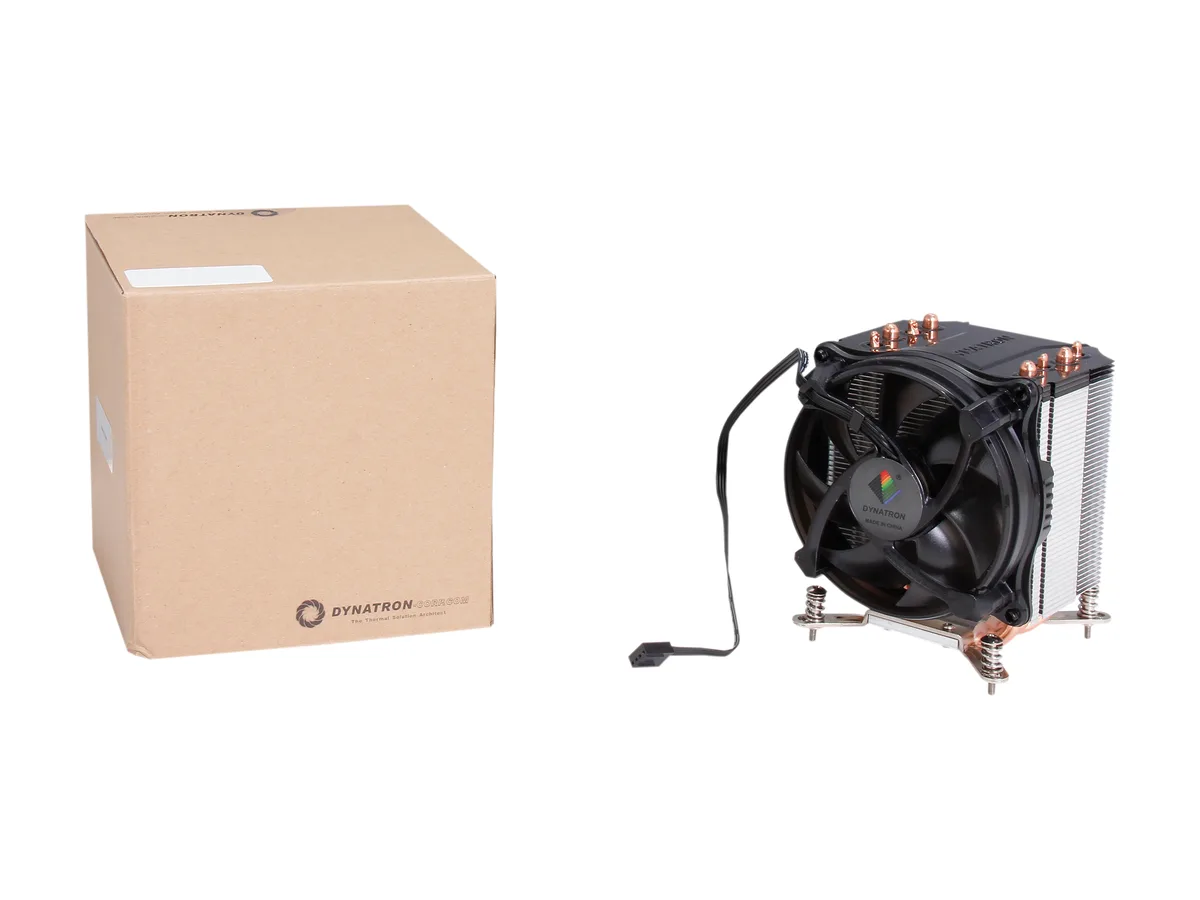

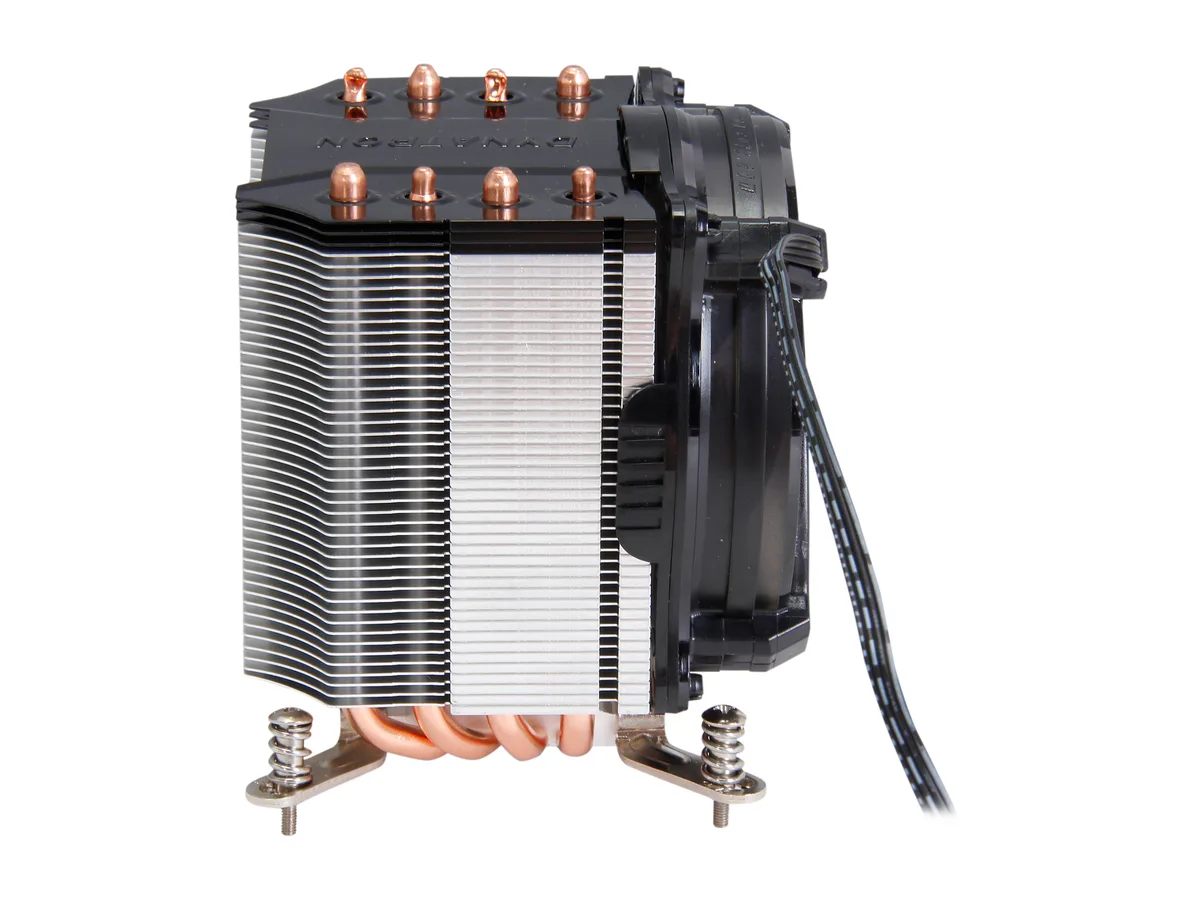

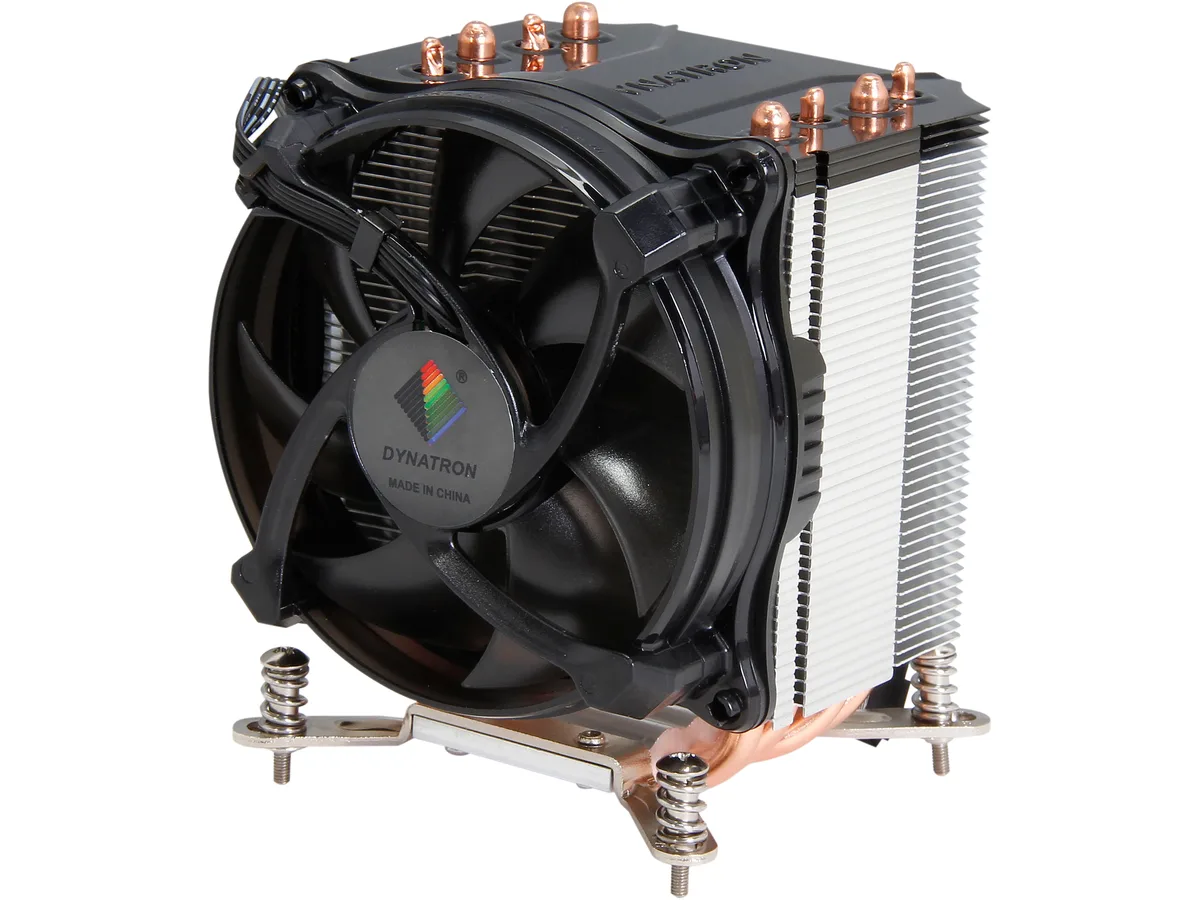

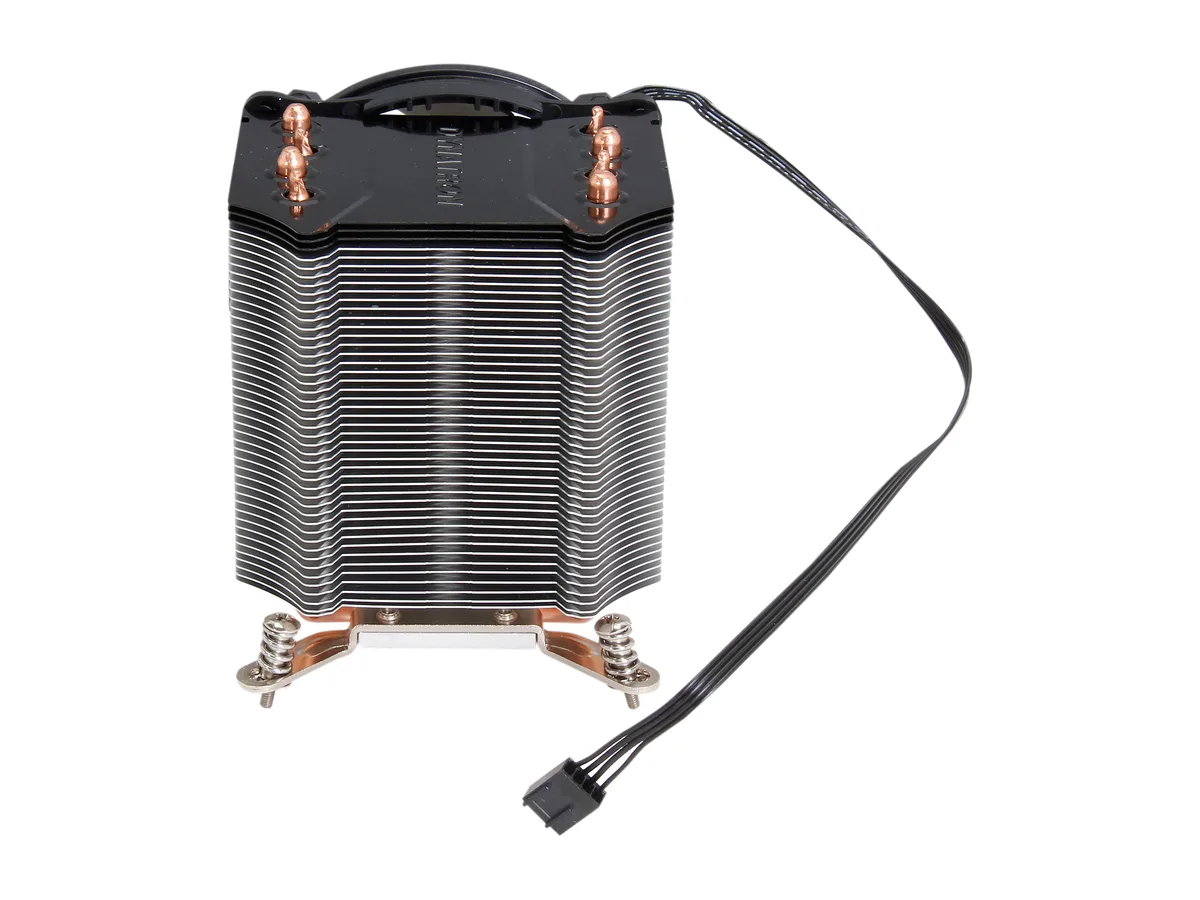

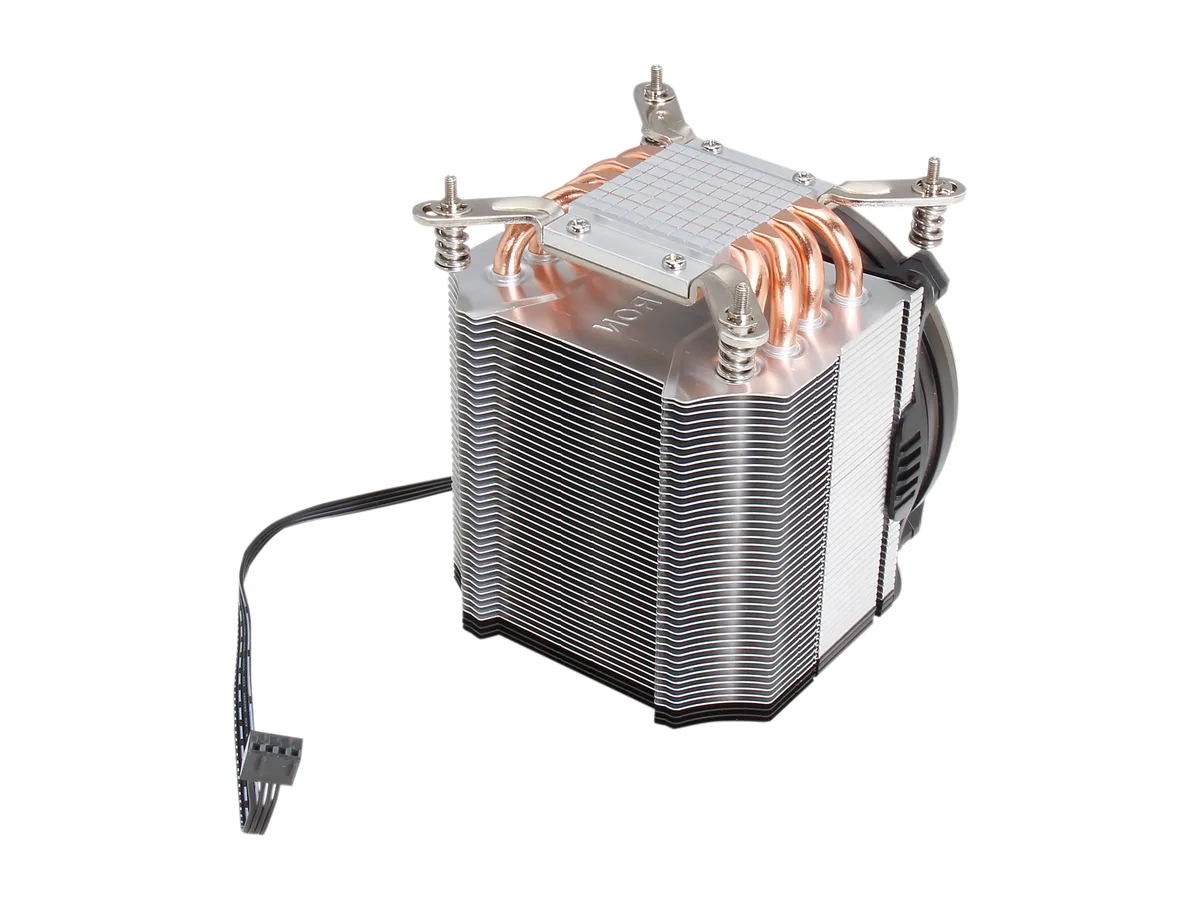

Silver aluminium tower cooler with 92 mm fan and four copper heat pipes

Dynatron

Dynatron K17 92 mm CPU cooler 4 heat pipes 105 W TDP

SKU CH-WM01-8KXCQ MPN K17

A 92 mm tower cooler with four heat pipes and dual-ball bearing fan handles up to 105 W TDP for Intel LGA 1150, 1151, 1155 and 1156 sockets

  • TypeFan & Heatsinks
  • Fan Size92mm
  • CPU Socket CompatibilityIntel LGA 1156 / 1155 / 1151
  • Bearing Type2 Ball
  • RPM1000 RPM (20%) 1800 RPM (50%) 2500 RPM (100%)
  • Air Flow17.34 CFM (20%) 31.21 CFM (50%) 43.36 CFM (100%)
  • Cools up to 105 W TDP with four heat pipes
  • 92 mm fan runs at 1000 RPM minimum for quiet operation
  • Double-ball bearing ensures long fan life
  • PWM control adjusts speed automatically from 20 % to 100 %
  • Compact 110 mm height fits tight chassis

92 mm fan and four heat pipes

The Dynatron K17 is a 92 mm tower-style air cooler that uses four U-shape heat pipes with H.C.C. technology to move heat from the CPU into an aluminium fin stack. A double-ball bearing fan spins between 1000 and 2500 RPM depending on PWM duty cycle. The unit stands 110 mm tall and weighs 530 g.

Suitable for LGA 1150/1155/1156 CPUs up to 105 W TDP

This cooler fits Intel sockets LGA 1150, 1155 and 1156 and is rated for processors drawing up to 105 watts, covering the listed Core i3, i5, i7, Pentium and Xeon E3 models. Builders using newer socket types, higher TDP chips, or cases with less than 110 mm of cooler clearance should look at other solutions.

105 W TDP rating

The single specification that decides fitment is the 105 W thermal design power limit; if the target CPU exceeds this figure the cooler cannot guarantee adequate thermal performance.

Points forts

  • Cools up to 105 W TDP with four heat pipes
  • 92 mm fan runs at 1000 RPM minimum for quiet operation
  • Double-ball bearing ensures long fan life
  • PWM control adjusts speed automatically from 20 % to 100 %
  • Compact 110 mm height fits tight chassis

Caractéristiques

BrandDynatron
ModelK17
TypeFan & Heatsinks
Fan Size92mm
CPU Socket CompatibilityIntel LGA 1156 / 1155 / 1151
Bearing Type2 Ball
RPM1000 RPM (20%)
1800 RPM (50%)
2500 RPM (100%)
Air Flow17.34 CFM (20%)
31.21 CFM (50%)
43.36 CFM (100%)
Noise Level17.0 dBA (20%)
24.78 dBA (50%)
31.92 dBA (100%)
Power Connector4 Pin
Heatsink MaterialAluminum
Fan Mounting Types to HeatsinkHorizontal
Max CPU Cooler Height110 mm
Fan Dimensions92 x 25.0 mm
Weight530 g
FeaturesIntelligent H.C.C
Low Noise
High-density wave-fin
U-Shape Heatpipe x4
Energy-Savirtg PWM
RoHS
Poids d’expédition0.66 kg
Dimensions du colis142 × 137 × 132 mm

Questions sur cet article

Does the Dynatron K17 include mounting hardware for LGA 1151 sockets or must I buy a separate bracket?

The cooler is built for Intel LGA 1156, 1155 and 1151 sockets; the supplied mounting kit covers those platforms so no extra bracket is required.

The K17 lists three duty-cycle speeds — which one should I set in the BIOS for a 105 W CPU?

At 100 % duty the fan reaches 2500 RPM, 43.36 CFM airflow and 31.92 dBA, matching the 105 W TDP rating; lower duty cycles reduce cooling capacity.

What does the 105 W TDP figure mean once the cooler is installed in a case with limited airflow?

The 105 W rating is achieved at full fan speed (2500 RPM, 3.00 mm-H₂O static pressure); restricted case airflow will lower the practical heat dissipation below that figure.
