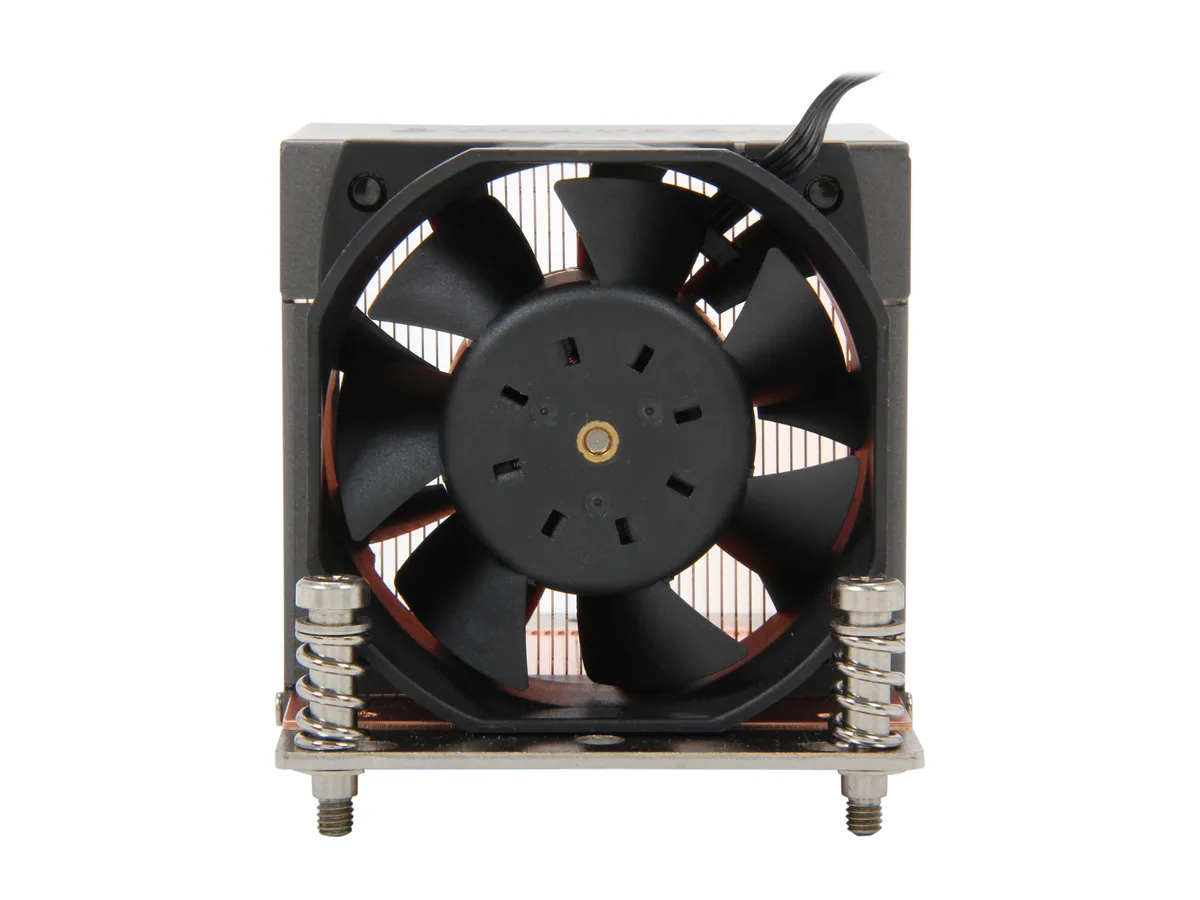

Black 60mm fan on copper stacked-fin heatsink horizontal mount 67mm tall LGA 2011 narrow

Dynatron

Dynatron R14 60mm 2 Ball LGA 2011 Narrow CPU cooler

SKU CH-JXT2-MPF23 MPN R14

60 mm dual-ball fan on a copper stacked-fin heatsink cools narrow LGA 2011 CPUs up to 150 W in 2U servers

  • ColorBlack
  • TypeFan & Heatsinks
  • Fan Size60mm
  • CPU Socket CompatibilityIntel LGA 2011 (Narrow Type)
  • Bearing Type2 Ball
  • RPMAt Duty Cycle 20%: 1500 RPM At Duty Cycle 50%: 3500 RPM At D
  • Low-noise operation at 16.0 dBA with 20 % duty cycle
  • High airflow up to 40.5 CFM at full 100 % duty cycle
  • Dual-ball bearing fan rated for 7000 RPM maximum speed
  • Copper stacked-fin heatsink handles CPUs up to 150 W TDP
  • Slim 67 mm height fits 2U and taller server chassis

Socket and TDP fit

The Dynatron R14 is a 60 mm air cooler built for Intel LGA 2011 narrow ILM sockets. It supports processors up to 150 W TDP and fits 2U and taller server chassis with a maximum cooler height of 67 mm.

Who should look elsewhere

Builders using standard square ILM brackets or consumer LGA 2011 boards cannot mount this cooler. Buyers needing quiet desktop operation may find the 47.5 dBA noise level at full speed too loud for office environments.

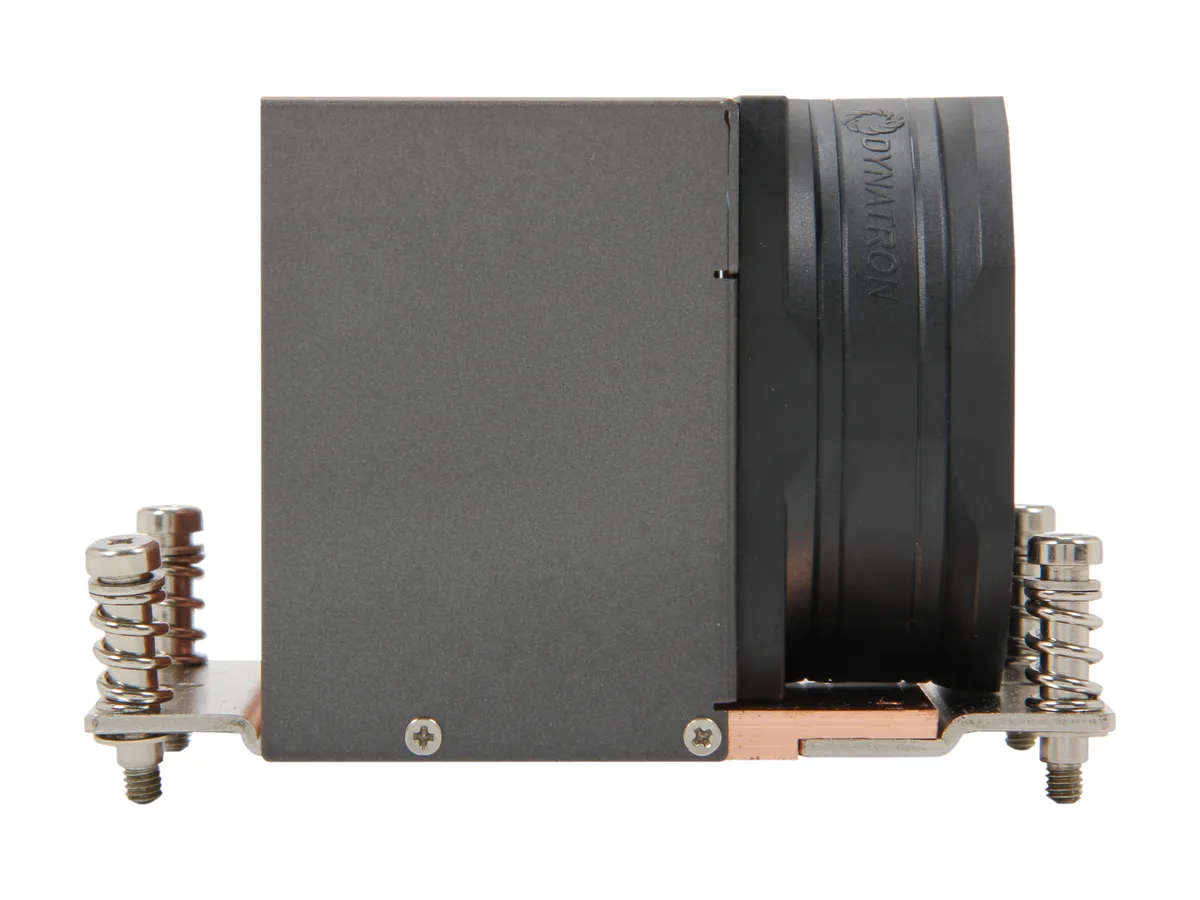

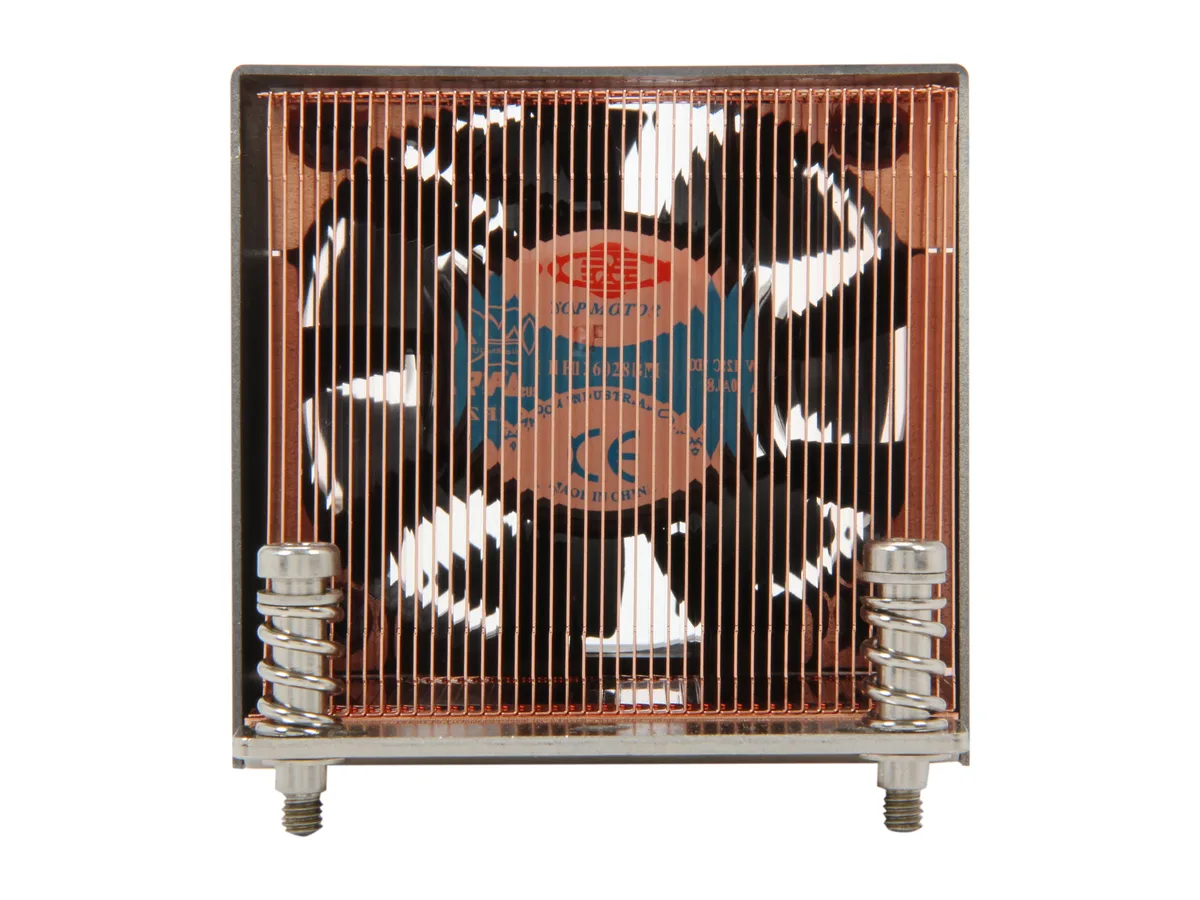

Copper stacked-fin heatsink

A copper heatsink with stacked fins transfers heat from the CPU to the horizontal 60 mm fan. The 2 ball bearing fan runs at 1500 RPM at 20 % duty, 3500 RPM at 50 % and 7000 RPM at 100 %, delivering 8.8 to 40.5 CFM across the range.

Points forts

  • Low-noise operation at 16.0 dBA with 20 % duty cycle
  • High airflow up to 40.5 CFM at full 100 % duty cycle
  • Dual-ball bearing fan rated for 7000 RPM maximum speed
  • Copper stacked-fin heatsink handles CPUs up to 150 W TDP
  • Slim 67 mm height fits 2U and taller server chassis

Caractéristiques

BrandDynatron
ModelR14
ColorBlack
TypeFan & Heatsinks
Fan Size60mm
CPU Socket CompatibilityIntel LGA 2011 (Narrow Type)
Bearing Type2 Ball
RPMAt Duty Cycle 20%: 1500 RPM
At Duty Cycle 50%: 3500 RPM
At Duty Cycle 100%: 7000 RPM
Air FlowAt Duty Cycle 20%: 8.8 CFM
At Duty Cycle 50%: 20.3 CFM
At Duty Cycle 100%: 40.5 CFM
Noise LevelAt Duty Cycle 20%: 16.0 dBA
At Duty Cycle 50%: 32.9 dBA
At Duty Cycle 100%: 47.5 dBA
Power Connector4 Pin
Heatsink MaterialCopper Heatsink with Stacked Fins
Fan Mounting Types to HeatsinkHorizontal
Max CPU Cooler Height67 mm
Fan Dimensions60 x 60 x 28 mm
Weight660g
FeaturesIntel Sandy Bridge Romley-EP/EX Narrow ILM Processors up to TDP 150 Watts for socket 2011 2U&Up Server Solution
Solution: 2U Solution
Rated Voltage: 12 V
Power:
At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 2.16 W
At Duty Cycle 100%: 7.2 W
Air Pressure:
At Duty Cycle 20%: 0.7 mm-H2O
At Duty Cycle 50%: 3.6 mm-H2O
At Duty Cycle 100%: 14.3 mm-H2O
*Note:
Support CPU Power up to 150 Watts

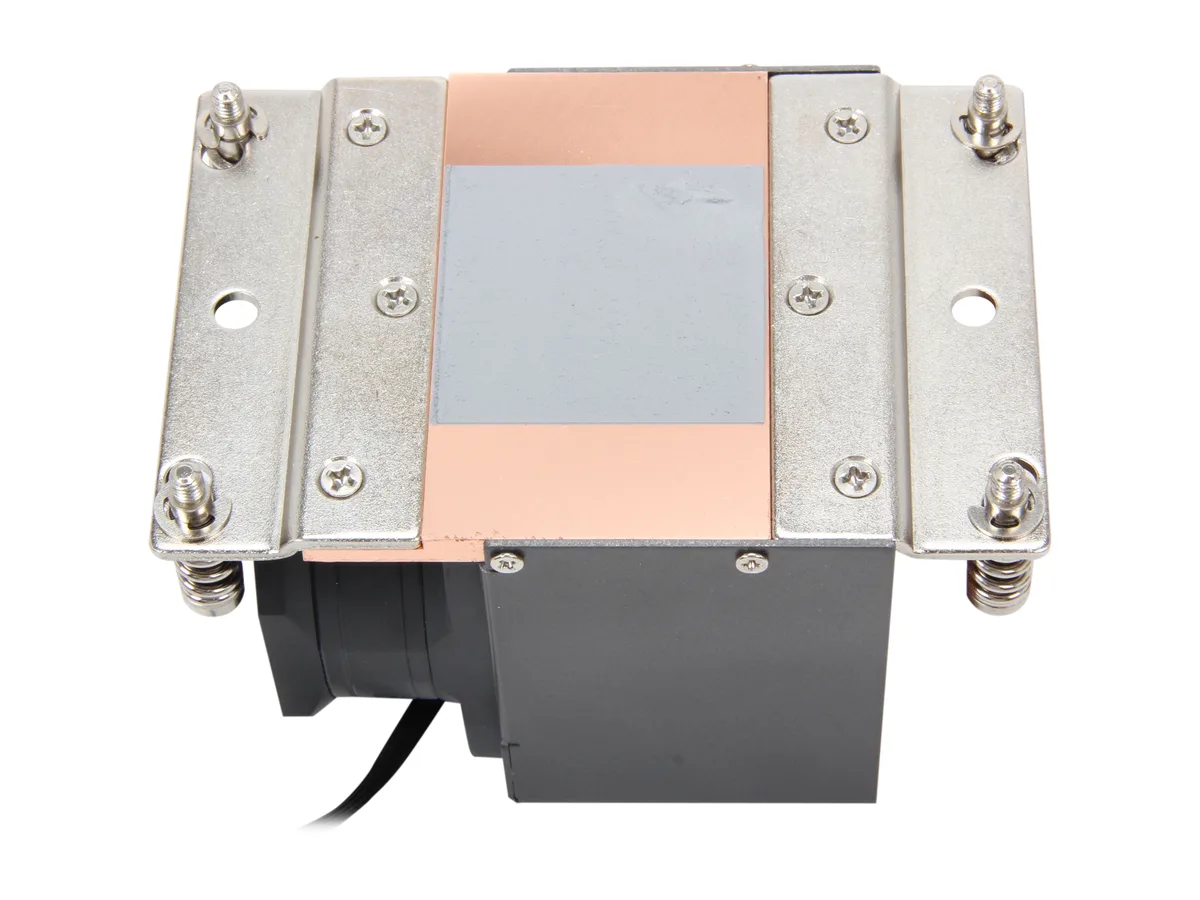

Pre-print thermal compound Shin-Etsu G751
RoHS Compliance
Backplate is not included.
Poids d’expédition0.73 kg
Dimensions du colis132 × 112 × 91 mm

Questions sur cet article

Does the 4-pin power connector on the R14 plug straight into a standard LGA 2011 motherboard header?

Yes, the cooler uses a 4-pin PWM connector that fits the CPU fan header on any LGA 2011 narrow-ILM board and runs at the rated 12 V.

Will the 67 mm height and horizontal fan layout clear DIMM slots and VRM heatsinks on a typical 2U server board?

The 67 mm stack height and horizontal 60 mm fan are designed for 2U-and-up chassis, so they sit low enough to avoid standard DIMM and VRM clearance issues on narrow-ILM LGA 2011 boards.

How can I confirm the fan is spinning at the correct 7000 RPM under full load after installation?

Monitor the CPU fan header in BIOS or a hardware utility; at 100 % duty cycle the fan should report 7000 RPM, 40.5 CFM airflow and 47.5 dBA noise.
