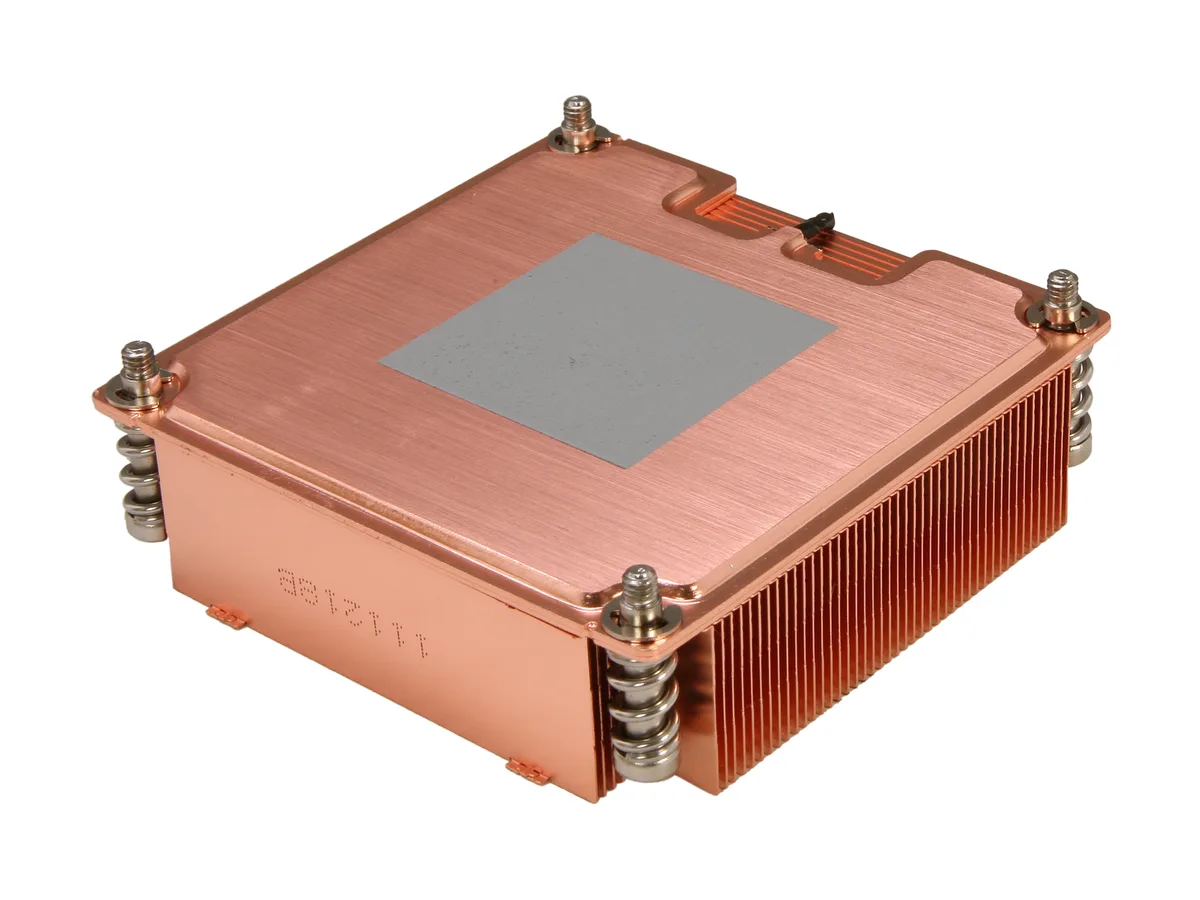

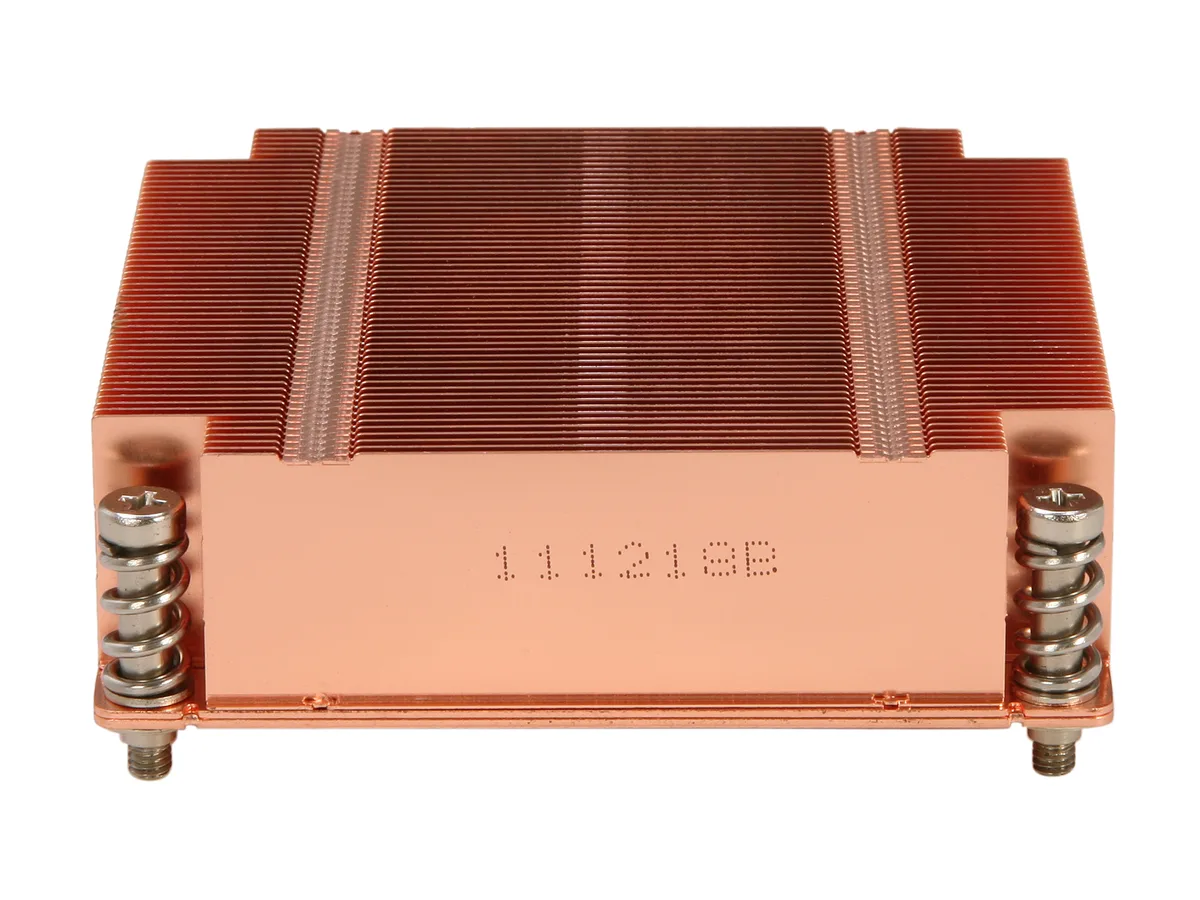

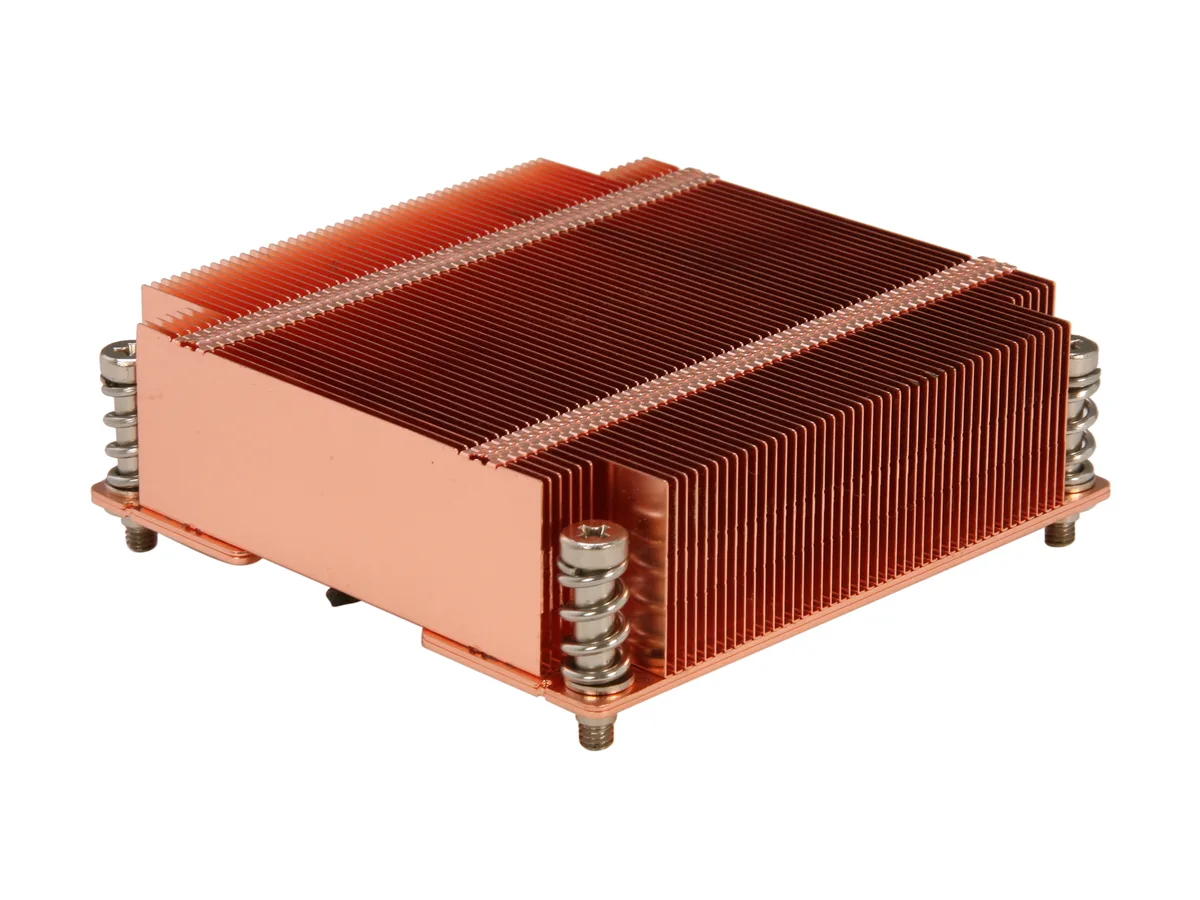

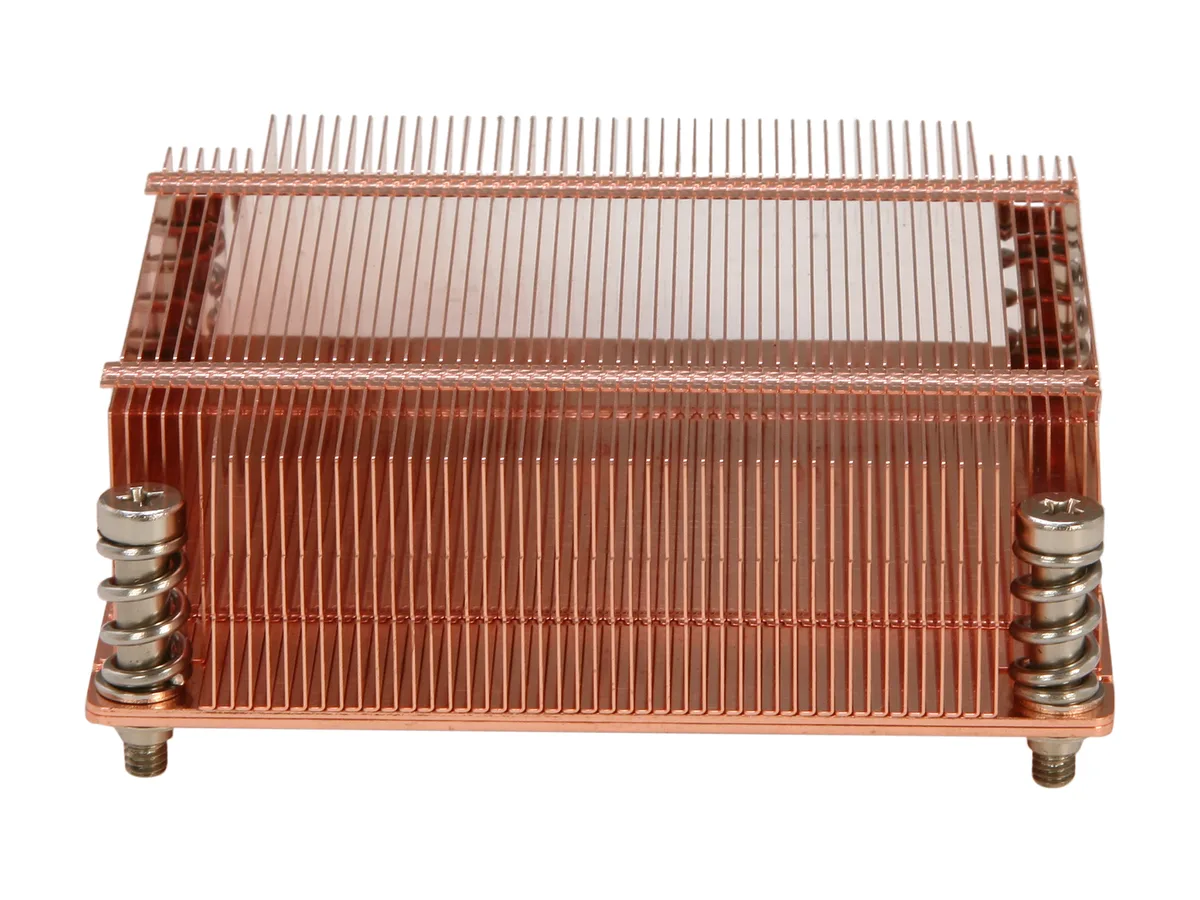

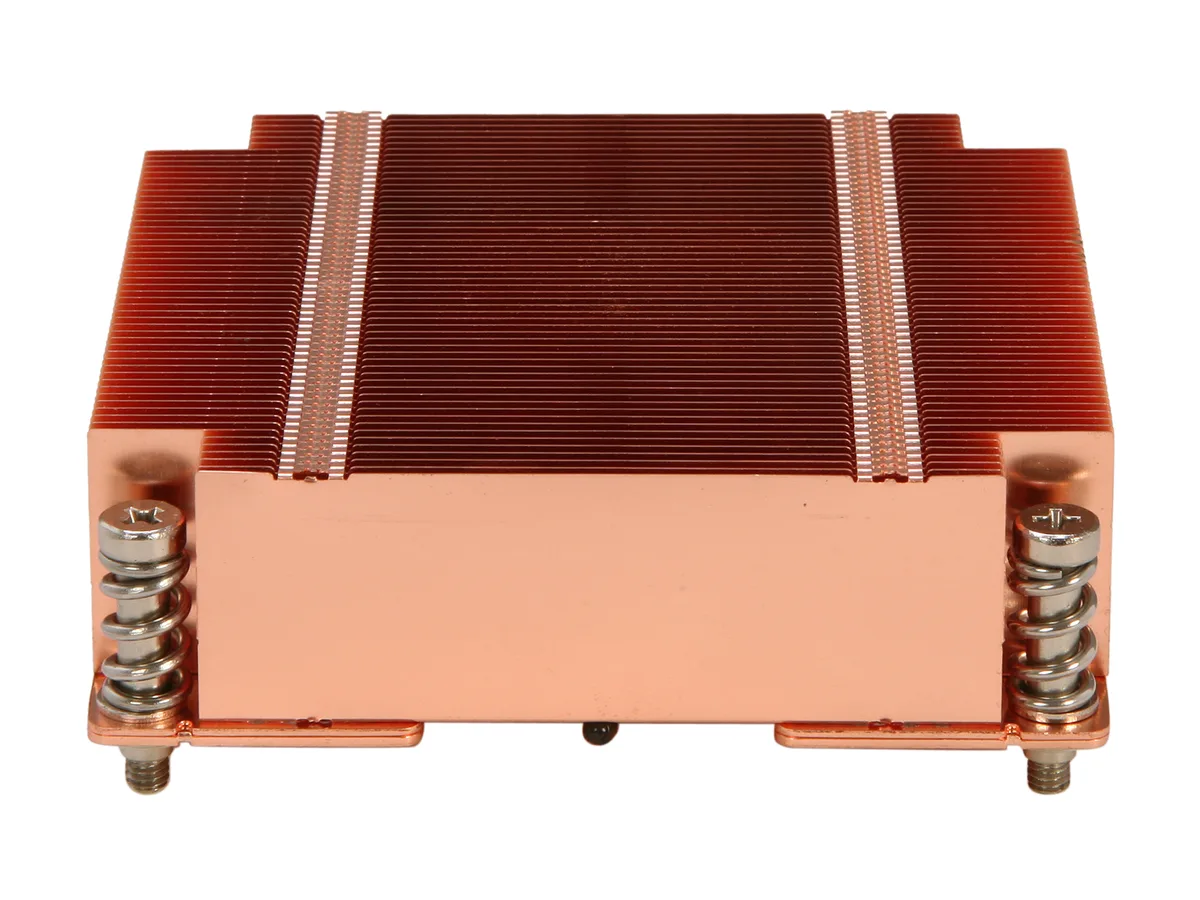

Square copper heatsink with vapor chamber base, 27 mm tall

Dynatron

Dynatron R15 CPU cooler 27 mm 90×90 mm

SKU CH-D17S-M04M3 MPN R15

Ultra-low 27 mm vapor-chamber heatsink fits Intel LGA 2011 and 2066 square-mount sockets

  • TypeHeatsinks only
  • CPU Socket CompatibilityIntel LGA 2066 / 2011 (Square Type, 80mm x 80mm Mounting Pit
  • Heatsink MaterialVapor chamber base with Copper stacked fin
  • Fan Mounting Types to HeatsinkHorizontal
  • Max CPU Cooler Height27 mm
  • Heatsink Dimensions90.0 x 90.0 x 27.0 mm (Overall)
  • Vapor chamber base spreads heat fast
  • Copper stacked fins boost thermal capacity
  • 27 mm height fits ultra-thin chassis
  • Horizontal fan mount directs airflow sideways
  • Supports Intel LGA 2066 and 2011 sockets

Low-profile vapor-chamber heatsink

The Dynatron R15 is a passive heatsink measuring 90.0 x 90.0 x 27.0 mm and weighing 0.96 lbs. A vapor-chamber base with copper stacked fins draws heat away from the processor. Horizontal fan-mount points allow an external fan to be added when airflow is required.

Square-pitch LGA 2066/2011 servers

This cooler fits Intel LGA 2066 and LGA 2011 sockets using the 80 mm square mounting pattern. It targets Sandy Bridge EP and EX processors in rack or blade chassis where height is restricted. Builders needing a taller tower cooler or a different socket pattern must choose another model.

27 mm overall height

The 27 mm maximum height is the decisive clearance figure for 1U and slim enclosures. Verify that the chassis allows at least this much space above the socket before ordering.

Points forts

  • Vapor chamber base spreads heat fast
  • Copper stacked fins boost thermal capacity
  • 27 mm height fits ultra-thin chassis
  • Horizontal fan mount directs airflow sideways
  • Supports Intel LGA 2066 and 2011 sockets

Caractéristiques

BrandDynatron
ModelR15
TypeHeatsinks only
CPU Socket CompatibilityIntel LGA 2066 / 2011 (Square Type, 80mm x 80mm Mounting Pitch)
Heatsink MaterialVapor chamber base with Copper stacked fin
Fan Mounting Types to HeatsinkHorizontal
Max CPU Cooler Height27 mm
Heatsink Dimensions90.0 x 90.0 x 27.0 mm (Overall)
Weight0.96 lbs.
FeaturesCPU Support: Intel Sandy Bridge EP / EX Processors
Poids d’expédition0.54 kg
Dimensions du colis140 × 119 × 53 mm

Questions sur cet article

Does the R15 ship with a fan or do I need to supply one separately?

The R15 is supplied as a heatsink only; a compatible 90 mm fan must be purchased separately for active cooling.

The spec lists LGA 2066 and LGA 2011 — which socket should I choose for my board?

Choose the socket that matches your motherboard; both LGA 2066 and square-type LGA 2011 with 80 mm mounting pitch are supported.

With a 27 mm profile, will the R15 fit in a 1U rack chassis?

At 27 mm overall height the R15 meets the 1U clearance limit, making it suitable for 1U rackmount systems.
