EVGA 110-BQ-0600-K1 600 W power supply
A 600 W semi-modular ATX supply with a 120 mm fluid-dynamic-bearing fan, 80 Plus Bronze efficiency and a single +12 V rail rated at 50 A
- ColorBlack
- TypeATX12V / EPS12V
- Maximum Power600 W
- Fans1 x 120mm Fluid Dynamic Bearing Fan
- Main Connector24Pin
- +12V RailsSingle
Options BQ Series (600W)
- BV Series (450W)
- BQ Series (600W)
Les versions barrées existent, mais ne sont pas disponibles ici.
- Semi-modular cables reduce clutter and improve airflow
- 80 Plus Bronze certification delivers 85% typical efficiency
- Single +12V rail at 50A ensures stable power delivery
- 120mm fluid dynamic bearing fan runs quietly under load
- 140mm compact length fits most ATX cases
600 W ATX Power Supply for Mid-Range Builds
The EVGA 600 BQ delivers 600 W through a single +12V rail rated at 50 A, supporting ATX12V and EPS12V standards. It targets builders assembling mid-range gaming or workstation systems who need reliable power without excess cable clutter. Semi-modular cabling lets you attach only the 24-pin, two 6+2-pin PCIe and six SATA connectors required. A 120 mm fluid dynamic bearing fan keeps acoustic output low across the load range.
Upgrade from Non-Modular Bronze Units
This unit replaces older fixed-cable 80 Plus Bronze supplies where unused leads restrict airflow and complicate routing. The jump is worth it when a cleaner interior and easier maintenance matter more than raw wattage gains. Semi-modular design removes unnecessary cables while keeping the primary motherboard and CPU leads permanently attached. Japanese capacitors and 85 % typical efficiency improve long-term stability over budget non-modular alternatives.
Steady Output Under Continuous Load
A single +12V rail maintains consistent voltage delivery during extended gaming or compute sessions without rail-balancing concerns. The 120 mm fluid dynamic bearing fan adjusts speed gradually, sustaining airflow while limiting noise rise over time. 80 Plus Bronze certification confirms 85 % or higher efficiency at typical loads, reducing waste heat that would otherwise accumulate in the chassis. Over-voltage protection adds a safety margin during prolonged operation.
Points forts
- Semi-modular cables reduce clutter and improve airflow
- 80 Plus Bronze certification delivers 85% typical efficiency
- Single +12V rail at 50A ensures stable power delivery
- 120mm fluid dynamic bearing fan runs quietly under load
- 140mm compact length fits most ATX cases
Caractéristiques
| Brand | EVGA |
|---|---|
| Series | 600 BQ |
| Model | 110-BQ-0600-K1 |
| Color | Black |
| Type | ATX12V / EPS12V |
| Maximum Power | 600 W |
| Fans | 1 x 120mm Fluid Dynamic Bearing Fan |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 2 x 6+2-Pin |
| SATA Power Connector | 6 |
| Max PSU Length | 140 mm |
| Modular | Semi-Modular |
| Efficiency | 85% Typical |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Over Voltage Protection | Yes |

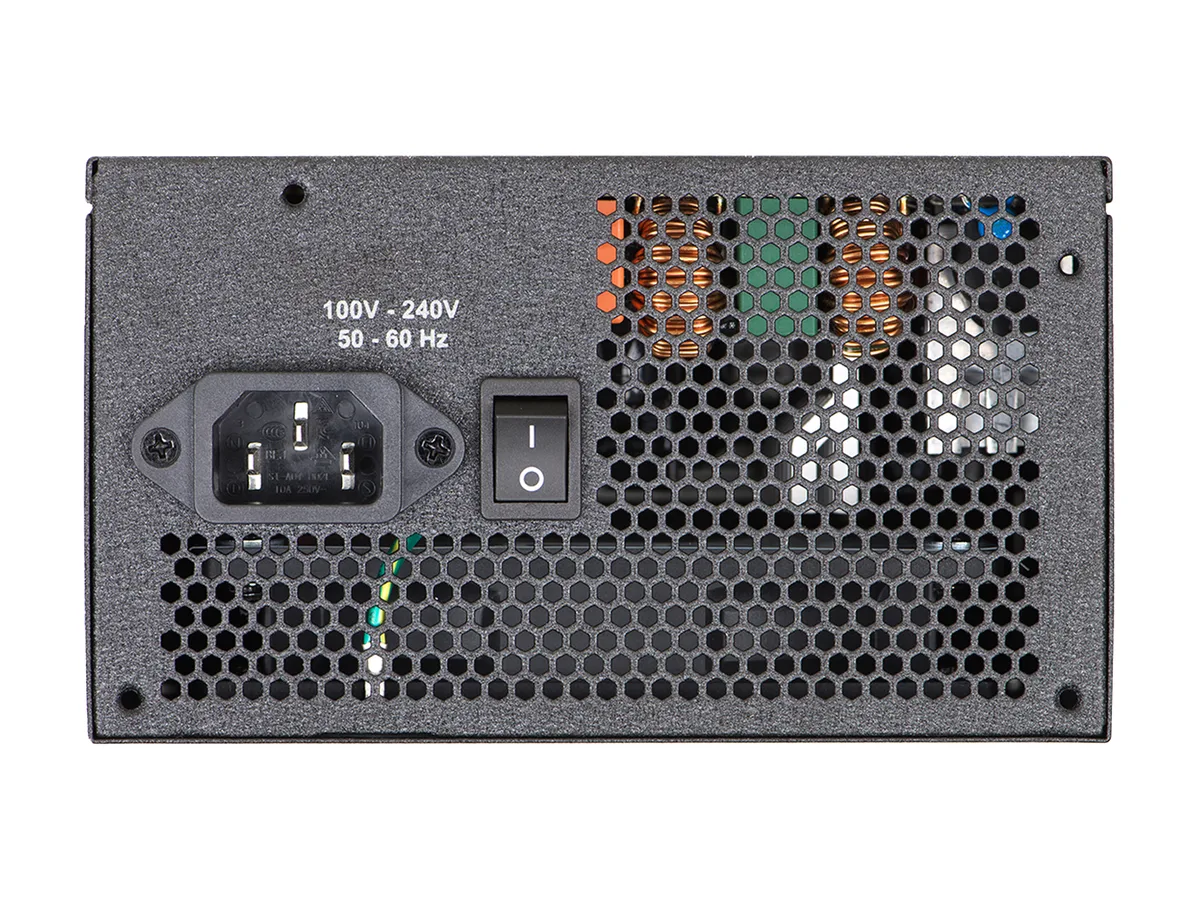

| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50 - 60 Hz |
| Input Current | 10 - 5A |

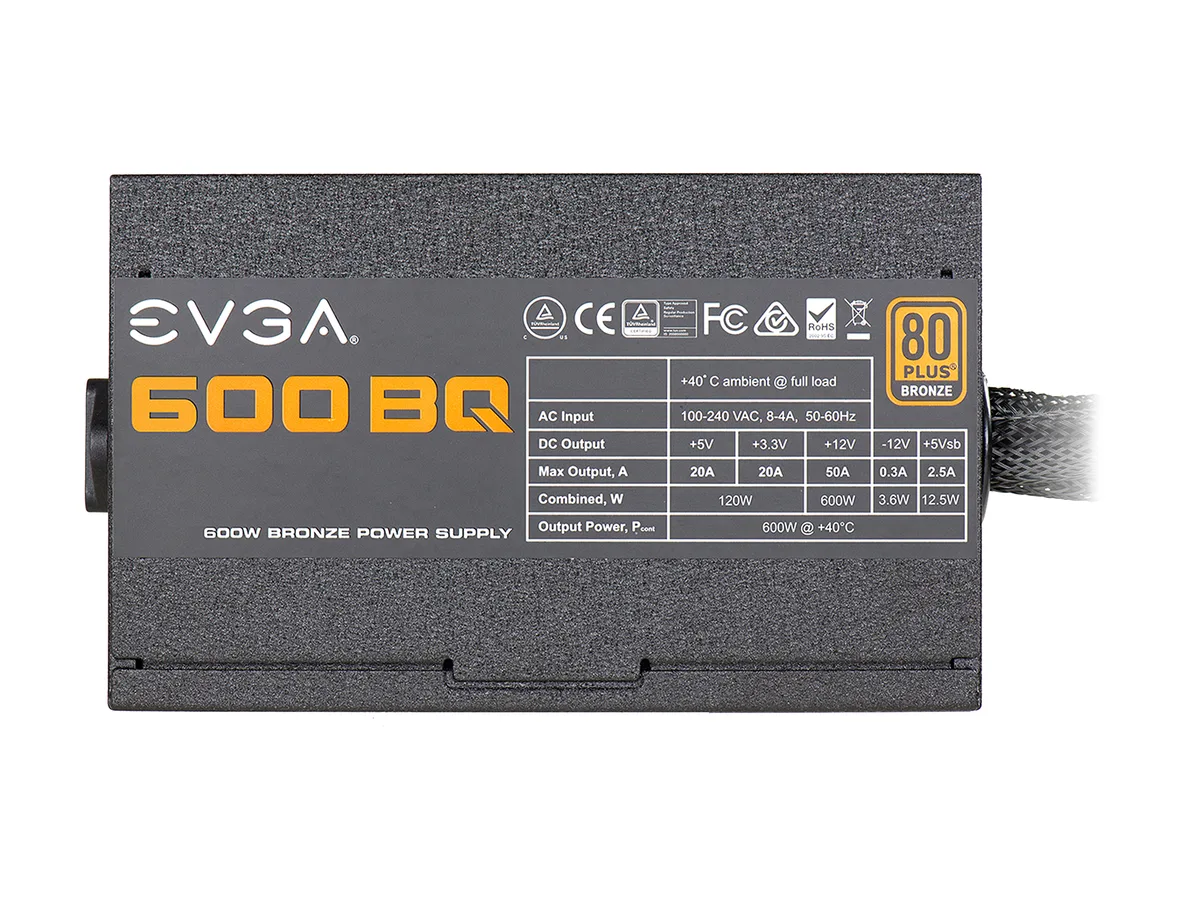

| Output | +3.3V@20A, +5V@20A, +12V@50A, [email protected] , [email protected] |
| MTBF | 100,000 Hours |
| Approvals | TUV, CE, FCC, cTUVus, WEEE, RoHS, Compliance with ErP Lot 6 2013 Requirement |

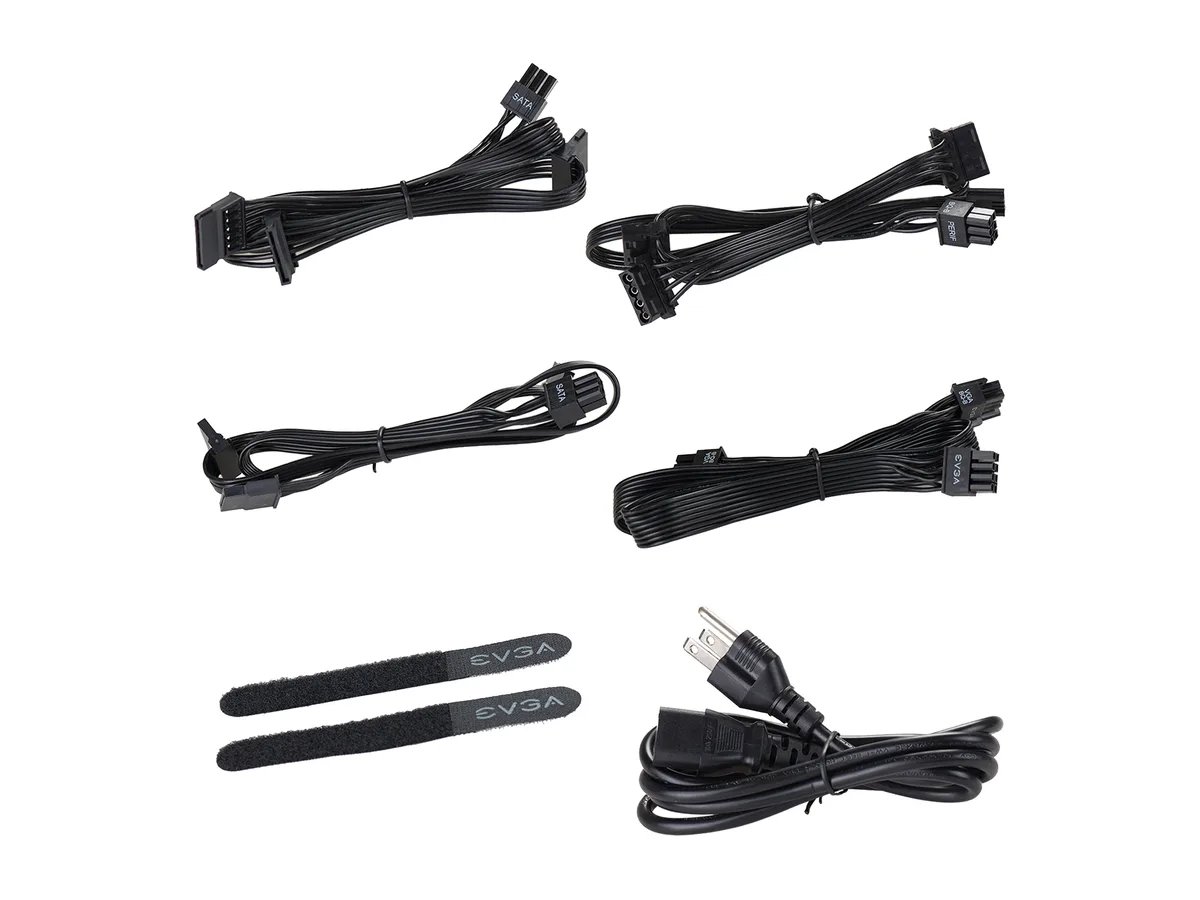

| Connectors | 1 x 24-Pin ATX 1 x 8-Pin (4+4) EPS (CPU) 2 x 8-Pin (6+2) PCIE 6 x SATA 3 x FourPin Peripheral 1 x Floppy |
| Features | Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP(Over Current Protection), OPP(Over Power Protection), and SCP(Short Circuit Protection) Quiet and Intelligent Auto Fan for nearsilent operation |
| Dimensions | 3.35" x 5.91" x 5.51" |
| Weight | 5.00 lbs. |
| Poids d’expédition | 2.27 kg |
| Dimensions du colis | 269 × 201 × 99 mm |
Questions sur cet article
Will the 600 W capacity handle a modern mid-range graphics card and CPU together?
The single +12V rail delivers 50 A, which provides 600 W on the +12V line alone, so typical mid-range GPU and CPU combinations are well within the unit's capability.
Do I need to buy any extra cables for a standard ATX build with two SATA SSDs and one PCIe graphics card?
The unit includes a fixed 24-pin ATX connector, two 6+2-pin PCIe cables and six SATA power connectors, covering that configuration without additional purchases.
How much space does the 140 mm depth leave for cable routing in a compact case?
At 140 mm long the power supply is shorter than many ATX units, giving extra clearance behind the PSU for semi-modular cable bends and improving airflow in tighter chassis.
