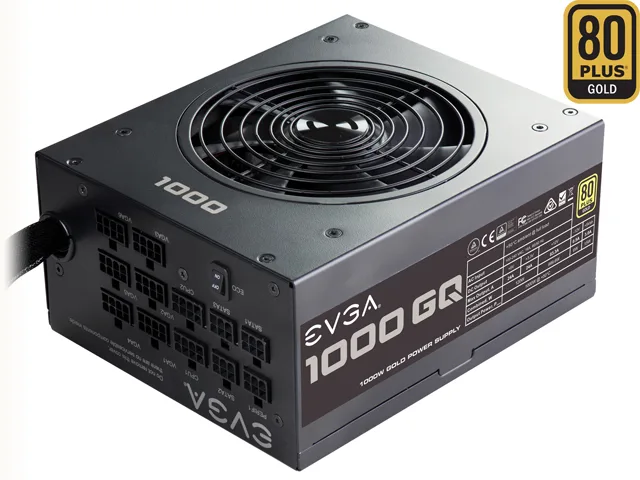

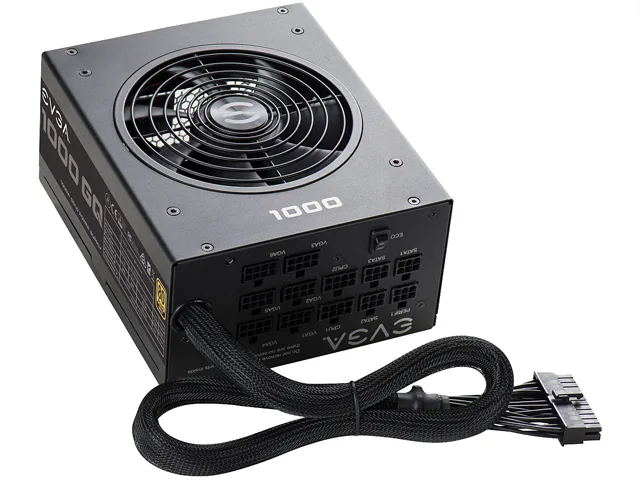

Black rectangular ATX power supply with 135mm fan and modular cable sockets

EVGA

EVGA 210-GQ-1000-V1 1000W 80 Plus Gold Semi-Modular Power Supply

SKU CH-71W3-S3D56 MPN 210-GQ-1000-V1

1000 W ATX power supply with 80 Plus Gold efficiency, semi-modular cables and a 135 mm fluid-dynamic fan that stops at low load

  • TypeATX12V / EPS12V
  • Maximum Power1000 W
  • Fans1 x 135mm Fluid Dynamic Bearing Fan
  • PFCActive
  • Main Connector24Pin
  • +12V RailsSingle

Options ATX 80+ Gold (1000W)

  • 80 Plus Gold certification delivers 90% efficiency under typical loads
  • Single +12V rail provides 83.3A for stable high-power output
  • 135mm Fluid Dynamic Bearing fan stops completely in ECO mode at low to medium loads
  • Semi-modular cabling with 10 PCIe and 12 SATA connectors reduces clutter and improves airflow
  • 100% Japanese capacitors and Active Clamp SR+DD design ensure long-term reliability

1000W Gold Semi-Modular ATX Supply

The EVGA 1000GQ delivers 1000 W from a single +12 V rail rated at 83.3 A. It fits standard ATX12V and EPS12V layouts and accepts 100 to 240 V input at 50 or 60 Hz. The unit targets builders who need high output for multi-GPU systems.

ECO Fan Mode and Japanese Capacitors

A 135 mm fluid-dynamic-bearing fan stops completely under low to medium loads, removing audible noise. All electrolytic capacitors are sourced from Japanese brands for long-term stability. Semi-modular cabling lets you attach only the 10 PCIe and 12 SATA leads required.

ATX12V EPS12V Interface Limits

The 180 mm chassis depth defines the maximum case clearance needed. The single-rail design simplifies load balancing but ties all +12 V current to one protection circuit. Active PFC and DC-to-DC conversion maintain 80 Plus Gold efficiency within the specified input range.

Points forts

  • 80 Plus Gold certification delivers 90% efficiency under typical loads
  • Single +12V rail provides 83.3A for stable high-power output
  • 135mm Fluid Dynamic Bearing fan stops completely in ECO mode at low to medium loads
  • Semi-modular cabling with 10 PCIe and 12 SATA connectors reduces clutter and improves airflow
  • 100% Japanese capacitors and Active Clamp SR+DD design ensure long-term reliability

Caractéristiques

BrandEVGA
Series1000GQ
Model210-GQ-1000-V1
TypeATX12V / EPS12V
Maximum Power1000 W
Fans1 x 135mm Fluid Dynamic Bearing Fan
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector10 x 6+2-Pin
SATA Power Connector12
SLIReady
CrossFireReady
Max PSU Length180 mm
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes

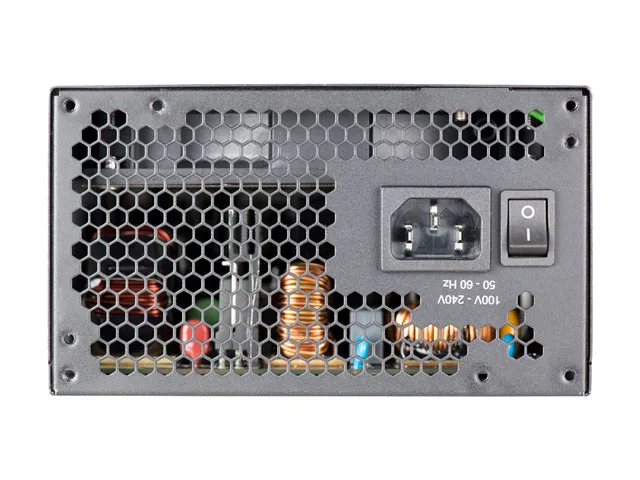

Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current16A

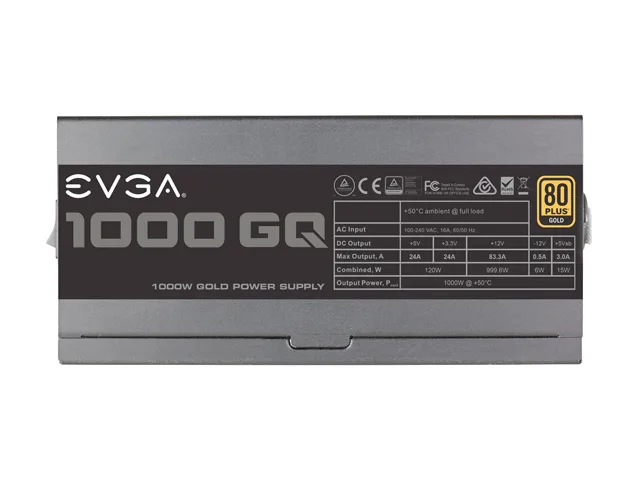

Output+3.3V@24A, +5V@24A, [email protected] , [email protected] , +5VSB@3A
MTBF100,000 Hours
ApprovalsTUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement

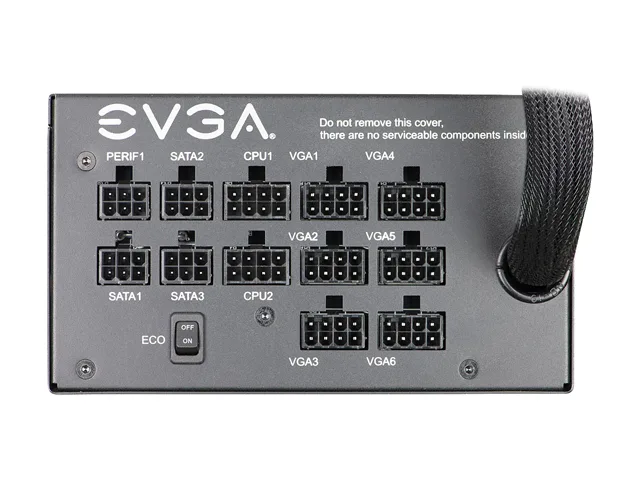

Connectors1 x 24pin ATX
2 x 8pin(4+4) EPS
10 x 8pin(6+2) PCI-E
12 x SATA
3 x 4pin Peripheral
2 x Floppy
Features80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
NVIDIA SLI & AMD Crossfire Ready
5 Year Warranty and unparalleled EVGA Customer Support
Modular Design to reduce clutter and improve airflow
100% Japanese Capacitors ensure long-term reliability
Active Clamp +DC to DC design for efficient operation
EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
Whisper Silent with 135mm Fluid Dynamic Bearing Fan
Active Power Factor Correction (PFC)
Dimensions3.35" x 5.91" x 7.09"
Weight8.3
Poids d’expédition3.65 kg
Dimensions du colis333 × 216 × 122 mm

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the 135 mm fluid-dynamic-bearing fan need replacement after long use?

The fan uses a fluid dynamic bearing designed for extended life; EVGA specifies 100 % Japanese capacitors to further support long-term reliability, so fan replacement is unlikely within the normal service period.

What limits output first during sustained full-load operation?

The single +12 V rail is rated for 83.3 A; the 1000 W maximum power and 80 PLUS Gold efficiency ceiling are reached before any individual connector limit.

How much noise and heat does the unit produce when running all day under typical loads?

EVGA ECO mode stops the 135 mm fan entirely at low to medium loads for silent operation; at higher loads the fan spins, but 90 % typical-load efficiency keeps waste heat low.
