EVGA
EVGA GeForce RTX 3060 XC 12G-P5-3655-KR 12GB GDDR6 graphics card
12 GB GDDR6 graphics card with 3584 CUDA cores, 1777 MHz boost clock, dual-fan cooling and HDMI 2.1 plus three DisplayPort 1.4a outputs
- InterfacePCI Express 4.0
- Chipset ManufacturerNVIDIA
- GPUGeForce RTX 3060
- Boost Clock1777 MHz
- CUDA Cores3584
- Effective Memory Clock15000 MHz
- 12 GB GDDR6 memory handles large textures at 1080p and 1440p
- 3584 CUDA cores deliver strong parallel compute for modern games
- Boost clock reaches 1777 MHz for responsive frame rates
- Dual-fan cooler keeps temperatures low with reduced noise
- HDMI 2.1 and three DisplayPort 1.4a outputs drive up to four displays
EVGA RTX 3060 XC 12GB GDDR6
The EVGA GeForce RTX 3060 XC is a refurbished graphics card built around the NVIDIA GPU with 12GB of GDDR6 memory on a 192-Bit interface. It connects via PCI Express 4.0 and draws up to 170W through a single 8-pin or 6+2pin power connector. A dual-fan cooler handles thermal duty while the card occupies two slots in the chassis.
Suited for 1080p and 1440p gaming rigs
This card fits builders targeting high refresh rates at 1080p or solid 1440p play across four displays via one HDMI 2.1 and three DisplayPort 1.4a outputs. It supports DirectX 12 Ultimate and Vulkan for modern titles. Systems limited to a 550W power supply or lacking an 8-pin PCIe cable should consider a lower-power alternative.
12GB GDDR6 frame buffer decides fit
The 12GB GDDR6 memory capacity is the key spec that determines whether this model matches the workload. It enables larger texture pools and higher resolution assets than 8GB or 10GB variants. If the target application needs more video memory than 12GB, a card with a larger frame buffer is required.
Points forts
- 12 GB GDDR6 memory handles large textures at 1080p and 1440p
- 3584 CUDA cores deliver strong parallel compute for modern games
- Boost clock reaches 1777 MHz for responsive frame rates
- Dual-fan cooler keeps temperatures low with reduced noise
- HDMI 2.1 and three DisplayPort 1.4a outputs drive up to four displays
Caractéristiques
| Brand | EVGA |
|---|---|
| Series | XC |
| Model | 12G-P5-3655-KR |
| Interface | PCI Express 4.0 |
| Chipset Manufacturer | NVIDIA |
| GPU | GeForce RTX 3060 |
| Boost Clock | 1777 MHz |
| CUDA Cores | 3584 |
| Effective Memory Clock | 15000 MHz |
| Memory Size | 12GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate, Vulkan API |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |

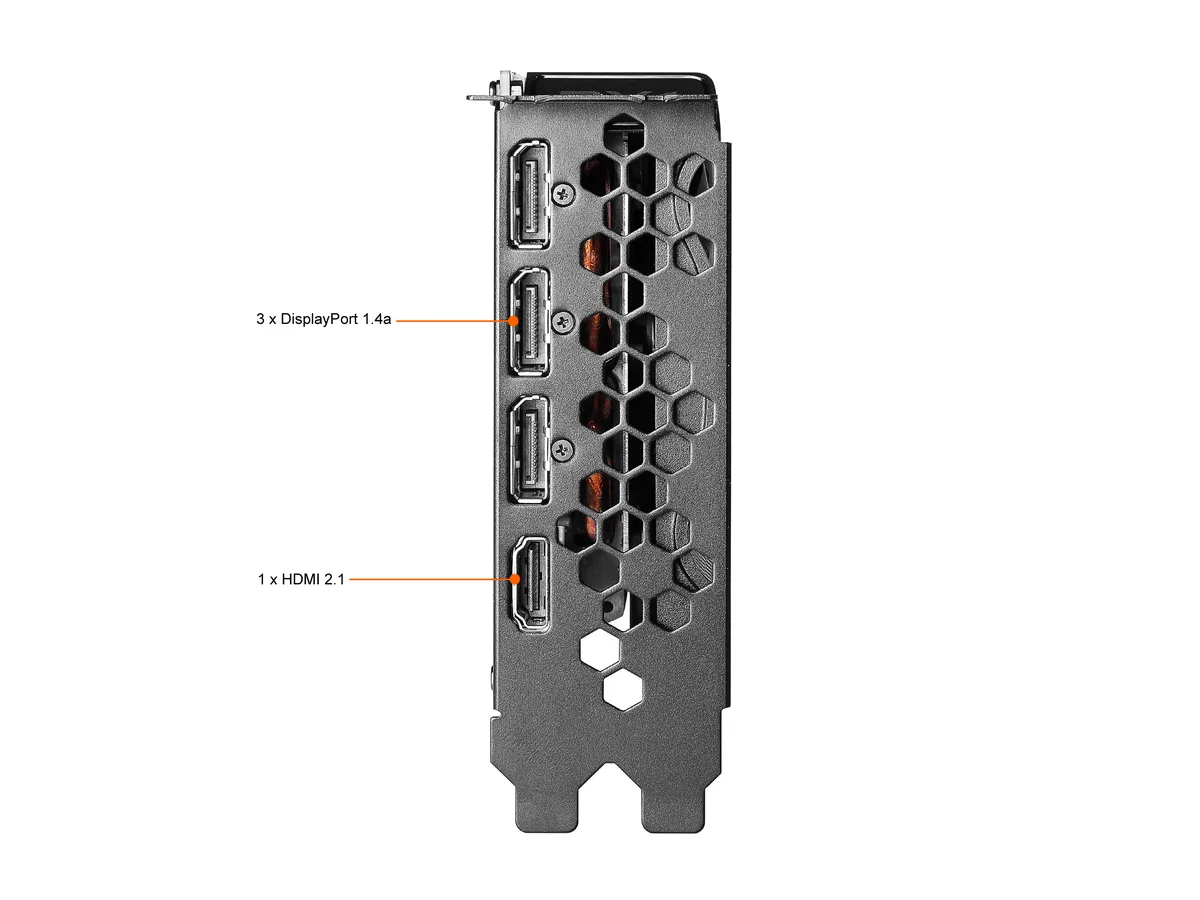

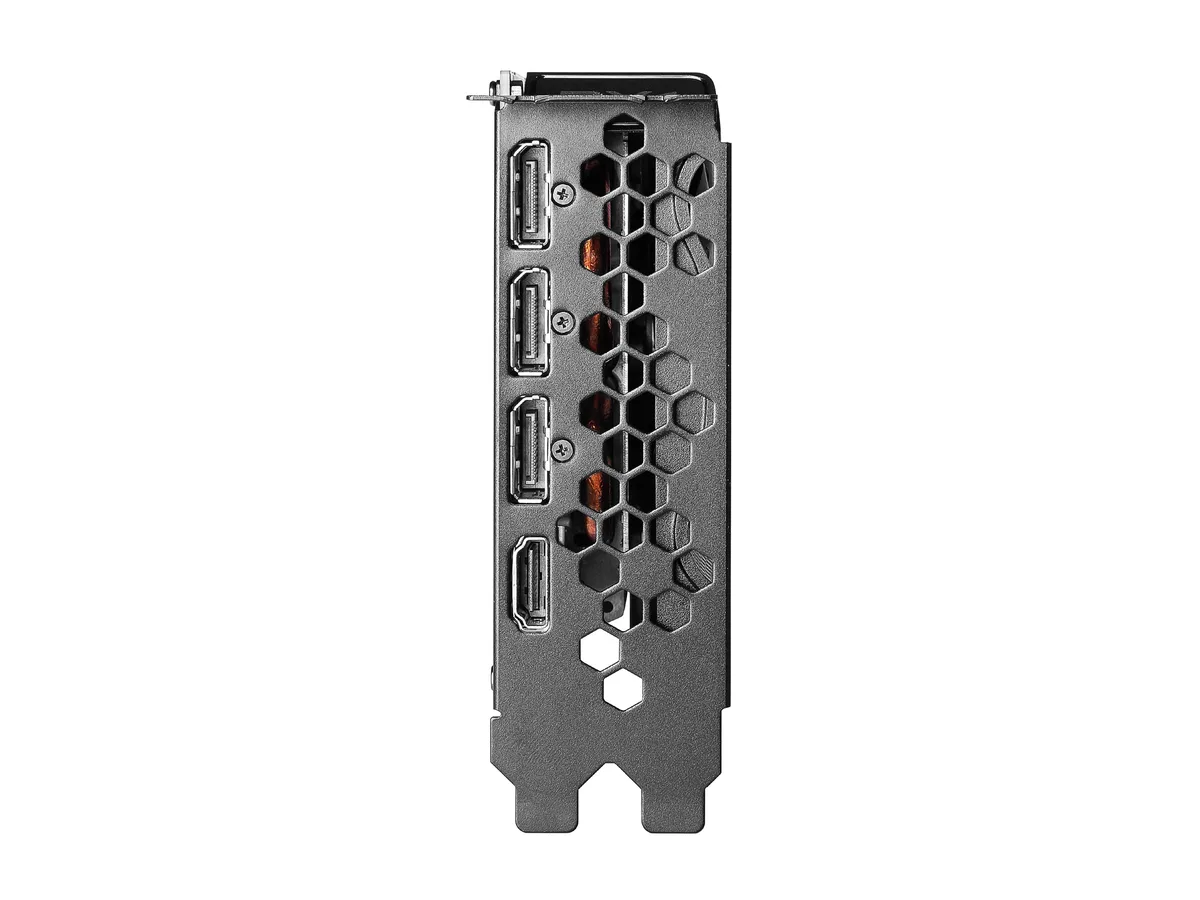

| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4a |
| Max Resolution | 7680 x 4320 |
| SLI Support | No |
| Virtual Reality Ready | Yes |
| Cooler | Double Fans |
| Operating Systems Supported | Windows 10 (64 bit), Windows 7 (64 bit) 👉Check gaming pc with Windows 11 Pro |
| Thermal Design Power | 170W |
| System Requirements | 550W or greater power supply. PCI Express, PCI Express 2.0, PCI Express 3.0, or PCI Express 4.0 compliant motherboard with one graphics slot. |
| Power Connector | One available 8-pin or 6+2pin PCIe power dongles |
| HDCP Ready | Yes |
| Features | Built for EVGA Precision X1 2nd Gen Ray Tracing Cores 3rd Gen Tensor Cores PCI Express Gen 4 Microsoft DirectX 12 Ultimate GDDR6 Graphics Memory NVIDIA DLSS NVIDIA GeForce Experience NVIDIA G-SYNC NVIDIA GPU Boost Game Ready Drivers Vulkan RT API, OpenGL 4.6 DisplayPort 1.4a, HDMI 2.1 HDCP 2.3 VR Ready |
| Max GPU Length | 201.8mm |

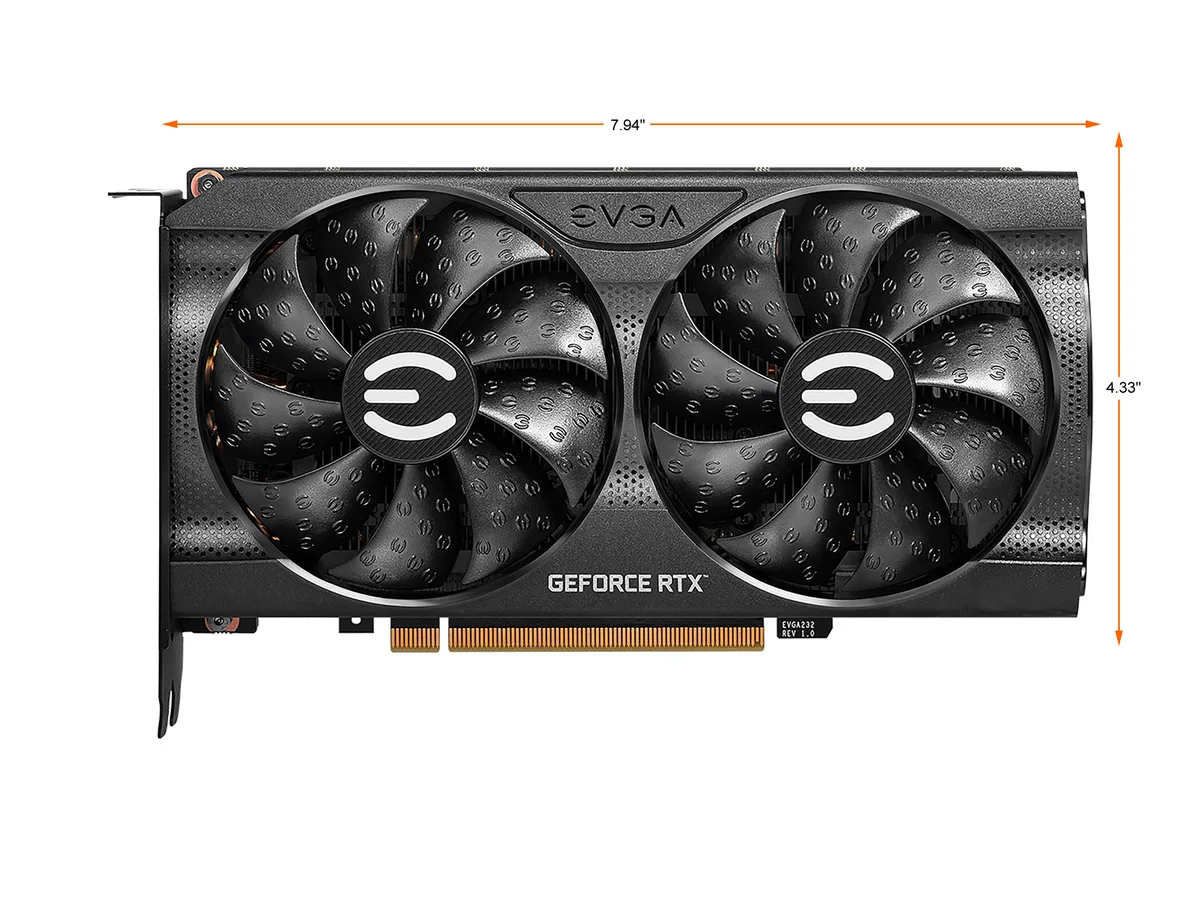

| Card Dimensions (L x H) | 7.94"x 4.33" |
| Slot Width | 2 Slots |
| Poids d’expédition | 1.36 kg |
| Dimensions du colis | 330 × 178 × 102 mm |
Questions sur cet article
Will this card fit in a standard dual-slot case and what power connector does it need?
The dual-fan cooler occupies two slots and requires one 8-pin or 6+2-pin PCIe power connector from a 550 W or greater supply.
Can I run four monitors at once and what cables are needed?
Yes, the card supports four displays via one HDMI 2.1 and three DisplayPort 1.4a outputs, each cable matching the chosen port.
Is the 12 GB GDDR6 frame buffer enough for 1440p gaming with DLSS enabled?
The 12 GB memory and 192-bit interface at 15000 MHz provide ample capacity for 1440p titles using DLSS and 2nd Gen Ray Tracing Cores.
