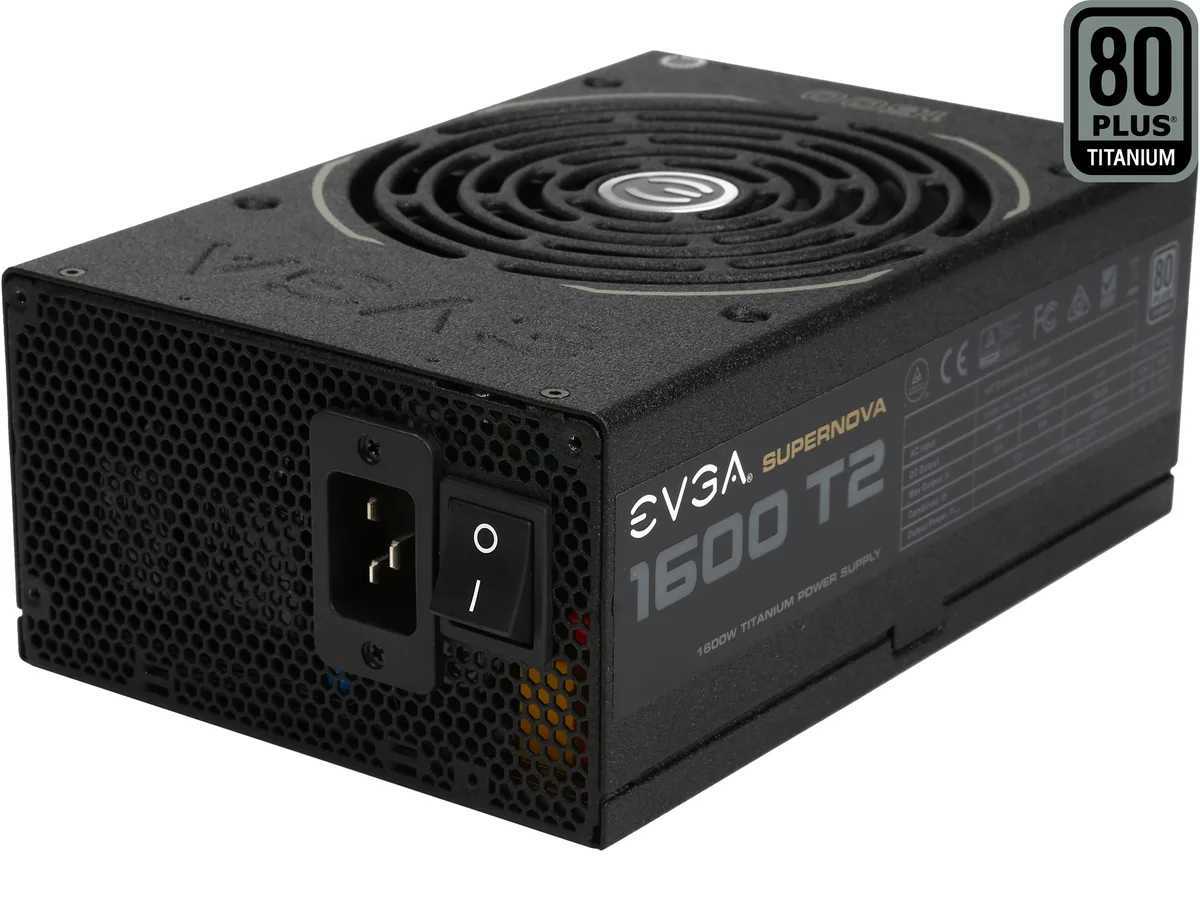

Rectangular black ATX power supply with 140mm fan and modular cable sockets

EVGA

EVGA SuperNOVA 1600 T2 220-T2-1600-X1 power supply

SKU CH-0D5S-6CCE1 MPN 220-T2-1600-X1

A fully modular 1600 W ATX power supply with 80 PLUS Titanium efficiency up to 96% and a 140 mm double ball bearing fan that stops below 45 °C

  • TypeATX12V / EPS12V
  • Maximum Power1600 W
  • Fans140mm Double Ball Bearing
  • Main Connector24Pin
  • +12V RailsSingle
  • PCI-Express Connector9 x 8pin (6+2), 5 x 6pin
  • 1600 W continuous power for demanding multi-GPU builds
  • 94 % efficiency at 115 V and 96 % at 220–240 V cuts waste heat

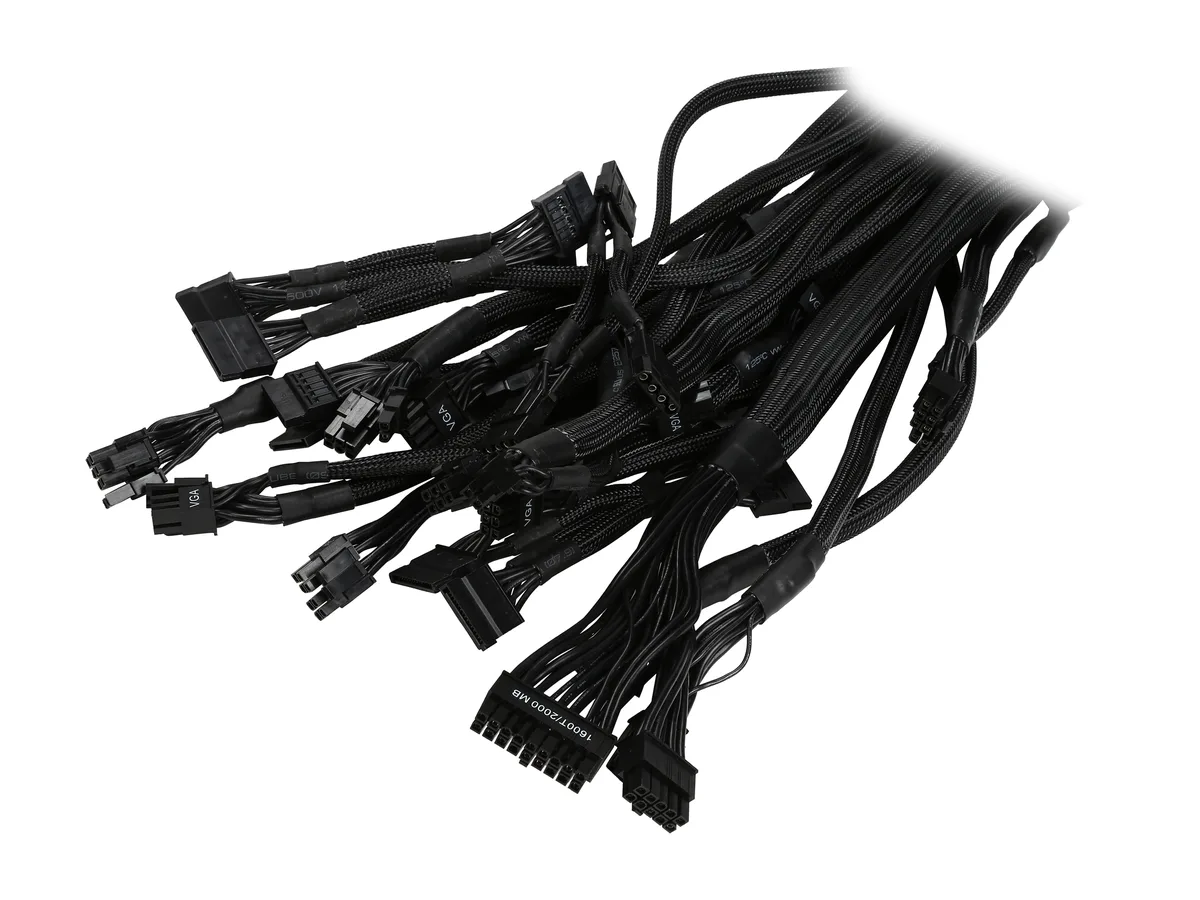

  • Fully modular cabling keeps the case tidy and airflow clear

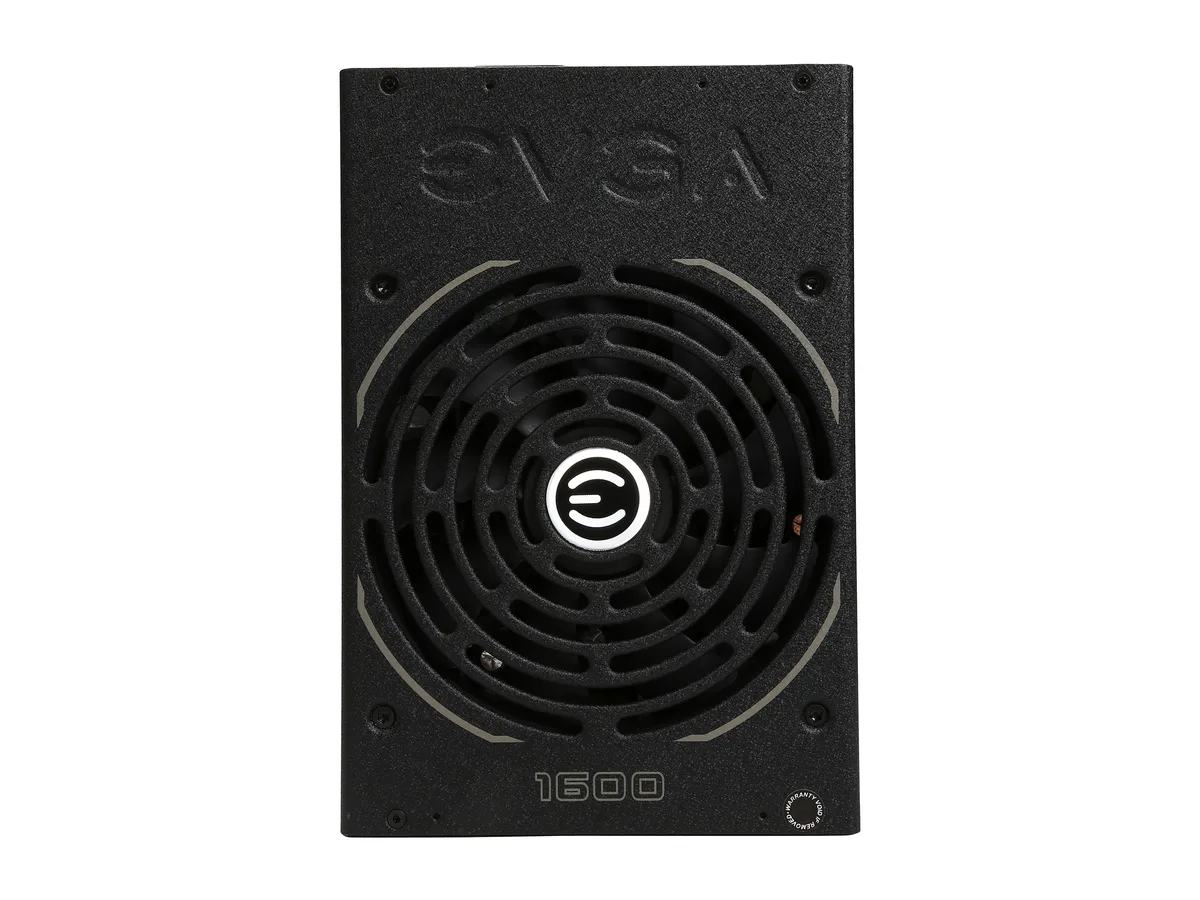

  • 140 mm double ball-bearing fan with ECO mode stops below 45 °C for silent idle
  • 100 % Japanese capacitors and full protection suite deliver long-term reliability

1600W Titanium ATX Power Supply

The EVGA SuperNOVA 1600 T2 delivers 1600 W of continuous power through a single +12 V rail and holds 80 PLUS Titanium certification. It uses a fully modular ATX12V / EPS12V design with 100 % Japanese capacitors and a 140 mm double ball bearing fan. The unit measures 220 mm in length and includes a Power On Self Tester.

Ideal for Multi-GPU Workstations

This unit suits builders running multiple graphics cards with its nine 8-pin (6+2) and five 6-pin PCIe connectors plus sixteen SATA power connectors. SLI and CrossFire readiness supports multi-GPU configurations. Systems needing less than 1600 W or cases shorter than 220 mm should consider a smaller model.

Sustained Load Efficiency and Thermal Control

At typical loads the power supply achieves 94 % efficiency at 115 VAC and 96 % efficiency at 220–240 VAC. The ECO Intelligent Thermal Control keeps the fan stopped below 45 °C for silent operation during light work. Heavy-duty protections including OVP, UVP, OCP, OPP and SCP maintain stable output during extended high-power sessions.

Points forts

  • 1600 W continuous power for demanding multi-GPU builds
  • 94 % efficiency at 115 V and 96 % at 220–240 V cuts waste heat
  • Fully modular cabling keeps the case tidy and airflow clear
  • 140 mm double ball-bearing fan with ECO mode stops below 45 °C for silent idle
  • 100 % Japanese capacitors and full protection suite deliver long-term reliability

Caractéristiques

BrandEVGA
Model220-T2-1600-X1
TypeATX12V / EPS12V
Maximum Power1600 W
Fans140mm Double Ball Bearing
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector9 x 8pin (6+2), 5 x 6pin
SATA Power Connector16
SLISLI Ready
CrossFireCrossFire Ready
Max PSU Length220 mm
ModularFull Modular
Energy-Efficient80 PLUS TITANIUM Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage115 - 240 V
Input Frequency Range50/60 Hz
Input Current17-10A
Output+3.3V@24A, +5V@24A, [email protected] , +5VSB@3A, [email protected]
MTBF>100,000 Hours
ApprovalsTUV, CB, CE, FCC, RCM, cTUVus, BSMI, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
Connectors24 Pin ATX: 1x
EPS (CPU): 2x 8pin (4+4)
PCIE: 9x 8pin (6+2), 5x 6pin
SATA: 16x
Four-Pin Peripheral: 6x
FloppyP: 2x
FeaturesUnbeatable 10 Year Warranty and unparalleled EVGA Customer Support
Highest quality Japanese brand capacitors ensure longterm
reliability
Fully Modular to reduce clutter and improve airflow
NVIDIA SLI & AMD Crossfire Ready
Double Ball Bearing fan for exceptional reliability and quiet operation
Heavyduty
protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power
Protection), and SCP (Short Circuit Protection)
ECO Intelligent Thermal Control Fan system (Zero Fan Noise < 45°C)
80 PLUS Titanium certified, with 94% (

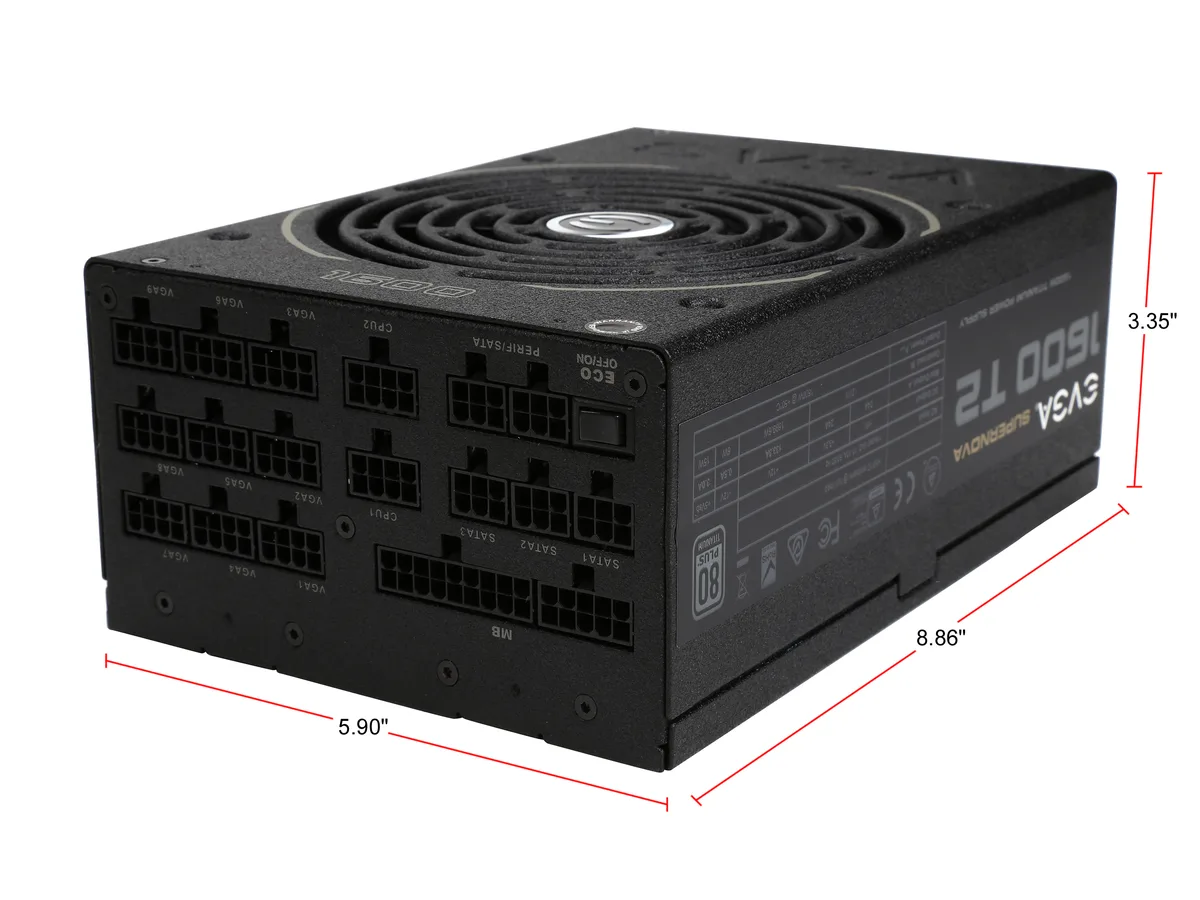

Dimensions3.35" x 5.90" x 8.86"
Weight8.00 lbs.
Poids d’expédition6.46 kg
Dimensions du colis284 × 267 × 178 mm

Questions sur cet article

Does my case need to accept a 220 mm ATX power supply?

Yes, the unit is 220 mm long and follows the ATX12V / EPS12V form factor, so the case must support that length.

Will my existing 8-pin PCIe cables plug into the nine 8-pin (6+2) connectors on this unit?

The PSU provides nine 8-pin (6+2) PCIe ports; any standard 8-pin or 6+2 cable will fit, but use only the cables supplied with this unit.

How can I confirm the fan is operating in ECO mode after installation?

The fan stays off while internal temperature remains below 45 °C; you can verify silent operation at low load and hear it spin once that threshold is passed.
