Evoc
Evoc V5604A gaming laptop 16 QHD+ 300Hz Ryzen AI 7 450 RTX 5060 32GB 16TB
16-inch QHD+ 300Hz display, AMD Ryzen AI 7 450 eight-core CPU, NVIDIA RTX 5060 graphics, 32GB DDR5 memory and 16TB NVMe storage in a silver chassis tested to MIL-STD 810H
- ColorSilver
- Operating SystemWindows 11 Pro
- CPUAMD Ryzen™ Al 7 450
- Screen16" QHD+
- Memory32GB
- Storage16 TB M.2 PCIe 4.0 x4 NVMe SSD
- 16" QHD+ 300Hz display for smooth competitive visuals
- AMD Ryzen AI 7 450 8-core up to 5.1 GHz for responsive compute
- RTX 5060 8 GB GDDR7 graphics for modern gaming performance
- 32 GB DDR5 5600 dual-channel memory for heavy multitasking
- 16 TB PCIe 4.0 NVMe storage for massive game libraries
16" QHD+ 300Hz Gaming Laptop

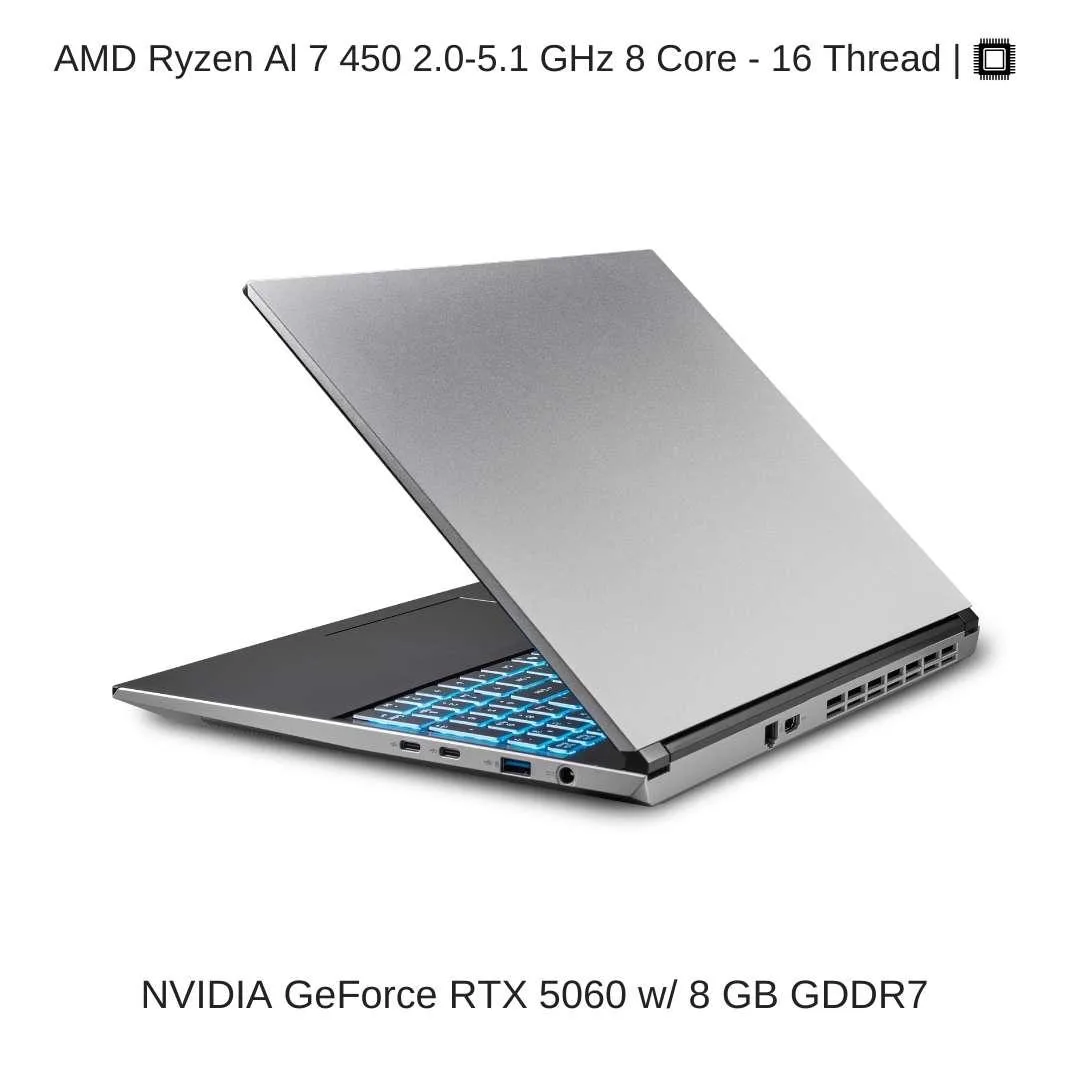

The Evoc V5604A is a 16-inch gaming laptop with a QHD+ 300 Hz display, an AMD Ryzen AI 7 450 8-core processor and an NVIDIA RTX 5060 GPU with 8 GB GDDR7. It ships with 32 GB DDR5 5600 MHz memory and 16 TB of PCIe 4.0 NVMe storage across two M.2 drives. Windows 11 Pro is pre-installed.
Built for High-Refresh Competitive Play
The 300 Hz panel and RTX 5060 suit gamers who prioritise fluid motion in fast-paced titles and need large local storage for extensive libraries. The 0.78-inch metal chassis keeps weight to 4.63 lbs, so frequent movers benefit. Buyers wanting a larger screen, higher GPU tier or user-replaceable battery should look elsewhere.
Ready for Desk or Travel Builds

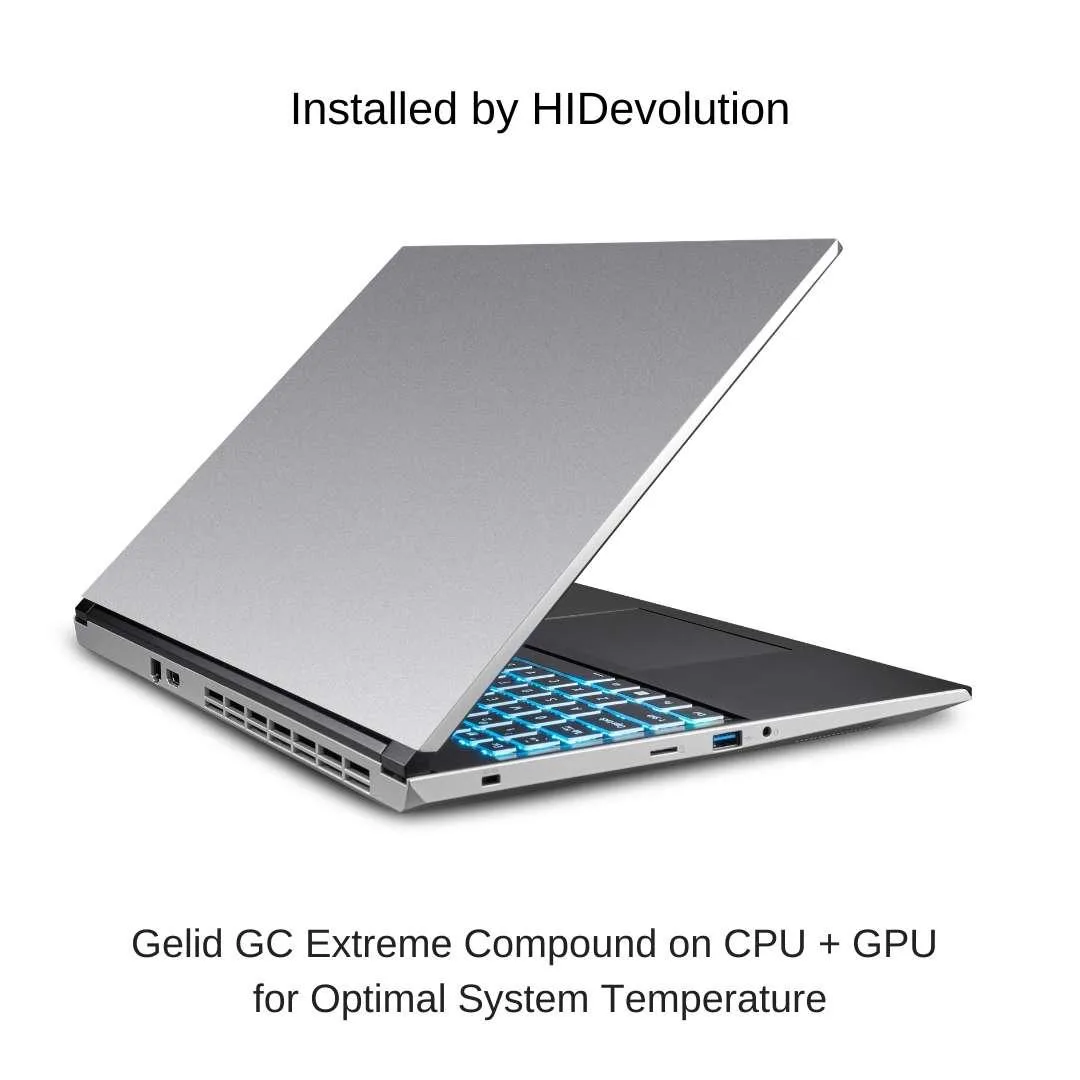

Two occupied M.2 slots deliver 16 TB without extra drives, freeing external ports for peripherals. The 8-core CPU with 5.1 GHz boost handles streaming and background tasks while the GPU renders. Gelid GC Extreme thermal compound is applied to CPU and GPU for sustained clocks. MIL-STD 810H construction adds durability for transport.
Points forts
- 16" QHD+ 300Hz display for smooth competitive visuals
- AMD Ryzen AI 7 450 8-core up to 5.1 GHz for responsive compute
- RTX 5060 8 GB GDDR7 graphics for modern gaming performance
- 32 GB DDR5 5600 dual-channel memory for heavy multitasking
- 16 TB PCIe 4.0 NVMe storage for massive game libraries
Caractéristiques
| Brand | EVOC |
|---|---|
| Series | V560GNN |
| Model | EVOC V5604A (V560GNN) |
| Part Number | EV-V5604A-HID10 |
| Color | Silver |
| Operating System | Windows 11 Pro |
| CPU | AMD Ryzen™ Al 7 450 |
| Screen | 16" QHD+ |
| Memory | 32GB |
| Storage | 16 TB M.2 PCIe 4.0 x4 NVMe SSD |
| Graphics Card | NVIDIA® GeForce® RTX™ 5060 |
| Video Memory | 8GB |
| Dimensions (W x D x H) | 14.10” (w) x 10.18” (d) x 0.78” (h) |
| Weight | 4.63 lbs. |
| Other Features | Metal top and bottom case, FlexiCharger, MIL-STD 810H |
| CPU Type | AMD Ryzen AI 400 Series |
| Processor Name | AMD Ryzen AI 7 450 |
| Number of Cores | 8-core Processor |
| Turbo Frequency | Max Turbo Frequency 5.1 GHz |
| CPU L3 Cache | 24 MB |
| Screen Size | 16.0" |
| Touchscreen | No |
| Display Type | QHD+ |
| Resolution | 2560 x 1600 |
| Panel | QHD+ |
| Refresh Rate | 300Hz |
| Display Features | Wide View Angle, 72% NTSC Display, Matte Finished |
| GPU/VPU | GeForce RTX 5060 Laptop GPU |
| Graphic Type | Dedicated Card |
| SSD | 16 TB |
| HDD | No |
| Storage Spec | 16 TB (2 x 8 TB) M.2 PCIe 4.0 x4 NVMe SSD |
| Memory Speed | DDR5 5600MHz |
| Memory Spec | 16 GB x 2 |
| Memory Type | 2 x SO-DIMM |
| Memory Slot (Total) | 2 |
| Memory Slot (Available) | 0 |
| Max Memory Supported | 128GB |
| LAN | Built-in Gigabit Ethernet LAN |
| WLAN | Intel Dual Band Wireless Wi-Fi 6E AX210 |
| WiFi Generation | Wi-Fi 6E |
| Bluetooth | Yes |
| USB | 1x USB 4 Gen3 Port with DisplayPort 2.1 and Power Delivery DC in (Type C), 1x USB 4 Gen3 Port with DisplayPort 2.1 (Type C), 1x USB 3.2 Gen2 Port (Type A) with Power USB Port, AC/DC, 1x USB 3.2 Gen1 Port (Type A) |
| HDMI | 1x HDMI output Port (with HDCP) |
| Audio Ports | 1x 2-in-1 Audio Jack (Headphone / Microphone) |
| Audio | High-Definition audio interface, Sound Blaster Studio+ |
| Speaker | Built-in two speakers |
| Touchpad | Built in Click pad with Microsoft PTP multi-gesture and scrolling function |
| Keyboard | Multi languages, Single Zone Multi-Color illuminated full size keyboard with numeric pad |
| Webcam | Built-in 2.0M FHD Video Camera with TNR |
| Style | Standard |
| Type | Gaming & Entertainment |
| Usage | Consumer |
| AC Adapter/Charger | Full Range 180W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 9A |
| Battery | Embedded 4 cells Polymer battery pack 80WH |
Questions sur cet article
Does the 16 TB M.2 PCIe 4.0 x4 NVMe SSD leave a second M.2 slot free for another drive?
The laptop ships with two 8 TB M.2 PCIe 4.0 x4 NVMe SSDs installed, occupying both available M.2 slots.
Can the AMD Ryzen AI 7 450 processor run my existing DDR5 5600 MHz SO-DIMMs if I swap the memory?
The system already includes 32 GB of DDR5 5600 MHz dual-channel memory in a 2 x 16 GB configuration, using both SO-DIMM slots.
How can I confirm the 16-inch QHD+ 300 Hz display and RTX 5060 8 GB GDDR7 are running at their rated speeds?
Check the display refresh rate in Windows display settings and verify the GPU memory type and clock speeds in the NVIDIA control panel or GPU-Z.
