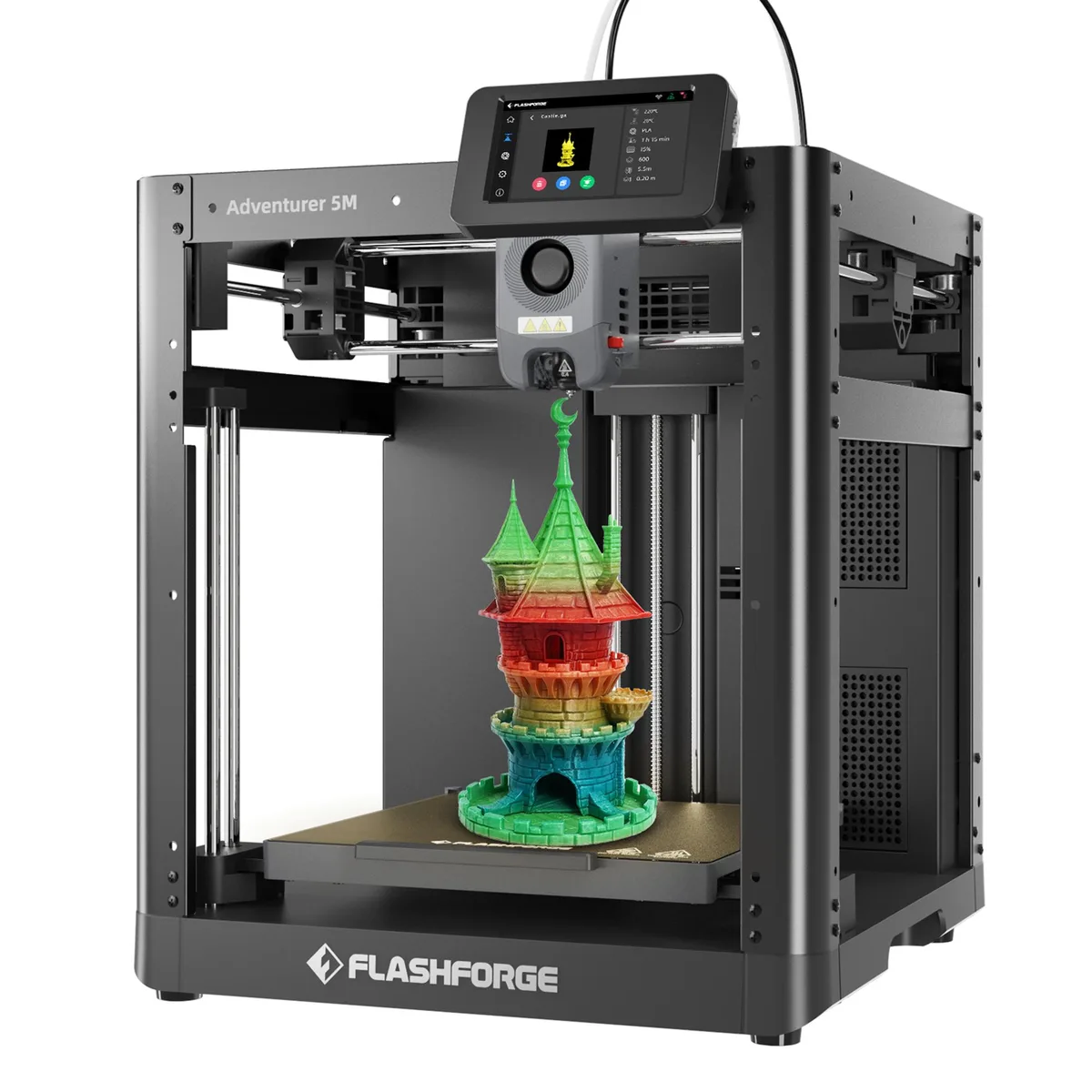

Enclosed CoreXY 3D printer with metal frame, touch screen, and PEI build plate

Flashforge

Flashforge Adventurer 5M 3D Printer 600mm/s CoreXY 8.7in

SKU CH-GYD3-2QQ75

FDM 3D printer with CoreXY frame prints up to 600 mm/s and 20000 mm/s² acceleration on an 8.7-inch build volume

  • Type3D Printer
  • TechnologyFDM (Fused Deposition Modeling)
  • Body MaterialMetal
  • Build MaterialPLA/PETG/TPU (0.4mm nozzle) PLA-CF/PETG-CF (0.6mm nozzle)
  • Build Size8.7''x8.7''x8.7''
  • Layer Thickness100 microns

Option AD5M

  • Prints up to 600 mm/s with 20000 mm/s² acceleration
  • One-click auto-leveling delivers a flawless first layer every time
  • CoreXY metal frame with vibration compensation keeps high-speed prints stable
  • Quick-release nozzle swaps in seconds and flexible PEI plate eases part removal
  • Supports PLA, PETG, TPU and carbon-fibre filaments via 0.25, 0.4, 0.6, 0.8 mm nozzles

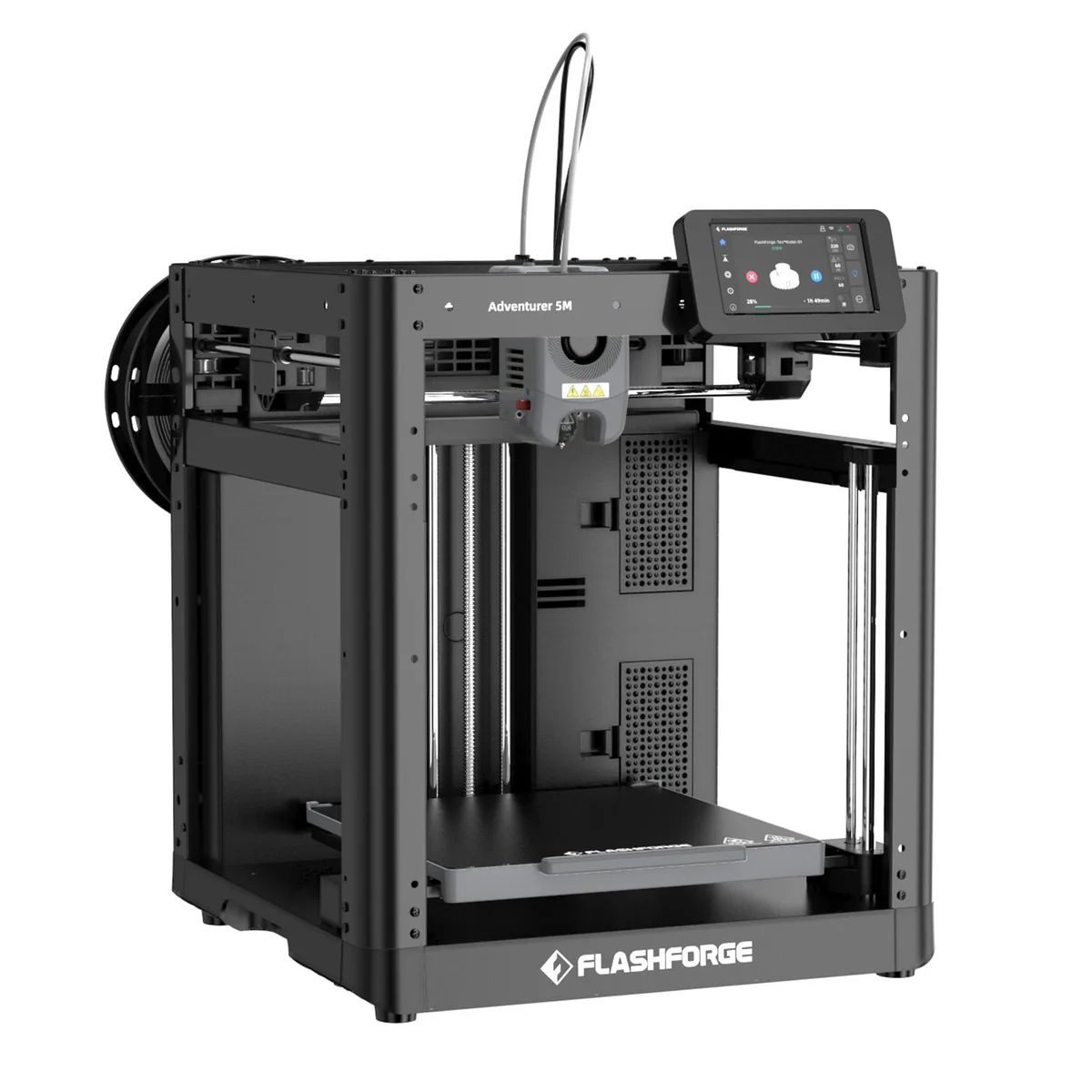

Flashforge Adventurer 5M 3D Printer

The Flashforge Adventurer 5M is a desktop FDM 3D printer built on a CoreXY motion system with an all-metal frame. It prints PLA, PETG and TPU through a 0.4 mm nozzle and carbon-fibre composites through a 0.6 mm nozzle. Maximum travel speed reaches 600 mm/s with 20000 mm/s² acceleration and a 32 mm³/s nozzle flow. Connectivity includes USB disk, Wi-Fi and Ethernet driven by a touch-screen interface.

Makers who want fast, automated calibration

This unit suits users who need quick turnaround on medium-sized parts and value the full-auto one-click levelling that removes manual bed tramming. The PEI steel plate and quick-release nozzle make print removal and maintenance straightforward. Builders who require a larger build envelope than the 8.7-inch cube or who need direct support for high-temperature filaments beyond the listed PLA and PETG ranges should consider other platforms.

600 mm/s maximum print speed

The headline specification is the 600 mm/s top speed combined with 20000 mm/s² acceleration and a 32 mm³/s volumetric flow rate from a 50 W heater that reaches 200 °C in 35 seconds. This throughput determines whether the printer meets a workshop’s cycle-time targets. If the production schedule demands faster overall output, a different machine will be necessary.

Points forts

  • Prints up to 600 mm/s with 20000 mm/s² acceleration
  • One-click auto-leveling delivers a flawless first layer every time
  • CoreXY metal frame with vibration compensation keeps high-speed prints stable
  • Quick-release nozzle swaps in seconds and flexible PEI plate eases part removal
  • Supports PLA, PETG, TPU and carbon-fibre filaments via 0.25, 0.4, 0.6, 0.8 mm nozzles

Caractéristiques

BrandFlashForge
SeriesAdventurer 5M
ModelAdventurer 5M
Part NumberAD5M
Type3D Printer
TechnologyFDM (Fused Deposition Modeling)
Body MaterialMetal
Build MaterialPLA/PETG/TPU (0.4mm nozzle) PLA-CF/PETG-CF (0.6mm nozzle)
Build Size8.7''x8.7''x8.7''
Layer Thickness100 microns
Positioning PrecisionX/Y axis: 0.0125 mm; Z axis: 0.0025 mm
Filament Diameter1.75mm
Max Working Speed600mm/s
ConnectivityUSB Disk/ WIFI/ Ethernet
InterfaceTouch Screen
Operation System RequirementsWin7/8/10/11; Linux supports Ubuntu 20.04 and later versions; Mac OS supports 10.9 and later versions
Software BundleFlash Studio
Operation Temperature15-30°C
FeaturesFull-auto One-click Leveling; CoreXY structure, all-metal frame; Maximum speed 600mm/s, Maximum acceleration 20000mm/s²; Quick-detachable nozzle; PEI plate;Filament Run-out Reminder; Power Loss Recovery and Integrated Printing Management
Package ContentsFlashforge AD5M 3D Printer, Filament, Power Cable, After-sales Service Card, Quick Start Guide, Touch Screen, Spool Holder (with 2 screws), Grease, Glue, Unclogging Pin Tool, Screwdriver, Allen Wrench Set, Diagonal Pliers
Dimensions40 x 36.3 x 44.8 cm
Weight10.5KG
Parts1 Year

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the 1.75 mm PLA and PETG spools I already own work with the Adventurer 5M?

Yes, the printer accepts 1.75 mm filament and supports PLA, PETG and TPU with the standard 0.4 mm nozzle.

How can I verify the CoreXY motion system is calibrated correctly after first power-on?

Run the full-auto one-click leveling routine; it measures bed distance, compensates automatically and confirms a flawless first layer on the touch screen.

Which nozzle sizes are included and do I need to buy any separately?

The box contains the printer, a filament sample, power cable, touch screen, spool holder with screws, grease, glue, unclogging pin, screwdriver, Allen wrenches and diagonal pliers; additional 0.25, 0.6 or 0.8 mm nozzles are sold separately.
