Tube bending kit for 14 mm rigid tubing with 45 90 180 degree molds silicone insert cutter and grinding tool

FormulaMod

FormulaMod Tube Bending Kit OD14mm 45 90 180° Molds

SKU CH-7J07-D2K7A

A complete tool set for bending 14 mm OD rigid tubing with 45°, 90° and 180° molds, plus silicone insert, cutter and grinding tool

  • TypeCombo Kit

Option For OD14 hard tube

  • Bend 14 mm tubing at 45°, 90° or 180° with three dedicated molds
  • Silicone insert (10 mm ID) supports tube interior during forming
  • Grinding tool deburrs cut ends for leak-free fits
  • Cutter slices PETG and similar rigid tubes cleanly
  • Heat tube first, then form — never heat the molds directly

FormulaMod Tube Bending Kit for OD 14 mm

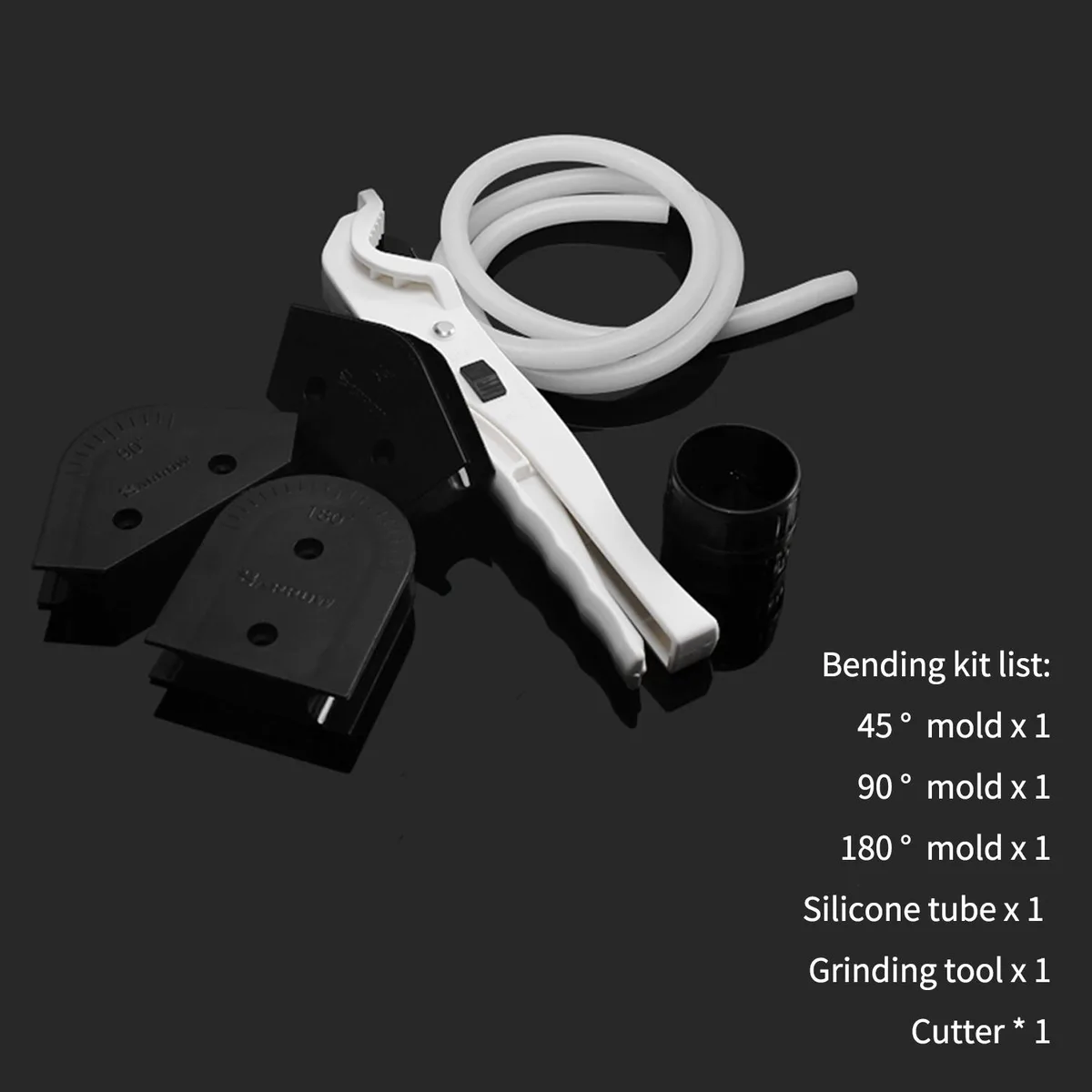

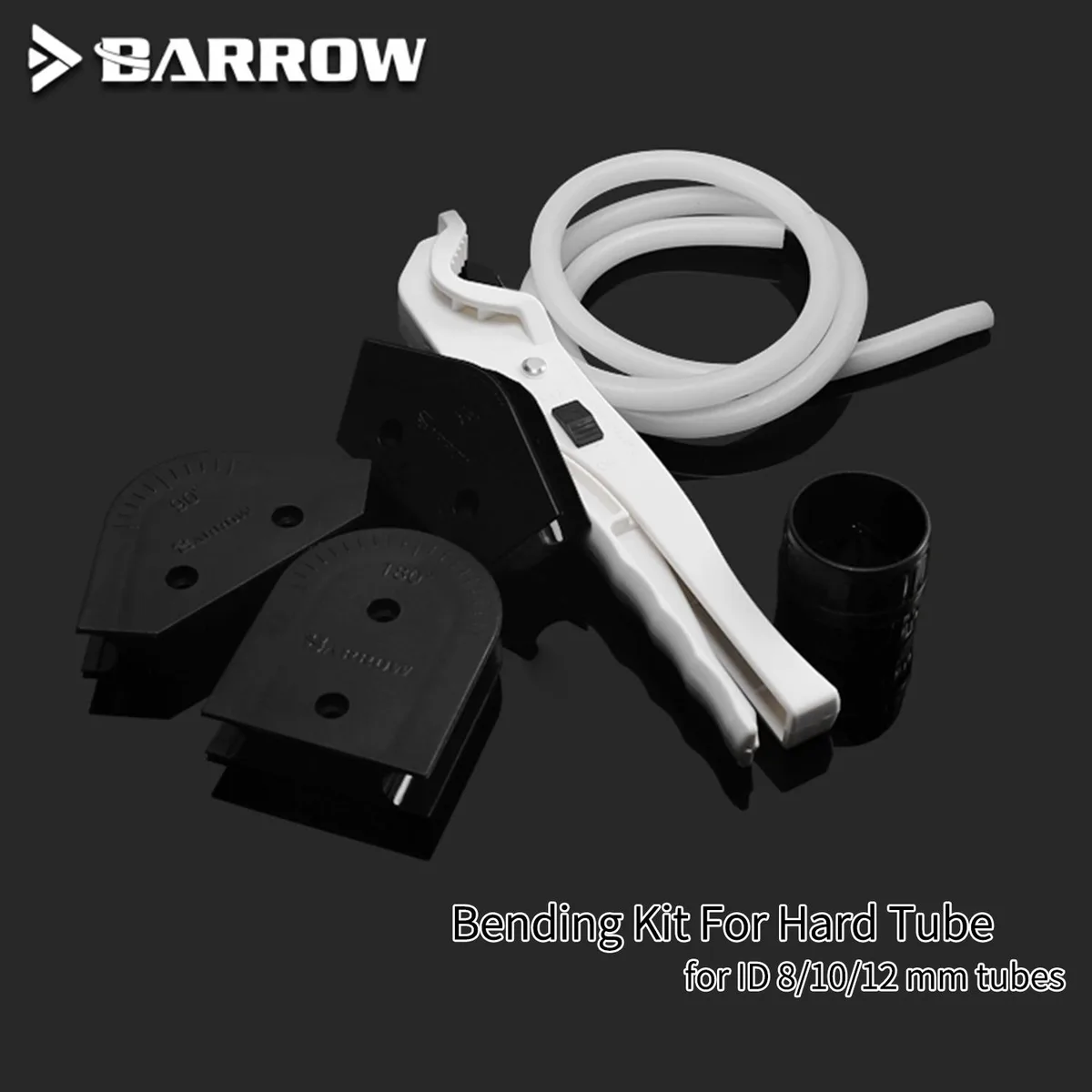

This kit provides the essential molds and tools for shaping rigid tubing with a 14 mm outer diameter. It is designed for custom water-cooling builders who want to create precise bends without outsourcing the work. The set includes three bending molds, a cutter, a grinding tool and a silicone insert tube.

Practical limits of the included molds

The three molds cover 45°, 90° and 180° bend angles, which handles most standard routing scenarios. Angles outside this range or compound curves cannot be formed with the supplied molds alone. The cutter supplied is not recommended for acrylic tubing because it may lack the required strength. Users must heat the tubing first and must never apply heat directly to the molds.

Installation notes and common issues

Assembly is straightforward: heat the hard tube, insert the silicone tube, then press the assembly into the chosen mold. The most frequent mistake is heating the mold instead of the tubing, which can damage the tool. Acrylic tube users should source a stronger cutter separately. Colour of components may vary between production batches.

Points forts

  • Bend 14 mm tubing at 45°, 90° or 180° with three dedicated molds
  • Silicone insert (10 mm ID) supports tube interior during forming
  • Grinding tool deburrs cut ends for leak-free fits
  • Cutter slices PETG and similar rigid tubes cleanly
  • Heat tube first, then form — never heat the molds directly

Caractéristiques

TypeCombo Kit

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Which bending angles does the kit provide for 14 mm tubing?

The kit includes three moulds covering 45°, 90° and 180° bends, so you can create tight turns, standard corners or full U-turns with a single set.

How does the 10 mm silicone insert help when bending 14 mm hard tube?

The insert slides inside the tube during heating to prevent the inner wall from collapsing, keeping the 14 mm outer diameter round through every bend.

What tube materials can the supplied cutter handle?

The cutter is designed for PETG and similar soft rigid tubing; the notes explicitly advise against using it on acrylic because it may not be strong enough.
