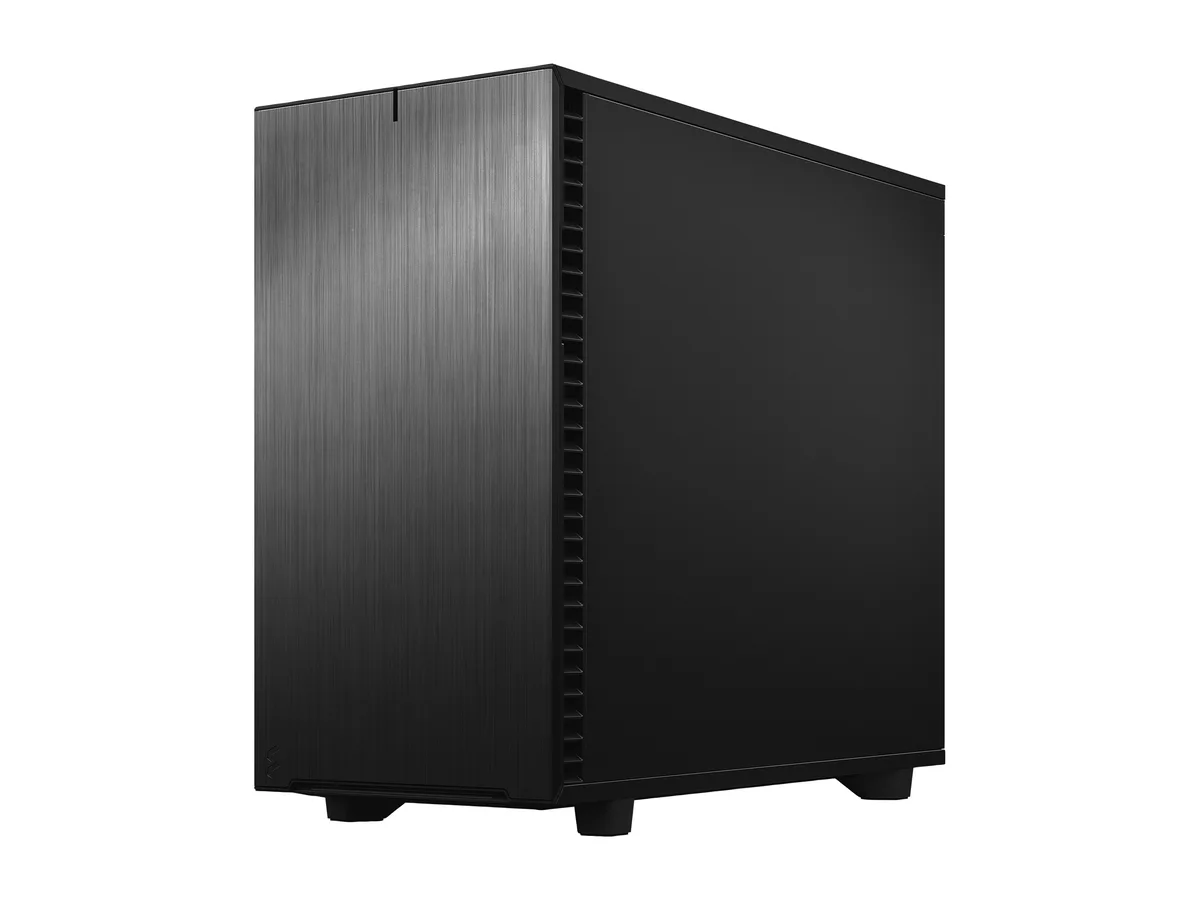

Black mid-tower case with brushed aluminum front panel, solid steel side panel, no window

Fractal Design

Fractal Design Define 7 FD-C-DEF7A-01 PC case

SKU CH-8H0Z-GK7PT MPN FD-C-DEF7A-01

A silent mid-tower case with a dual-layout interior for E-ATX boards up to 285 mm, radiators up to 420 mm, and up to 14 hard drives plus four SSDs.

  • TypeATX Mid Tower
  • ColorBlack
  • Case MaterialSteel
  • With Power SupplyNo
  • Power SupplyATX
  • Power Supply MountedBottom

Options Black / Steel Panel

  • Dual-layout interior fits E-ATX boards up to 285 mm
  • Industrial sound damping keeps the system whisper quiet
  • Supports up to 14 3.5" drives plus four 2.5" SSD mounts
  • Top panel swaps between solid steel and filtered ventilation for airflow control
  • Three Dynamic X2 GP-14 fans pre-installed across front and rear positions

Modular mid-tower for versatile builds

The Fractal Design Define 7 is a steel ATX mid-tower that supports motherboards up to 285 mm E-ATX. Its dual-layout interior lets you switch between an open configuration for water-cooling and a storage-focused arrangement. Three Dynamic X2 GP-14 140 mm fans are included, and the top panel swaps between sound-dampened steel and a filtered ventilation cover.

Suits builders who need capacity and quiet

This case fits users planning custom loops with radiators up to 420 mm or large air coolers, and those who want room for many drives. The solid panels and high-density damping keep noise low. It is less suited for anyone who wants a tempered-glass side window or integrated RGB lighting, because neither is present.

Handles fourteen 3.5" drives and big radiators

In Storage Layout the chassis accepts up to 14 x 3.5" HDDs plus 4 x 2.5" SSDs using the included trays and brackets. The Open Layout clears space for radiators up to 420 mm and large reservoirs. Front I/O provides one USB 3.2 Gen 2x2 Type-C, two USB 3.0, two USB 2.0 and audio jacks.

Points forts

  • Dual-layout interior fits E-ATX boards up to 285 mm
  • Industrial sound damping keeps the system whisper quiet
  • Supports up to 14 3.5" drives plus four 2.5" SSD mounts
  • Top panel swaps between solid steel and filtered ventilation for airflow control
  • Three Dynamic X2 GP-14 fans pre-installed across front and rear positions

Caractéristiques

BrandFractal Design
SeriesDefine 7
ModelFD-C-DEF7A-01
TypeATX Mid Tower
ColorBlack
Case MaterialSteel
With Power SupplyNo
Power SupplyATX
Power Supply MountedBottom
Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
Side Panelwithout Side Window
LEDNo
Dust FiltersTop panel
2 x Front
Bottom, full length
External 5.25" Drive Bays1
Internal 3.5" Drive Bays6 included , 14 positions total
Internal 2.5" Drive Bays2 included, 4 positions total
Expansion Slots7 + 2 vertical
Front Ports1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.0, 2 x USB 2.0, 2 x Audio
Fan OptionsFront: 3 x 120mm / 140mm fan (2 x Dynamic X2 GP-14 included)
Top: 3 x 120mm / 140mm fan
Rear: 1 x 120mm / 140mm fan (1 x Dynamic X2 GP-14 included)
Bottom: 2 x 120mm / 140mm fan
Pre-installed FansFront - 2 x 140mm / Rear - 1 x 140mm
Radiator OptionsFront: Up to 360mm / 280mm
Top: Up to 360mm / 420mm
Rear: 120mm
Bottom: Up to 240mm / 280mm
Max GPU Length491 mm
Max CPU Cooler Height185 mm
Max PSU Length250 mm (with HDD cage installed)
Dimensions21.54" x 9.45" x 18.70"
Weight29.65 lbs.
FeaturesSpacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including 285 mm E-ATX
Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base in the default Open Layout
Convert to Storage Layout for up to 14 HDDs along with 4 dedicated SSD mounts and one ODD bay (6 HDD/SSD + 2 SSD brackets + 1 multi-bracket included)
The single 5.25" ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering
Silence-optimized construction with industrial sound-damped front, top, and side panels
Top
Package ContentDefine 7
Accessory box
User manual
Ventilated top
4 x HDD/SSD trays (for a total of 6)
Poids d’expédition16.26 kg
Dimensions du colis643 × 559 × 363 mm

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What motherboard form factors does the FD-C-DEF7A-01 support?

The case fits ATX, E-ATX up to 285 mm, Micro ATX and Mini ITX boards.

Will my existing 140 mm fans line up with the pre-installed Dynamic X2 GP-14 units?

Yes, all nine fan positions accept 120 mm or 140 mm fans, so your current 140 mm fans mount directly.

How can I verify the front USB 3.2 Gen 2x2 Type-C port is active after building?

Connect a compatible device and confirm the operating system reports a 20 Gb/s SuperSpeed USB connection.
