Fractal Design
Fractal Design Dynamic X2 GP-14 140mm case fan FD-FAN-DYN-X2-GP14-BK
A 140 mm case fan delivering 68.4 CFM at 18.9 dBA with a 100,000-hour LLS bearing
- Fan Counts1 Fan
- Fan ControllerNo Controller
- TypeCase Fan
- CompatibilityCase
- Fan Size140mm
- Fan Thickness25mm
- 140 mm fan delivers 68.4 CFM airflow at 1000 RPM
- LLS bearing rated 100000 hours MTBF for long service life
- Counter-balanced magnet cuts axial tension on the bearing
- Aerodynamic stator struts and blade notches lower noise to 18.9 dBA
- Trip Wire tech and perpendicular stators reduce turbulence and hum
140 mm case fan for quiet builds
The Fractal Design Dynamic X2 GP-14 is a single 140 mm case fan designed for low-noise chassis cooling. It suits builders who want balanced airflow without audible distraction. It is not for systems that demand maximum static pressure for dense radiators or restrictive filters.
3-pin power connector
The fan connects via a standard 3-pin header, supplying 12 V nominal voltage and drawing 1.32 W at full speed. Voltage control regulates the 1000 RPM maximum. It is not for headers that only accept 4-pin PWM control.
68.4 CFM airflow at 18.9 dBA
At full speed the fan moves 68.4 CFM with a static pressure of 0.71 mm/H2O while producing 18.9 dBA. The LLS bearing is rated for 100000 hours MTBF. It runs out of headroom in high-restriction layouts where higher static pressure is required.
Points forts
- 140 mm fan delivers 68.4 CFM airflow at 1000 RPM
- LLS bearing rated 100000 hours MTBF for long service life
- Counter-balanced magnet cuts axial tension on the bearing
- Aerodynamic stator struts and blade notches lower noise to 18.9 dBA
- Trip Wire tech and perpendicular stators reduce turbulence and hum
Caractéristiques
| Brand | Fractal Design |
|---|---|
| Series | Dynamic X2 GP-14 140mm Black Edition |
| Model | FD-FAN-DYN-X2-GP14-BK |
| Fan Counts | 1 Fan |
| Fan Controller | No Controller |
| Type | Case Fan |
| Compatibility | Case |
| Fan Size | 140mm |
| Fan Thickness | 25mm |
| Bearing Type | LLS (Long Life Sleeve) |
| RPM | 1000 RPM |
| Air Flow | 68.4 CFM |
| Noise Level | 18.9 dBA |
| Power Connector | 3 Pin |
| Color | Black |
| Features | High-grade LLS (Long Life Sleeve) bearing with 100,000 hours MTBF Counter-balanced magnet reduces axial tension on the bearing Optimized fan geometry optimized for balanced airflow and static pressure Aerodynamic thin stator struts reduce noise output Perpendicular stators help eliminate fan hum Strategic blade notches diffuse noise from blade/stator interaction Trip Wire technology reduces blade turbulence Stylized custom design contributes to a beautiful, cool and quiet build Available in 120mm and 140mm fan sizes Number of blades: 7 Static Pressure: 0.71 mm/H2O Actual input power: |
| Dimensions | 140 x 140 x 25 mm |

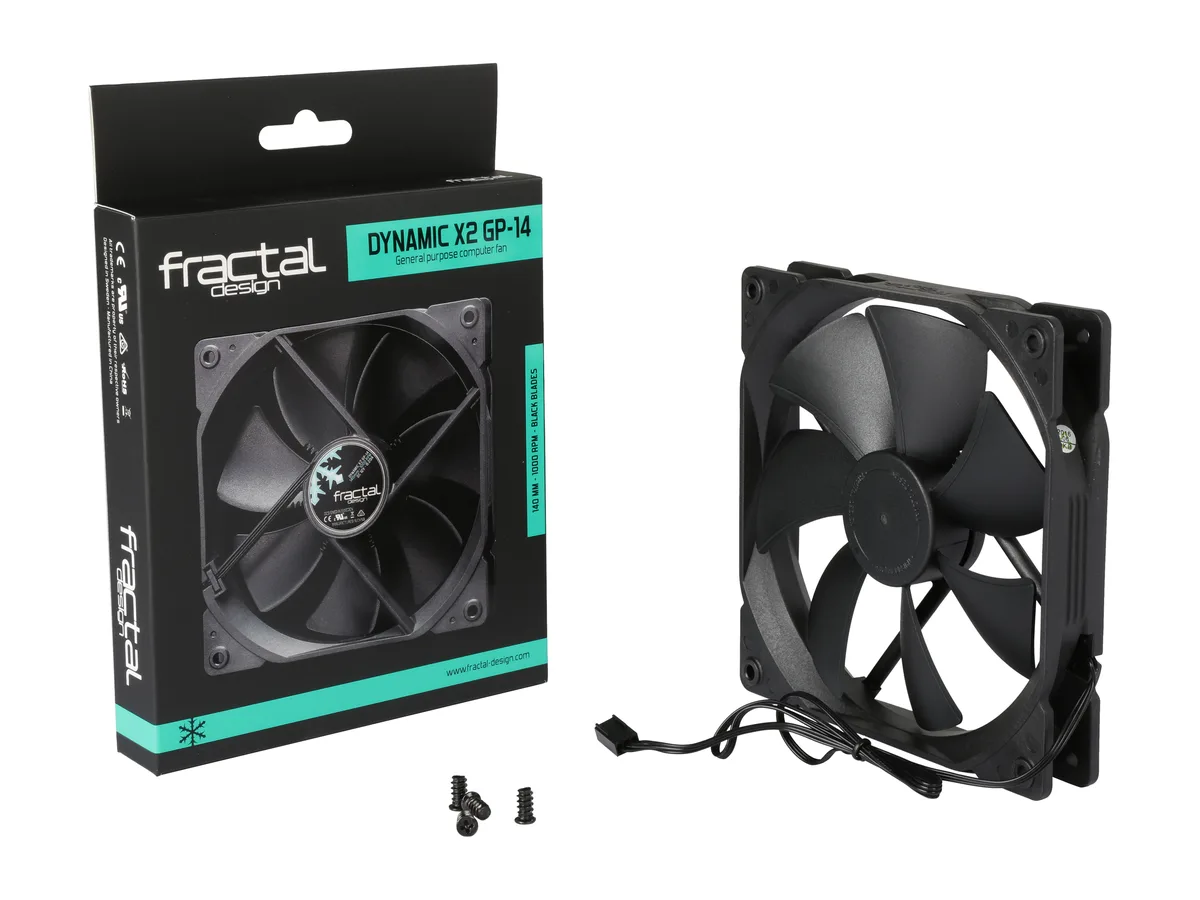

| Package Contents | Dynamic X2 GP-14 140mm Black Edition fan 4 x metal screws |
| Poids d’expédition | 0.20 kg |
| Dimensions du colis | 170 × 142 × 28 mm |
Questions sur cet article
What airflow does the 68.4 CFM rating deliver in a typical case?
The fan moves 68.4 CFM at its fixed 1000 RPM, providing steady airflow for general case cooling without speed variation.
What does the 3-pin connector limit for speed control?
The 3-pin connector supplies constant 12 V power, so the fan runs at its fixed 1000 RPM and cannot be PWM-controlled.
What clearance does the 140 mm by 25 mm frame need to mount?
It fits standard 140 mm mounting holes with a 25 mm thick frame, secured by the four included metal screws.
