Silver Mini-ITX tower with anodized aluminum shell and walnut top panel

Fractal Design

Fractal Design Era 2 FD-C-ERA2N-01 Silver Mini-ITX PC Case

SKU CH-7QKQ-SJ00Z MPN FD-C-ERA2N-01

A silver Mini-ITX case with anodized aluminum panels, solid walnut top, and tool-free sliding shell that fits 326 mm graphics cards and a 280 mm top radiator

  • TypeMini-ITX Tower
  • ColorSilver
  • Case MaterialAluminum panels, steel frame
  • With Power SupplyNo
  • Power SupplySupports SFX / SFX-L
  • Power Supply MountedFront

Options Silver

  • Anodized aluminum and solid walnut create a sleek, sculpted exterior
  • Tool-free sliding shell gives quick access to internal components
  • 326 mm GPU clearance fits up to three-slot graphics cards
  • Top radiator support up to 280 mm enables liquid cooling
  • Two pre-installed Aspect 12 PWM fans provide immediate airflow

Compact Mini-ITX chassis

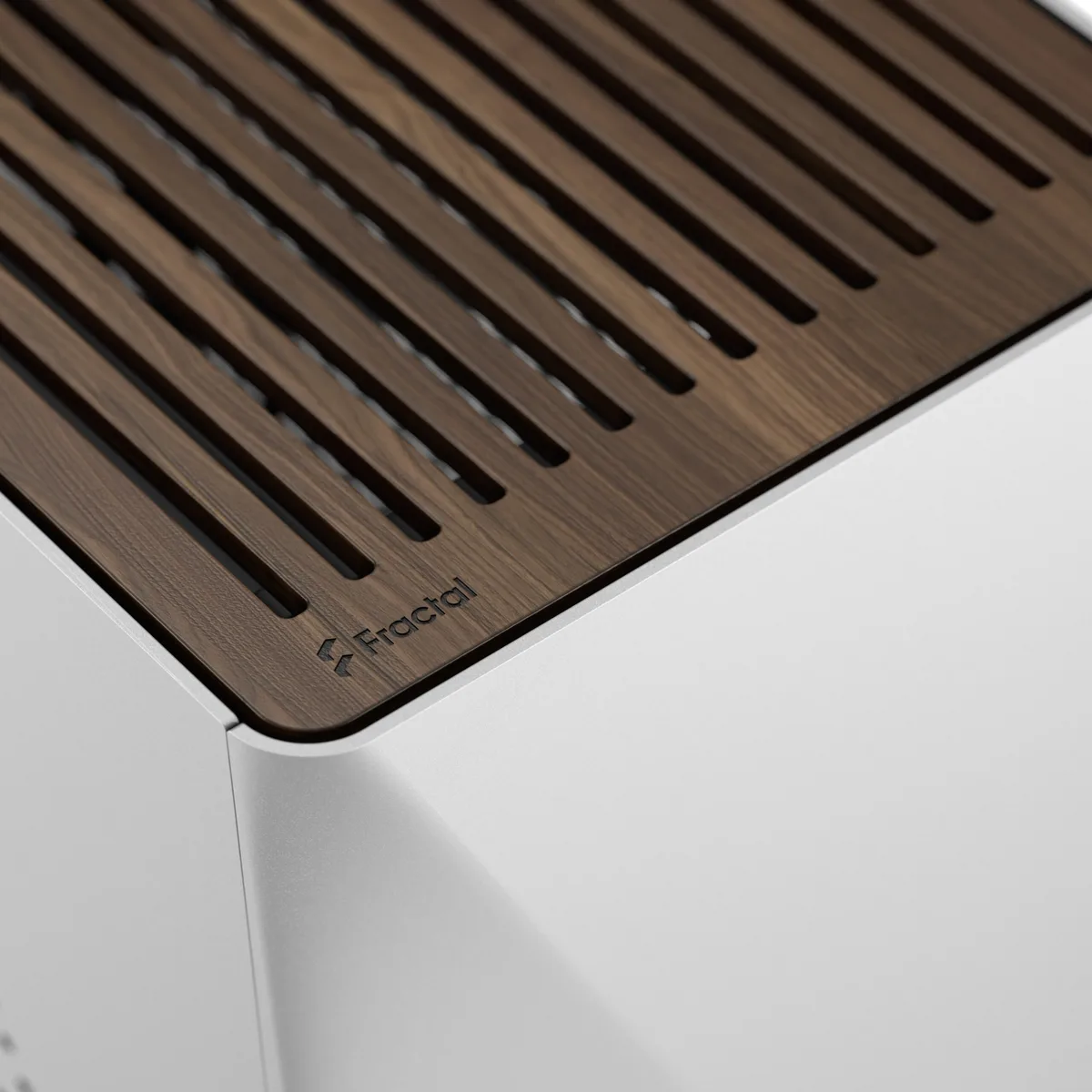

The Fractal Design Era 2 is a silver Mini-ITX tower built from anodized aluminum panels on a steel frame. It targets builders who want a small-form-factor system with room for a full-length graphics card and liquid cooling. The exterior shell slides off without tools for quick internal access. A solid walnut top panel completes the look.

Thermals and acoustics at idle

Two Aspect 12 PWM fans come pre-installed at the bottom, drawing air through a filtered intake. Four total mounts accept 120 or 140 mm fans on the top and bottom. Ventilation on five sides promotes steady airflow through the aluminum and steel structure. The front-mounted SFX or SFX-L power supply sits isolated from the main chamber.

Behaviour under sustained load

A stepless slidable central wall provides 15 mm of adjustment, shifting CPU cooler clearance between 55 and 70 mm while accommodating radiators up to 280 mm at the top. The included PCIe 4.0 riser cable supports three-slot graphics cards up to 326 mm long. Four internal 2.5-inch drive bays and three expansion slots remain available during heavy workloads.

Points forts

  • Anodized aluminum and solid walnut create a sleek, sculpted exterior
  • Tool-free sliding shell gives quick access to internal components
  • 326 mm GPU clearance fits up to three-slot graphics cards
  • Top radiator support up to 280 mm enables liquid cooling
  • Two pre-installed Aspect 12 PWM fans provide immediate airflow

Caractéristiques

BrandFractal Design
SeriesEra 2
ModelFD-C-ERA2N-01
TypeMini-ITX Tower
ColorSilver
Case MaterialAluminum panels, steel frame
With Power SupplyNo
Power SupplySupports SFX / SFX-L
Power Supply MountedFront
Motherboard CompatibilityMini ITX
Side Panelwithout Side Window
LEDNon-LED
Dust FiltersBottom intake
Internal 2.5" Drive Bays4 (included)
Expansion Slots3
Front Ports1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.0, 1 x Audio
Fan OptionsTotal fan mounts: 4
Top: 2 x 120/140 mm
Bottom: 2 x 120 mm (2 x Aspect 12 PWM fans included)
Pre-installed FansBottom - 2 x 120mm
Radiator OptionsTop: Up to 280 mm (140 x 307 mm max)
Max GPU Length326 mm
Max CPU Cooler Height55 - 70 mm (depending on MB wall position)
Dimensions14.41" x 6.5" x 12.36"
Weight4.64 kg / 10.23 lbs.
FeaturesSleek, sculpted design with an anodized aluminum exterior and solid walnut top panel
Compatible with graphics cards up to 3 slots with 326 mm in length and 61 mm in thickness
Optimized for AIO watercoolers with support for radiators up to 280 mm
Includes two Aspect 12 PWM fans and features ample ventilation for airflow performance
Tool-free access with an exterior shell which slides off and a push-to-release top bracket
Offers 15 mm of internal build flexibility provided by a stepless, slidable central wall
Includes a pre-installed PCIe 4.0 riser cable and dedicated mounts for up to
Package ContentCase
Accessory Box
Designers Letter
Quick Start Note
Poids d’expédition5.90 kg
Dimensions du colis457 × 406 × 254 mm

Autres versions de ce modèle

2 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install the motherboard with the slidable central wall, and what step do builders miss?

Slide the central wall to the 15 mm offset, fit the Mini-ITX board, then secure the wall before adding the GPU; skipping the wall-lock step leaves the board loose.

Which filters and fans need cleaning or replacement over time?

The bottom intake dust filter and the two pre-installed 120 mm Aspect 12 PWM fans at the bottom are the only serviceable airflow parts.

What is the first thermal limit reached during a long, heavy load?

The CPU cooler height ceiling of 55–70 mm restricts cooler choice before the 280 mm top radiator limit or 326 mm GPU length become factors.
