White compact console-style Mini-ITX case with smooth aluminium front panel and two side-mounted 140 mm fans

Fractal Design

Fractal Design FD-C-RID1N-12 Ridge White Mini-ITX PC case

SKU CH-PYW0-C2VQ8 MPN FD-C-RID1N-12

White Mini-ITX console case with PCIe 4.0 riser, two 140 mm fans and front USB-C 3.2 Gen 2x2

  • TypeSmall Form Factor
  • ColorWhite
  • Case MaterialSteel
  • With Power SupplyNo
  • Power SupplySFX/SFX-L
  • Power Supply MountedBottom

Options White

  • Compact console footprint fits tight spaces with 14.72 litre volume
  • PCIe 4.0 riser included supports modern graphics cards at full speed
  • Two 140 mm PWM fans pre-installed deliver strong side airflow out of the box
  • Front USB 3.2 Gen 2x2 Type-C plus two USB 3.0 ports give fast peripheral connectivity
  • Holds graphics cards up to 335 mm long and 82 mm thick for high-end GPU choice

Ridge White Mini-ITX console case

The Ridge White is a compact console-type chassis built for Mini-ITX and Mini-DTX boards. It ships with a PCIe 4.0 riser card and two 140 mm Aspect PWM fans mounted on the side panel. The front panel is machined from 6 mm anodized aluminum and includes a USB 3.2 Gen 2x2 Type-C port, two USB 3.0 ports and a combo audio jack.

Builders wanting dense GPU power in a living-room

This case suits builders who need up to 335 mm of graphics-card length and 82 mm of thickness in a 14.72 litre frame. The 70 mm CPU cooler limit and SFX/SFX-L power-supply requirement rule out large air towers and ATX units. Removing one side fan allows Mini-DTX boards, but reduces side airflow.

Thermals under sustained load

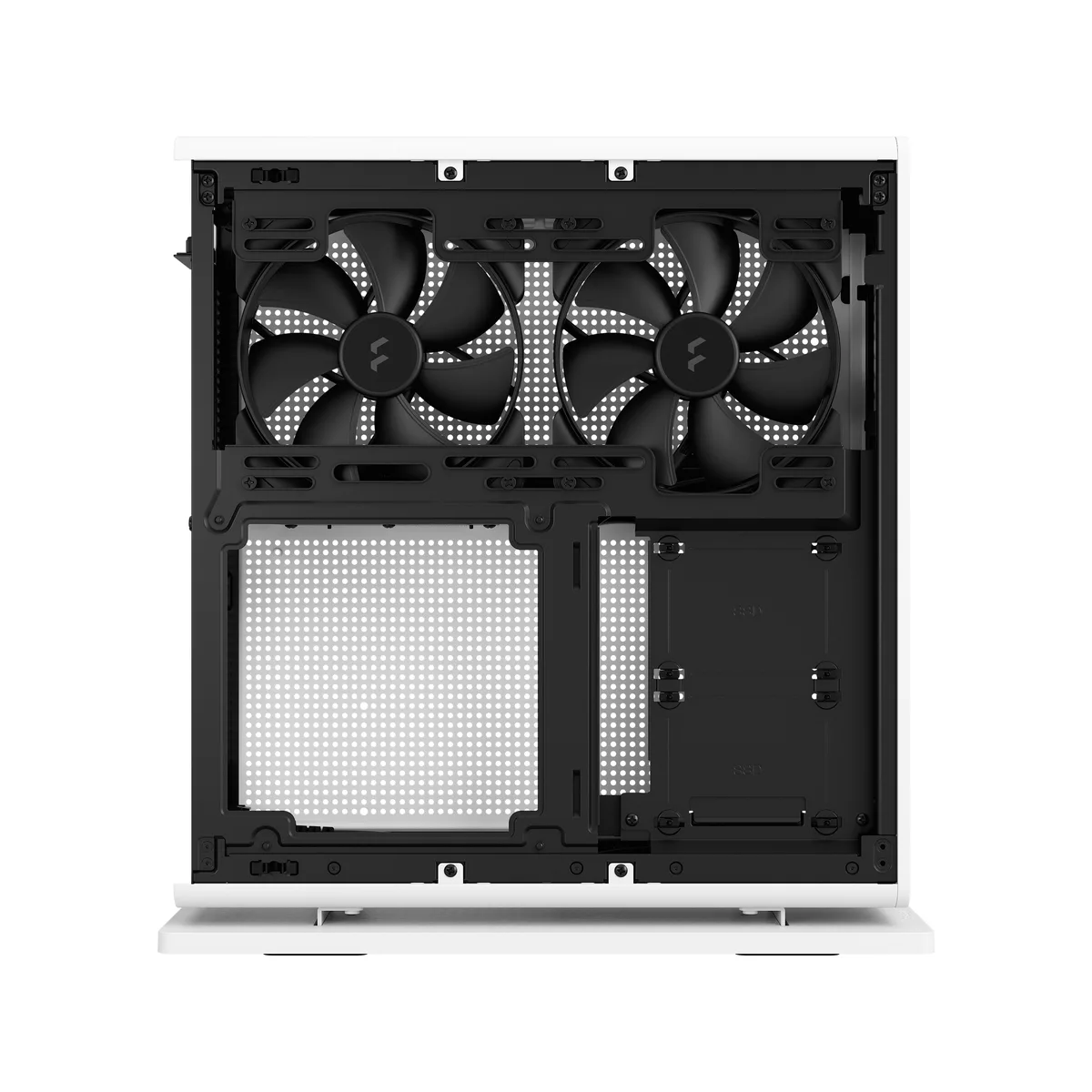

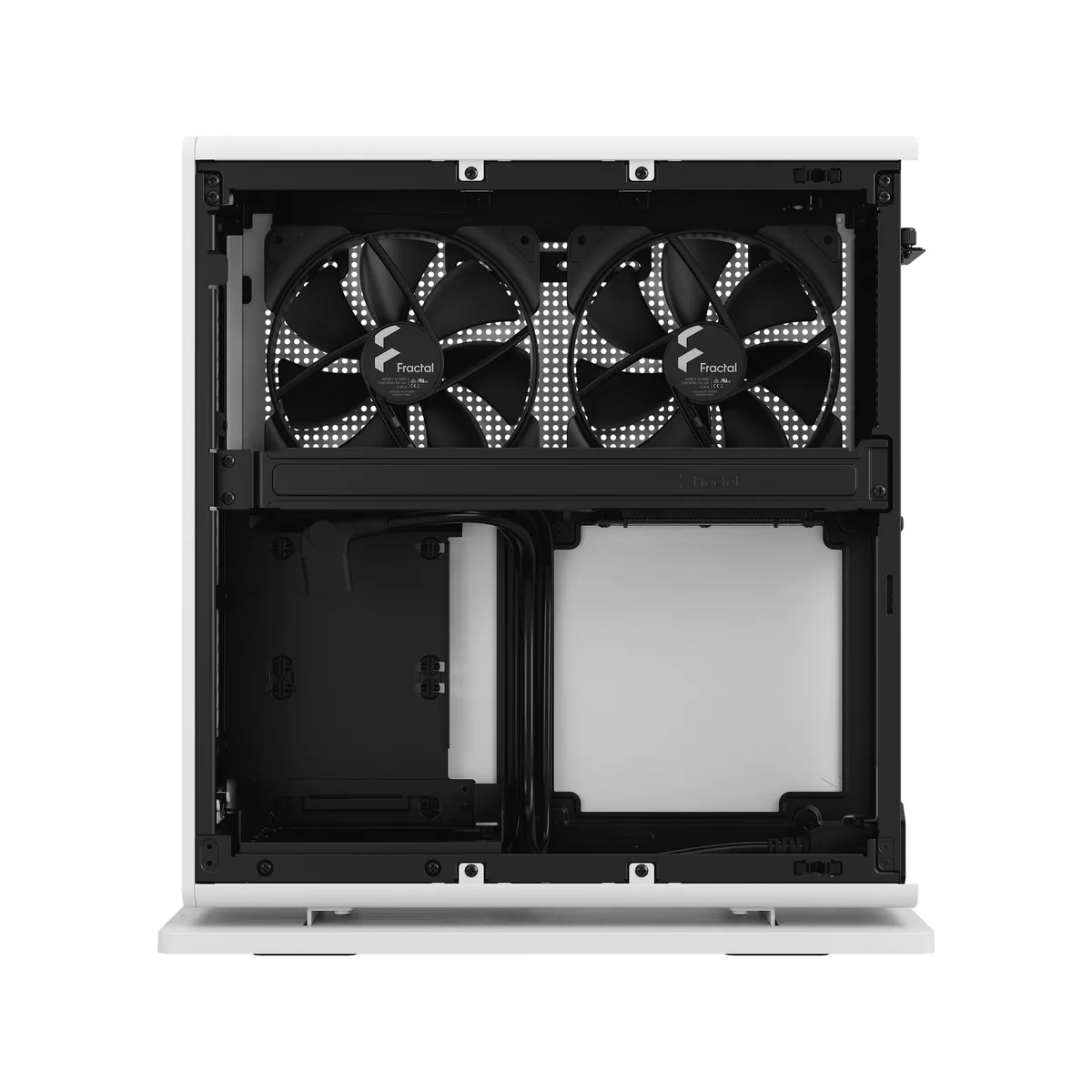

Two pre-installed 140 mm side fans push air directly across the graphics card, while three 80 mm top mounts can exhaust heat. A side 240 or 280 mm radiator fits only when no GPU is present; with a card installed the maximum radiator size drops to 120 mm. GPU height shrinks from 137 mm to 125 mm if top fans are used, and thickness falls to 57 mm when side fans overlap the card.

Points forts

  • Compact console footprint fits tight spaces with 14.72 litre volume
  • PCIe 4.0 riser included supports modern graphics cards at full speed
  • Two 140 mm PWM fans pre-installed deliver strong side airflow out of the box
  • Front USB 3.2 Gen 2x2 Type-C plus two USB 3.0 ports give fast peripheral connectivity
  • Holds graphics cards up to 335 mm long and 82 mm thick for high-end GPU choice

Caractéristiques

BrandFractal Design
SeriesRidge
ModelFD-C-RID1N-12
TypeSmall Form Factor
ColorWhite
Case MaterialSteel
With Power SupplyNo
Power SupplySFX/SFX-L
Power Supply MountedBottom
Motherboard CompatibilityMini-ITX / Mini-DTX (with one 140 mm case fan removed)
Side Panelwithout Side Window
LEDFront power LED bar
Internal 2.5" Drive Bays4 (included)

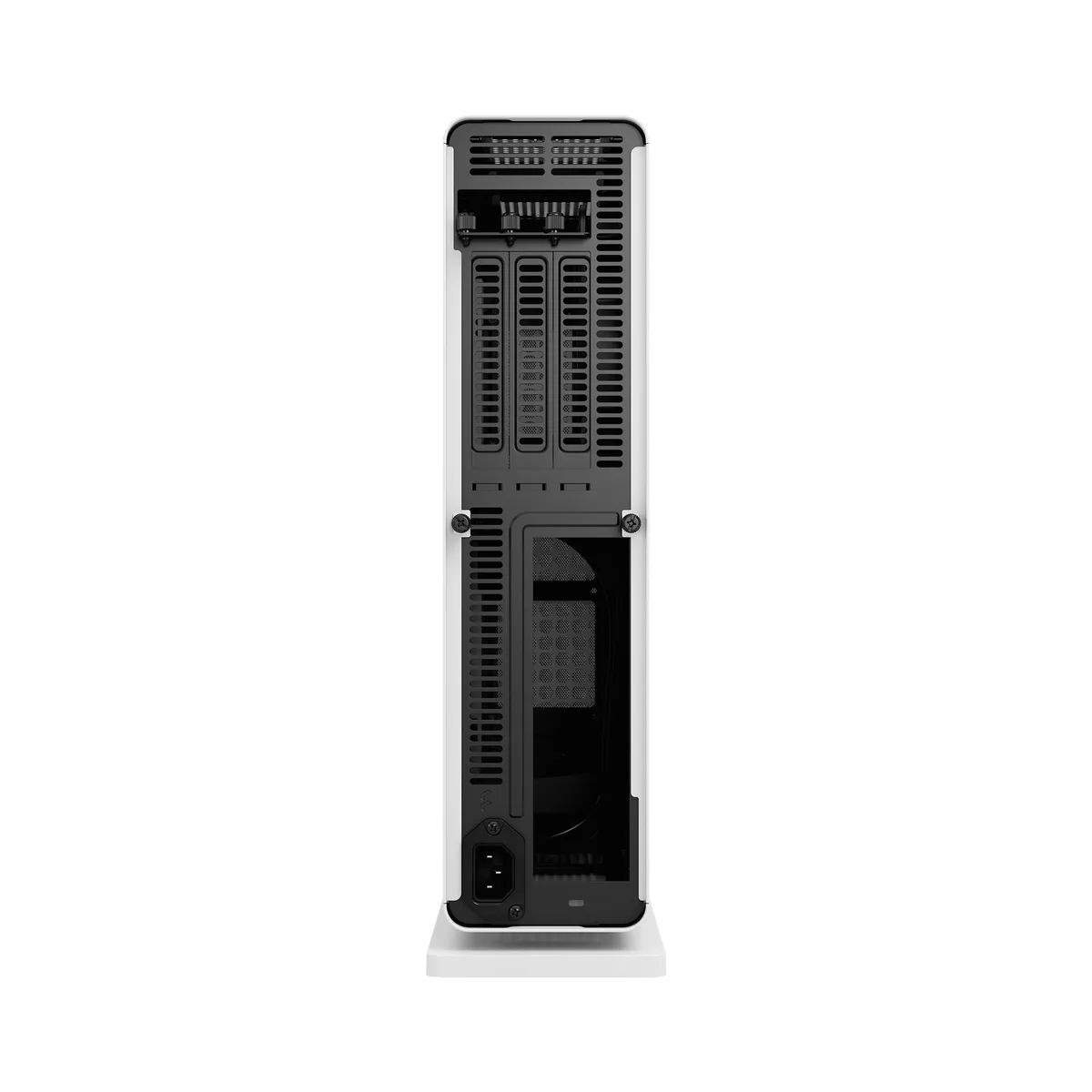

Expansion Slots3
Front Ports1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.0, 1 x Audio
Fan OptionsTotal fan mounts: 2x 120/140 mm and 3x 80 mm
Side: 2x 120/140 mm (2x Aspect 140 mm PWM included)
Top: 3x 80 mm
Pre-installed FansSide - 2 x 140mm
Radiator OptionsSide: 120 mm with GPU up to 175mm in length, 240/280 mm without GPU
Max GPU LengthMax GPU Length: 335 mm total, 325 mm with SSD installed
Max GPU Height: 137 mm total, 125 mm with top fan(s) installed
Max GPU Thickness: 82 mm total, 57 mm with side fan(s) installed overlapping GPU
Max CPU Cooler Height70 mm
Max PSU Length130 mm
Dimensions14.72" x 4.33" x 15.57"
Weight9.48 lbs.
Features• Compact SFF console-type case
• All panels come off for maximum accessibility
• 6 mm anodized and CNCd aluminum front
• PCIe 4.0 riser card included
• Horizontal and vertical orientations with multiple foot configurations

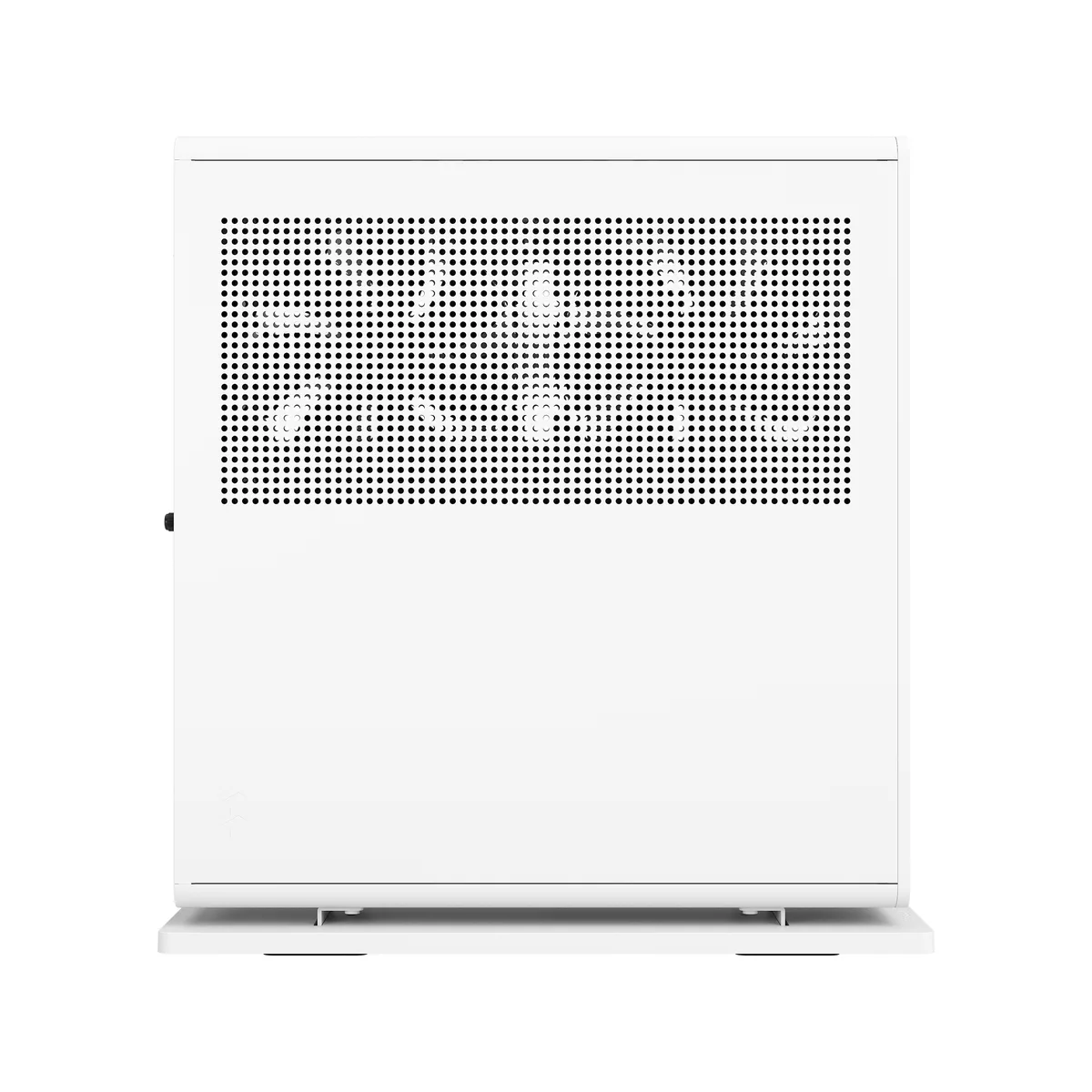

• Ventilated side, top and bottom panels
• 2x 140 mm PWM Aspect fans included
• 2x 140 mm side fan and 3x 80 mm top fan support
• Front I/O comes with 2x USB 3.0, 1x USB type-C and a combined mic and headphone jack
• 4x SSD support, 2x screw mount and 2x clip-in fast mounts
• Excellent GPU Cooling
• Supports GPUs up to a length of 335 mm
• 57 mm thick GPU support
Package ContentCase
Accessory box
Manual
Poids d’expédition5.50 kg
Dimensions du colis431 × 426 × 167 mm

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will a triple-slot graphics card fit if I also install a 2.5" SSD?

With an SSD installed the maximum GPU thickness drops to 57 mm, so a triple-slot card will only fit if it stays within that limit.

What power supply do I need and where does it mount?

The case accepts SFX or SFX-L units up to 130 mm long, mounted at the bottom.

Can I use a 240 mm radiator while keeping a full-length graphics card?

A 240 mm or 280 mm radiator is only supported when no GPU is installed; with a GPU up to 175 mm you are limited to a 120 mm radiator.
