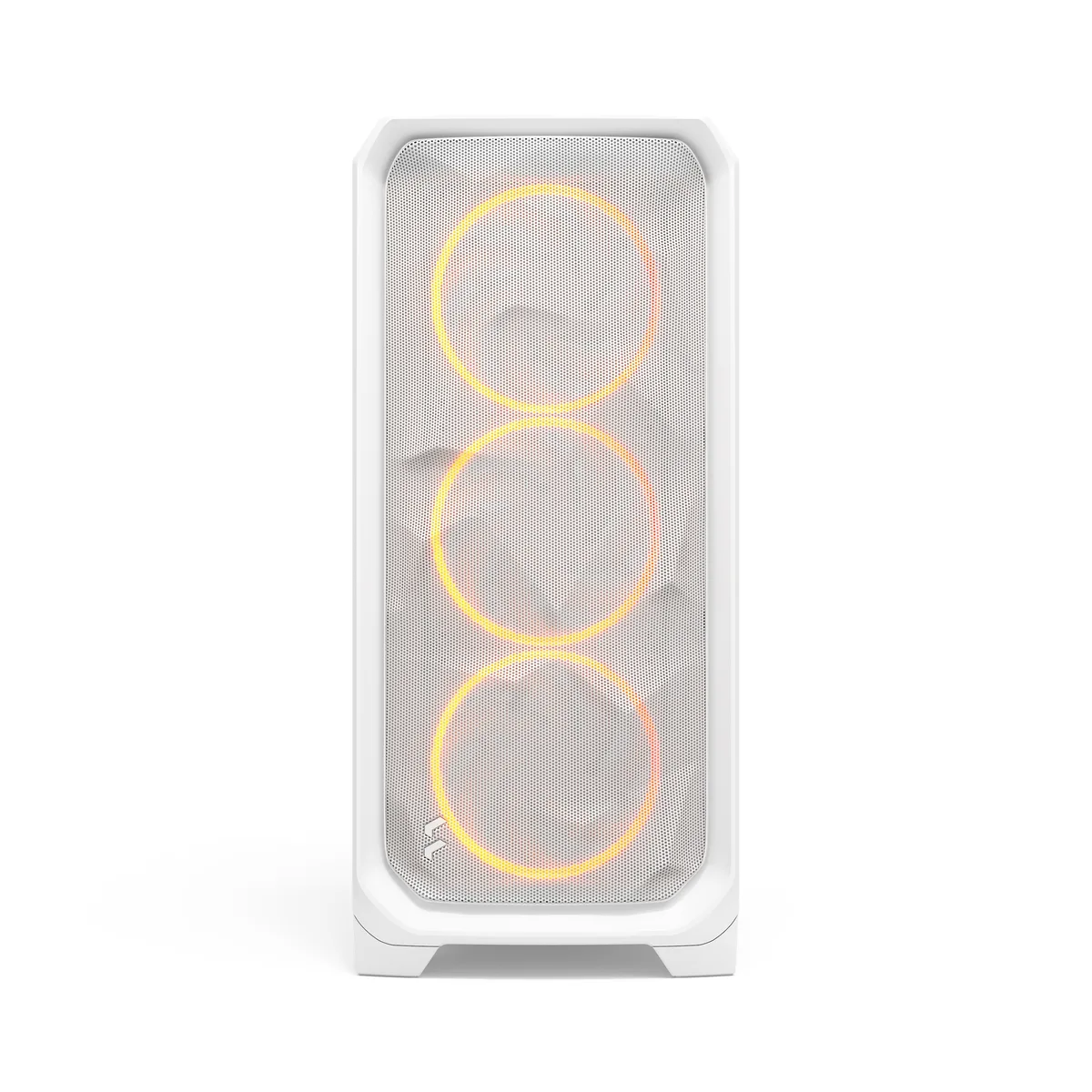

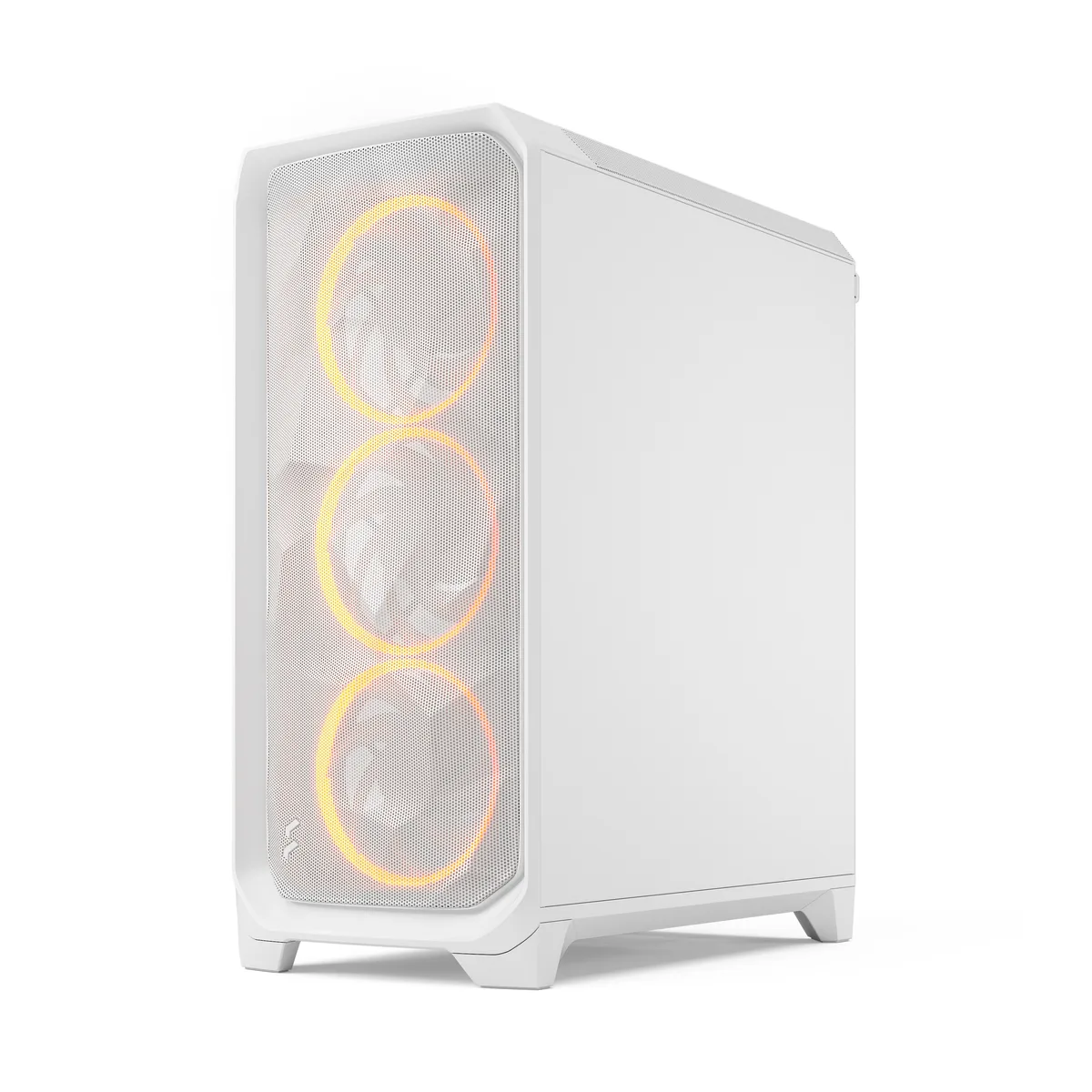

White mid-tower PC case with mesh front panel, clear glass side panel, three 140mm RGB fans visible behind mesh

Fractal Design

Fractal Design Meshify 3 RGB FD-C-MES3A-07 White ATX Mid Tower PC Case

SKU CH-8VZB-97ATS MPN FD-C-MES3A-07

ATX mid-tower with mesh front panel, tempered-glass side window, three pre-installed 140 mm ARGB fans, 20 Gbps USB-C front port and support for 349 mm graphics cards

  • TypeATX Mid Tower
  • ColorWhite
  • Case MaterialSteel
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityATX / E-ATX / Micro ATX / Micro ATX / ATX / E-ATX / Micro AT

Options Meshify 3 RGB - TG Clear Tint (White)

  • Ample ventilation and air guide improve GPU cooling performance
  • Rockface-inspired mesh front panel delivers high airflow with distinctive style
  • Supports graphics cards up to 349 mm long and E-ATX motherboards
  • Front radiator support up to 360 mm and top up to 280 mm with removable brackets
  • Three pre-installed 140 mm Momentum 14 RGB PWM fans with LCP blades and true FDB bearings

Mid Tower for ATX and E-ATX Builds

This white steel chassis fits ATX, E-ATX, Micro ATX and Mini ITX motherboards. It ships with three 140 mm Momentum 14 RGB PWM fans mounted at the front and a clear tempered glass side panel. The front I/O provides a 20 Gbps USB Type-C port, two USB 3.0 ports and a combo audio jack. Seven expansion slots are available for add-in cards.

Sustained Airflow with Included Fans

The three pre-installed 140 mm fans use LCP blades and fluid dynamic bearings to move air steadily through the mesh front panel. An internal air guide directs that flow toward the graphics card area during long sessions. Dust filters on the bottom protect the interior without restricting the intake path. The top panel accepts two 120 mm or 140 mm fans for additional exhaust capacity.

Radiator Limits and Drive Capacity

The front supports radiators up to 360 mm while the top accepts up to 280 mm. A rear 120 mm radiator can also be fitted. Two 3.5 inch hard drives or four 2.5 inch SSDs mount behind the motherboard tray, and two dedicated 2.5 inch SSD positions sit on the case floor. Maximum graphics card length is 349 mm and height is 176 mm.

Points forts

  • Ample ventilation and air guide improve GPU cooling performance
  • Rockface-inspired mesh front panel delivers high airflow with distinctive style
  • Supports graphics cards up to 349 mm long and E-ATX motherboards
  • Front radiator support up to 360 mm and top up to 280 mm with removable brackets
  • Three pre-installed 140 mm Momentum 14 RGB PWM fans with LCP blades and true FDB bearings

Caractéristiques

BrandFractal Design
SeriesMeshify 3 RGB
ModelFD-C-MES3A-07
Part NumberFD-C-MES3A-07
TypeATX Mid Tower
ColorWhite
Case MaterialSteel
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityATX / E-ATX / Micro ATX / Micro ATX / ATX / E-ATX / Micro ATX / ATX / Mini ITX / E-ATX / Mini ITX
Side PanelClear TG Side Panel
LEDARGB
Dust FiltersBottom
External 5.25" Drive BaysNo
Internal 3.5" Drive Bays2 x 3.5" HDD or 4 x 2.5" SSD behind MB tray
Internal 2.5" Drive Bays2 x Dedicated 2.5" SSD on case floor
Expansion Slots7
Front Ports1 x USB Type-C 20Gbps, 2 x USB 3.0, 1x Audio Combo Jack
Fan OptionsFront: 3 x 120/140 mm (3 x Momentum 14 RGB PWM included)
Top: 2 x 120/140 mm
Rear: 1 x 120 mm
Pre-installed FansFront - 3 x 140mm
Radiator OptionsFront - Up to 280mm / Front - Up to 360mm / Rear - Up to 120mm / Top - Up to 240mm / Top - Up to 280mm
140mm Fans3
Max GPU LengthMax GPU Length: 349 mm
Max GPU Height: 176 mm (slot 7, including cables)
Max CPU Cooler Height173 mm
Max PSU Length180 mm
Dimensions17.05" x 9.02" x 19.96"
Weight19.40 lbs.
Package ContentMeshify 3 case
User manual
Accessory box
Poids d’expédition10.71 kg
Dimensions du colis594 × 541 × 345 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will a 349 mm graphics card fit in this case?

Yes, the case supports graphics cards up to 349 mm in length, so a card of that size will fit without modification.

Does the front USB-C port deliver 20 Gbps speed?

The top I/O includes one USB Type-C port rated at 20 Gbps, two USB 3.0 Type-A ports and a combined audio jack.

What radiator sizes can be mounted at the top and front?

The top supports radiators up to 280 mm, while the front supports up to 360 mm, both with removable brackets for easier installation.
