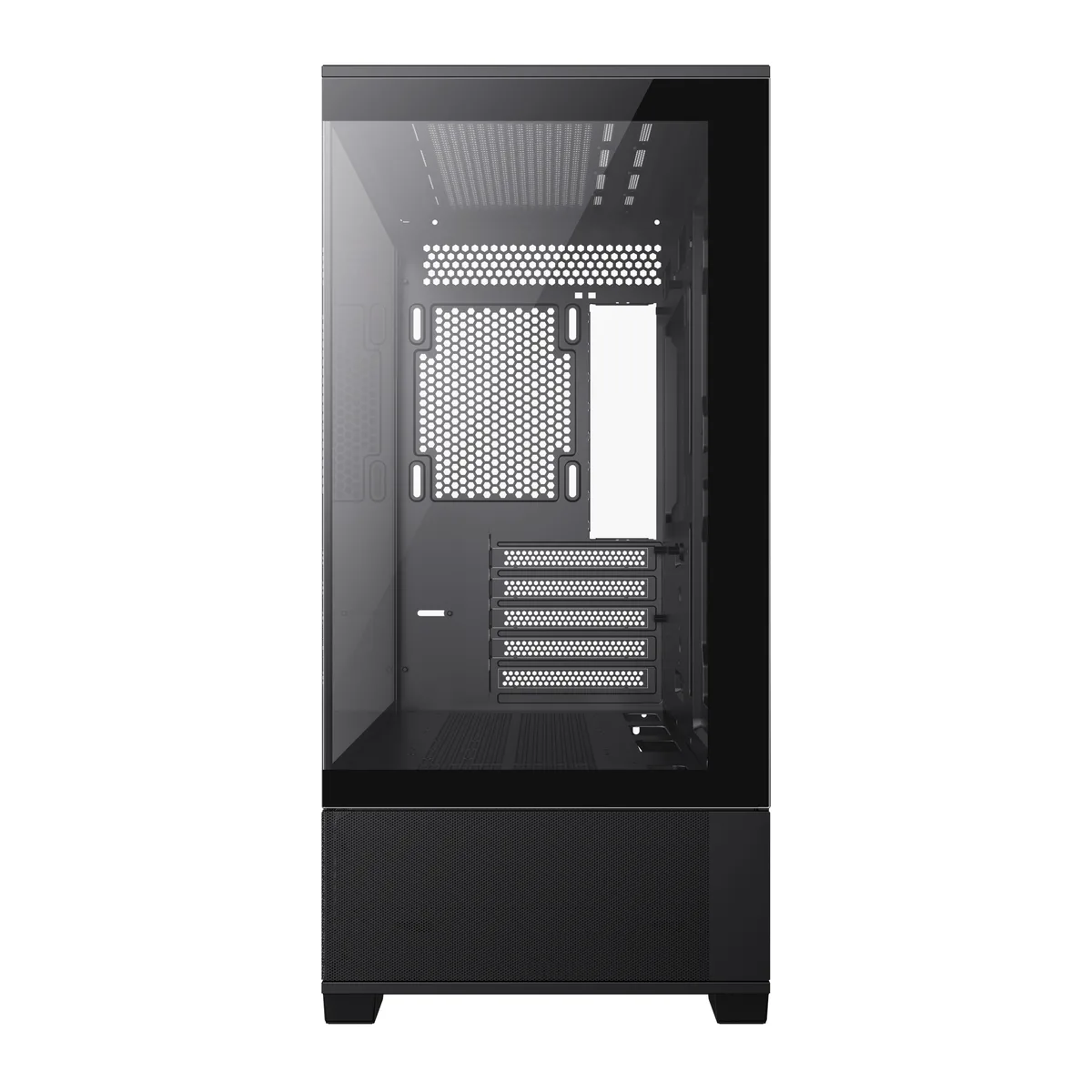

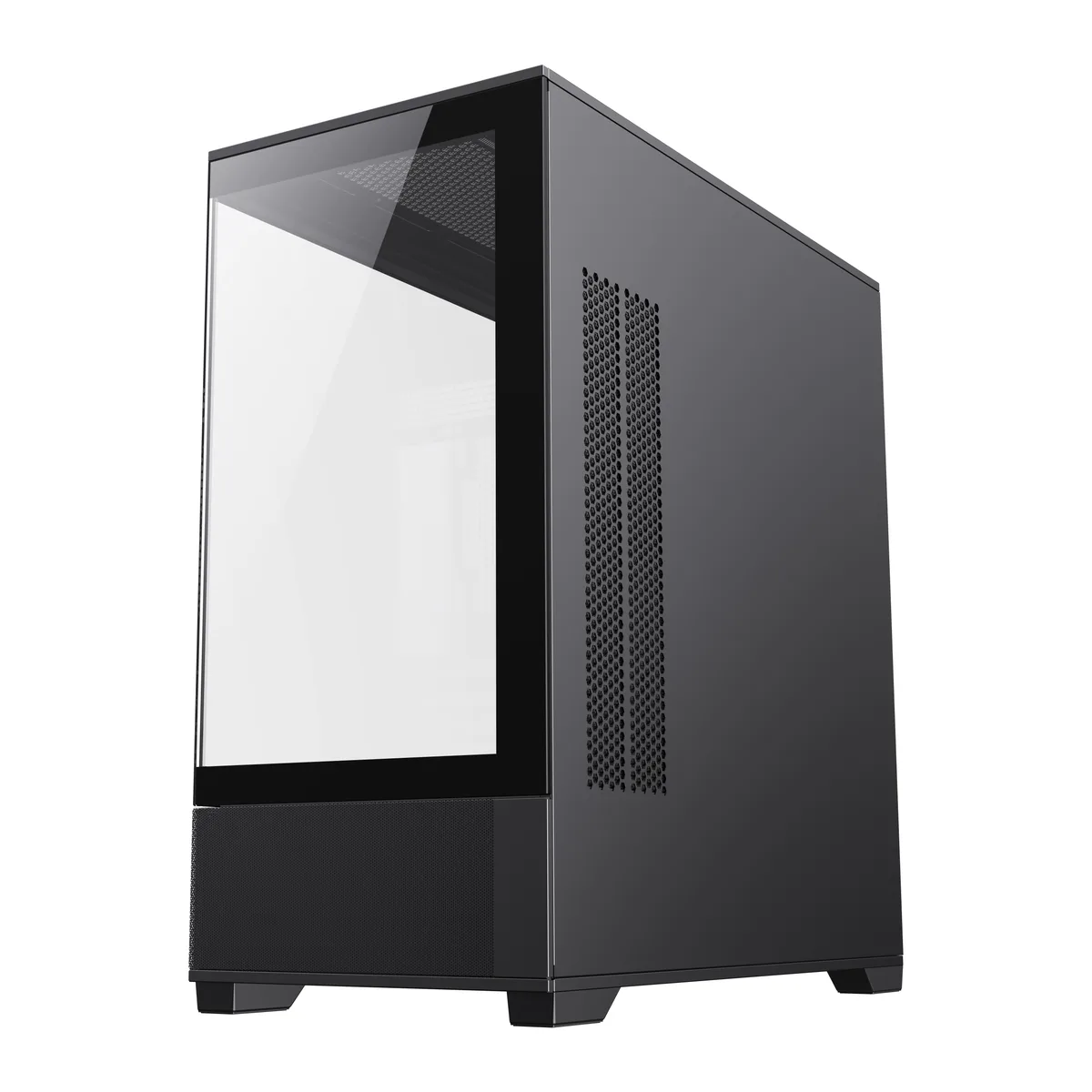

Black Micro-ATX tower with tempered glass front and side panels, mesh detailing, metal top and right side, no fans installed

GAMEMAX

GAMEMAX VISTA MB Black Micro-ATX Tower Tempered Glass PC Case

SKU CH-6Y02-WEVGJ

A micro-ATX tower with front and side tempered glass, mesh airflow, support for 410 mm graphics cards, 165 mm CPU coolers, 360 mm top radiators and front USB 3.0, fans not included

  • TypeMicro ATX Tower
  • ColorBlack
  • Case MaterialChassis SPCC: :0.6mm Front Panel: Tempered Glass, Mesh Top P
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityMicro ATX / Mini-ITX
  • Micro-ATX and Mini-ITX motherboards fit inside the compact tower
  • Modular I/O lets you shift the motherboard for air or liquid cooling
  • Nine 120 mm fan positions plus top 360 mm radiator support deliver strong airflow
  • Graphics cards up to 410 mm long and CPU coolers up to 165 mm tall are accommodated
  • Two USB 2.0 ports, one USB 3.0 port and audio on the front panel

Micro-ATX Tower with Tempered Glass

The GAMEMAX VISTA MB is a black micro-ATX tower built around tempered glass front and side panels with integrated mesh for airflow. It accepts Micro-ATX and Mini-ITX motherboards and supports graphics cards up to 410 mm long. The case ships without a power supply or any pre-installed fans, so builders must provide their own cooling and power.

Modular Layout and Fan Mounts

The motherboard tray can be raised or lowered to suit air or liquid cooling, and the top bracket includes a seal plate for radiators smaller than 360 mm. Nine 120 mm fan positions are available across the top, rear, motherboard cover and PSU shroud, with optional 140 mm mounts at the top. Dust filters sit on the bottom, right side and top for easy cleaning, but no fans are included in the box.

Clearances and Drive Configurations

Before ordering, verify that your CPU cooler does not exceed 165 mm in height and that your power supply fits within the 265 mm length limit. The drive cage offers two layouts: either one 3.5-inch HDD plus two 2.5-inch SSDs or two 3.5-inch HDDs plus one 2.5-inch SSD. Front I/O provides two USB 2.0 ports, one USB 3.0 port, audio and three buttons.

Points forts

  • Micro-ATX and Mini-ITX motherboards fit inside the compact tower
  • Modular I/O lets you shift the motherboard for air or liquid cooling
  • Nine 120 mm fan positions plus top 360 mm radiator support deliver strong airflow
  • Graphics cards up to 410 mm long and CPU coolers up to 165 mm tall are accommodated
  • Two USB 2.0 ports, one USB 3.0 port and audio on the front panel

Caractéristiques

BrandGAMEMAX
ModelVISTA MB
TypeMicro ATX Tower
ColorBlack
Case MaterialChassis SPCC: :0.6mm
Front Panel: Tempered Glass, Mesh
Top Panel: Metal cover
Side Pane:
Left: Tempered Glass,Mesh
Right: metal cover
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityMicro ATX / Mini-ITX
Side Panel2 x Sides Tempered Glass Panel
Dust FiltersBottom / Right Side / Top
Internal 3.5" Drive Bays1*3.5HDD+2*2.5SSD or 2*3.5HDD+1*2.5SSD
Internal 2.5" Drive Bays2
Expansion Slots5
Front Ports2 x USB 2.0, 1 x USB 3.0, 1 x Audio, 3 x Button
Fan OptionsTop: 3x120mm ,2x140mm (Fan optional)
Rear: 1x120mm (Fan optional)
M/B Cover: 2x120mm (Fan optional)
PSU Cover: 3x120mm (Reverse fan blade)(Fan optional)
Pre-installed FansNo Fan Installed
Radiator OptionsTop: 120mm, 140mm,240mm,280mm,360mm
Rear: 120mm
M/B Cover: 120mm, 240mm
Max GPU Length410 mm
Max CPU Cooler Height165 mm
Max PSU Lengthup to 265mm
Dimensions(L)415*(W)210*(H)435mm
Poids d’expédition6.92 kg
Dimensions du colis521 × 490 × 279 mm

Questions sur cet article

How can I verify airflow is sufficient after I install my own fans in the Vista MB?

Check that intake air moves freely through the front mesh and tempered glass panel, then confirm exhaust exits cleanly from the top, rear, and PSU-shroud vents while monitoring component temperatures under load.

What does the case include and what must I provide?

The box contains the chassis with two tempered-glass side panels, dust filters on the bottom, right side, and top, and the front I/O with two USB 2.0, one USB 3.0, audio, and three buttons; you must supply all fans, a bottom-mounted power supply up to 265 mm long, and storage drives.

Which version should I choose for a 360 mm top radiator and a 410 mm graphics card?

The single Vista MB model supports both a 360 mm radiator on the top and graphics cards up to 410 mm, so no alternate version is required for that combination.
