Compact silver mini PC with front USB ports and rear HDMI connections

GIGABYTE

GIGABYTE 9BXARH5SWMR-00-103 AI edge system Intel Core Ultra 5 225H 16GB DDR5 512GB SSD

SKU CH-3MG9-K7HGB MPN 9BXARH5SWMR-00-103

Compact AI edge system with Intel Core Ultra 5 225H, Arc 130T graphics, 16GB DDR5, 512GB SSD and 2.5G LAN

  • TypeMini PC
  • Rack Height1U
  • CPU TypeIntel Core Ultra (Series 2)
  • CPU SpeedIntel Core Ultra 5 225H
  • CPU Features28W
  • MAX Processors1
  • Intel Core Ultra 5 225H processor delivers 28W AI performance
  • Intel Arc 130T GPU provides integrated graphics acceleration
  • 16GB DDR5 memory at 5600MHz supports multitasking workloads
  • 512GB SSD storage on M.2 2280 PCIe Gen4x4 slot
  • 5G LAN plus Wi-Fi 7 RTL8922AE enables fast connectivity

Compact AI Edge System

The GIGABYTE BRIXs GB-BRU5-225H is a 1U mini PC built around an Intel Core Ultra 5 225H processor and Intel Arc 130T graphics. It ships with 16GB of DDR5 memory and a 512GB SSD for immediate deployment. The platform targets edge AI inference, digital signage and industrial automation workloads.

Memory and Storage Upgrade Path

The board provides two SO-DIMM DDR5 slots supporting up to 5600MHz and two CSO-DIMM DDR5 slots supporting up to 6400MHz, with a combined ceiling of 96GB. Two M.2 2280 slots accept PCIe Gen4x4 or SATA drives, while an M.2 2230 E-key slot hosts the Wi-Fi 7 RTL8922AE module. Expand when datasets outgrow the factory configuration.

Sustained Operation in a 1U Chassis

A 28W processor thermal design keeps power draw predictable inside the slim enclosure. The single 2.5G LAN port (Intel I226V) maintains steady throughput for continuous data ingest. Rear I/O includes two HDMI 2.1 outputs, a USB4 port, two USB 3.2 Gen2 Type-C and three USB 3.2 Gen2 Type-A connectors for persistent peripheral links.

Points forts

  • Intel Core Ultra 5 225H processor delivers 28W AI performance
  • Intel Arc 130T GPU provides integrated graphics acceleration
  • 16GB DDR5 memory at 5600MHz supports multitasking workloads
  • 512GB SSD storage on M.2 2280 PCIe Gen4x4 slot
  • 5G LAN plus Wi-Fi 7 RTL8922AE enables fast connectivity

Caractéristiques

BrandGigabyte
SeriesBRIXs
ModelGB-BRU5-225H
Part Number6BXARH5SWMR-00
TypeMini PC
Rack Height1U
CPU TypeIntel Core Ultra (Series 2)
CPU SpeedIntel Core Ultra 5 225H
CPU Features28W
MAX Processors1
Installed Memory SizeNo
Number of Memory Slots2
Memory TypeSO-DIMM DDR5
Max Memory Capacity96GB
Memory Features2 x SO-DIMM DDR5 slots, support up to 5600MHz
2 x CSO-DIMM DDR5 slots, support up to 6400MHz
Hard Drive (Installed)No Hard Drive
SSD (Installed)No
GPU TypeIntel Arc 130T Graphics
Ethernet ControllerIntel I226V
LAN Ports1 x Ports
Expansion Slots1 x M.2 M Key 2280 slot (PCIe Gen4x4) (PCIe Gen5x4, ready design)
1 x M.2 M Key 2280 slot (PCIe Gen4x4+SATA)
1 x M.2 E Key 2230 Wi-Fi & BT slot (Wi-Fi 7 RTL8922AE)

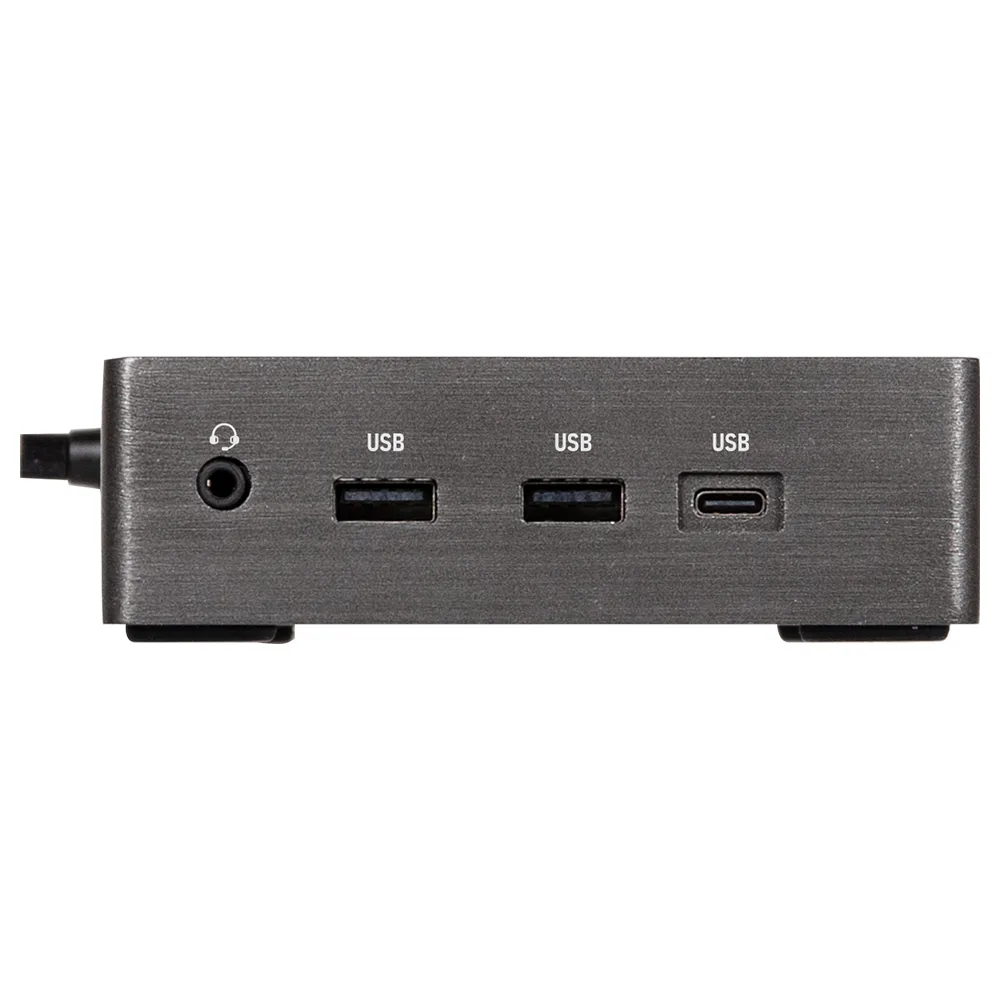

Other portsFront I/O:
1 x Headset
2 x USB 3.2 Gen2 Type A
1 x USB 3.2 Gen2 Type C (ALT)

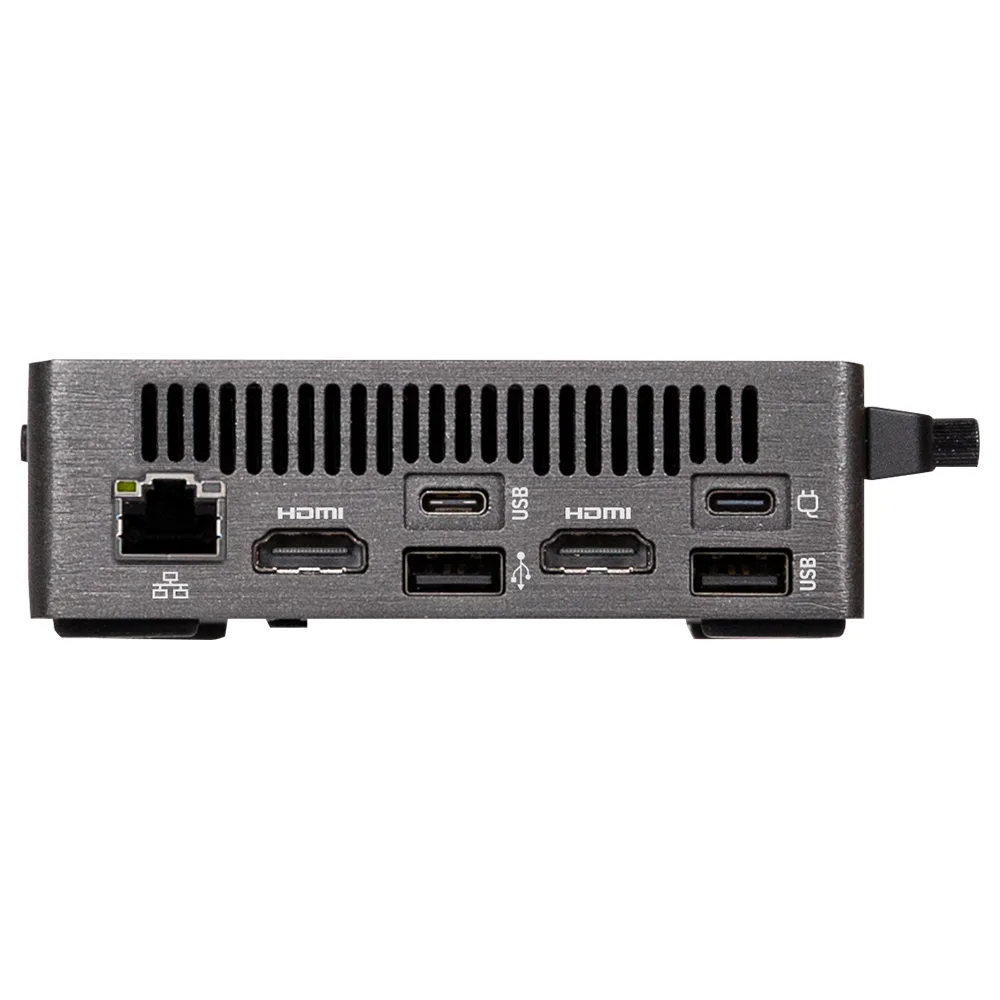

Rear I/O:
2 x HDMI (TMDS & CEC)
1 x USB4
1 x USB 3.2 Gen2 Type C (PD IN)
1 x USB 3.2 Gen2 Type A
1 x USB 2.0 Type A
1 x RJ45
Management Portno management port
Redundant Hot-swap PowerNo
Power CharacteristicsInput : AC 100-240V
Output : DC 20V/5A, 100W (Type-C PD)
TemperatureOperating Temperature: 0°C to +35°C
Storage Temperature: -20°C to +60°C
Dimensions1.35" x 4.43" x 4.7" (Slim chassis design)
Package Contents1x 100W type c power supply
1x quick start guide
1x VESA mont bracket
1x wire clamp screw
1x DDR PAD
Poids d’expédition1.32 kg
Dimensions du colis210 × 171 × 127 mm

Questions sur cet article

What rack height does the 1U BRIXs system require?

The unit is a 1U rack-mount Mini PC, so it fits in any standard 1U slot.

Which memory modules install in the two SO-DIMM slots?

Insert DDR5 SO-DIMMs up to 5600 MHz; the board supports two slots with a 96 GB maximum.

Which M.2 slot takes the Wi-Fi 7 module and how is it secured?

The E-key 2230 slot accepts the RTL8922AE card; fasten it with the single screw on the motherboard.
