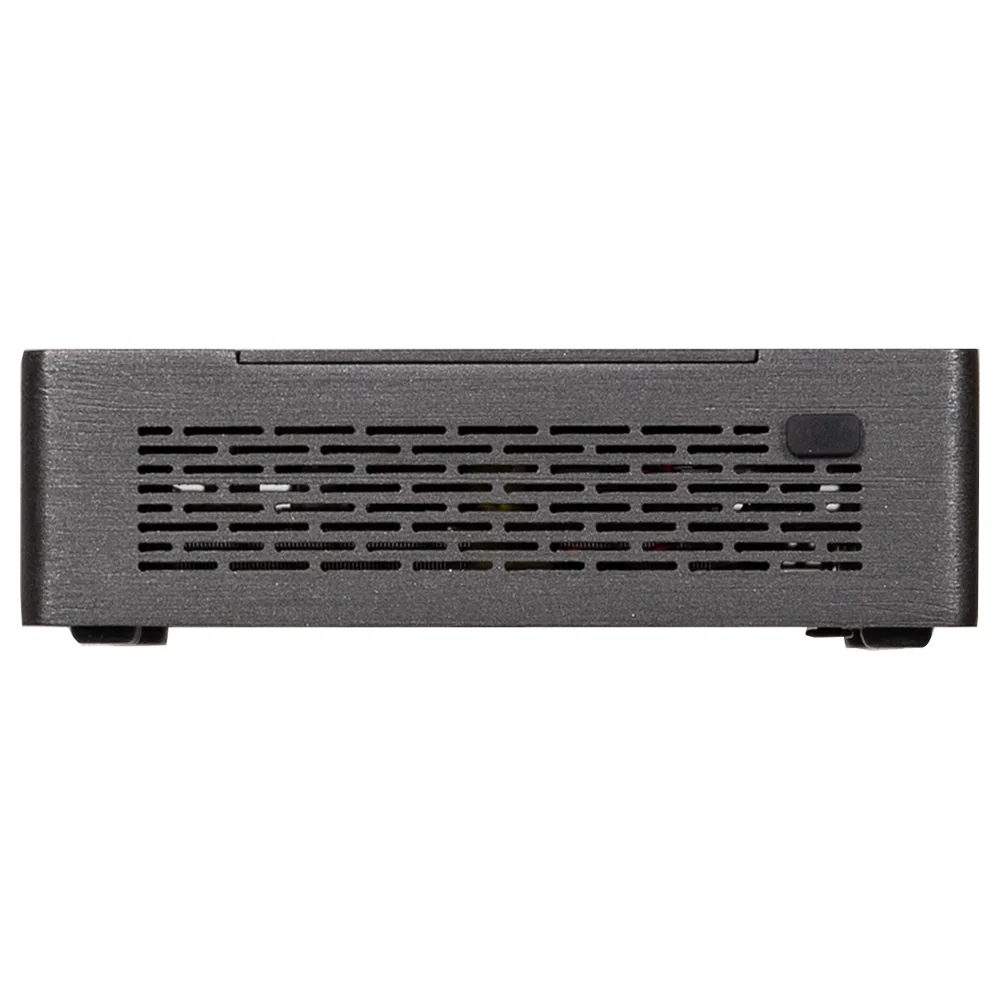

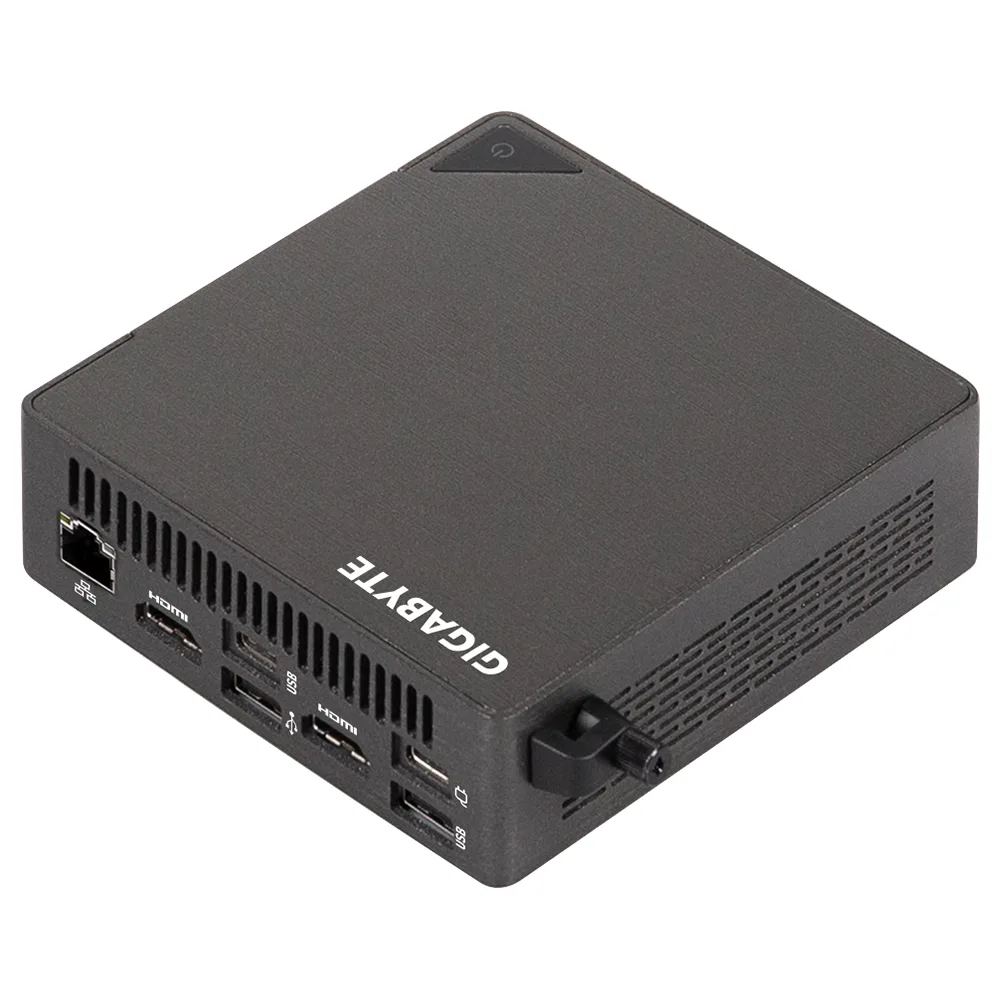

Compact silver mini PC with rounded edges and matte finish

GIGABYTE

GIGABYTE 9BXARH7SWMR-00-103 AI edge system 255H 16GB 512GB

SKU CH-Z5WQ-PTM38 MPN 9BXARH7SWMR-00-103

A compact AI edge system with an Intel Core Ultra 7 255H processor, 16 GB DDR5 memory, 512 GB NVMe SSD, Intel Arc 140T graphics, 2.5 GbE LAN, Wi-Fi 7, and four 4K display outputs

  • TypeMini PC
  • Rack Height1U
  • CPU TypeIntel Core Ultra (Series 2)
  • CPU SpeedIntel® Core™ Ultra 7 processor 255H
  • CPU Features28W
  • MAX Processors1
  • Intel Core Ultra 7 255H powers demanding AI workloads
  • Intel Arc 140T GPU accelerates graphics and inference tasks
  • 16 GB DDR5 memory enables smooth multitasking and model handling
  • 512 GB PCIe NVMe SSD provides fast local storage for datasets
  • 5 GbE LAN plus Wi-Fi 7 ensures high-speed network connectivity

Compact AI Edge System

The GIGABYTE BRIX GB-BRU7-255H integrates an Intel Core Ultra 7 processor 255H with Intel Arc 130T Graphics and 16GB DDR5 memory. A 512GB NVMe drive stores models and datasets locally. The 1U enclosure targets developers who need desk-side inference without a full server rack.

Simple Deployment

Two SO-DIMM DDR5 slots accept up to 96GB at 5600MHz or 6400MHz for memory-intensive workloads. The single 2.5G Intel I226V LAN port and Wi-Fi 7 module handle data ingest. Four video outputs — two HDMI 2.1 and two USB-C with DP alt mode — drive multiple 4K displays without adapters.

Sustained Workload Behaviour

The 28W processor maintains compute throughput during extended fine-tuning runs thanks to the compact thermal design. Unified DDR5 bandwidth feeds the 140T GPU continuously, avoiding the throttling seen in burst-only configurations. Three USB 3.2 Gen2 Type-A ports keep peripherals responsive throughout long sessions.

Points forts

  • Intel Core Ultra 7 255H powers demanding AI workloads
  • Intel Arc 140T GPU accelerates graphics and inference tasks
  • 16 GB DDR5 memory enables smooth multitasking and model handling
  • 512 GB PCIe NVMe SSD provides fast local storage for datasets
  • 5 GbE LAN plus Wi-Fi 7 ensures high-speed network connectivity

Caractéristiques

BrandGigabyte
SeriesBRIXs
ModelGB-BRU7-255H-ZH-BWUS
Part Number6BXARH5SWMR-00
TypeMini PC
Rack Height1U
CPU TypeIntel Core Ultra (Series 2)
CPU SpeedIntel® Core™ Ultra 7 processor 255H
CPU Features28W
MAX Processors1
Installed Memory SizeNo
Number of Memory Slots2
Memory TypeSO-DIMM DDR5
Max Memory Capacity96GB
Memory Features2 x SO-DIMM DDR5 slots, support up to 5600MHz
2 x CSO-DIMM DDR5 slots, support up to 6400MHz
Hard Drive (Installed)No Hard Drive
SSD (Installed)No
GPU TypeIntel Arc 130T Graphics
Ethernet ControllerIntel I226V
LAN Ports1 x Ports
Expansion Slots1 x M.2 M Key 2280 slot (PCIe Gen4x4) (PCIe Gen5x4, ready design)
1 x M.2 M Key 2280 slot (PCIe Gen4x4+SATA)
1 x M.2 E Key 2230 Wi-Fi & BT slot (Wi-Fi 7 RTL8922AE)

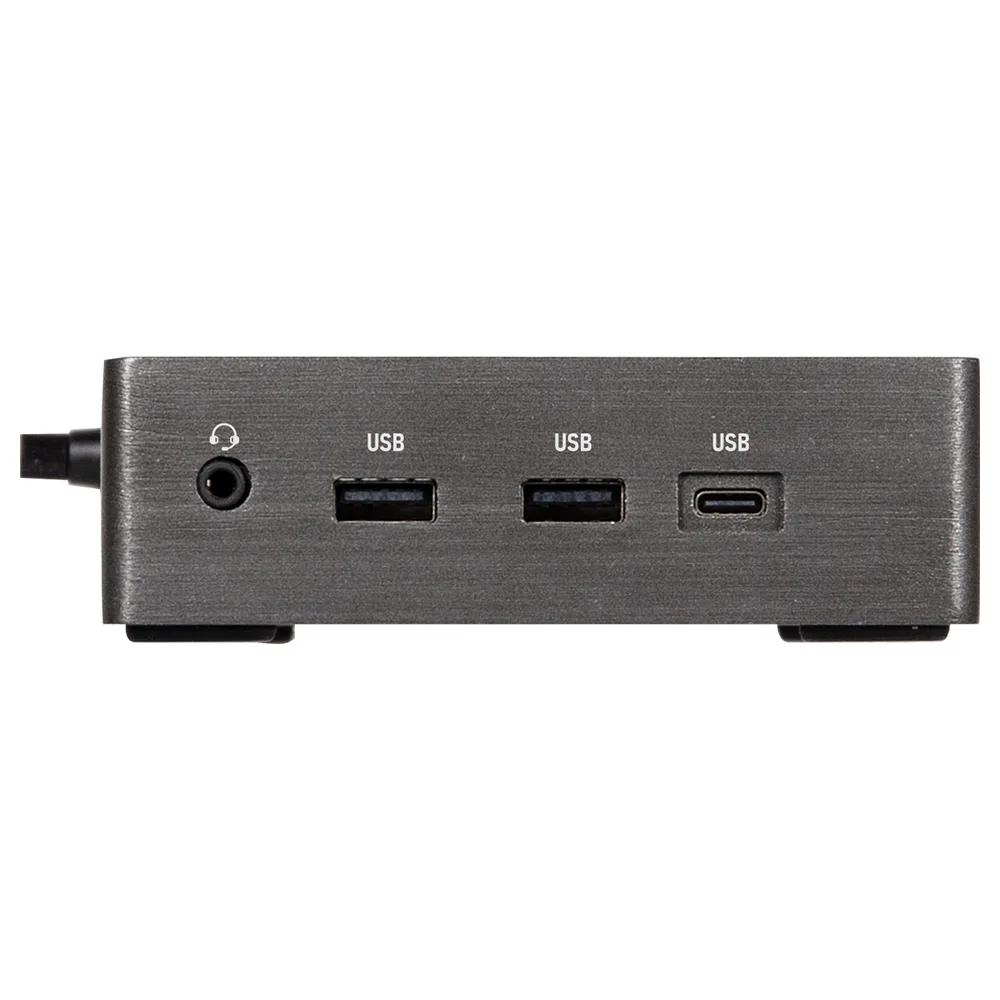

Other portsFront I/O:
1 x Headset
2 x USB 3.2 Gen2 Type A
1 x USB 3.2 Gen2 Type C (ALT)

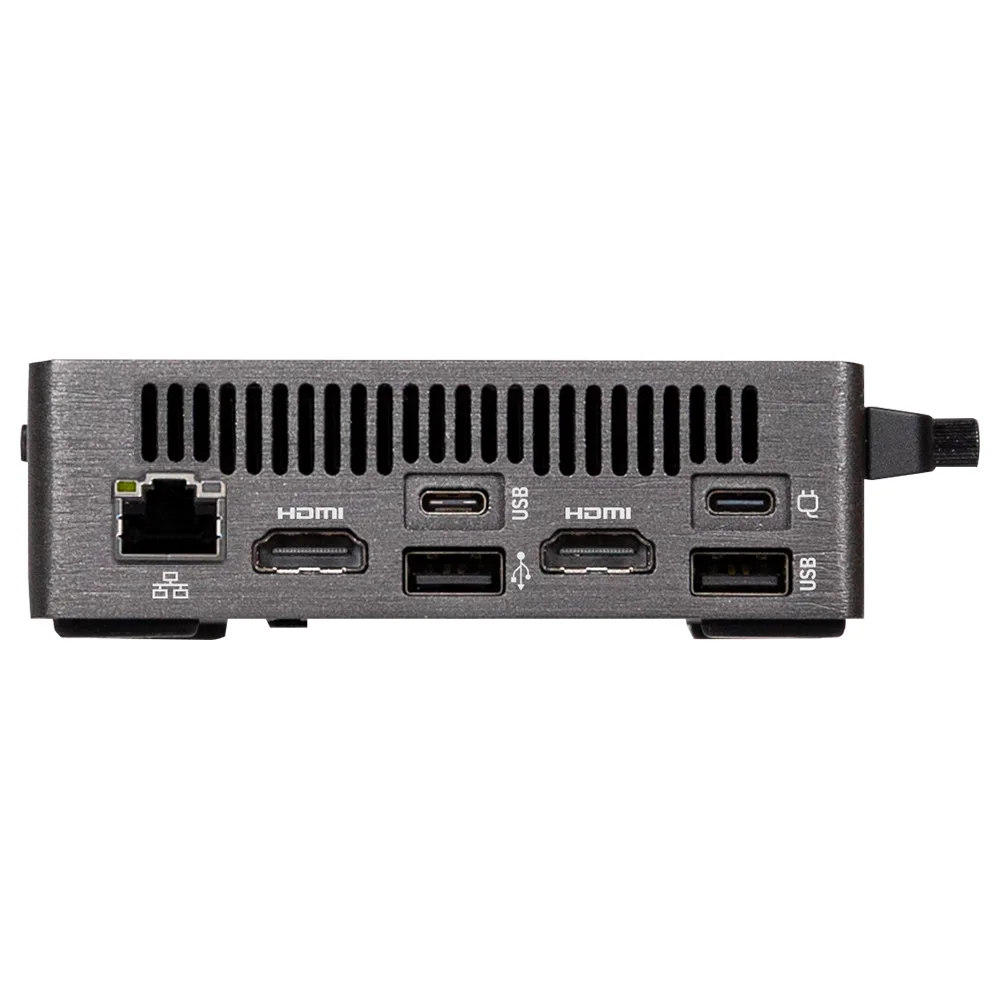

Rear I/O:
2 x HDMI (TMDS & CEC)
1 x USB4
1 x USB 3.2 Gen2 Type C (PD IN)
1 x USB 3.2 Gen2 Type A
1 x USB 2.0 Type A
1 x RJ45
Management Portno management port
Redundant Hot-swap PowerNo
Power CharacteristicsInput : AC 100-240V
Output : DC 20V/5A, 100W (Type-C PD)
TemperatureOperating Temperature: 0°C to +35°C
Storage Temperature: -20°C to +60°C
Dimensions1.35" x 4.43" x 4.7" (Slim chassis design)
Package Contents1x 100W type c power supply
1x quick start guide
1x VESA mont bracket
1x wire clamp screw
1x DDR PAD
Poids d’expédition1.36 kg
Dimensions du colis211 × 173 × 127 mm

Questions sur cet article

How do I verify the Intel Arc 130T GPU is active after first boot?

Open Windows Device Manager and confirm "Intel Arc 130T Graphics" appears under Display adapters with a working driver version; the GPU will also report itself in Task Manager's Performance tab when a 3D or AI workload runs.

What memory and storage are pre-installed versus what I must add myself?

The unit ships with 16 GB DDR5 SO-DIMM memory and a 512 GB SSD already installed; the two SO-DIMM slots support up to 96 GB total at 5600 MHz, and the M.2 slot accepts an additional NVMe drive if more capacity is needed.

Which configuration should I choose if I need the full 140T GPU and 2.5 GbE LAN?

This single SKU (9BXARH7SWMR-00-103) already includes the Intel Core Ultra 7 255H with 140T Arc graphics, 16 GB DDR5, 512 GB SSD, and a 2.5 GbE Intel I226V port; no alternate version or capacity option exists for this model.
