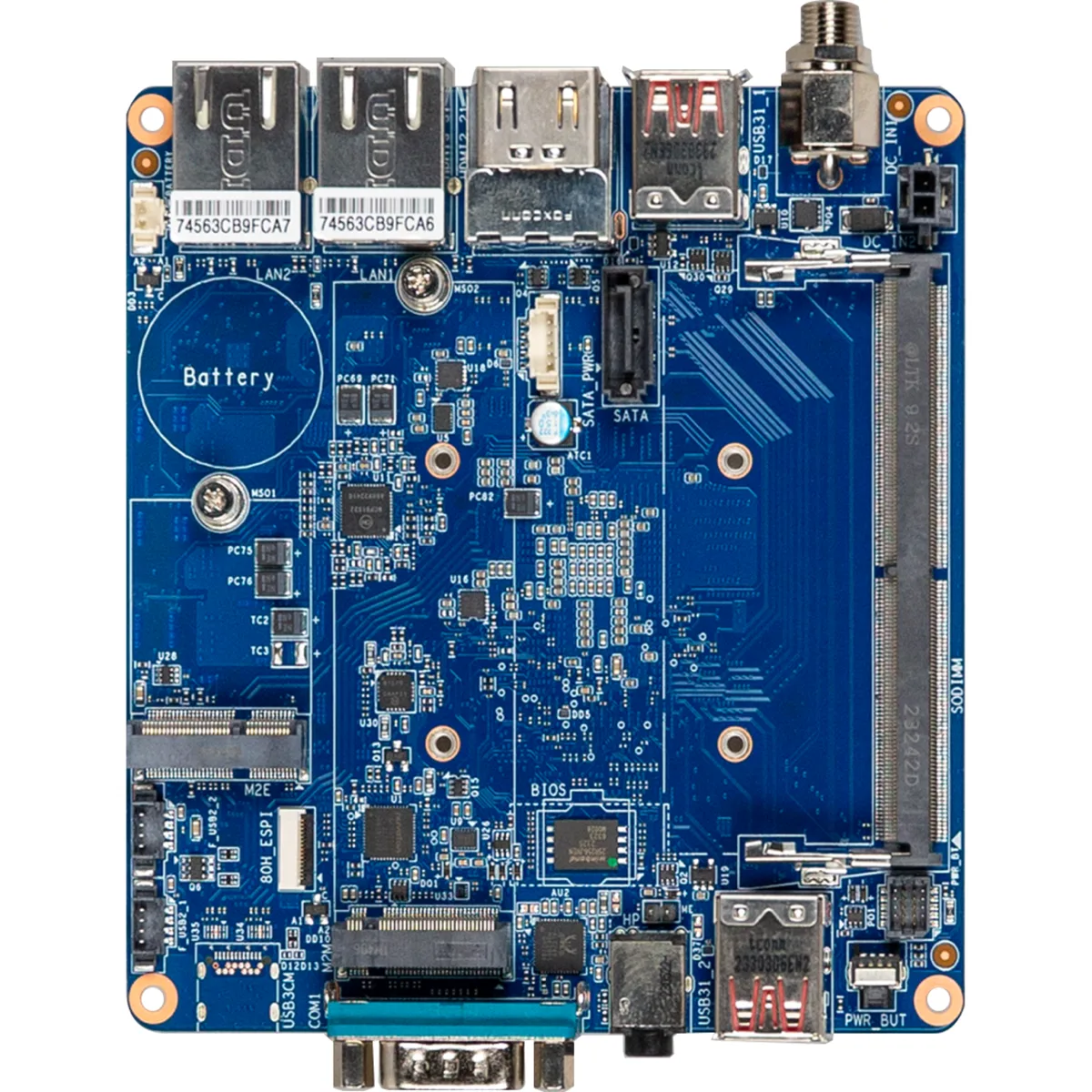

Green rectangular circuit board with silver ports and black memory slot

GIGABYTE

GIGABYTE 9MADN9AHMR-SI-10B server motherboard Intel N97 DDR5 16GB

SKU CH-TQEM-6ZX3M MPN 9MADN9AHMR-SI-10B

Compact embedded board with Intel Processor N97, single-channel DDR5 4800 memory up to 16 GB, dual 1 GbE LAN, two HDMI, one SATA 6.0 Gb/s and one M.2 2280 slot

  • CPU TypeIntel Processor N97 Embedded
  • Memory Slots1 x DDR5 262-pin
  • Memory StandardDDR5 4800
  • Maximum Memory Supported16GB
  • Other Slots1 x 2230 M.2 E-Key
  • SATA1 x SATA 6.0Gb/s
  • Intel Processor N97 handles everyday workloads efficiently
  • Single-channel DDR5 4800 memory up to 16GB for responsive multitasking
  • Dual gigabit LAN ports provide reliable wired connectivity
  • Two HDMI outputs drive independent displays simultaneously
  • Compact 4.13" x 4.33" board fits space-constrained enclosures

Compact Embedded Board with Soldered N97

The GIGABYTE QBi-N97A is a 10x10 form-factor server motherboard with an Intel Processor N97 already mounted. It provides a single DDR5 SO-DIMM slot, dual gigabit LAN ports, two HDMI outputs and a COM header for legacy serial devices. Power input accepts 12 V to 19 V DC through a screw-type jack.

Suits Space-Constrained Edge Deployments

This board fits thin clients, digital-signage players and industrial gateways where a tiny footprint and passive cooling headroom matter. It lacks PCIe expansion slots, multiple SATA ports and ECC memory support, so builders who need add-in cards or enterprise-grade reliability should look elsewhere.

Single-Channel DDR5 SO-DIMM Limit

Memory capacity tops out at 16 GB on the lone 262-pin slot running at 4800 MT/s. If the workload demands more RAM or dual-channel bandwidth, this motherboard cannot meet that requirement.

Points forts

  • Intel Processor N97 handles everyday workloads efficiently
  • Single-channel DDR5 4800 memory up to 16GB for responsive multitasking
  • Dual gigabit LAN ports provide reliable wired connectivity
  • Two HDMI outputs drive independent displays simultaneously
  • Compact 4.13" x 4.33" board fits space-constrained enclosures

Caractéristiques

BrandGIGAIPC
ModelQBi-N97A
CPU TypeIntel Processor N97 Embedded
Memory Slots1 x DDR5 262-pin
Memory StandardDDR5 4800
Maximum Memory Supported16GB
Other Slots1 x 2230 M.2 E-Key
SATA1 x SATA 6.0Gb/s
M.21 x 2280 M.2 M-Key (PCIe Gen 3x1, SATA 6Gb/s)
Audio ChipsetRealtek ALC269
LAN ChipsetRealtek RTL8111H
LAN Speed10/100/1000Mbps
Max LAN Speed2 x 1Gbps

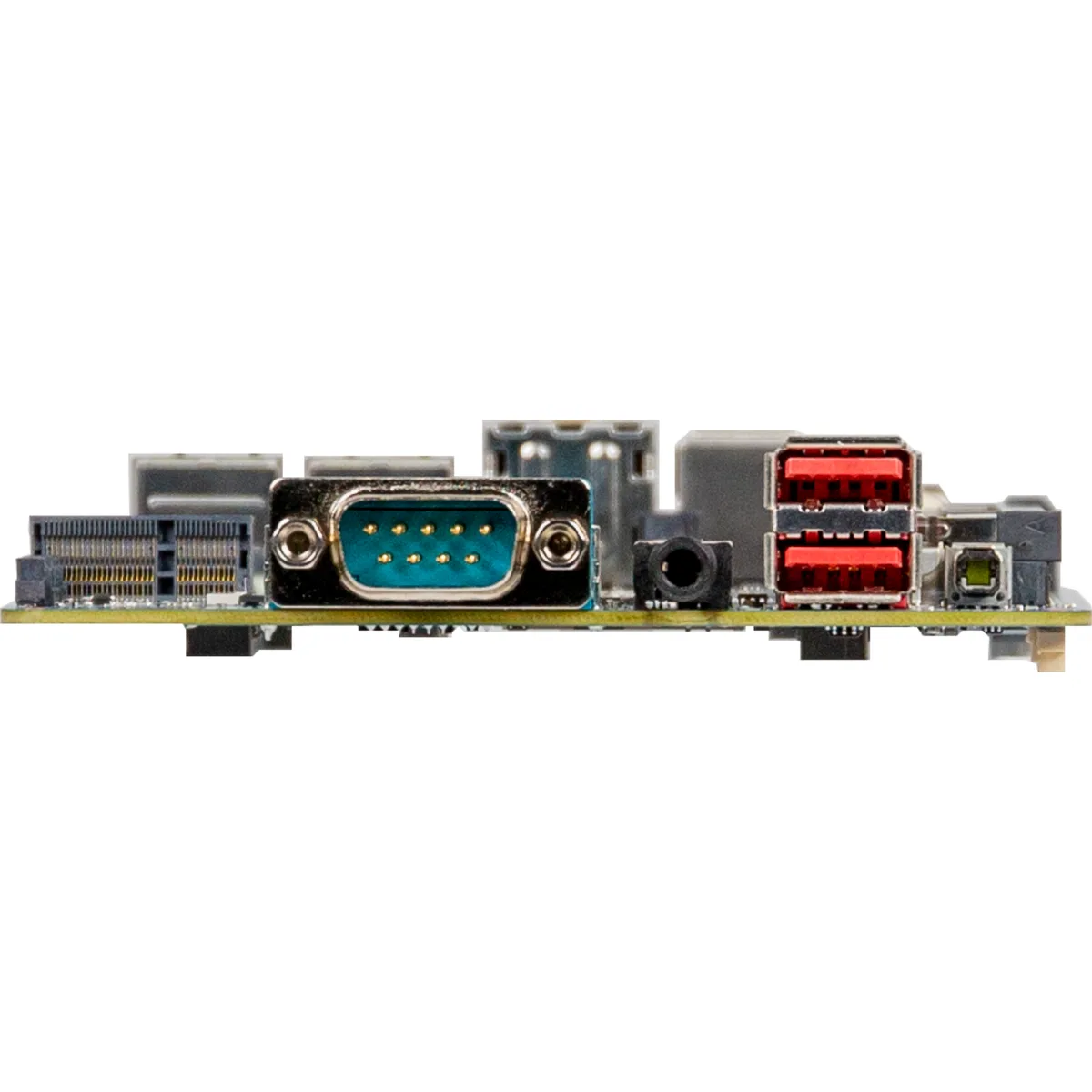

Back I/O PortsFront I/O
2 x USB 3.2 Gen 2x1
1 x Power button with LED
1 x COM Port (RS-232)
1 x Combo audio jack (Headphone & Headset)

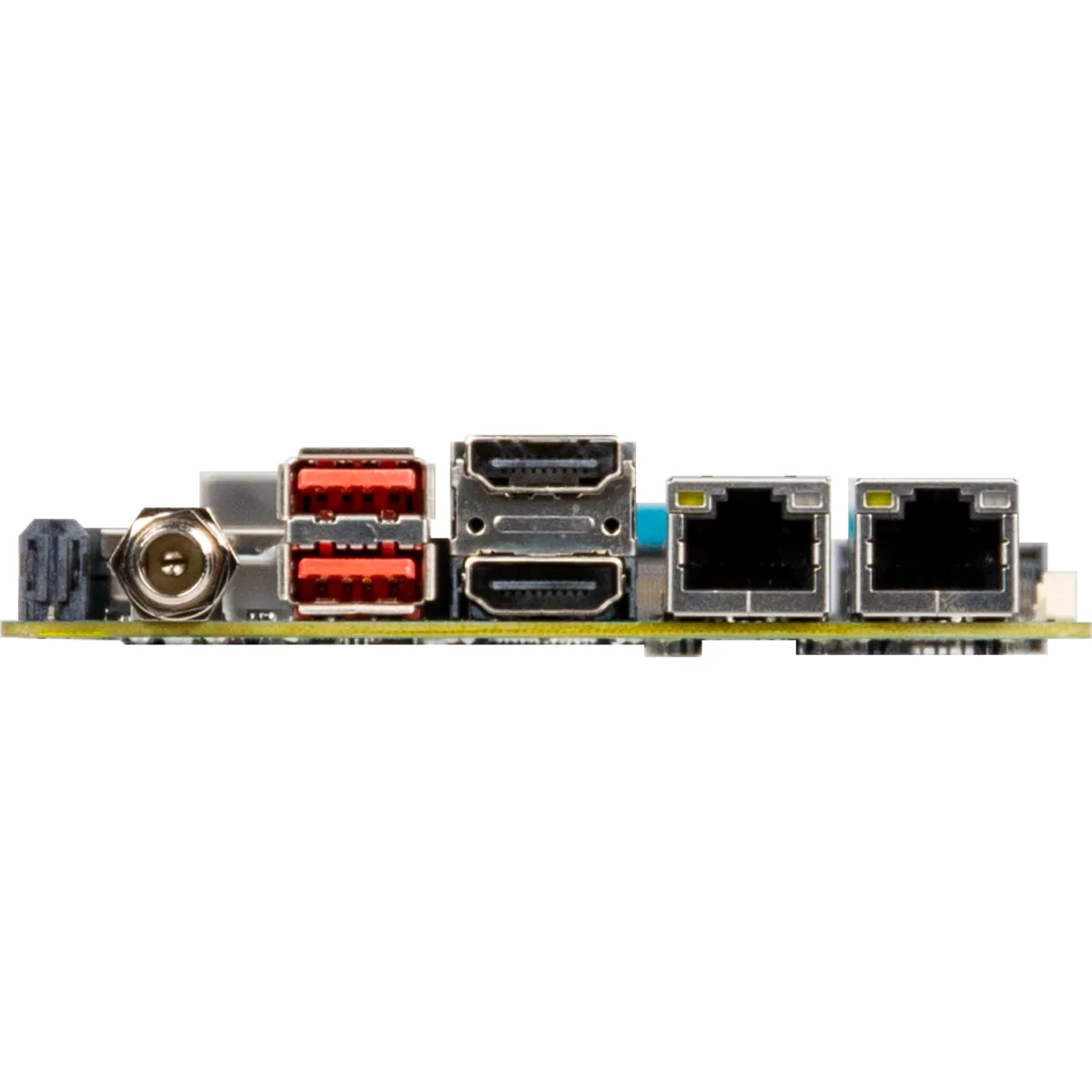

Rear l/O
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x HDMI
1 x Screw type DC Jack (+12V~19VDC)
Other Connectors1 x 2-pin power connector
1 x SATA Power header
1 x CPU fan header
1 x Front panel header
2 x USB 2.0 headers
Form Factor10x10 M/B
Dimensions (W x L)4.13" x 4.33"
Poids d’expédition0.34 kg
Dimensions du colis222 × 180 × 66 mm

Questions sur cet article

What speed does the single DDR5 SO-DIMM slot actually run at?

The board supports DDR5 4800 in single-channel mode with one 262-pin SO-DIMM up to 16GB.

What are the exact board dimensions for the 10x10 form factor?

The PCB measures 4.13" wide by 4.33" long and uses a 10x10 M/B layout.

How do I connect power to the screw-type DC jack without shorting the 2-pin header?

Feed +12V to +19VDC into the screw jack; leave the 2-pin header unused unless you are wiring a secondary source.
