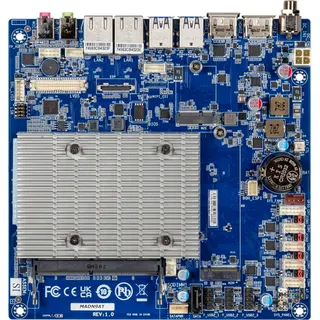

Green rectangular motherboard with silver ports and black connectors on a light background

GIGABYTE

GIGABYTE 9MADN9ATMR-SI-10A AI edge system Intel N97 Thin Mini-ITX 10 USB 4 COM

SKU CH-D12Q-6JYGH MPN 9MADN9ATMR-SI-10A

Thin Mini-ITX embedded board with an Intel N97 processor, 10 USB ports and four COM ports supporting RS-232/422/485 for retail and vending deployments

  • Back I/O Ports2 x Audio Jacks (Line out, Mic in) 2 x HDMI 2 x RJ45 LAN Por
  • Form FactorThin Mini-ITX
  • Intel N97 processor delivers efficient AI edge performance
  • Thin Mini-ITX form factor fits space-constrained retail installations
  • Ten USB ports connect multiple peripherals simultaneously
  • Four COM ports support RS-232/422/485 serial devices
  • Dual GbE LAN ports provide redundant network connectivity

Thin Mini-ITX AI edge system

The GIGABYTE 9MADN9ATMR-SI-10A is an Intel N97 based Thin Mini-ITX embedded motherboard built for space constrained AI edge deployments. It targets integrators who need a compact industrial platform with extensive legacy and modern I/O for retail, vending and kiosk applications.

USB 3.2 Gen 1 and GbE LAN limits

Four USB 3.2 Gen 1 ports and two GbE LAN ports share the processor's I/O bandwidth, so sustained throughput drops when multiple high speed devices transmit simultaneously. The DC jack accepts 12 to 24 VDC, restricting power sourcing to industrial adapters within that range.

4 COM ports and single channel DDR4 capacity

Four COM ports support RS-232/422/485 with selectable RI, 5 V or 12 V on pin 9, covering most serial peripheral needs. A single SO-DIMM slot limits memory to one DDR4 module, capping total capacity and preventing dual channel bandwidth for memory intensive inference workloads.

Points forts

  • Intel N97 processor delivers efficient AI edge performance
  • Thin Mini-ITX form factor fits space-constrained retail installations
  • Ten USB ports connect multiple peripherals simultaneously
  • Four COM ports support RS-232/422/485 serial devices
  • Dual GbE LAN ports provide redundant network connectivity

Caractéristiques

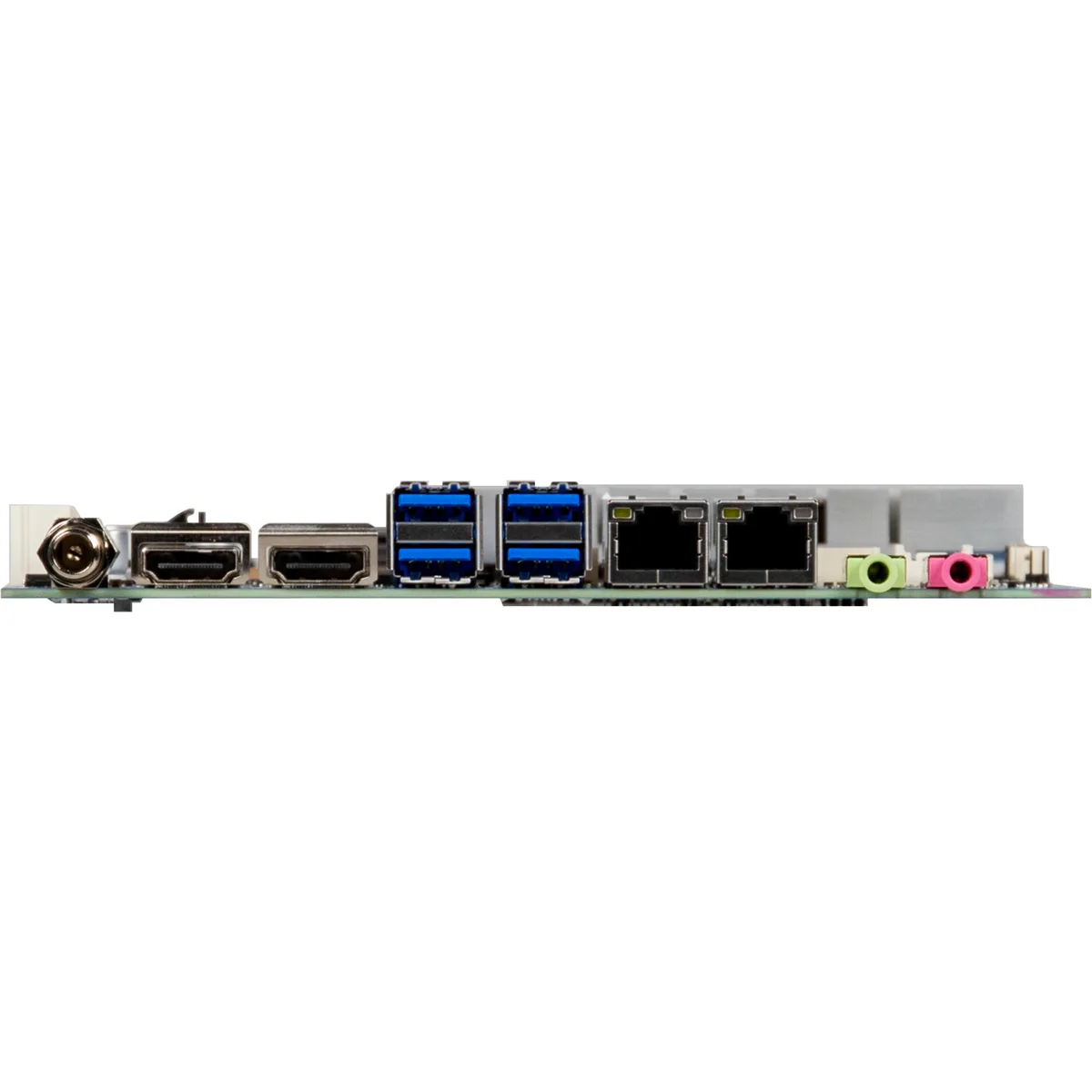

Back I/O Ports2 x Audio Jacks (Line out, Mic in)
2 x HDMI
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x DC Jack (+12V~24VDC)
Form FactorThin Mini-ITX
Poids d’expédition0.57 kg
Dimensions du colis222 × 184 × 66 mm

Questions sur cet article

How many USB ports does the iTXL-N97A provide?

The board supplies 10 USB ports in total, with four USB 3.2 Gen 1 ports on the rear I/O and the remaining six available via internal headers for front-panel or embedded connections.

What does the Intel Processor N97 deliver in a thin Mini-ITX system?

The N97 is a four-core, four-thread CPU with a low thermal design that fits the thin Mini-ITX form factor, enabling fanless or quiet cooling while handling typical edge-AI inference and multi-display retail workloads.

Which serial standards do the four COM ports support and what voltage options are available?

Each COM port operates in RS-232, RS-422 or RS-485 mode and can provide RI, 5 V or 12 V on pin 9 for powering external devices such as barcode scanners or POS peripherals.
