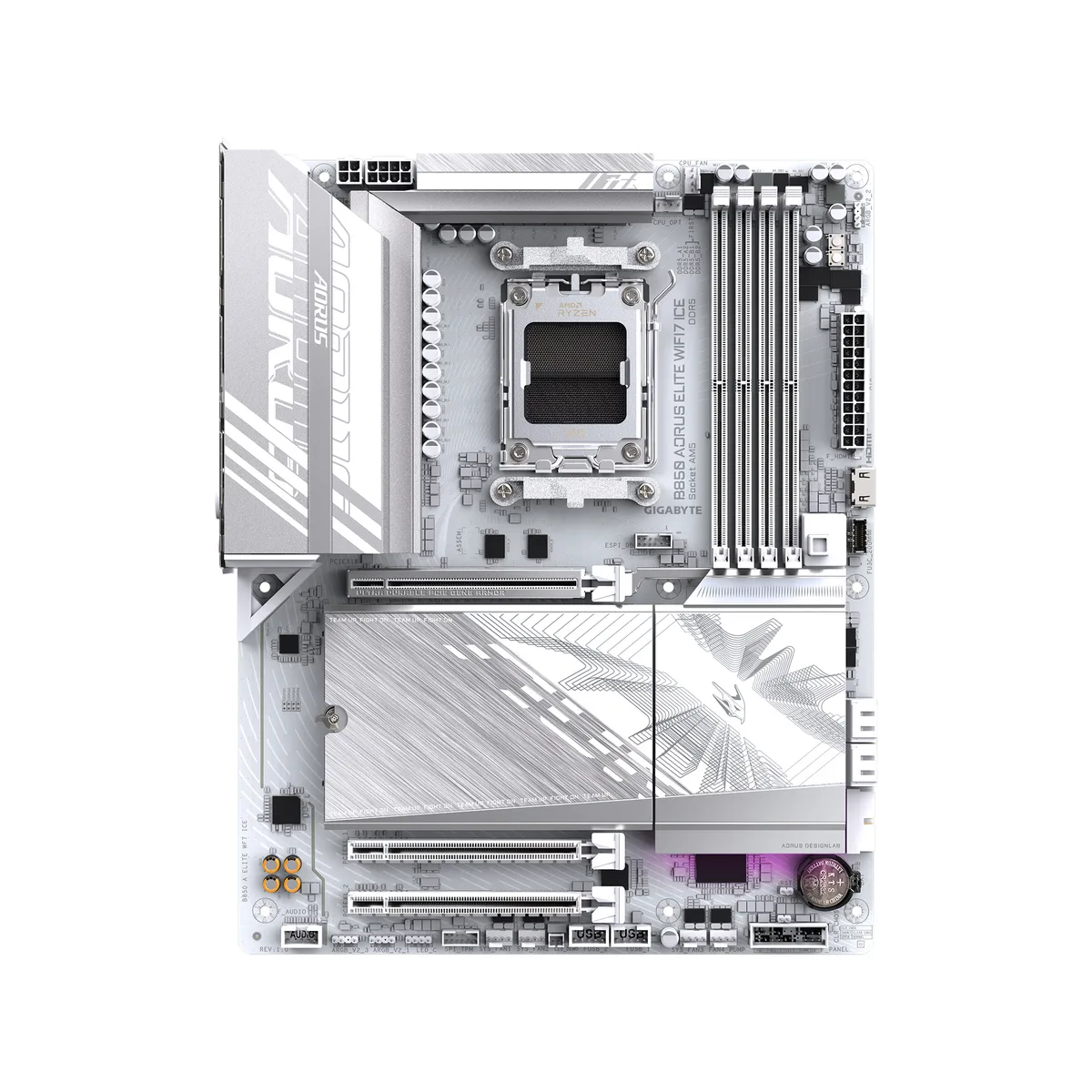

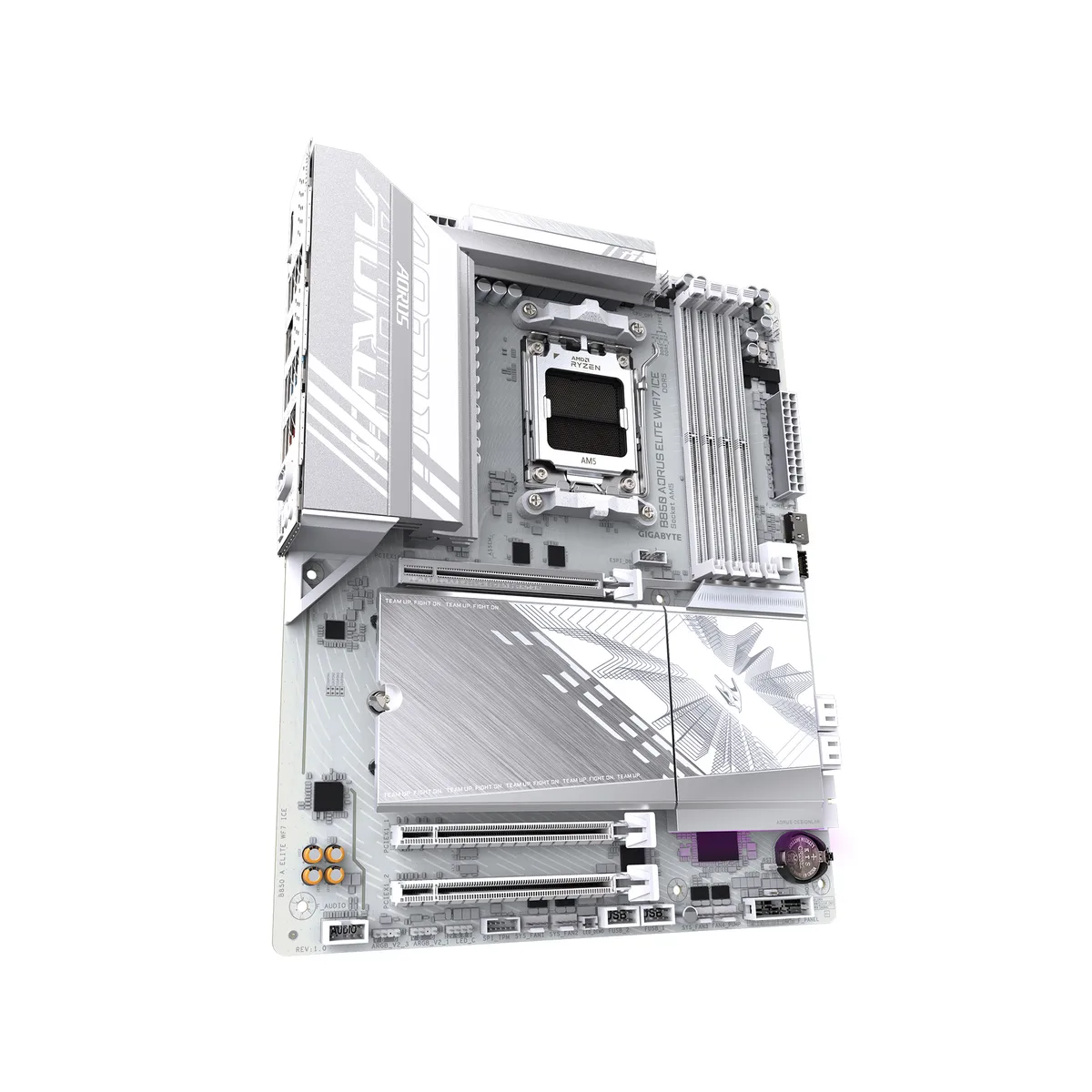

White ATX motherboard with silver heatsinks, four DDR5 slots and three M.2 shields

GIGABYTE

GIGABYTE B850 A ELITE WF7 ICE AMD motherboard

SKU CH-JG3Z-E666A MPN B850 A ELITE WF7 ICE

ATX AM5 board with 14+2+2 power, DDR5 to 8200, three M.2 slots, PCIe 5.0 x16, WIFI7, 2.5GbE LAN and EZ-Latch DIY features

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B850
  • South BridgeAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to DDR5 8200(O.C)

Option B850 A ELITE WF7 ICE

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Supports Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • Four DDR5 slots accept up to 256 GB at 8200 MT/s overclocked
  • 14+2+2 phase power design with VRM and M.2 thermal guards
  • PCIe 5.0 graphics slot plus three M.2 slots and USB-C connectivity
  • WIFI7 and 2.5 GbE LAN with EZ-Latch M.2, PCIe and Wi-Fi installation aids

AM5 DDR5 board for Ryzen 7000 8000 9000 series

The GIGABYTE B850 AORUS ELITE WIFI7 ICE is an ATX motherboard built around the AMD B850 chipset for socket AM5. It accepts Ryzen 7000 8000 and 9000 series processors and provides four 288 pin DDR5 slots with a maximum capacity of 256 GB. The 14+2+2 phase power design and VRM plus M.2 thermal guards support stable operation during extended workloads.

Builders who need WIFI7 2.5GbE and three M.2 slots

This board suits users who want integrated WIFI7 and 2.5 GbE LAN alongside three M.2 sockets and a PCIe 5.0 x16 slot for a modern GPU. EZ-Latch mechanisms on the PCIe and M.2 slots plus a Wi-Fi EZ-Plug simplify assembly. Builders requiring more than four DIMM slots or a different chipset feature set should consider other platforms.

DDR5 8200 O.C. memory ceiling

The memory controller supports DDR5 up to 8200 MT/s when overclocked with AMD EXPO or Intel XMP profiles on unbuffered non-ECC modules. This ceiling determines whether a planned memory kit will run at its rated speed without manual tuning.

Points forts

  • Supports Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • Four DDR5 slots accept up to 256 GB at 8200 MT/s overclocked
  • 14+2+2 phase power design with VRM and M.2 thermal guards
  • PCIe 5.0 graphics slot plus three M.2 slots and USB-C connectivity
  • WIFI7 and 2.5 GbE LAN with EZ-Latch M.2, PCIe and Wi-Fi installation aids

Caractéristiques

BrandGIGABYTE
SeriesAORUS
ModelB850 AORUS ELITE WIFI7 ICE
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B850
South BridgeAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to DDR5 8200(O.C)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP
ECC SupportedNon-ECC
RegisteredNo
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x162 x PCI Express 3.0 x16
PCI Express x163 x PCI Express x16
PCI Express x12 x PCI Express x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.23 x M.2 (Support PCIe 5.0 x4, PCIe 4.0 x4/x2)
SATA RAID0/1/10
Onboard Video ChipsetAMD Radeon Graphics
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
LAN ChipsetRealtek 2.5GbE
Max LAN Speed2.5Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac / ax / be
BluetoothYes

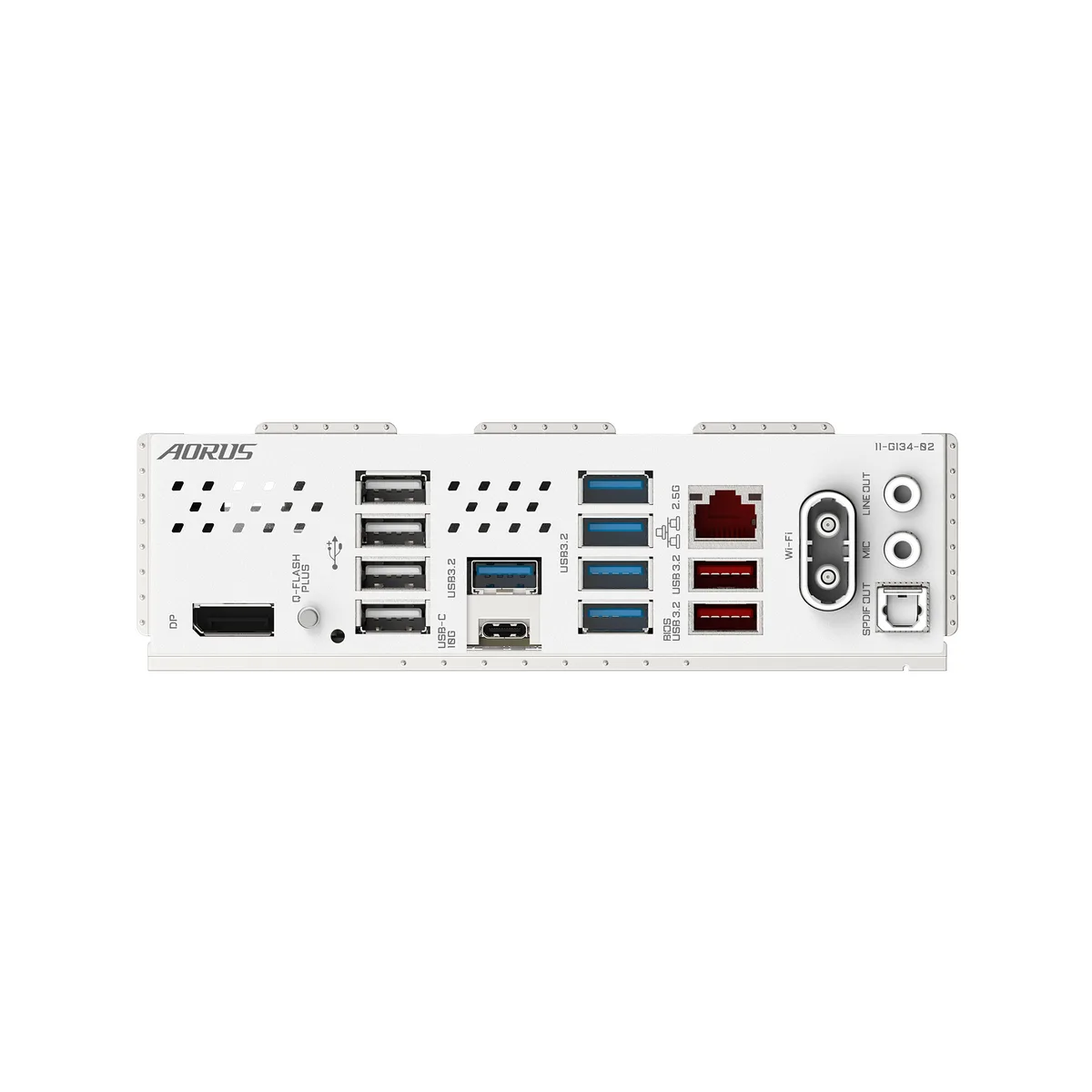

Back I/O Ports1 x DisplayPort 4 x USB 2.0/1.1 1 x USB Type-C USB 3.2 Gen 2 5 x USB 3.2 Gen 1 1 x RJ-45 2 x USB 3.2 Gen 2 Type-A 2 x antenna connectors 2 x audio jacks 1 x optical S/PDIF Out 1 x Q-Flash Plus button
Video PortsDisplay Port
HDMI1 x HDMI port
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.18 x USB 3.1
USB 3.08 x USB 3.0
USB 1.1/2.08 x USB 2.0/1.1 ports
USB Type-C1 x USB Type-C® port, with USB 3.2 Gen 2 support; 1 x USB Type-C® port with USB 3.2 Gen 2x2 support
S/PDIF Out1 x Optical
Game/MIDI Ports0
Audio Ports2 Ports
Onboard USB1 x USB Type-C® header, with USB 3.2 Gen 2x2 + 1 x USB 3.2 Gen 1 header + 2 x USB 2.0/1.1 headers
Form FactorATX
LED LightingNone RGB
Dimensions (W x L)30.5cm x 24.4cm
Power Pin24 Pin
Windows 11Supported
Poids d’expédition2.18 kg
Dimensions du colis330 × 279 × 102 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What case clearance and mounting pattern does the ATX board with AM5 socket and 288-pin DDR5 slots require?

The board uses the standard ATX form factor with an AM5 socket and four 288-pin DDR5 slots, so it fits any ATX-compatible case and aligns with the regular ATX standoff pattern.

How do I install the CPU into the AM5 LGA 1718 socket without bending pins, and what step is often missed?

Lift the retention arm, align the triangle marker on the Ryzen processor with the socket corner, place the CPU gently without force, lower the arm, then secure the cooler — many forget to remove the protective socket cover before seating the chip.

Which components on this board will need thermal paste replacement or fan cleaning over time?

The 14+2+2 power phase VRM heatsinks, the M.2 thermal guards covering the three M.2 slots, and the chipset heatsink all rely on thermal pads or paste that can dry out, while the 2.5GbE LAN and WIFI7 module areas benefit from occasional dust removal.
