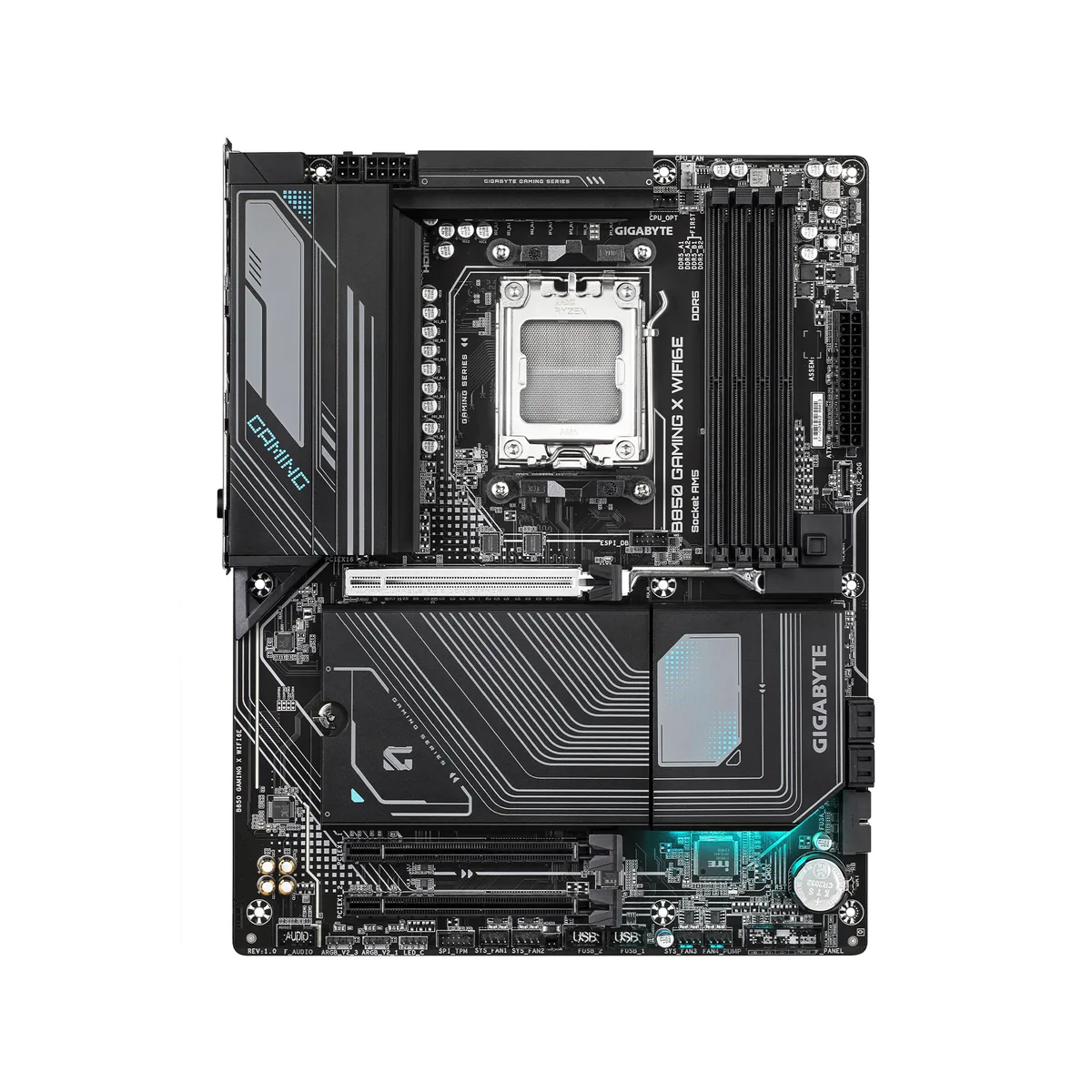

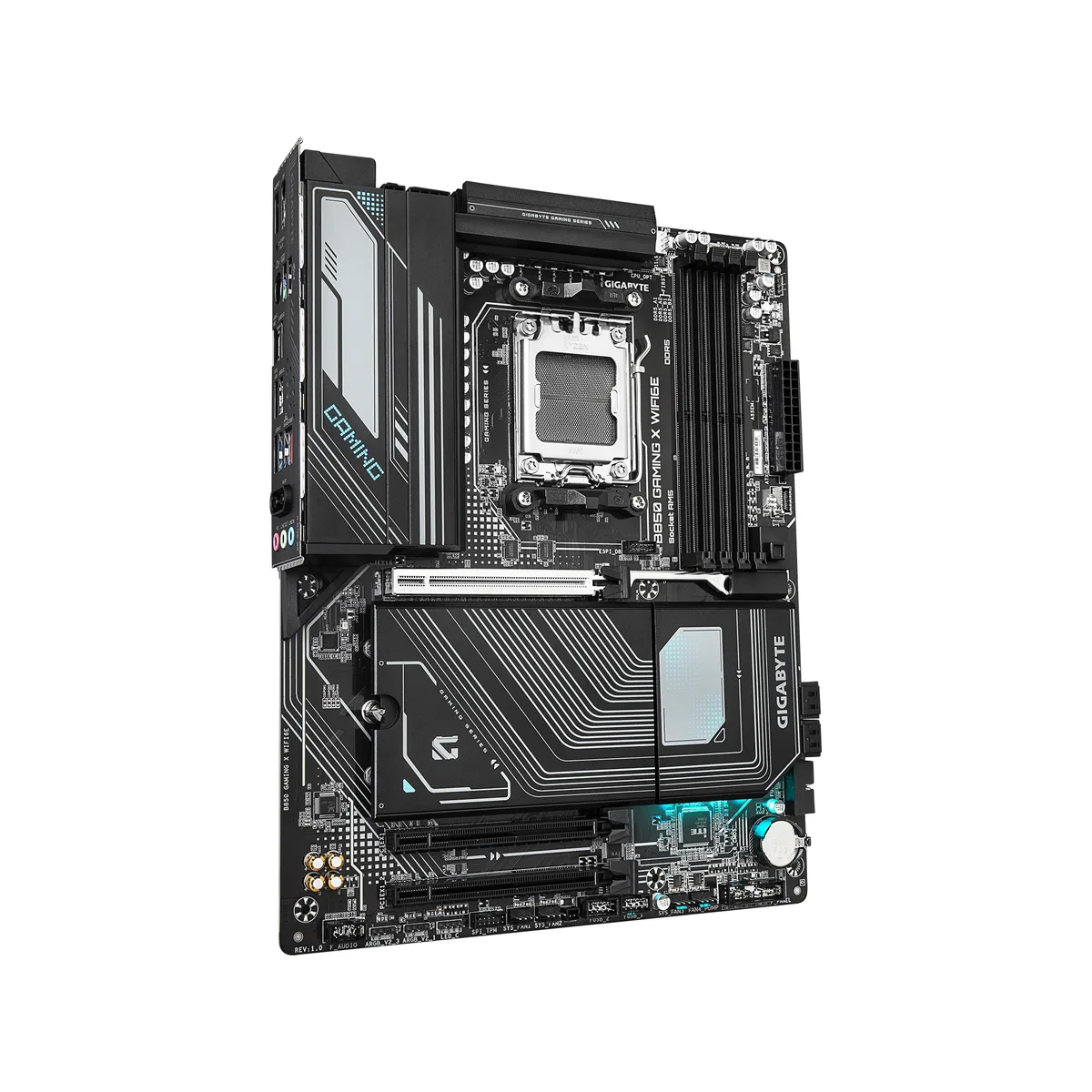

ATX motherboard with black PCB, silver heatsinks and rear I/O shield

GIGABYTE

GIGABYTE B850 GAMING X WIFI6E AMD motherboard

SKU CH-EZSK-30H1M MPN B850 GAMING X WIFI6E

ATX board for AM5 Ryzen 7000, 8000 and 9000 CPUs with four DDR5 slots up to 8200 MT/s, three M.2 sockets, PCIe 5.0 graphics slot, 2.5 GbE LAN and WIFI6E

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD B850
  • South BridgeAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardUp to DDR5 8200(O.C)
  • Supports Ryzen 7000, 8000 and 9000 series CPUs with AM5 socket
  • 12+2+2 phase power design for stable CPU delivery
  • Four DDR5 slots up to 256 GB with EXPO profiles
  • PCIe 5.0 graphics slot plus three M.2 connectors for fast storage
  • WIFI6E and 2.5 GbE LAN for high-speed networking

Socket AM5 DDR5 platform

The GIGABYTE B850 GAMING X WIFI6E is an ATX motherboard built for AMD Ryzen 7000, 8000 and 9000 series processors. It delivers a 12+2+2 power design and fully covered MOSFET heatsinks for stable operation. Four 288-pin DDR5 slots support up to 256 GB in dual-channel mode.

PCIe 5.0 x16 slot

The primary PCIe 5.0 x16 slot runs at full speed with Ryzen 9000 and 7000 CPUs, while Ryzen 8000 series processors operate at PCIe 4.0 x8 or x4 depending on the specific model. This single slot determines the maximum graphics or NVMe bandwidth available.

Three M.2 slots and EZ-Latch

Three M.2 sockets provide high-speed storage expansion alongside the primary slot. EZ-Latch mechanisms on M.2 and PCIe slots simplify installation without tools. Integrated WIFI6E and 2.5 GbE LAN handle networking, while USB-C adds front-panel connectivity.

Points forts

  • Supports Ryzen 7000, 8000 and 9000 series CPUs with AM5 socket
  • 12+2+2 phase power design for stable CPU delivery
  • Four DDR5 slots up to 256 GB with EXPO profiles
  • PCIe 5.0 graphics slot plus three M.2 connectors for fast storage
  • WIFI6E and 2.5 GbE LAN for high-speed networking

Caractéristiques

BrandGIGABYTE
SeriesGAMING X
ModelB850 GAMING X WIFI6E
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD B850
South BridgeAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardUp to DDR5 8200(O.C)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP
ECC SupportedNon-ECC
RegisteredNo
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express 3.0 x16Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2)
PCI Express x163 x PCI Express x16
PCI Express x12 x PCI Express x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.23 x M.2 (Support PCIe 5.0 x4/x2, PCIe 4.0 x4/x2)
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen 9000 Series Processors.
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Onboard Video ChipsetAMD Radeon Graphics
Audio ChipsetRealtek Audio CODEC
Audio Channels7.1 Channels
LAN ChipsetRealtek 2.5GbE
Max LAN Speed2.5Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac / ax
BluetoothYes

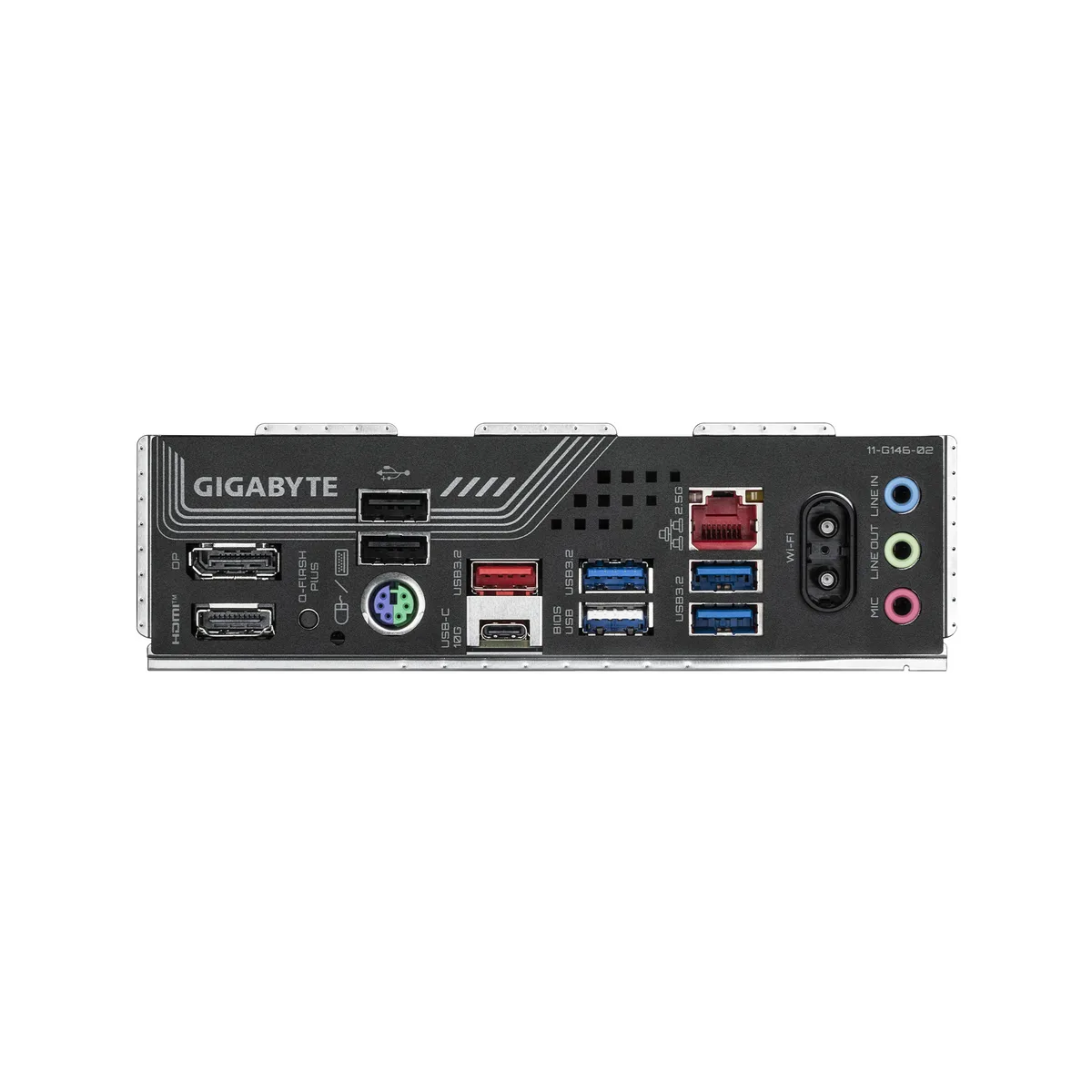

Back I/O Ports1 x DisplayPort 1.4, 1 x HDMI 2.1, 1 x Q-Flash Plus button, 1 x PS/2 keyboard/mouse port, 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 3 x USB 2.0, 1 x RJ-45, 2 x antenna connectors, 3 x audio jacks
PS/21 x PS/2 keyboard/mouse port
Video PortsDisplay Port + HDMI
HDMI1 x HDMI port
RJ451 x RJ45
DisplayPort1 x DisplayPort
Thunderbolt Ports0 x Thunderbolt Port
USB 3.16 x USB 3.1
USB 3.05 x USB 3.0
USB 1.1/2.07 x USB 2.0/1.1 ports
USB Type-C1 x USB Type-C® port, with USB 3.2 Gen 2 support; 1 x USB Type-C® port with USB 3.2 Gen 2x2 support
Game/MIDI Ports0
Audio Ports3 Ports
Onboard USB1 x USB Type-C® header, with USB 3.2 Gen 2x2 + 1 x USB 3.2 Gen 1 header + 2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper
Form FactorATX
LED LightingRGB
Dimensions (W x L)30.5cm x 24.4cm
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Windows 11Supported
Poids d’expédition2.04 kg
Dimensions du colis330 × 279 × 76 mm

Questions sur cet article

Will this board run my Ryzen 7000, 8000 or 9000 processor out of the box?

Yes, the AM5 socket supports Ryzen 7000, 8000 and 9000 series CPUs. No BIOS update is required for these generations.

What DDR5 speeds can I use with four sticks installed?

The board validates up to DDR5 8200 (O.C.) across all four slots. Dual-channel mode is supported up to 256 GB total.

Can I fit a PCIe 5.0 graphics card and three NVMe drives at the same time?

One PCIe 5.0 x16 slot comes from the CPU, plus three M.2 sockets. The primary x16 slot and all three M.2 slots can be populated simultaneously.
