Green mATX motherboard with black heatsinks and silver I/O shield

GIGABYTE

GIGABYTE B860M A ELITE WIFI6E Intel motherboard

SKU CH-GQNH-BT203 MPN B860M A ELITE WIFI6E

mATX board for Intel Core Ultra Series 2 with DDR5 up to 256 GB, PCIe 5.0 graphics and M.2, three M.2 slots, WIFI6E, 2.5 GbE LAN, Bluetooth 5.3 and 7.1 audio

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (Series 2)
  • ChipsetIntel B860
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5600 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 /
  • Maximum Memory Supported256GB

Option B860M AORUS ELITE WIFI6E

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 12+1+2+1 phase 60A DrMOS VRM delivers steady multi-core power
  • Four DDR5 slots up to 256GB with XMP 3.0 support
  • Three M.2 slots including PCIe 5.0 x4 and PCIe 4.0 x4
  • WIFI6E 802.11 ax, Bluetooth 5.3 and 2.5GbE LAN built in

Socket LGA 1851 mATX board

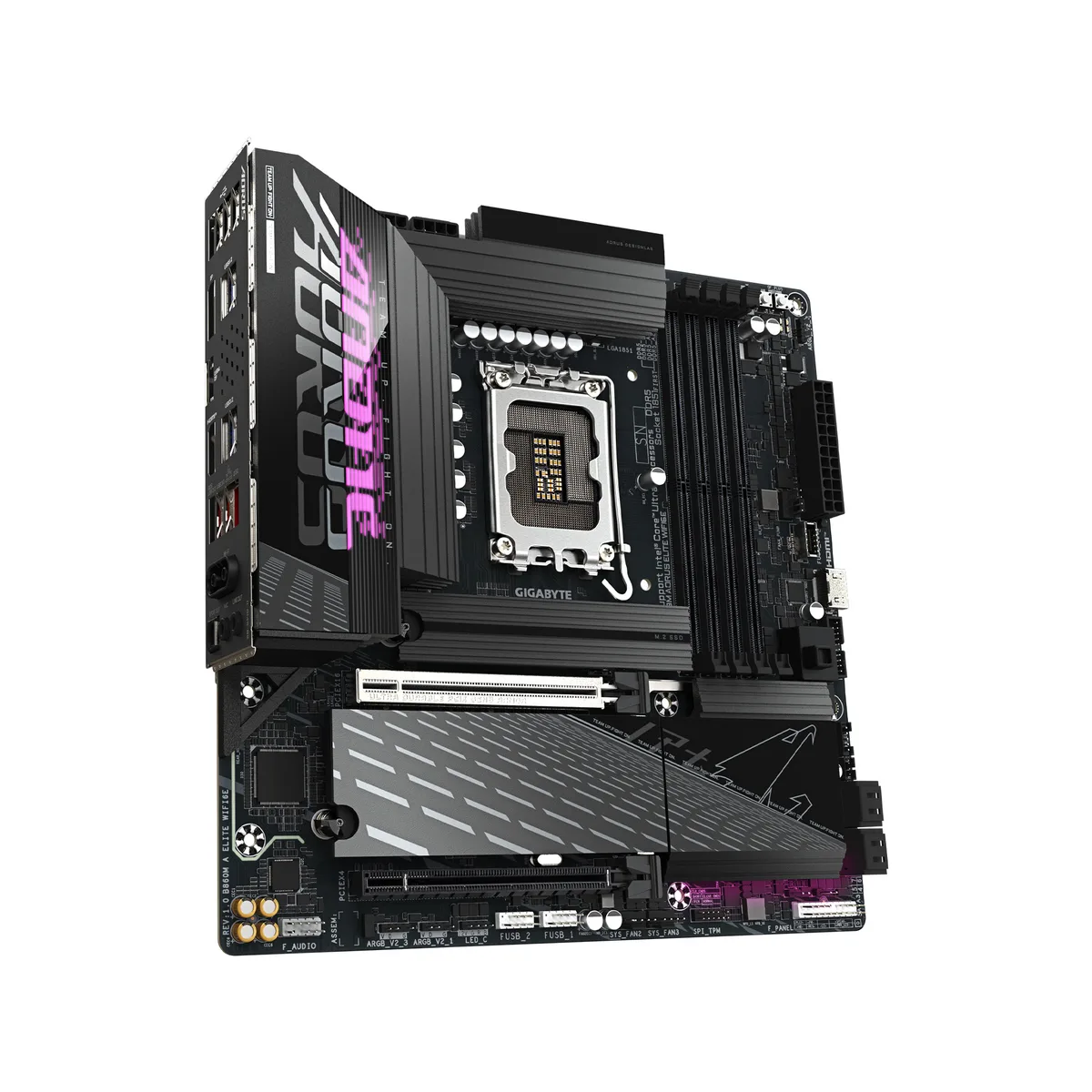

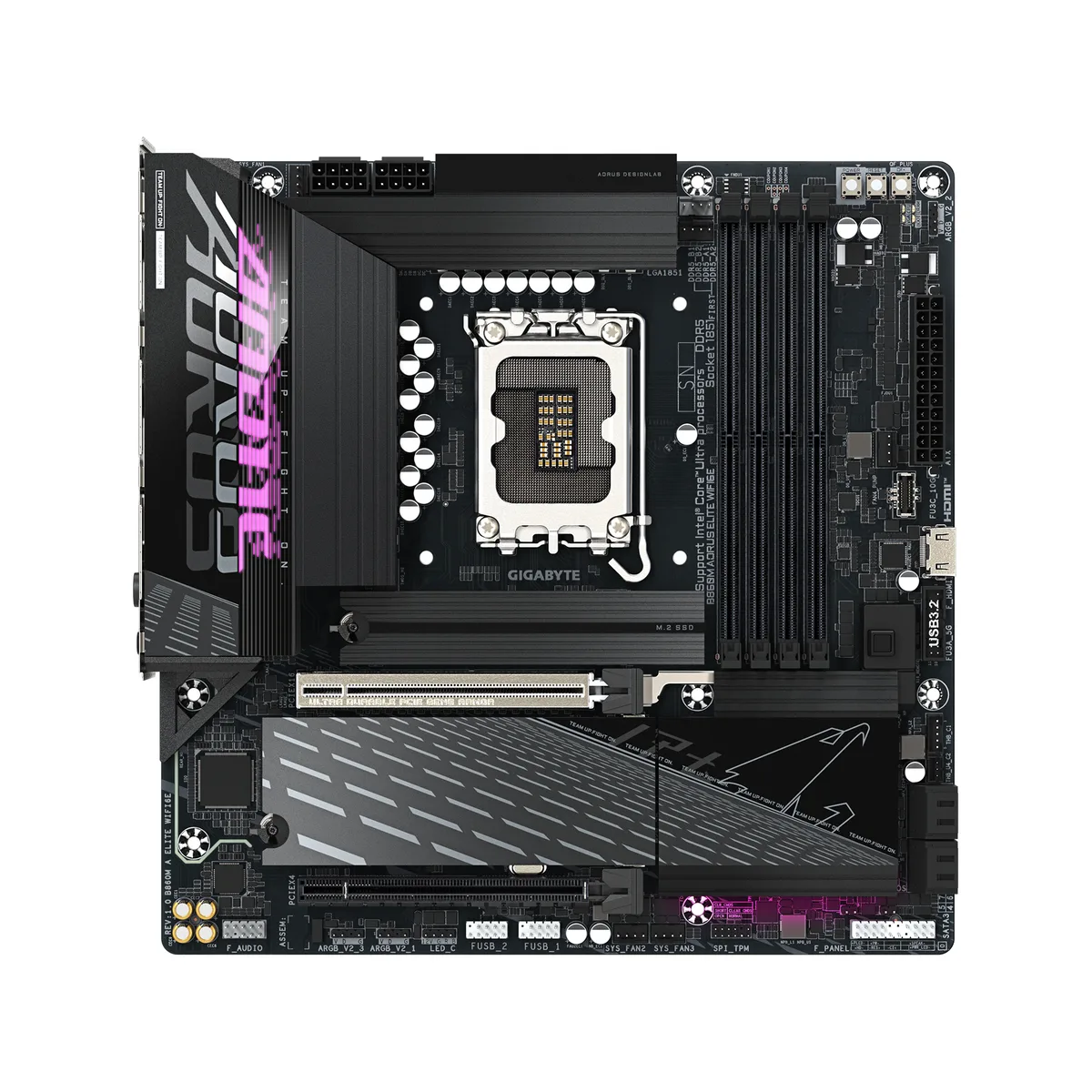

The GIGABYTE B860M AORUS ELITE WIFI6E is an Intel B860 motherboard built for Intel Core Ultra Series 2 processors. It fits micro-ATX cases and provides four 288-pin DDR5 slots with a 256 GB maximum capacity. The board targets builders who want a compact platform with modern connectivity.

12+1+2+1 phase 60A VRM under load

A 12+1+2+1 phase design uses 60 A DrMOS stages for the VCORE and VCCSA rails plus a 40 A stage for VCCGT. MOSFET heatsinks and M.2 Thermal Guards dissipate heat during extended multi-core workloads. The digital twin VRM layout aims to keep voltage stable when all cores run at high frequency for long periods.

EZ-Latch slots and Wi-Fi EZ-Plug

PCIe EZ-Latch and M.2 EZ-Latch let you install a graphics card or up to three M.2 drives without tools. The Wi-Fi EZ-Plug simplifies antenna attachment for the WIFI6E and Bluetooth 5.3 module. Four SATA 6 Gb/s ports and a 2.5 GbE LAN port round out storage and networking.

Points forts

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • 12+1+2+1 phase 60A DrMOS VRM delivers steady multi-core power
  • Four DDR5 slots up to 256GB with XMP 3.0 support
  • Three M.2 slots including PCIe 5.0 x4 and PCIe 4.0 x4
  • WIFI6E 802.11 ax, Bluetooth 5.3 and 2.5GbE LAN built in

Caractéristiques

BrandGIGABYTE
ModelB860M AORUS ELITE WIFI6E
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (Series 2)
ChipsetIntel B860
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5600 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 9200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
Memory FeatureDual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
PCI Express 5.0 x16CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x16Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
SATA RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.3

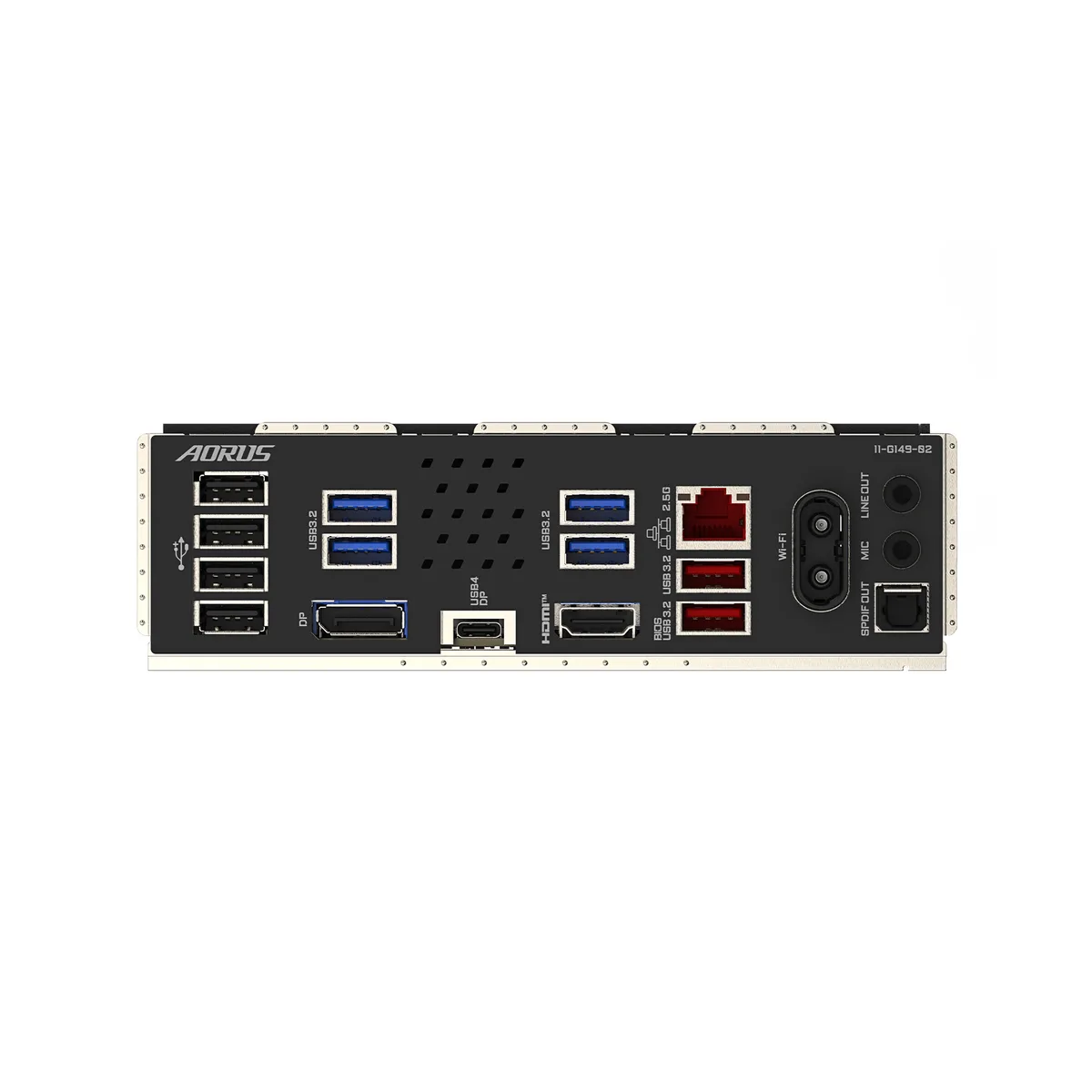

Back I/O Ports4 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x USB4 USB Type-C port (DisplayPort)
1 x HDMI port
1 x RJ-45 port
2 x USB 3.2 Gen 2 Type-A ports (red)
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Poids d’expédition1.68 kg
Dimensions du colis356 × 279 × 102 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How loud or hot does the 12+1+2+1 phase 60A DrMOS VRM get when the board runs all day?

The 12 VCORE phases with 60A DrMOS and a dedicated MOSFET heatsink are designed to deliver steady power and manage thermals during sustained loads.

Which DDR5 memory kit must I already own to populate the four 288-pin slots?

Any DDR5 kit rated from 5600 up to 9200 MT/s with 1Rx8, 2Rx8 or 1Rx16 un-buffered DIMMs will work; the board supports up to 256 GB in dual-channel mode.

Will my existing PCIe 4.0 NVMe SSD fit the third M.2 slot that shares bandwidth with the chipset?

Yes, the chipset-linked M.2 connector accepts 2280 or 2580 PCIe 4.0 x4/x2 drives, so a current PCIe 4.0 NVMe SSD installs directly.
