Small silver barebone mini PC with front power button and ports

GIGABYTE

GIGABYTE GB-BSRE-1505 barebone mini PC, Ryzen R1505G, DDR4 32 GB max, dual 1 GbE, Wi-Fi, Bluetooth

SKU CH-SFKG-AASAT MPN GB-BSRE-1505

Barebone mini PC with a dual-core AMD Ryzen R1505G, dual 1 GbE LAN, Wi-Fi and Bluetooth, ready for up to 32 GB of DDR4 memory and two M.2 drives

  • CPU TypeAMD Ryzen Embedded R1505G Dual Cores Processor 4 Threads / 5
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 2400
  • Max Memory Supported32GB
  • Dual Channel Memory SupportedYes
  • Dual-core Ryzen Embedded processor runs at 2.4–3.3 GHz with 25 W TDP
  • Integrated Radeon Vega 3 graphics drives up to three HDMI 2.0 displays
  • Two SO-DIMM slots accept DDR4 2400 memory up to 32 GB in dual-channel mode
  • Dual Realtek Gigabit LAN plus Intel Wi-Fi 802.11ac and Bluetooth provide flexible connectivity
  • One M.2 PCIe x4/SATA slot and one SATA 6.0 Gb/s port support fast storage expansion

Barebone mini PC with Ryzen R1505G

The GIGABYTE GB-BSRE-1505 is a barebone mini PC built around an AMD Ryzen Embedded R1505G dual-core processor with four threads and a 25W TDP. Integrated Radeon Vega 3 graphics handle display output through three HDMI 2.0 ports. The chassis measures 1.75 by 7.72 by 5.51 inches and ships with a 135W external power adapter.

For embedded and signage builds.

This kit suits integrators who need dual 1GbE LAN, Intel 802.11ac Wi-Fi and room for 32GB of DDR4 2400 SO-DIMM in a fanless-friendly enclosure. Buyers who want discrete graphics, more than two CPU cores, or pre-installed memory and storage should look at a different platform.

Dual-channel DDR4 2400 SO-DIMM support up to 32GB

Two 260-pin slots accept DDR4 2400 modules in dual-channel mode, defining the memory ceiling for any build. The board also provides one M.2 PCIe x4/SATA slot, one M.2 SATA slot and a single SATA 6.0Gb/s connector for storage expansion.

Points forts

  • Dual-core Ryzen Embedded processor runs at 2.4–3.3 GHz with 25 W TDP
  • Integrated Radeon Vega 3 graphics drives up to three HDMI 2.0 displays
  • Two SO-DIMM slots accept DDR4 2400 memory up to 32 GB in dual-channel mode
  • Dual Realtek Gigabit LAN plus Intel Wi-Fi 802.11ac and Bluetooth provide flexible connectivity
  • One M.2 PCIe x4/SATA slot and one SATA 6.0 Gb/s port support fast storage expansion

Caractéristiques

BrandGIGABYTE
SeriesBRIX
ModelGB-BSRE-1505
CPU TypeAMD Ryzen Embedded R1505G Dual Cores Processor
4 Threads / 5M Cache
2.4 - 3.3 GHz, 25W TDP
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 2400
Max Memory Supported32GB
Dual Channel Memory SupportedYes
OtherMini PCI slot
Storage InstalledNo Hard Drive
Serial ATA1 x SATA 6.0Gb/s
M.2 Slot1 x M.2 PCIe x4/SATA Mode
1 x M.2 SATA Mode
Integrated GraphicsAMD Radeon Vega 3 Graphics (CPU Integrated)
Onboard AudioALC 269 Codec
LANDual Realtek RTL8111H GbE LAN
Max LAN SpeedDual 1Gbps
Wireless LANIntel Wi-Fi 802.11ac
BluetoothBT4.2
Front USB4 x USB 2.0
Front Audio Ports1 x Headphone / Mic Jack
Other Front Ports1 x Power Button
HDMI3 x HDMI 2.0
Rear USB2 x USB 3.1 Gen 2
RJ452
Other Rear Ports1 x DC-In
Power Supply100-240V input. Output 7.1A 19V, 135W

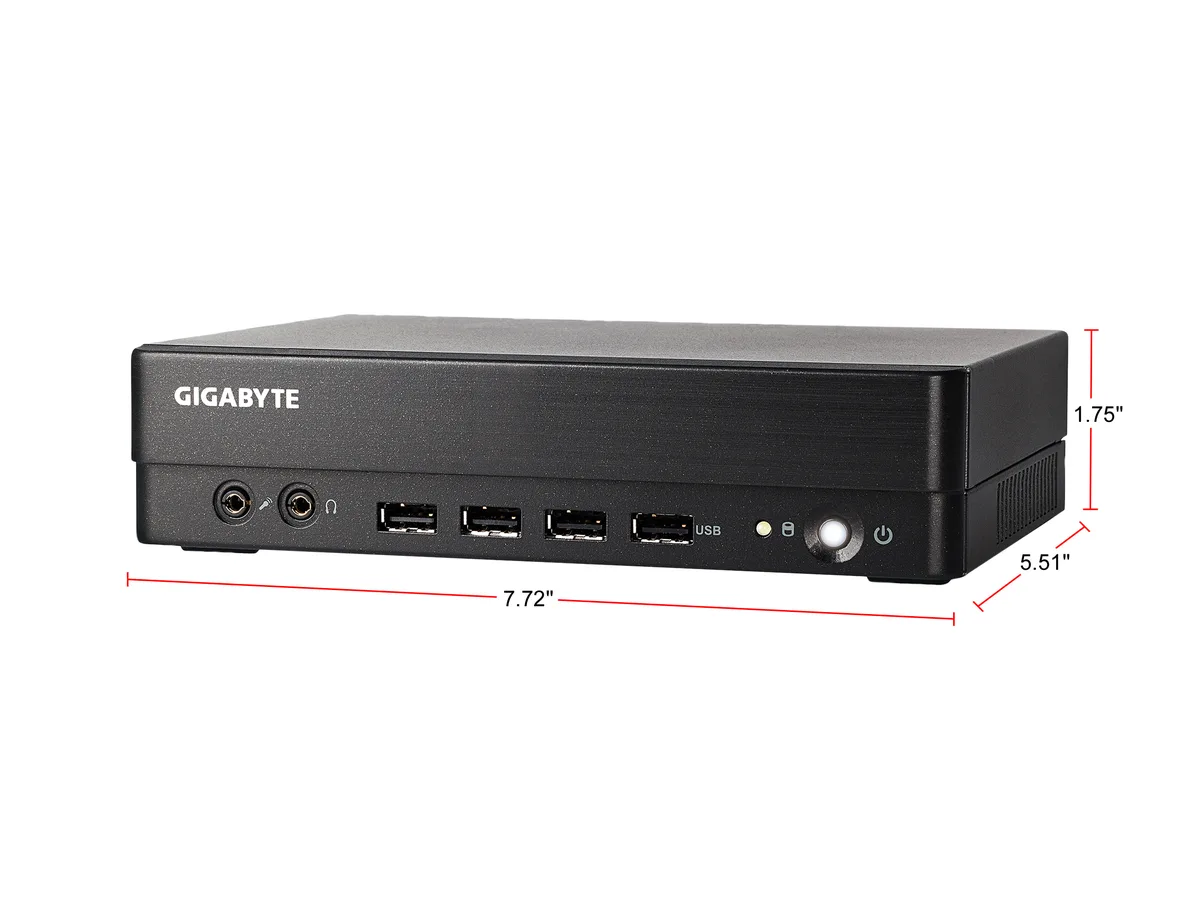

Dimensions1.75" x 7.72" x 5.51"
FeaturesAMD Ryzen Embedded R1505G Dual Cores Processor
Integrated Graphics Processor - Radeon Vega 3 Graphics
Dual Channel DDR4 2400MHz, 2 x SO-DIMMs, Max. 32GB
3 x HDMI ports, supporting a maximum resolution of 4096x2160@60Hz
2 x GbE LAN ports, Wi-Fi 802.11ac / BT4.2
ALC 269 Audio Codec
2 x M.2 for SSD (1 x PCIe/SATA Mode, 1 x SATA Mode)
1 x Mini PCI slot
Infineon TPM onboard
4 x USB 2.0 (Front), 2 x USB 3.2 (Back)
Headphone/microphone jack
Support VESA Mount
Onboard headers: 2 x RS232/422/485/5V/12V/RI COM ports; 2 x RS232 COM ports
Poids d’expédition2.81 kg
Dimensions du colis305 × 241 × 104 mm

Questions sur cet article

Should I populate one or both SO-DIMM slots for the 32 GB maximum?

Use both 260-pin slots to enable dual-channel DDR4 2400; the board supports up to 32 GB total across the two sockets.

What does the 2.4–3.3 GHz range mean for everyday workloads?

The Ryzen R1505G runs at 2.4 GHz base and can boost to 3.3 GHz within its 25 W TDP, giving two cores and four threads for office tasks and light media.

What display outputs does the unit provide?

Three HDMI 2.0 ports are available on the rear panel, each driven by the integrated Radeon Vega 3 graphics.
