Black low-profile graphics card, compact 182mm length, single fan cooler, metal backplate, PCIe 5.0 interface, one HDMI 2.1b and

GIGABYTE

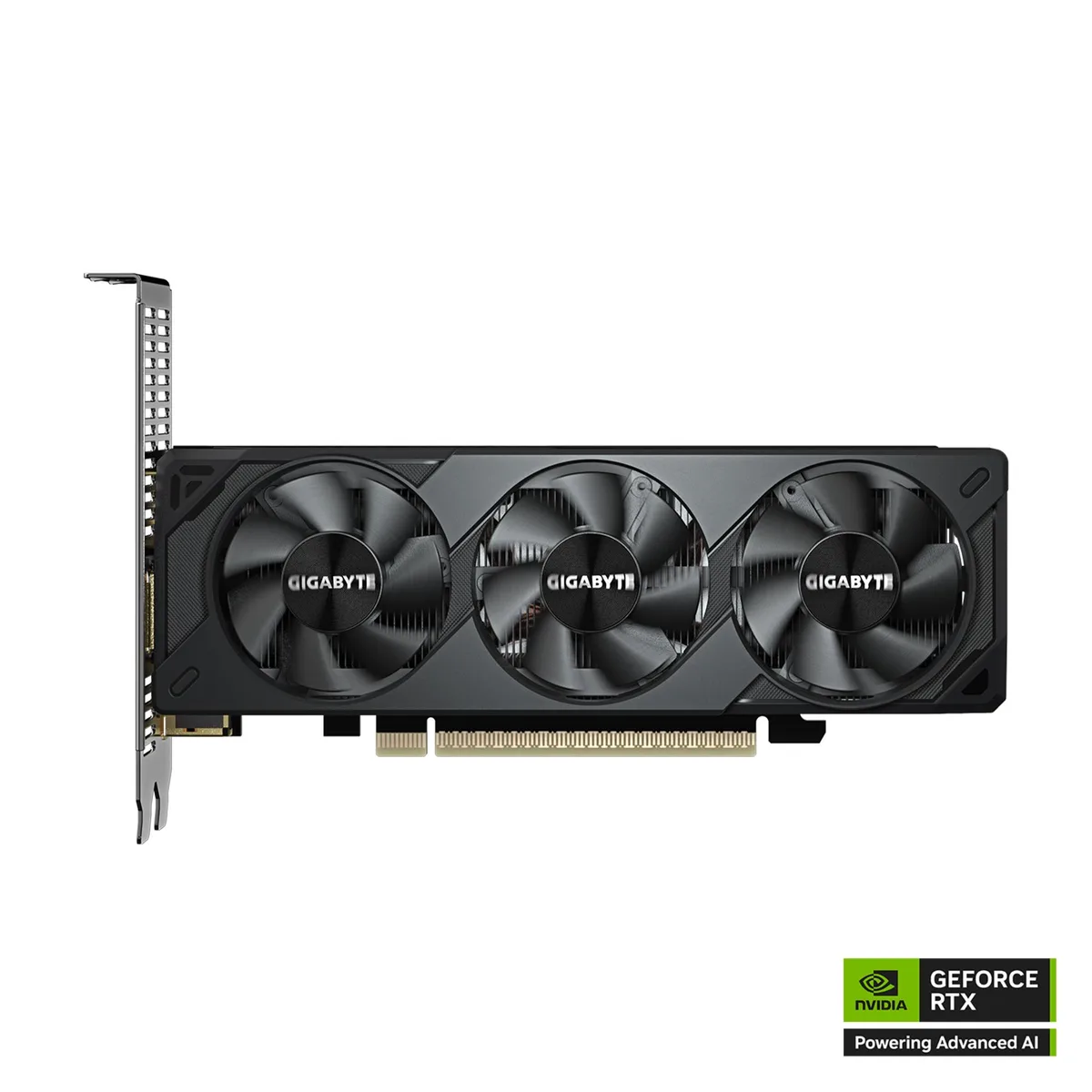

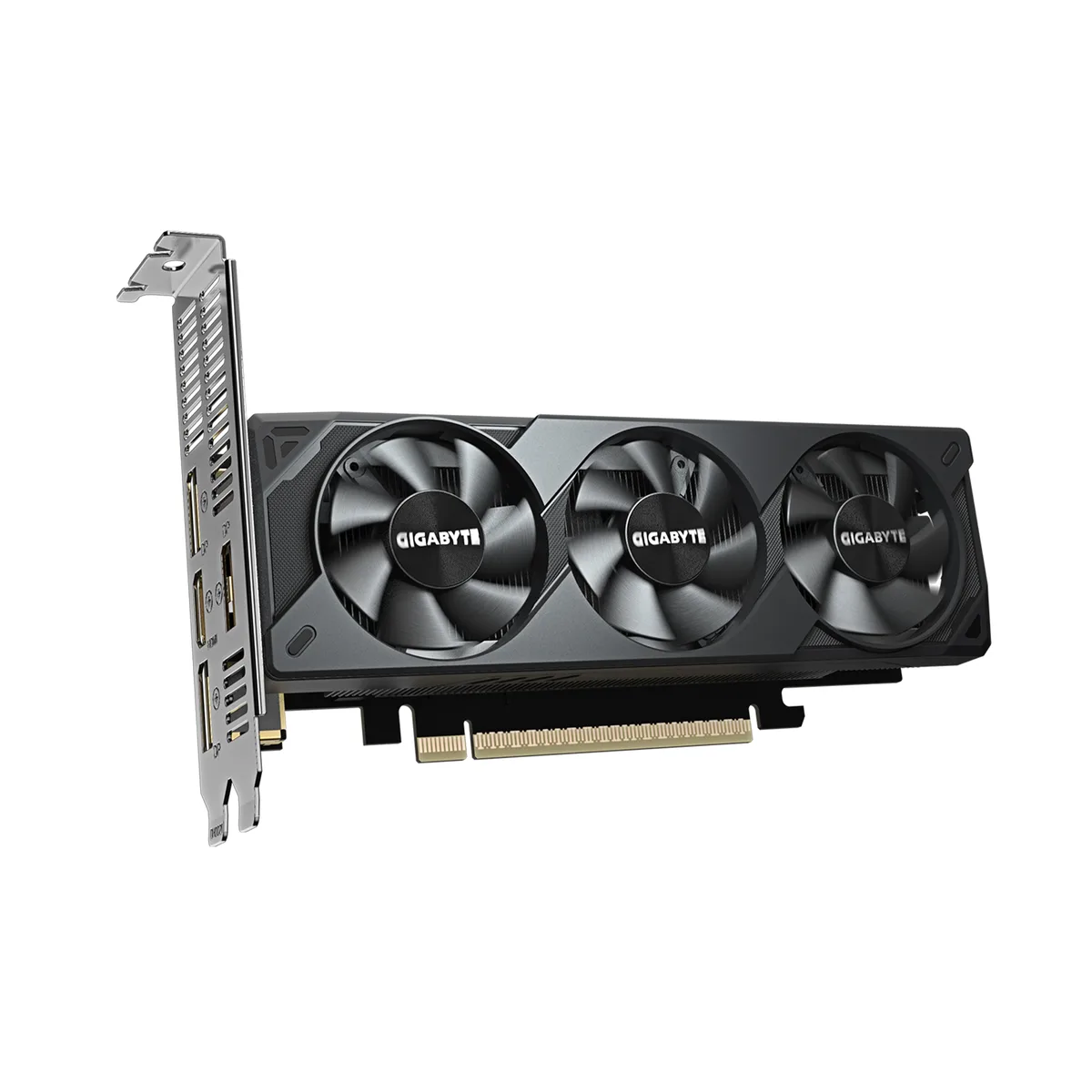

GIGABYTE GV-N5060OC-8GL Low Profile GeForce RTX 5060 graphics card

SKU CH-YC55-5KV8J MPN GV-N5060OC-8GL

Low-profile GeForce RTX 5060 with 8 GB GDDR7 memory, 3840 CUDA cores and a 2512 MHz boost clock on a 182 mm board

  • InterfacePCI Express 5.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060
  • Core Clock2512 MHz
  • CUDA Cores3840

Option Low Profile

Les versions barrées existent, mais ne sont pas disponibles ici.

Edition RTX 5060 8GB OC

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Low-profile 182 mm design fits compact builds
  • 3840 CUDA cores accelerate rendering and AI workloads
  • 8 GB GDDR7 memory at 28 Gbps delivers high bandwidth
  • PCI Express 5.0 interface enables faster data throughput
  • Four-display support via HDMI 2.1b and three DisplayPort outputs

Low Profile GeForce RTX 5060

The GIGABYTE GV-N5060OC-8GL is a low profile graphics card built on the NVIDIA Blackwell architecture. It fits small form factor systems while delivering a core clock of 2512 MHz and 3840 CUDA cores for gaming and creative workloads.

8GB GDDR7 with PCIe 5.0

This card suits builders who need full height bracket clearance in compact cases and want modern display outputs including HDMI 2.1b and DisplayPort 2.1b. Users requiring more than 8GB of video memory or a wider memory bus should consider higher tier models.

128-bit memory interface at 28 Gbps

The 8GB GDDR7 buffer handles 1440p gaming with DLSS 4 and multi frame generation comfortably. At 4K resolution with maximum ray tracing settings the 128-bit bus and 8GB capacity become the limiting factor for texture heavy titles.

Points forts

  • Low-profile 182 mm design fits compact builds
  • 3840 CUDA cores accelerate rendering and AI workloads
  • 8 GB GDDR7 memory at 28 Gbps delivers high bandwidth
  • PCI Express 5.0 interface enables faster data throughput
  • Four-display support via HDMI 2.1b and three DisplayPort outputs

Caractéristiques

BrandGIGABYTE
SeriesLow Profile
ModelGV-N5060OC-8GL
Part NumberGV-N5060OC-8GL
InterfacePCI Express 5.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060
Core Clock2512 MHz
CUDA Cores3840
Effective Memory Clock28 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4

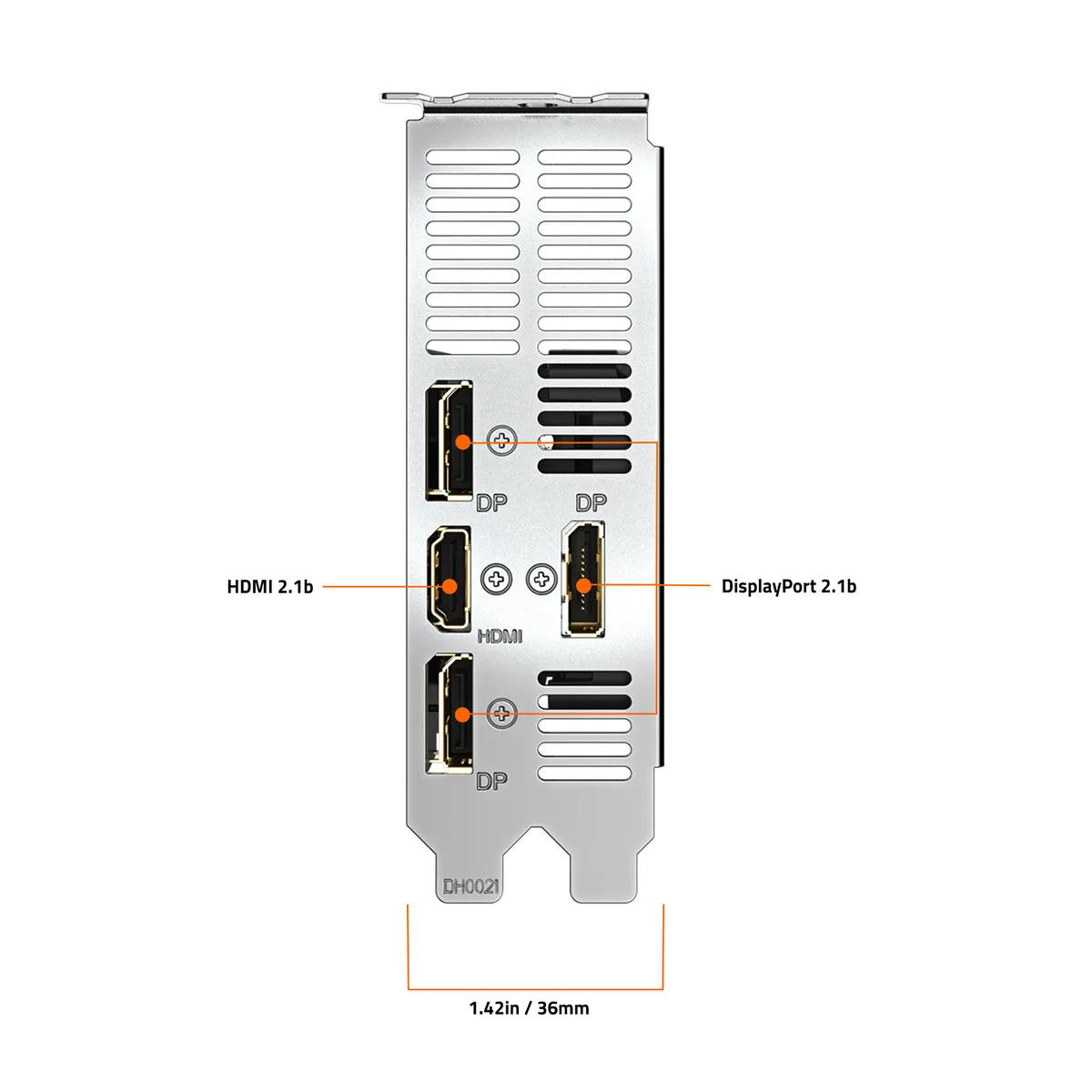

HDMI1 x HDMI 2.1b
DisplayPort2 x DisplayPort 2.1b + 1 x DisplayPort 1.4a
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
CoolerTriple Fans
Thermal Design Power145W
Recommended PSU Wattage450W
Power Connector8-Pin
HDCP ReadyYes
Form FactorLow Profile
Max GPU Length182 mm

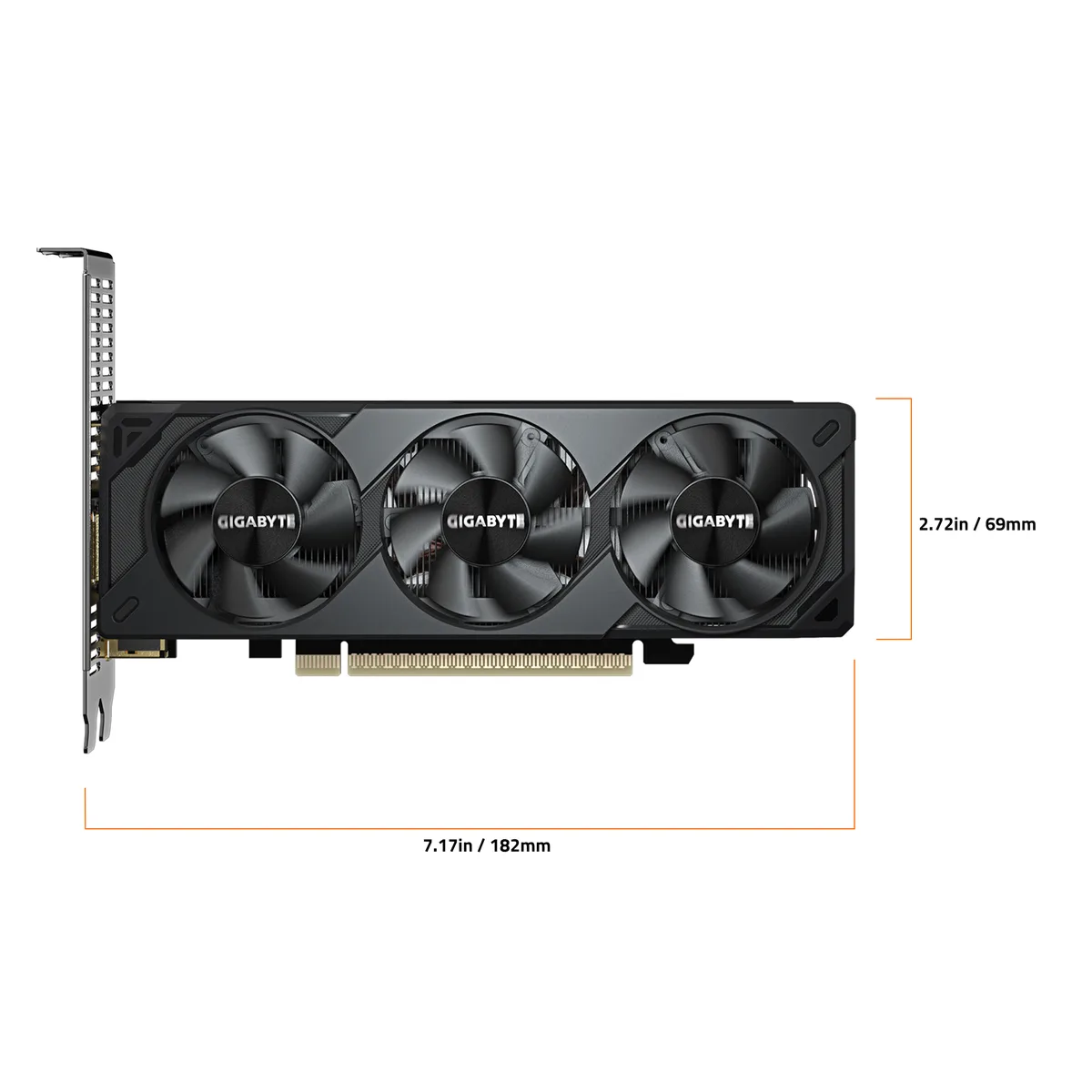

Card Dimensions (L x H)182 x 69 x 36 mm
Slot Width2 Slots
Package Contents1. Quick guide
2. Low Profile Bracket
Poids d’expédition0.25 kg
Dimensions du colis295 × 216 × 53 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the GV-N5060OC-8GL fit in my small-form-factor case with limited height clearance?

The card measures 182 mm long and uses a low-profile bracket so it fits most small-form-factor cases that accept half-height cards.

Can I run this RTX 5060 on my motherboard that only has PCI Express 4.0 slots?

Yes, the PCI Express 5.0 interface works in a PCIe 4.0 slot; the card will operate at the slot's maximum speed.

How do I confirm the GPU is hitting its 2512 MHz core clock under load?

Open the NVIDIA app overlay or a monitoring tool such as GPU-Z and watch the core clock readout while running a 3D workload.
