Black triple-fan graphics card, 360mm long, 3.7-slot thickness

GIGABYTE

GIGABYTE GV-N5090AORUS M-32GD GeForce RTX 5090 graphics card

SKU CH-6187-JBS27 MPN GV-N5090AORUS M-32GD

32 GB GDDR7 graphics card with 21760 CUDA cores, 2655 MHz core clock, PCIe 5.0 x16, 1 HDMI 2.1b and 3 DisplayPort 2.1b outputs

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5090
  • Core Clock2655 MHz
  • CUDA Cores21760
  • 32 GB GDDR7 on a 512-bit bus feeds the GPU at 28 Gbps
  • 21760 CUDA cores run at a 2655 MHz boost clock
  • PCI Express 5.0 x16 doubles host bandwidth versus 4.0
  • One HDMI 2.1b and three DisplayPort 2.1b outputs drive four 8K displays
  • Triple-fan cooler handles a 430 W TDP in a 3.7-slot ATX card

32GB GDDR7 RTX 5090 graphics card

The GIGABYTE GV-N5090AORUS M-32GD is a GeForce RTX 5090 graphics card built for 4K and 8K gaming workloads. It uses the PCI Express 5.0 x16 interface and delivers 32GB of GDDR7 memory across a 512-bit bus. The GPU runs at a 2655 MHz core clock with 21760 CUDA cores for heavy compute tasks.

Suits high-end builders; not for compact cases

This card fits enthusiasts who need maximum frame rates at 7680 x 4320 resolution and professionals running large model inference. The 3.7-slot thickness and 360 mm length require a spacious ATX chassis and a 1000W power supply. Builders with small-form-factor cases or lower-wattage PSUs should consider smaller GPUs.

430W TDP demands 1000W PSU and 16-pin connector

The thermal design power is rated at 430W and the board draws power through a single 16-pin connector. A 1000W unit is the minimum recommended capacity to ensure stable operation under full load. Verify your power supply includes the required connector before purchase.

Points forts

  • 32 GB GDDR7 on a 512-bit bus feeds the GPU at 28 Gbps
  • 21760 CUDA cores run at a 2655 MHz boost clock
  • PCI Express 5.0 x16 doubles host bandwidth versus 4.0
  • One HDMI 2.1b and three DisplayPort 2.1b outputs drive four 8K displays
  • Triple-fan cooler handles a 430 W TDP in a 3.7-slot ATX card

Caractéristiques

BrandGIGABYTE
SeriesAORUS
ModelGV-N5090AORUS M-32GD
Part NumberGV-N5090AORUS M-32GD
InterfacePCI Express 5.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5090
Core Clock2655 MHz
CUDA Cores21760
Effective Memory Clock28 Gbps
Memory Size32GB
Memory Interface512-Bit
Memory TypeGDDR7
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design Power430W
Recommended PSU Wattage1000W
Power Connector1 x 16-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length360 mm

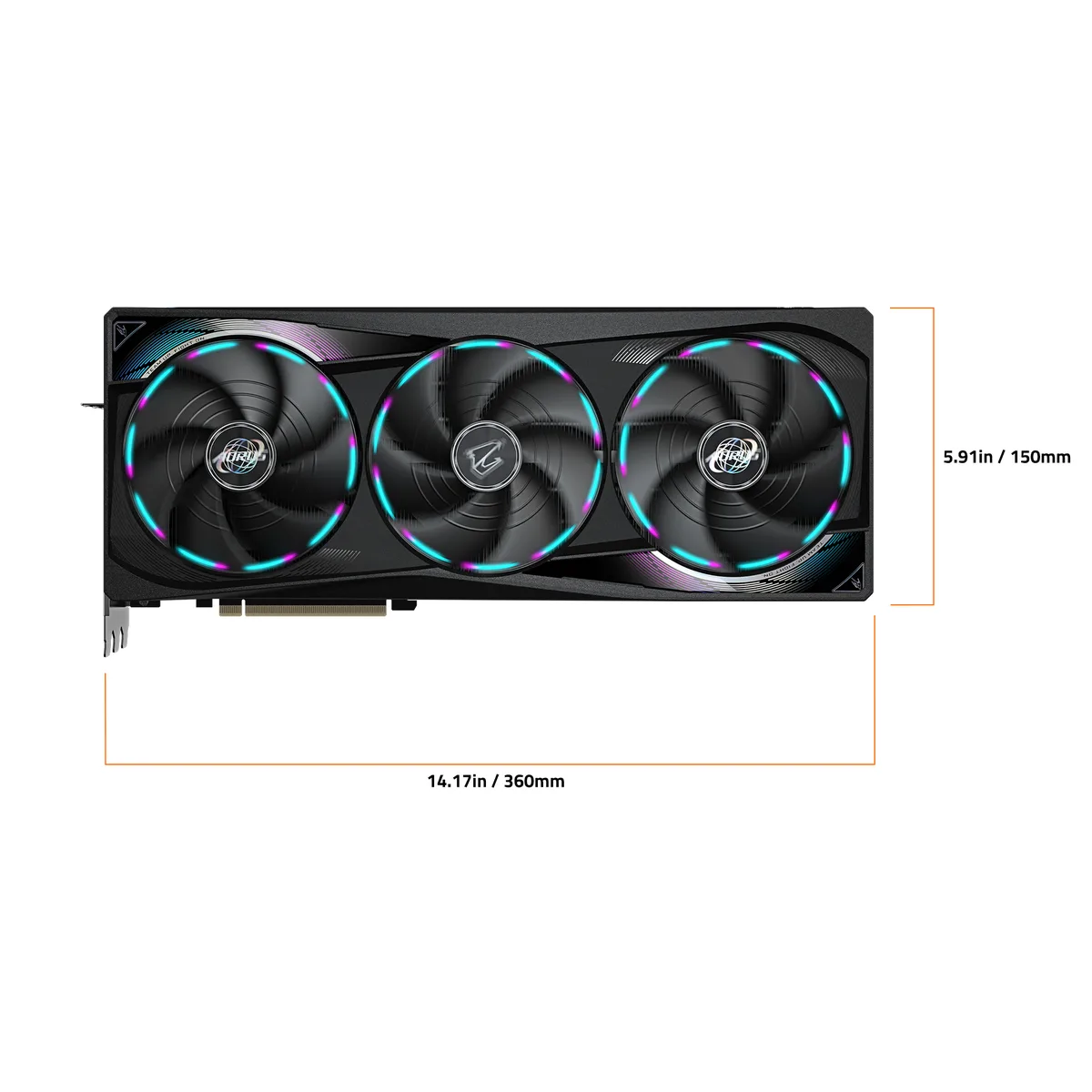

Card Dimensions (L x H)360 x 150 x 75 mm
Slot Width3.7 Slots
Poids d’expédition4.15 kg
Dimensions du colis462 × 248 × 165 mm

Questions sur cet article

Will the 360 mm length and 3.7-slot width fit in my ATX case?

The card measures 360 mm long, 150 mm tall and 75 mm thick, occupying 3.7 expansion slots. Verify your case clearance and motherboard spacing before purchase.

How do I connect the single 16-pin power connector correctly?

Plug a native 12VHPWR cable from a 1000W PSU straight into the 16-pin socket; avoid daisy-chained adapters and ensure the latch clicks fully to prevent melting.

When should I replace the thermal paste on the triple-fan cooler?

Re-paste the GPU die every two to three years or if core temperatures rise noticeably under load; the 430W TDP makes consistent thermal contact critical.
