Green Micro ATX board with silver heatsinks and black slots

GIGABYTE

GIGABYTE H610M D3W WIFI6 Intel motherboard

SKU CH-CT4Z-BP0RK MPN H610M D3W WIFI6

Micro-ATX board for 12th, 13th and 14th Gen Intel CPUs with DDR5, PCIe 4.0 x16, WIFI6, Bluetooth 5.3 and one M.2 slot

  • CPU Socket TypeLGA 1700
  • CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th G
  • ChipsetIntel H610
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardSupport up to DDR5 5600 MT/s memory module
  • Maximum Memory Supported128GB
  • Supports 12th, 13th and 14th Gen Intel Core processors on LGA 1700 socket
  • Hybrid 5+1+1 digital power phases with 50A MOSFETs deliver stable CPU power
  • Two DDR5 slots up to 128 GB with XMP 3.0 support
  • PCIe 4.0 x16 slot plus M.2 2280 PCIe 3.0 x4 for fast storage
  • WIFI6 and Bluetooth 5.3 plus GbE LAN for reliable wireless and wired networking

LGA 1700 Micro-ATX for 12th-14th Gen Intel

This motherboard fits Intel Core, Pentium Gold and Celeron processors from the 12th, 13th and 14th generations. The Intel H610 chipset provides a compact Micro-ATX foundation for everyday computing and entry-level builds. Two DDR5 DIMM slots accept up to 128 GB of system memory. It targets users who need a current platform without a full-size board.

5+1+1 hybrid power phases and WIFI EZ-Plug

A hybrid digital 5+1+1 power phase design uses 50A low RDS(on) MOSFETs to deliver steady current to the CPU. Chipset heatsinks handle thermal load during sustained workloads. The reinforced PCIe 4.0 x16 slot protects heavy graphics cards. WIFI EZ-Plug simplifies antenna attachment so wireless setup takes seconds.

DDR5 5600 MT/s XMP 3.0 and Bluetooth 5.3

Memory supports DDR5 up to 5600 MT/s on 14th and 13th Gen i9 and i7 CPUs, with Intel XMP 3.0 profiles for one-click tuning. ECC un-buffered modules operate in non-ECC mode. Integrated Wi-Fi 6 reaches 2.4 Gbps and Bluetooth 5.3 handles peripherals. Q-Flash Plus updates the BIOS without an operating system installed.

Points forts

  • Supports 12th, 13th and 14th Gen Intel Core processors on LGA 1700 socket
  • Hybrid 5+1+1 digital power phases with 50A MOSFETs deliver stable CPU power
  • Two DDR5 slots up to 128 GB with XMP 3.0 support
  • PCIe 4.0 x16 slot plus M.2 2280 PCIe 3.0 x4 for fast storage
  • WIFI6 and Bluetooth 5.3 plus GbE LAN for reliable wireless and wired networking

Caractéristiques

BrandGIGABYTE
ModelH610M D3W WIFI6
CPU Socket TypeLGA 1700
CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold
ChipsetIntel H610
Number of Memory Slots2x288pin (DDR5)
Memory StandardSupport up to DDR5 5600 MT/s memory module
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
ECC SupportedYes
Buffer SupportedUn-buffered
Memory Feature14th and 13th Generation Intel Core i9/i7 Processors:
- Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:
- Support for DDR5 4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory m
PCI Express 4.0 x16CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
PCI Express x1Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
Audio Channels7.1 Channels
Max LAN Speed1Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBLUETOOTH 5.3

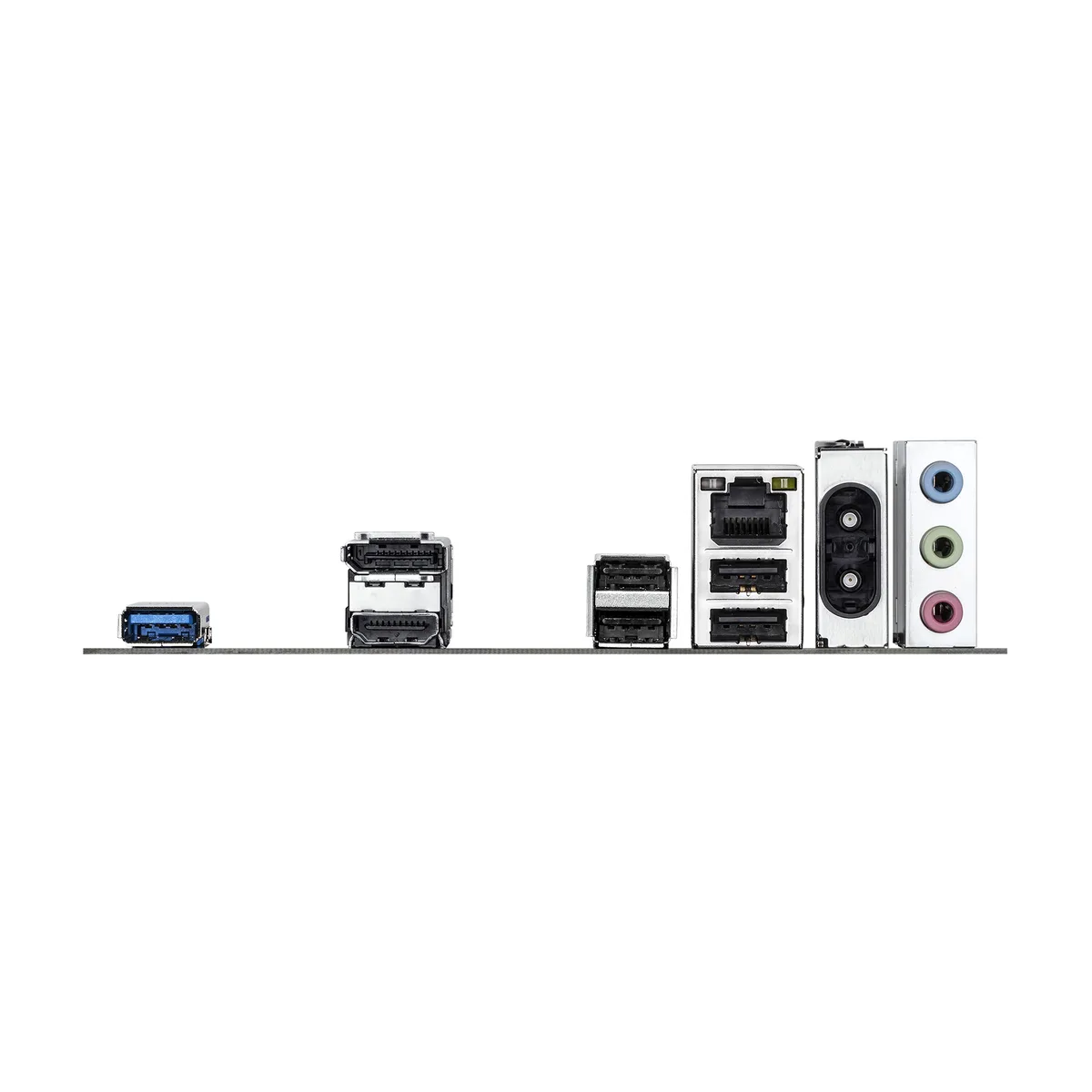

Back I/O Ports1 x DisplayPort
1 x HDMI port
1 x USB 3.2 Gen 1 port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
2 x antenna connectors
3 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors1 x CPU fan header
2 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
BIOS Feature1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form FactorMicro ATX
Dimensions (W x L)9.6" x 8.7"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Poids d’expédition0.86 kg
Dimensions du colis273 × 267 × 76 mm

Questions sur cet article

What speeds does the LGA 1700 socket cap DDR5 memory at for 14th Gen Intel Core i9 or i7 processors?

The board supports DDR5 5600, 5200, 4800 and 4400 MT/s modules with 14th Gen Core i9 and i7 CPUs.

What physical space does the single M.2 slot require for an SSD?

It accepts a 2280 form-factor module in an M-key Socket 3 connector.

How is the Wi-Fi antenna attached, and what step do builders often miss?

The WIFI EZ-Plug lets you snap the antenna onto the rear I/O without screwing; forgetting to seat it fully leaves the signal weak.
