GIGABYTE MC13-LE1 microATX server motherboard, AM5 socket, matte black PCB with silver heatsinks and dual 10Gb LAN ports

GIGABYTE

GIGABYTE MC13-LE1 server motherboard AM5 10Gb LAN

SKU CH-47W8-60T31 MPN MC13-LE1

Micro-ATX server board for single AMD EPYC or Ryzen CPUs with dual 10 GbE LAN, PCIe 5.0 x16, four DDR5 slots and four SATA ports

  • CPU Socket TypeSocket AM5
  • CPU TypeAMD EPYC 4004 Series / AMD Ryzen 7000 Series / AMD Ryzen 900
  • Number of Processor Support1
  • CPU FeaturesSingle processor, TDP up to 170W [Note] Recommend to install
  • North BridgeAMD B650E
  • Memory Slots4 x DDR5 288-pin

Style 2 x 10Gb/s LAN

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Supports AMD EPYC 4004, 4005 and Ryzen 7000, 9000 processors on AM5 socket
  • Dual-channel DDR5 ECC memory up to 5600 MT/s across four 288-pin slots
  • Two 10Gbps LAN ports driven by Intel X710-AT2 controller
  • PCIe 5.0 x16 and PCIe 4.0 x4 slots plus M.2 2242/2280 Gen5 x4
  • Aspeed AST2600 graphics with serial, D-Sub, MLAN and USB 3.2 Gen1 rear I/O

Target Platform

The GIGABYTE MC13-LE1 is a microATX server motherboard built for Socket AM5 processors. It accepts single AMD EPYC 4004 series or Ryzen 7000 and 9000 series CPUs with a TDP up to 170W. The board suits small-business servers, hosting nodes or workstations that need enterprise features in a compact form factor.

Management Software

GIGABYTE Management Console and GIGABYTE Server Management software are included for local configuration and multi-system monitoring. These tools simplify 24x7 operations by providing remote control, hardware health views and firmware updates without requiring a separate management licence.

Connectivity and Expansion

Dual 10Gbps LAN ports driven by an Intel X710-AT2 controller give high-throughput networking for storage or virtualisation traffic. A PCIe 5.0 x16 slot and a PCIe 4.0 x4 slot provide room for accelerators or additional NICs, while four SATA ports and one M.2 slot with PCIe Gen5 x4 support local storage arrays. Builders needing more than two 10GbE ports or additional full-length slots will need a larger chassis or add-in cards.

Points forts

  • Supports AMD EPYC 4004, 4005 and Ryzen 7000, 9000 processors on AM5 socket
  • Dual-channel DDR5 ECC memory up to 5600 MT/s across four 288-pin slots
  • Two 10Gbps LAN ports driven by Intel X710-AT2 controller
  • PCIe 5.0 x16 and PCIe 4.0 x4 slots plus M.2 2242/2280 Gen5 x4
  • Aspeed AST2600 graphics with serial, D-Sub, MLAN and USB 3.2 Gen1 rear I/O

Caractéristiques

BrandGIGABYTE
ModelMC13-LE1
CPU Socket TypeSocket AM5
CPU TypeAMD EPYC 4004 Series / AMD Ryzen 7000 Series / AMD Ryzen 9000 Series
Number of Processor Support1
CPU FeaturesSingle processor, TDP up to 170W
[Note] Recommend to install 170W CPU with a liquid cooling kit.
North BridgeAMD B650E
Memory Slots4 x DDR5 288-pin
Memory StandardDDR5 5600
Channel SupportedDual Channel
PCI Express 5.0 x16Slot_3: PCIe x16 (Gen5 x16), from CPU
PCI Express x4Slot_1: PCIe x4 (Gen4 x4), from FCH
SATA4 x SATA, from FCH
M.21 x M.2 (2242/2280), PCIe Gen5 x4, from CPU
Onboard Video ChipsetAspeed AST2600
LAN ChipsetIntel X710-AT2
LAN Speed10Gbps
Max LAN Speed2 x 10Gbps

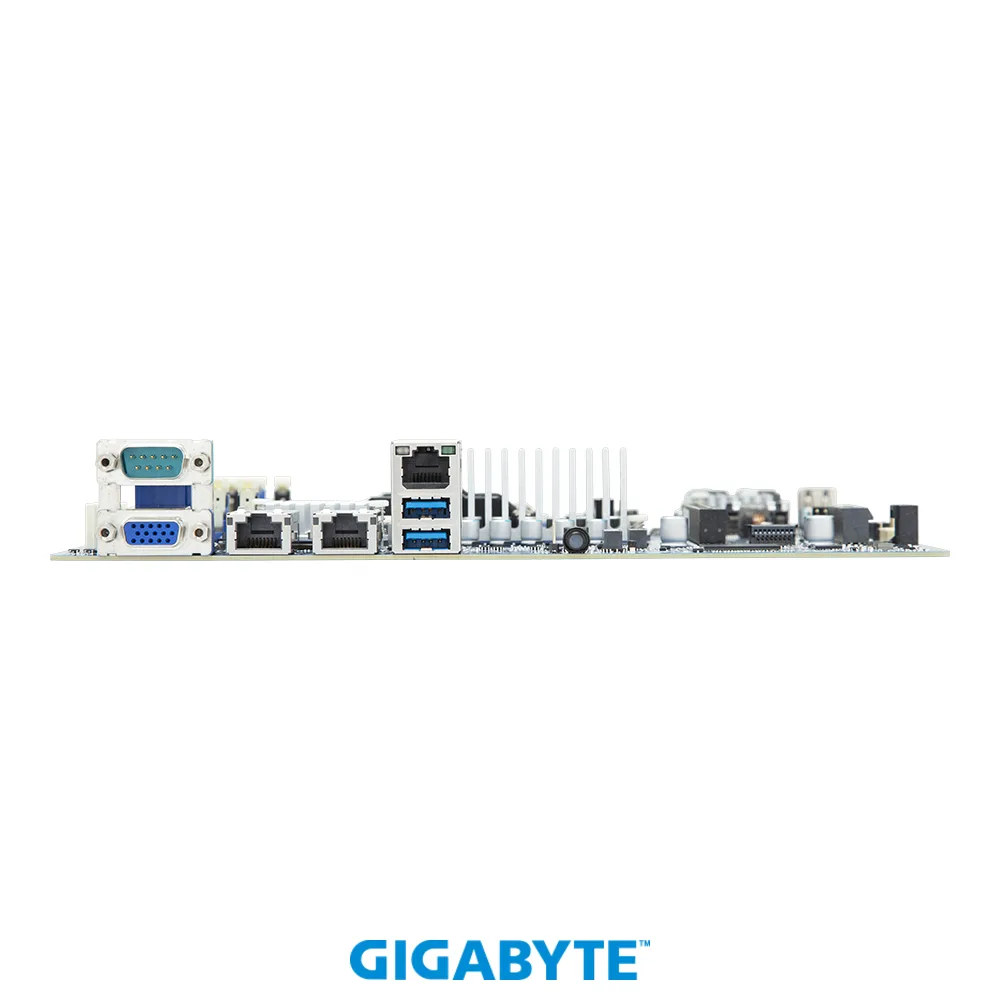

Back I/O Ports1 x COM (Serial Port) / 1 x D-Sub / 1 x MLAN / 2 x LAN (RJ45) / 2 x USB 3.2 Gen 1 Type-A
USB 3.22 x USB 3.2 Gen1 type A
Onboard USB1 x USB 2.0 port (Type-A)
1 x USB 3.2 Gen1 x2 header
1 x USB 2.0 x2 header
Other Connectors1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
5 x System fan headers
1 x M.2 slot
4 x SATA connectors
1 x Front panel header
1 x Backplane board header
1 x PMBUS connector
1 x IPMB connector
1 x TPM header
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"

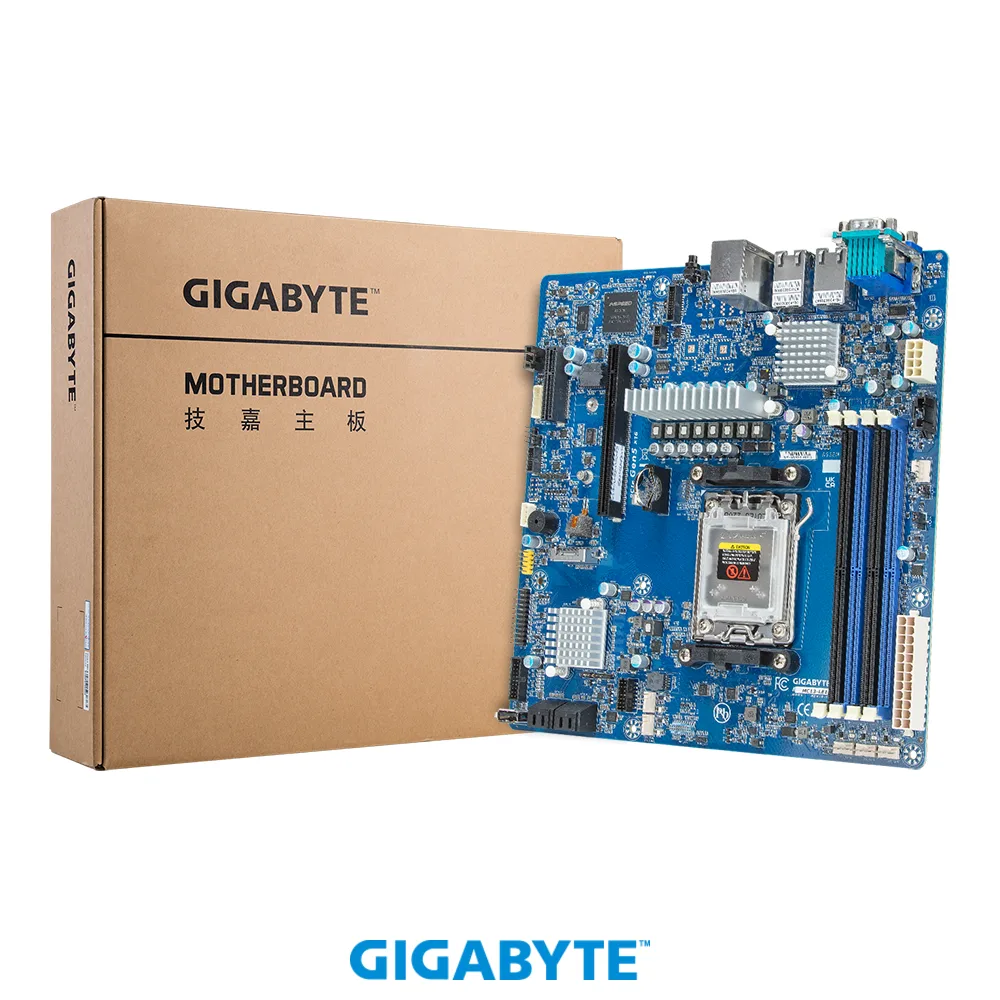

Package Contents1 x MC13-LE1
1 x I/O shield
1 x Quick start guide
4 x SATA 6Gb/s cables (500mm)
Poids d’expédition1.13 kg
Dimensions du colis324 × 311 × 83 mm

Autres versions de ce modèle

4 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the 170W CPU TDP limit require a liquid cooler replacement down the line?

The board supports CPUs up to 170W TDP and the manufacturer recommends a liquid cooling kit for such processors, so plan for that cooler type from the start.

Which expansion slot hits its bandwidth ceiling first under sustained PCIe Gen5 x16 workloads?

The PCIe Gen5 x16 slot (Slot_3) connects directly to the CPU and provides the highest throughput; the Gen4 x4 slot (Slot_1) from the FCH will saturate earlier.

How loud and hot does the Intel X710-AT2 dual 10GbE controller get when running 24/7?

The X710-AT2 is a server-grade NIC designed for continuous operation; typical server chassis airflow keeps temperatures in check and fan noise is dictated by the system fans, not the controller itself.
