Green server motherboard with eight DDR5 slots and five PCIe x16 slots

GIGABYTE

GIGABYTE MW83-RP0 server motherboard, LGA 4677, Intel W790, 8-channel DDR5, 5 PCIe 5.0 x16, 2x 10Gbps LAN

SKU CH-GASR-K2PGT MPN MW83-RP0

Single-processor workstation board for Intel Xeon W-3500/3400 CPUs, eight-channel DDR5 RDIMM up to 2 TB, five PCIe 5.0 x16 slots, dual 10 Gbps LAN and eight SATA ports via two SlimSAS connectors

  • CPU Socket TypeLGA 4677
  • CPU TypeSupports Intel Xeon W-3500 / W-2500* / W-3400 / W-2400* Proc
  • Number of Processor Support1
  • CPU FeaturesSingle processor, TDP up to 385W *Carriers for Intel Xeon W-
  • North BridgeIntel W790
  • Memory Slots8 x DDR5 288-pin
  • Single processor handles up to 385W TDP for compute-heavy workloads
  • Eight-channel DDR5 architecture scales to 2TB registered memory
  • Five PCIe 5.0 x16 slots deliver 112 CPU lanes for GPU and CXL expansion
  • Dual 10Gbps LAN via Intel X710-AT2 controller enables high-speed networking
  • Two SlimSAS connectors support eight SATA 6Gb/s drives for dense storage

Single-socket Xeon W workstation board

The MW83-RP0 fits one Intel Xeon W-3500, W-3400, W-2500 or W-2400 processor in an LGA 4677 socket with a thermal design power up to 385 W. It targets engineers, data scientists and media professionals who need high core counts and large memory capacity in a single-processor platform. Builders using W-2500 or W-2400 CPUs must supply a separate carrier.

Eight-channel DDR5 and PCIe 5.0 expansion

Eight 288-pin DDR5 slots run at 4800 MT/s in a 1 DPC configuration and drop to 4400 MT/s when fully populated, supporting up to 2 TB of registered memory. Five PCIe 5.0 x16 slots connect directly to the CPU, delivering up to 112 lanes for GPUs, accelerators or CXL devices, while two M.2 2280 slots operate at PCIe 4.0 x4 from the chipset.

Dual 10 Gbps LAN and eight SATA ports

An Intel X710-AT2 controller provides two 10 Gbps Ethernet ports for fast network storage or cluster links. Two SlimSAS connectors break out to eight SATA 6 Gb/s ports with RAID 0, 1, 5 and 10 support, and the ASPEED AST2600 BMC handles remote management. Systems needing more than eight SATA drives or a second CPU socket must choose a different platform.

Points forts

  • Single processor handles up to 385W TDP for compute-heavy workloads
  • Eight-channel DDR5 architecture scales to 2TB registered memory
  • Five PCIe 5.0 x16 slots deliver 112 CPU lanes for GPU and CXL expansion
  • Dual 10Gbps LAN via Intel X710-AT2 controller enables high-speed networking
  • Two SlimSAS connectors support eight SATA 6Gb/s drives for dense storage

Caractéristiques

BrandGIGABYTE
ModelMW83-RP0
CPU Socket TypeLGA 4677
CPU TypeSupports Intel Xeon W-3500 / W-2500* / W-3400 / W-2400* Processors
Number of Processor Support1
CPU FeaturesSingle processor, TDP up to 385W
*Carriers for Intel Xeon W-2500/2400 Processors are not included. Please refer to the optional parts for proper support.
Notice: Please select Intel Xeon W-3500/3400 Processors to enable all functions.
North BridgeIntel W790
Memory Slots8 x DDR5 288-pin
Memory StandardDDR5 4800
Maximum Memory Supported2TB
Channel SupportedEight Channel
RegisteredYes
PCI Express 5.0 x16Slot_7: PCIe x16 (Gen5 x16) slot, from CPU
Slot_6: PCIe x16 (Gen5 x16) slot, from CPU*
Slot_5: PCIe x16 (Gen5 x16) slot, from CPU*
Slot_4: PCIe x16 (Gen5 x16) slot, from CPU*
Slot_3: PCIe x16 (Gen4 x16) slot, from CPU
Slot_2: PCIe x16 (Gen5 x16) slot, from CPU
Slot_1: PCIe x16 (Gen4 x16) slot, from CPU
*Slot_4/5/6 are not supported with Intel Xeon W-2500/2400 Processors.
SATA RAID0/1/10/5
SAS2 x SlimSAS connectors for 8 x SATA 6Gb/s
M.22 x M.2 slots:
- M-key
- PCIe Gen4 x4, from PCH
- Support 2280 cards
Onboard Video ChipsetAspeed AST2600
LAN ChipsetIntel X710-AT2
LAN Speed10Gbps
Max LAN Speed2 x 10Gbps

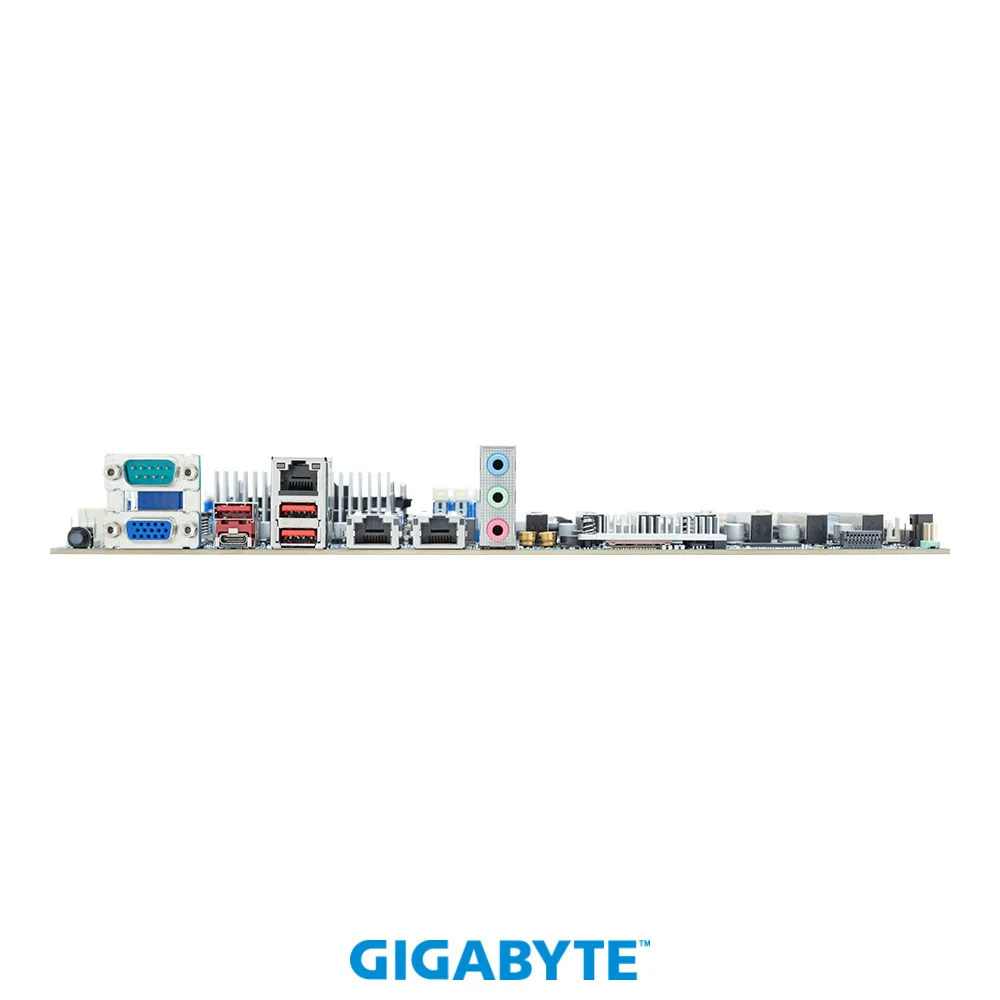

Back I/O Ports1 x USB 3.2 Gen2x2 (Type-C)
3 x USB 3.2 Gen2x1 (Type-A)
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
3 x Audio jacks
1 x ID button with LED
Onboard USB1 x USB 3.2 Gen1 x2 header
Other Connectors1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
6 x System fan headers
1 x Front audio header
2 x M.2 slots
2 x SlimSAS connectors
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header
Form FactorCEB
Dimensions (W x L)12.0" x 10.5"

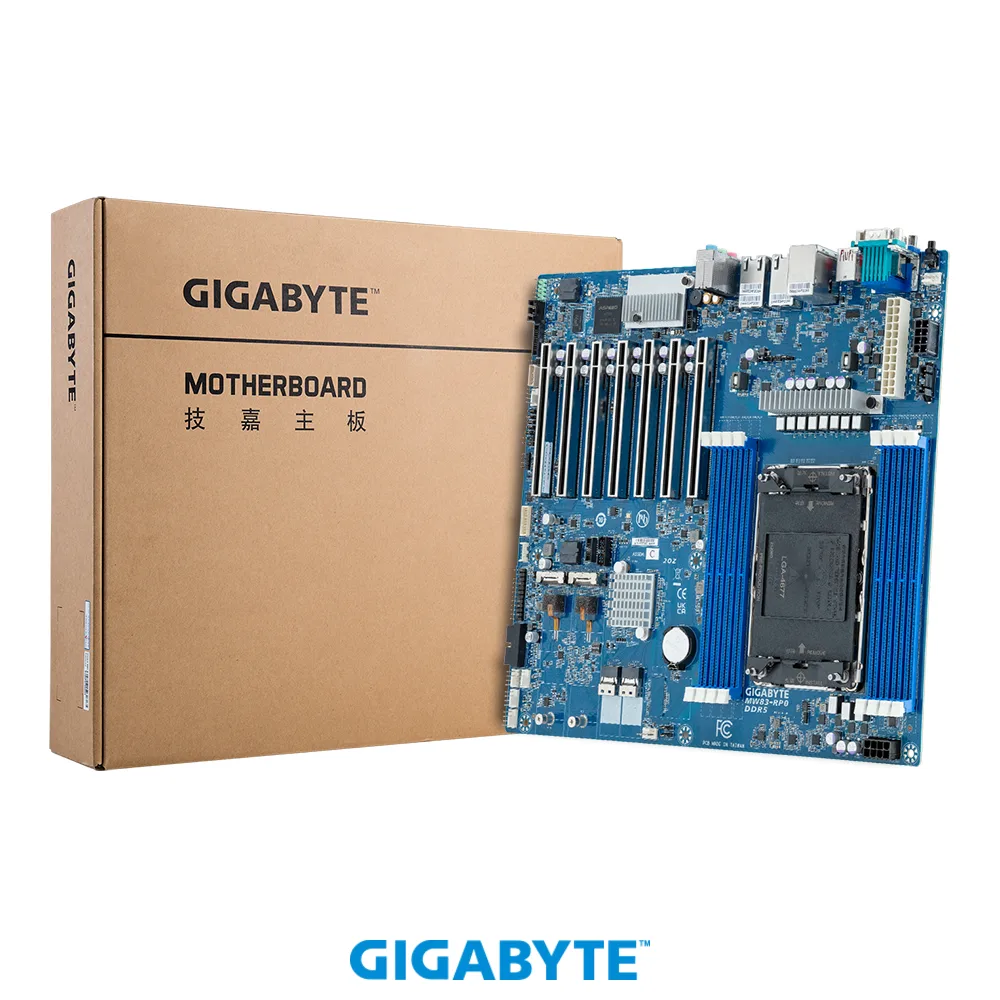

Package Contents1 x MW83-RP0
1 x I/O shield
1 x Quick start guide
*1 x W-3500/3400 (E1A) carrier
1 x SlimSAS to 4 x SATA 6Gb/s cable (600mm)
*Carriers for Intel Xeon W-2500/2400 Processors are not included.
Contains Embedded BatteryNo
Poids d’expédition1.72 kg
Dimensions du colis356 × 330 × 76 mm

Questions sur cet article

Should I pick the W-3500 or W-2500 processor series for this board?

The W-3500 series enables the full eight memory channels and up to 112 PCIe 5.0 lanes from the CPU, while the W-2500 series is limited to four channels and requires a separate carrier that is not included.

What does the 10 Gbps LAN figure mean once the board is in a real machine?

Each of the two Intel X710-AT2 ports runs at 10 Gbps, so a single link tops out at that speed and the pair operates independently.

How do the five PCIe 5.0 x16 slots share bandwidth from the CPU?

Four slots run at Gen5 x16 and one at Gen4 x16, all fed from the processor; total lane count depends on the installed Xeon, up to the CPU limit of 112 lanes.
