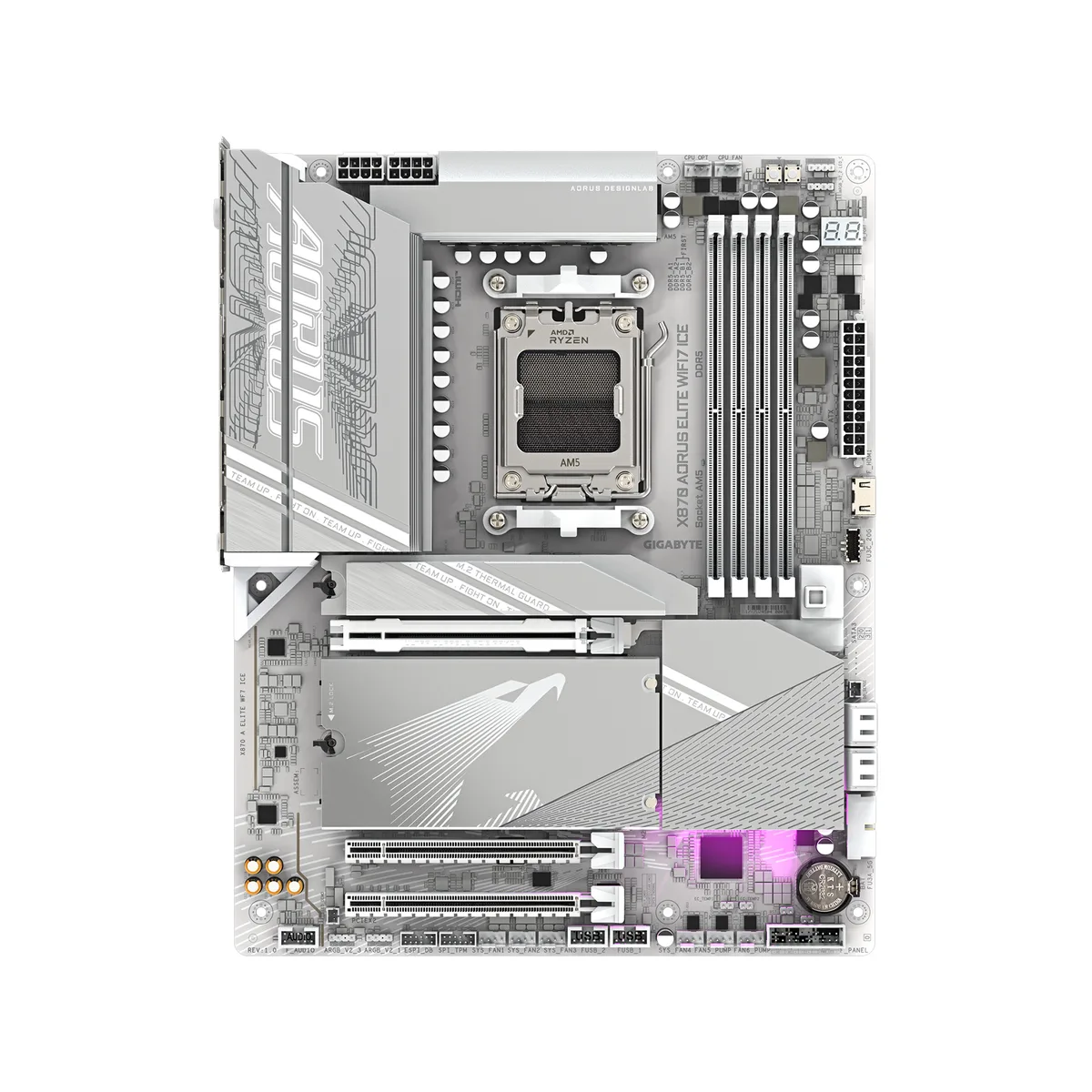

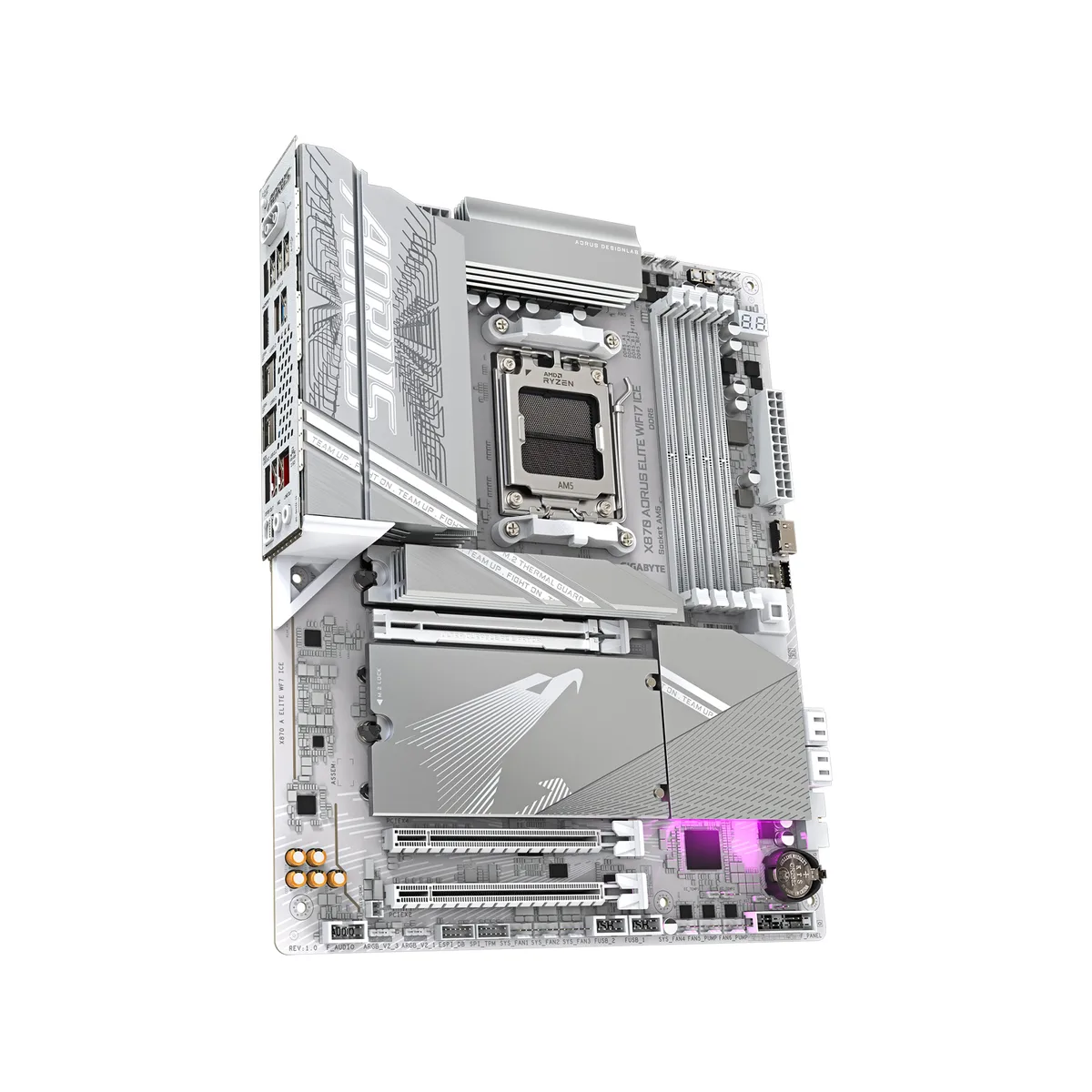

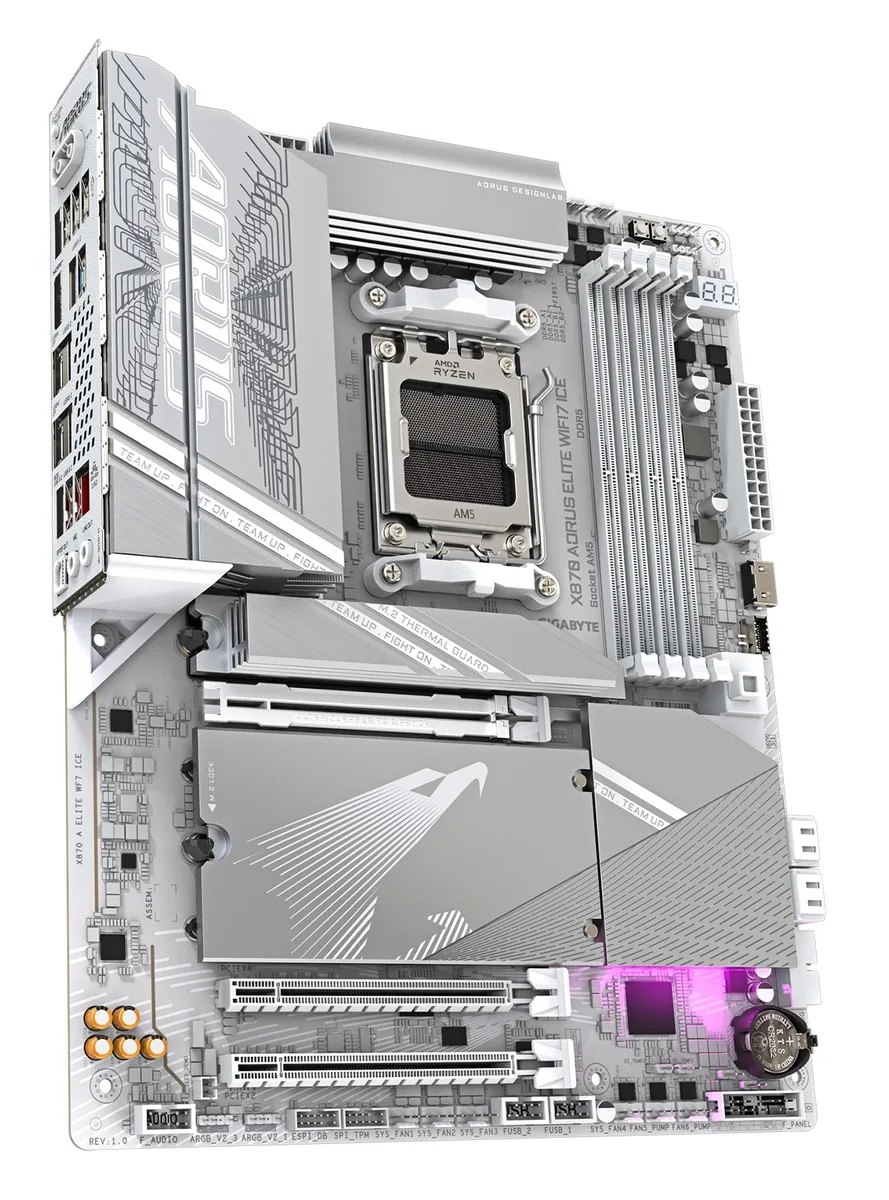

White ATX motherboard with silver heatsinks and rear I/O shield

GIGABYTE

GIGABYTE X870 AORUS ELITE WIFI7 ICE AMD motherboard

SKU CH-KYRW-MTK10 MPN X870 AORUS ELITE WIFI7 ICE

AM5 board with 16+2+2 power phases, four DDR5 slots up to 256 GB, four M.2 sockets including three PCIe 5.0, dual USB4, Wi-Fi 7 and 2.5 GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5200
  • Maximum Memory Supported256GB

Option X870 AORUS ELITE WIFI7 ICE

  • Supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • 16+2+2 phase digital VRM delivers stable power for high-performance CPUs
  • Four DDR5 slots with EXPO support up to 8000 MT/s and 256 GB capacity
  • Four M.2 slots including three PCIe 5.0 x4 for ultra-fast storage
  • Wi-Fi 7 and 2.5 GbE LAN provide high-speed wired and wireless connectivity

AMD AM5 platform ready

The GIGABYTE X870 AORUS ELITE WIFI7 ICE motherboard accepts Ryzen 7000, 8000 and 9000 series processors in the AM5 socket. Four 288-pin slots support dual-channel DDR5 up to 256 GB with EXPO and XMP 3.0 profiles. The board delivers PCIe 5.0 graphics and storage lanes plus dual USB4 Type-C ports for high-speed peripherals.

Verify CPU, memory and M.2 lane sharing

Confirm your processor generation matches the supported Ryzen 7000, 8000 or 9000 series before purchase. Select DDR5 modules from the qualified speed list ranging from 4800 to 8000 MT/s. Check that the primary PCIe 5.0 x16 slot shares bandwidth with the M2B_CPU and M2C_CPU connectors and that the chipset x4 slot disables when M2D_SB is populated.

Sustained load thermals and power delivery

A 16+2+2 phase digital VRM with advanced thermal armour regulates voltage for multi-core workloads without throttling. VRM and M.2 Thermal Guard L heatsinks dissipate heat during extended compile, render or gaming sessions. The 2.5 GbE LAN and Wi-Fi 7 controller maintain stable throughput under continuous network traffic.

Points forts

  • Supports Ryzen 9000, 8000 and 7000 series processors on AM5 socket
  • 16+2+2 phase digital VRM delivers stable power for high-performance CPUs
  • Four DDR5 slots with EXPO support up to 8000 MT/s and 256 GB capacity
  • Four M.2 slots including three PCIe 5.0 x4 for ultra-fast storage
  • Wi-Fi 7 and 2.5 GbE LAN provide high-speed wired and wireless connectivity

Caractéristiques

BrandGIGABYTE
ModelX870 AORUS ELITE WIFI7 ICE
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP 3.0
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupport for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
PCI Express 5.0 x161 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
PCI Express x4Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoen
SATA RAID0/1/10
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBLUETOOTH 5.4

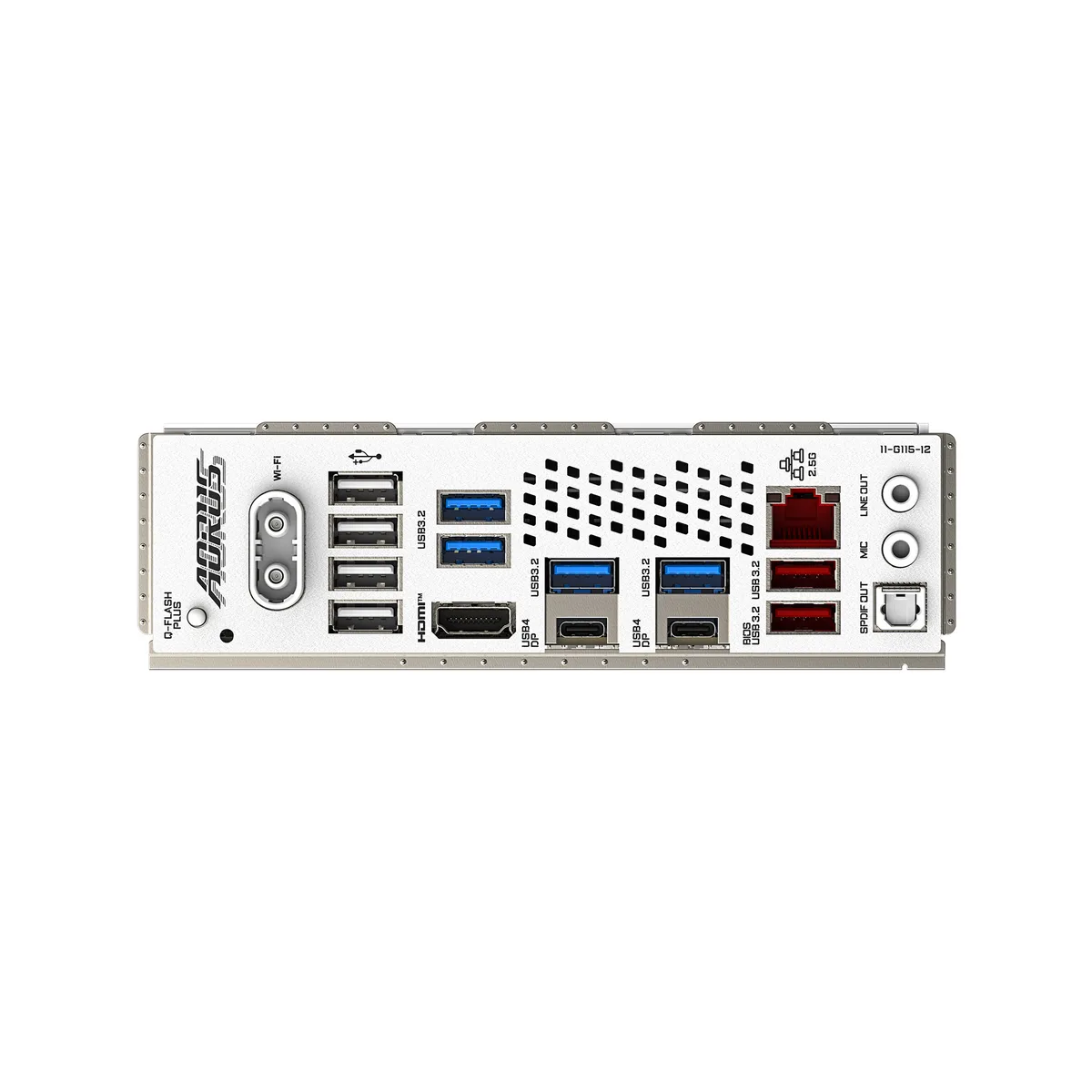

Back I/O Ports1 x Q-Flash Plus button
1 x HDMI port
2 x antenna connectors (2T2R)
2 x USB4 USB Type-C ports (DisplayPort)
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port
1 x power button
1 x reset button
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
Windows 11Supported
FeaturesSupport for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support Smart Backup
Poids d’expédition2.27 kg
Dimensions du colis334 × 273 × 81 mm

Autres versions de ce modèle

1 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the board ship with the Wi-Fi 7 antenna and M.2 screws, or must they be purchased separately?

The Wi-Fi EZ-Plug antenna and all M.2 EZ-Latch heatsink hardware are included in the box; no extra mounting parts are required for the four M.2 slots or the wireless module.

Which of the supported DDR5 speeds should I pick for a Ryzen 9000 series CPU?

AMD EXPO kits rated at 6000 MT/s or 6400 MT/s give a strong balance of latency and bandwidth on Ryzen 9000 series processors; higher OC speeds such as 7200 MT/s or 8000 MT/s are supported but require careful cooling and BIOS tuning.

What does the PCIe 5.0 x16 slot actually deliver when a graphics card and three M.2 drives are installed?

The primary PCIe 5.0 x16 slot runs at full x16 with a Ryzen 9000 or 7000 CPU; installing a drive in M2B_CPU or M2C_CPU shares that bandwidth, so the graphics link drops to x8 while those M.2 slots remain at PCIe 5.0 x4.
