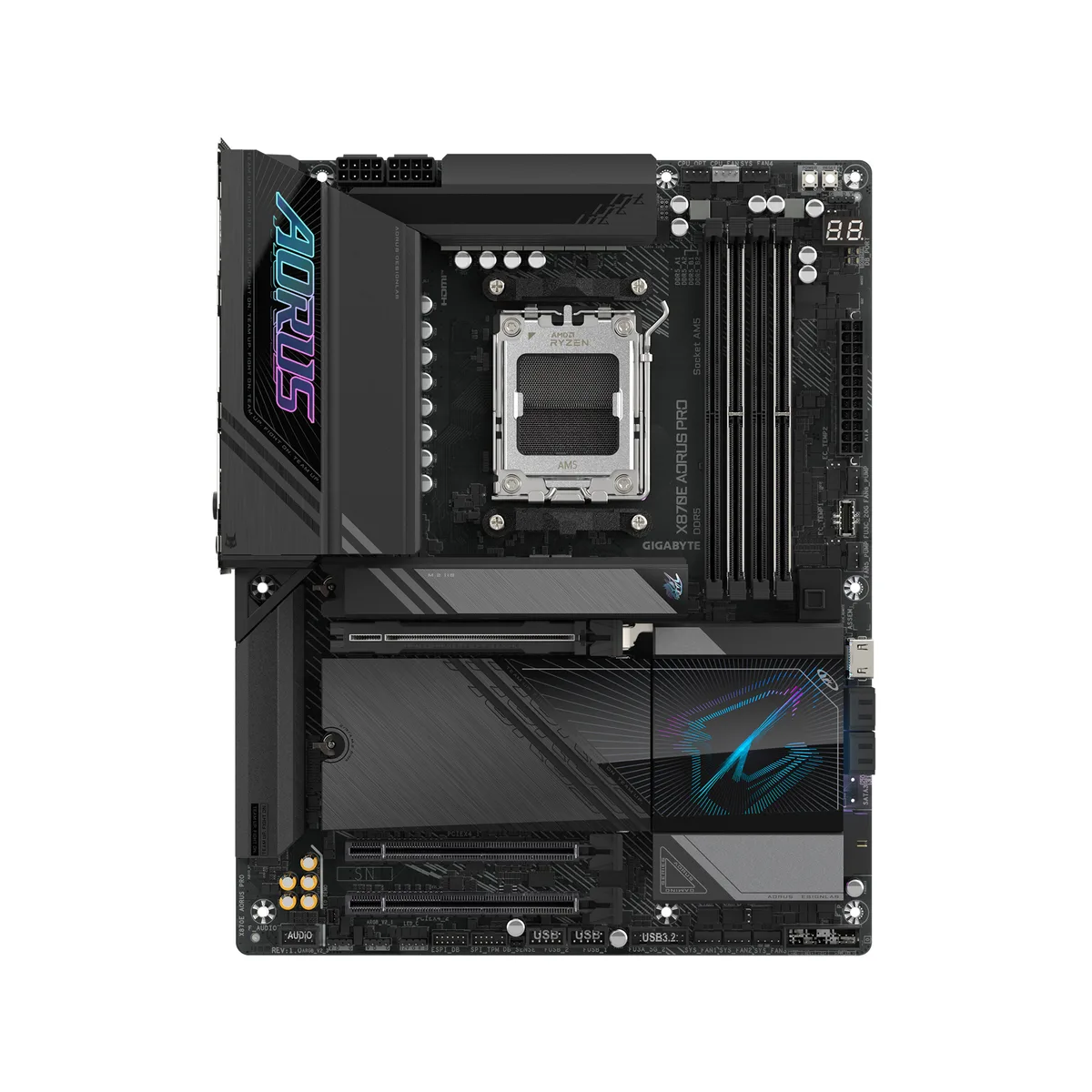

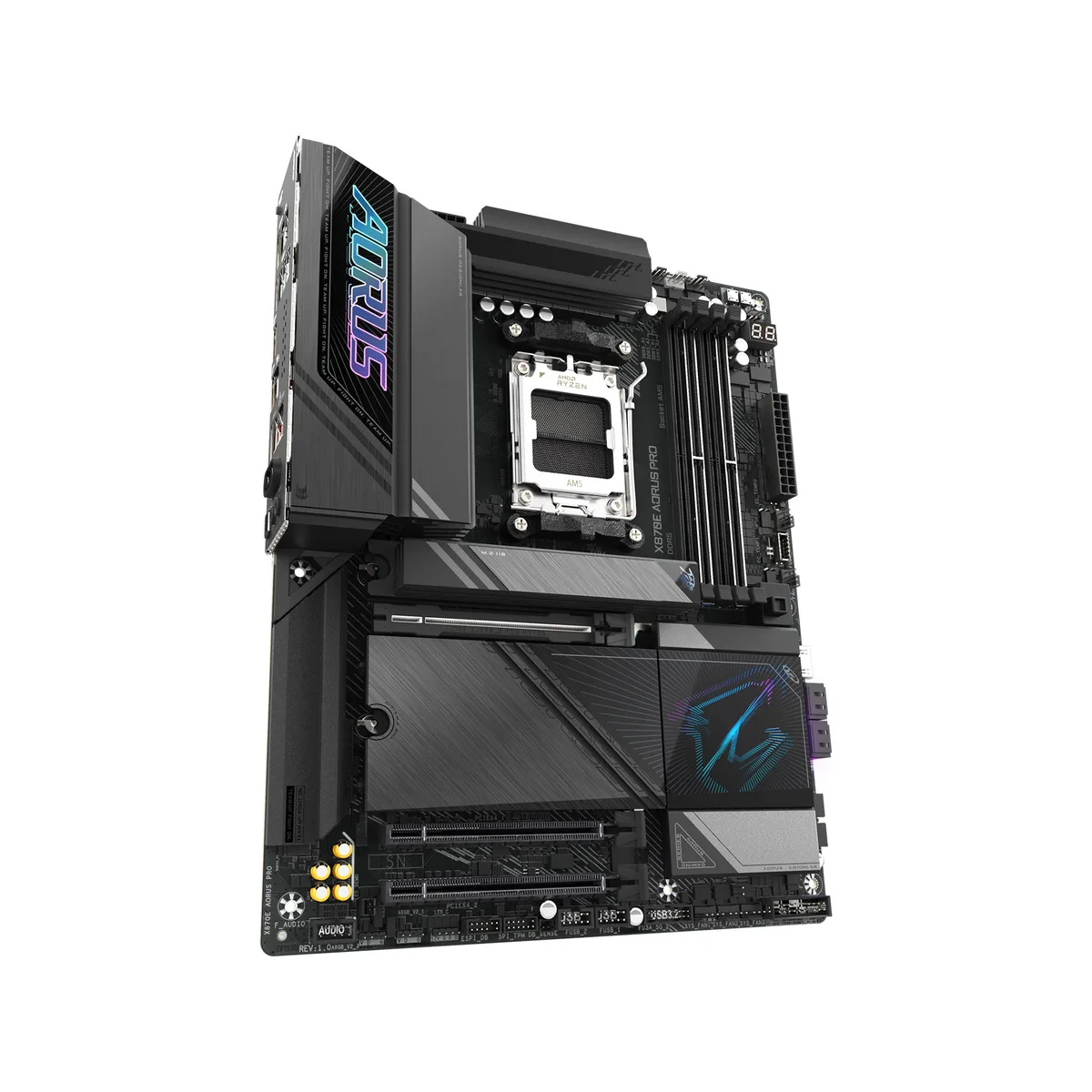

ATX motherboard with black PCB, silver VRM heatsinks and silver M.2 covers

GIGABYTE

GIGABYTE X870E AORUS PRO AMD motherboard

SKU CH-BVZR-7RJ93 MPN X870E AORUS PRO

ATX AM5 board with 16+2+2 80 A power stages, four DDR5 slots up to 256 GB, PCIe 5.0 x16, three PCIe 5.0 M.2 slots, dual USB4, Wi-Fi 7 and 2.5 GbE LAN

  • CPU Socket TypeAM5
  • CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5200
  • Maximum Memory Supported256GB

Option X870E AORUS PRO

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Supports Ryzen 9000, 8000 and 7000 CPUs on AM5 socket
  • 16+2+2 phase VRM with 80 A smart power stages for stable delivery
  • Four DDR5 slots up to 256 GB with AMD EXPO profiles
  • Three PCIe 5.0 M.2 slots plus one PCIe 4.0 for ultra-fast storage
  • Wi-Fi 7 and 2.5 GbE LAN with dual USB4 Type-C ports

Socket AM5 platform for Ryzen 7000 8000 9000

The board targets builders who want a full-size ATX foundation for AMD Ryzen 7000 8000 and 9000 series processors. Four DDR5 slots accept up to 256 GB in dual-channel mode with EXPO and XMP 3.0 profiles. A 16 plus 2 plus 2 phase VRM uses 80 A smart power stages to feed the CPU cleanly.

PCIe 5.0 x16 and three CPU-linked M.2 slots

The top graphics slot runs at PCIe 5.0 x16 when paired with Ryzen 9000 or 7000 CPUs. Three M.2 connectors wired to the CPU support PCIe 5.0 x4 drives in 2280 22110 25110 and 2580 form factors. The chipset adds a PCIe 4.0 x4 slot and a PCIe 3.0 x4 slot plus four SATA 6 Gb/s ports.

VRM Thermal Armor Advanced and M.2 Thermal Guard L

Large heatsinks cover the power delivery and the primary M.2 drives to dissipate heat during extended workloads. Wi-Fi 7 and 2.5 GbE LAN handle sustained network traffic without throttling. Dual USB4 Type-C ports with DisplayPort Alt Mode and HDMI keep high-bandwidth peripherals responsive over long sessions.

Points forts

  • Supports Ryzen 9000, 8000 and 7000 CPUs on AM5 socket
  • 16+2+2 phase VRM with 80 A smart power stages for stable delivery
  • Four DDR5 slots up to 256 GB with AMD EXPO profiles
  • Three PCIe 5.0 M.2 slots plus one PCIe 4.0 for ultra-fast storage
  • Wi-Fi 7 and 2.5 GbE LAN with dual USB4 Type-C ports

Caractéristiques

BrandGIGABYTE
ModelX870E AORUS PRO
CPU Socket TypeAM5
CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP 3.0
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupport for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
PCI Express 5.0 x161x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
PCI Express x4Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
* The M2B_CPU and M2C_CPU connectors will become unavailable when using the AMD Ryzen 8000
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBLUETOOTH 5.3

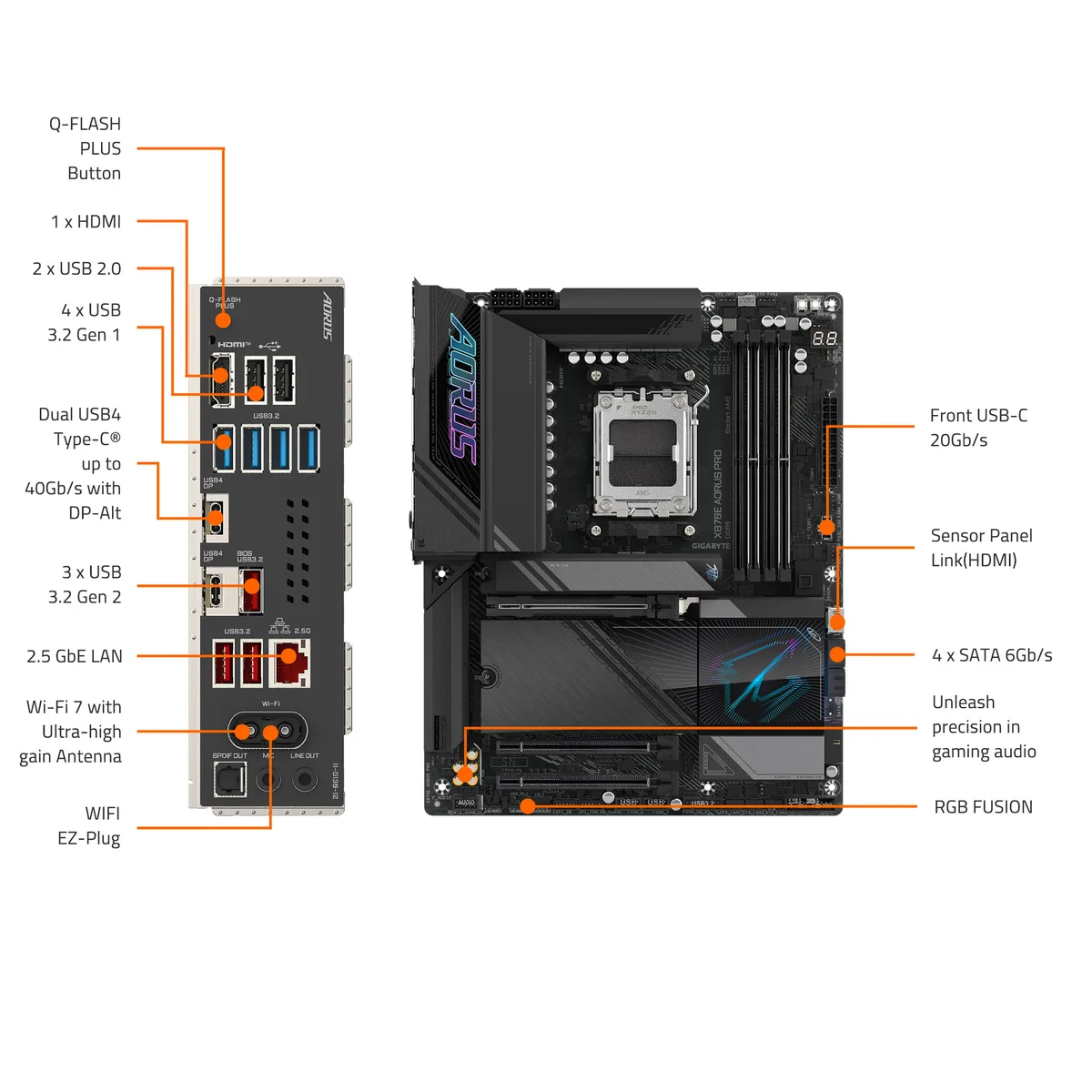

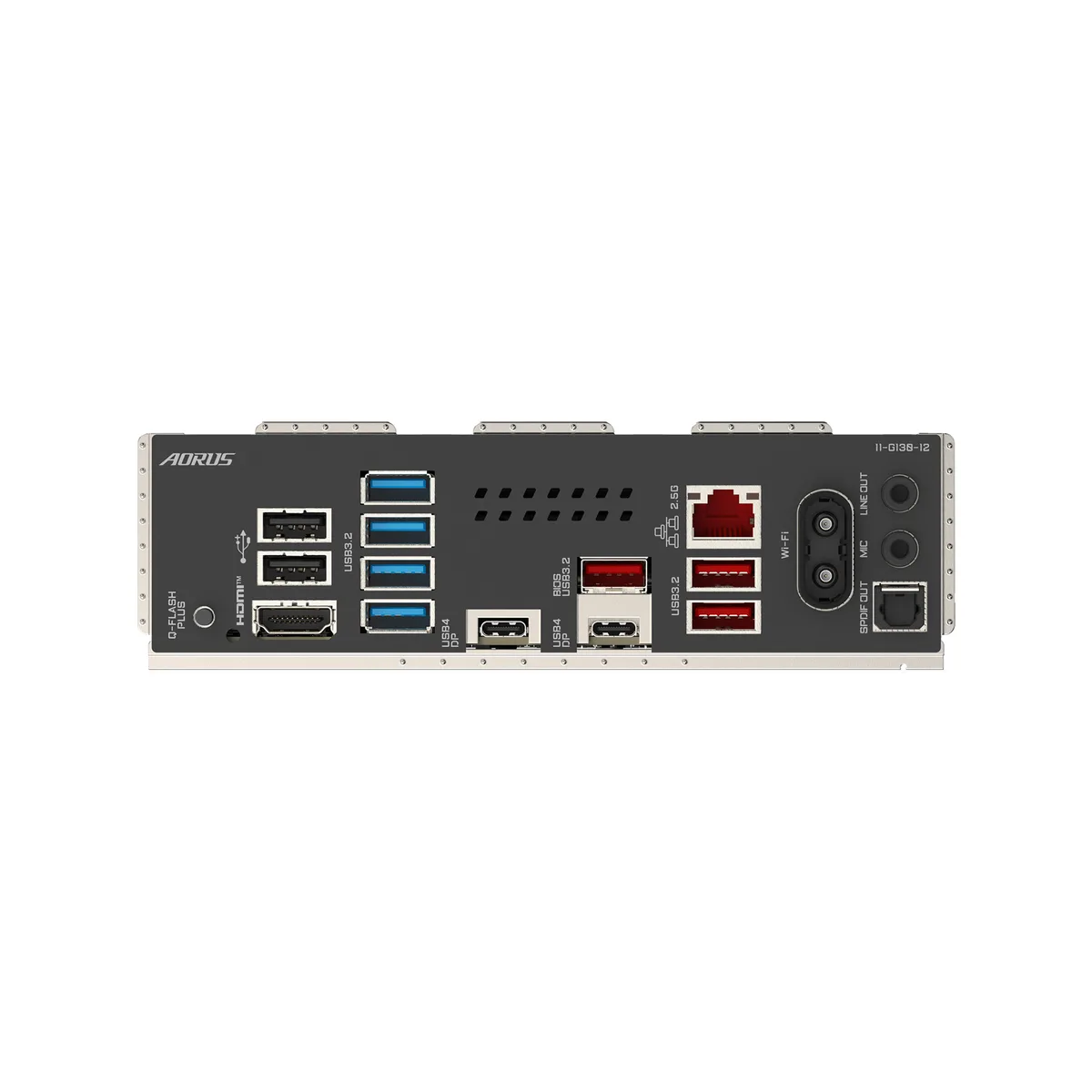

Back I/O Ports1 x Q-Flash Plus button
2 x USB 2.0/1.1 ports
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB4 USB Type-C port (DisplayPort
3 x USB 3.2 Gen 2 Type-A ports (red)
1 x RJ-45 port
2 x antenna connectors (2T2R)
1 x optical S/PDIF Out connector
2 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x noise detection header
1 x HDMI port
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
BIOS Feature1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
Windows 11Supported
FeaturesSupport for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Poids d’expédition2.34 kg
Dimensions du colis330 × 279 × 76 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What does the 80 A smart power stage rating mean for daily operation?

The 16+2+2 phase design with 80 A smart power stages delivers stable current to the CPU socket, helping maintain boost clocks on Ryzen 7000, 8000 and 9000 series processors under sustained loads.

How does the PCIe 5.0 x16 slot share bandwidth with the M.2 connectors?

The primary PCIe 5.0 x16 slot and the M2B_CPU and M2C_CPU connectors share CPU lanes; populating those M.2 slots reduces the graphics slot to x8 electrical while keeping PCIe 5.0 signalling.

What clearance does the screwless M.2 heatsink design require?

The EZ-Latch Click heatsinks cover 2280 and 2580 length drives without screws, so the board fits standard ATX cases and leaves room for most dual-slot graphics cards in the primary slot.
