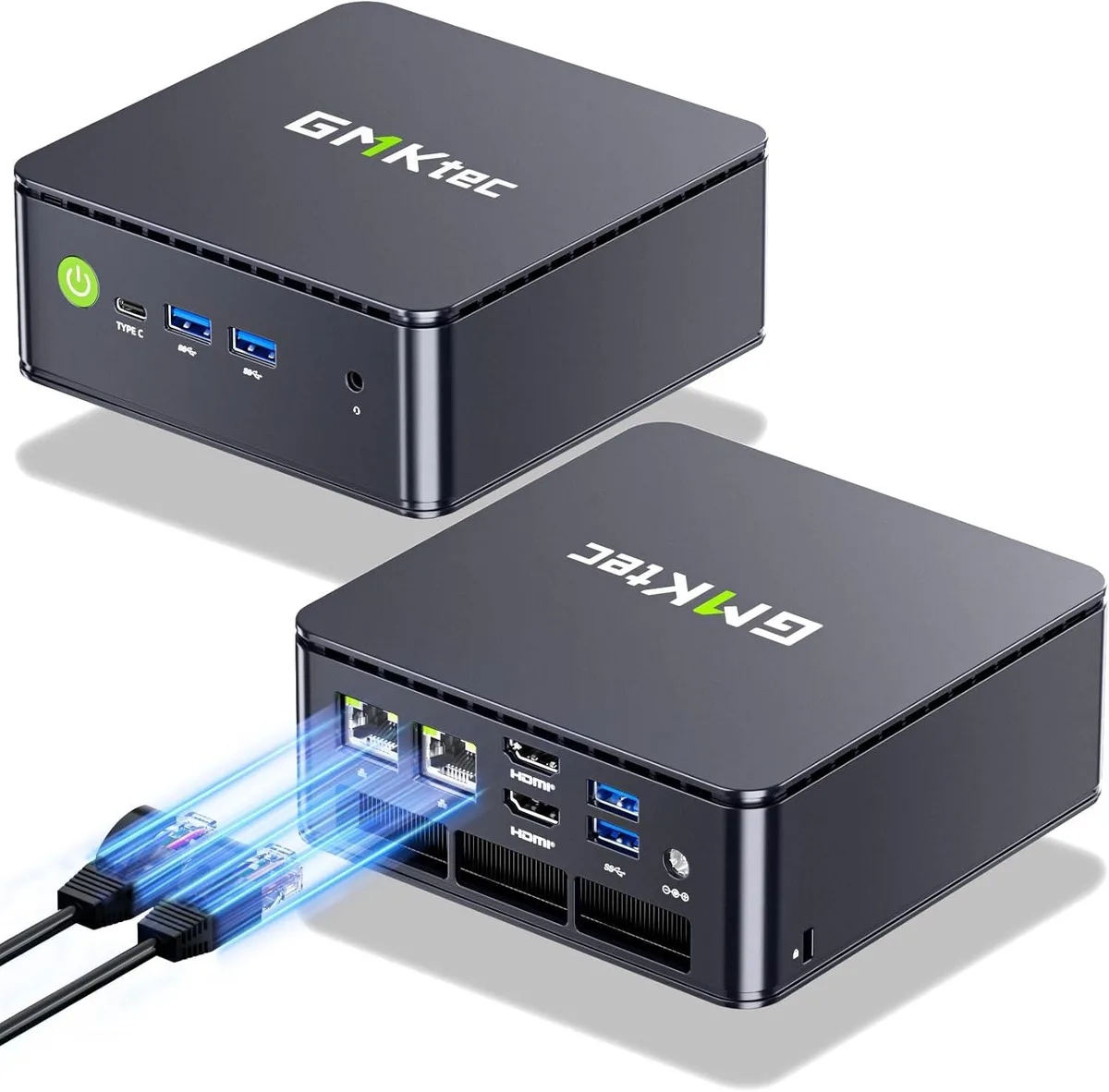

Compact black mini PC with small square form factor

GMKtec

GMKtec G11 barebone mini PC R2514 16 GB 512 GB

SKU CH-Y2ZB-TSPM3 MPN G11

Barebone mini PC with AMD Ryzen Embedded R2514, 16 GB DDR4, 512 GB storage, dual 2.5 GbE LAN, Wi-Fi 6E and triple 4K display support

  • ColorBlack
  • Form Factormini pc
  • CPU SocketFP5
  • CPU TypeAMD Ryzen Embedded R2514 (4C/8T, 4M Cache,up to 3.7GHz)
  • FSBNot Applicable
  • CPU Cores4-Core
  • Quad-core Zen+ CPU reaches 3.7 GHz for responsive multitasking
  • Radeon graphics at 1.2 GHz drives triple 4K 60 Hz displays
  • 16 GB dual-channel DDR4 removes memory bottlenecks
  • Dual 2.5 GbE ports plus Wi-Fi 6E and Bluetooth 5.2
  • 35 W performance mode unlocks full processing power

Mini PC with Ryzen R2514

The GMKtec G11 barebone mini PC uses an AMD Ryzen Embedded R2514 processor with four cores and eight threads. It ships with 16 GB of DDR4 memory and a 512 GB M.2 SSD. The system is built for 24/7 operation in office, home entertainment, NAS or light industrial roles.

Ready to run out of the box

Memory and storage are pre-installed so the unit only needs power and a display to start working. Dual 2.5 GbE ports, Wi-Fi 6E and Bluetooth 5.2 are integrated. The main installation step is adding an operating system; driver support follows standard AMD Radeon and Ryzen embedded channels.

Triple 4K output at 35 W peak

The integrated Radeon graphics run at 1.2 GHz and drive three independent 4K displays at 60 Hz via two HDMI 2.0 ports and USB-C DP Alt Mode. BIOS can unlock a 35 W performance mode for heavier workloads. Sustained compute or graphics loads beyond that envelope will hit thermal and power limits.

Points forts

  • Quad-core Zen+ CPU reaches 3.7 GHz for responsive multitasking
  • Radeon graphics at 1.2 GHz drives triple 4K 60 Hz displays
  • 16 GB dual-channel DDR4 removes memory bottlenecks
  • Dual 2.5 GbE ports plus Wi-Fi 6E and Bluetooth 5.2
  • 35 W performance mode unlocks full processing power

Caractéristiques

BrandGMKtec
SeriesG11 Black
ModelG11 Black 16+512
ColorBlack
Part NumberG11 Black 16+512
Form Factormini pc
CPU SocketFP5
CPU TypeAMD Ryzen Embedded R2514 (4C/8T, 4M Cache,up to 3.7GHz)
FSBNot Applicable
CPU Cores4-Core
North BridgeIntegrated AMD Ryzen SoC
South BridgeIntegrated AMD Ryzen SoC
Integrated GraphicsAMD Radeon Graphics（8Core 1200 MHz）
Discrete Graphic CardAMD Radeon Graphics, 8 Cores, 1200 MHz
Wireless LAN802.11 a/b/g/n/ac/ax
BluetoothBluetooth 5.2
LAN2 × 2.5GbE RJ45
Max LAN Speed2.5 Gbps
WiFi GenerationWi-Fi 6E
HDMI2
Other Rear Ports1 × DC Power Input
Internal Connectors2 × M.2 2280, 2 × DDR4 SO-DIMM
Memory slot2
Memory Type SupportedDDR4 SO-DIMM
Dual Channel Memory SupportedYes
Memory installed16GB
Serial ATANot Supported
SATA RAIDNot Supported
Storage Installed512GB M.2 2280 PCIe 3.0 SSD
M.2 Slot2
Other2 × M.2 2280 SSD Slots
Onboard AudioYes
Channel2.0 Channel Stereo
Front USB2
Front Audio Ports1
Other Front Ports1 × USB-C 3.2 Gen 2
InputDC 19V, 3.42A
Power Supply65W External Power Adapter
Dimensions128.5 × 127 × 51 mm
Weight480 g
FeaturesWi-Fi 6E, Bluetooth 5.2, Dual 2.5GbE LAN, Triple 4K Display, Dual M.2 SSD Slots, VESA Mount
PackagingRetail Box

Questions sur cet article

How can I verify the G11 is running at its full 35 W performance mode after setup?

Enter the BIOS and enable the 35 W performance profile; the AMD Ryzen Embedded R2514 will then operate up to 3.7 GHz with the Radeon graphics at 1.2 GHz for sustained workloads.

What comes in the box with the G11 Black 16+512 and what must I add myself?

The unit ships with 16 GB dual-channel DDR4 memory and a 512 GB PCIe M.2 SSD pre-installed; no additional components are required for basic operation.

Which G11 version should I choose for triple 4K@60 Hz output?

The G11 Black 16+512 model provides dual HDMI 2.0 ports and a USB-C DP Alt Mode connection, supporting three independent 4K displays at 60 Hz.
