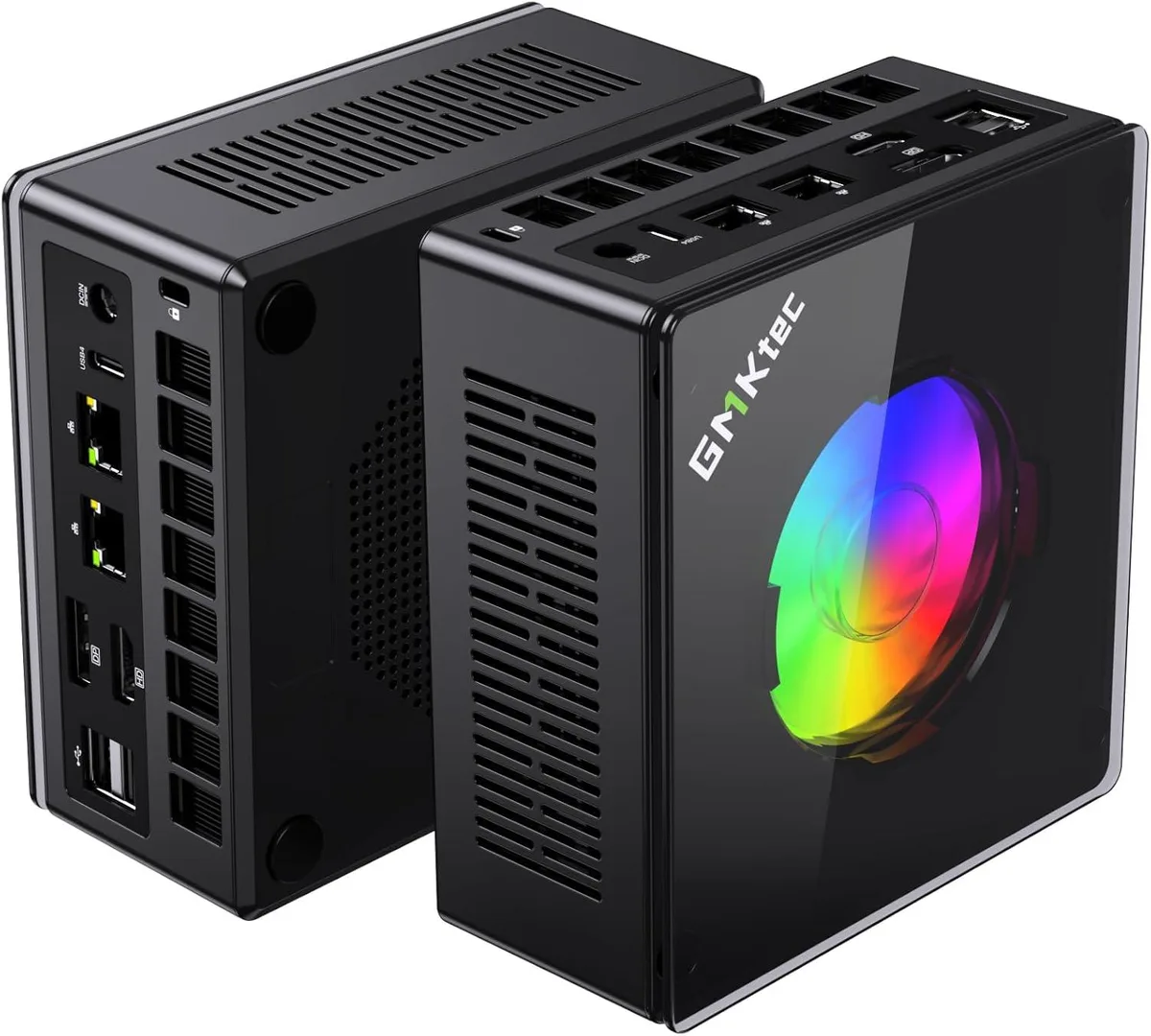

Small black mini PC barebone with front ports and ventilation visible

GMKtec

GMKtec K11 barebone mini PC Ryzen 9 8945HS 32GB 1TB

SKU CH-K76Q-223R4 MPN k11

Barebone mini PC with AMD Ryzen 9 8945HS, 32GB DDR5 and 1TB NVME, plus Oculink eGPU port, dual 2.5GbE LAN and quad 4K display outputs

  • ColorBlack
  • CPU TypeAMD Ryzen 9 8945HS
  • CPU SocketTSMC 4nm FinFET
  • CPU Cores8-Core
  • North BridgeIntegrated SoC
  • South BridgeIntegrated FCH

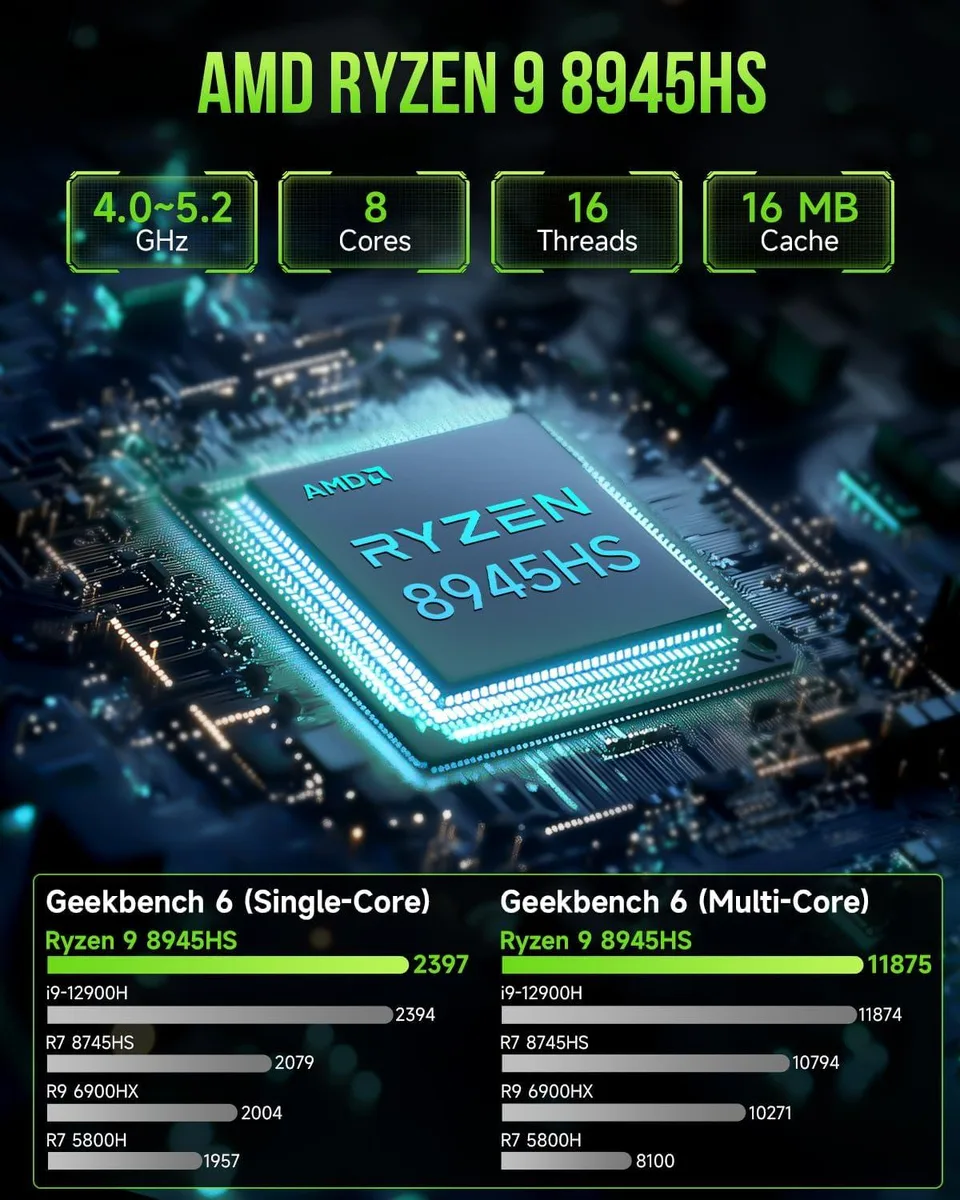

  • Ryzen 9 8945HS delivers 8 cores up to 5.20 GHz for demanding workloads
  • 32 GB DDR5 5600 dual-channel memory expandable to 128 GB
  • 1 TB PCIe 4.0 SSD plus second M.2 slot for up to 8 TB total storage
  • Oculink PCIe x4 enables external GPU while dual 2.5 GbE LAN and WiFi 6 keep connections fast
  • Quad 4K 60 Hz output via HDMI 2.1 DP 2.1 and dual USB4 with Hyper Ice Chamber 2.0 cooling

Ryzen 9 8945HS mini PC with 32GB DDR5

The GMKtec K11 is a barebone mini PC powered by an AMD Ryzen 9 8945HS processor with 8 cores and 16 threads. It arrives with 32GB of DDR5 5600 MT/s memory and a 1TB PCIe 4.0 M.2 2280 SSD pre-installed. Windows 11 Pro is loaded and ready to use.

Suits compact gaming and multi-display workstations

This unit fits users who want a small desktop for 4K gaming via the Radeon 780M or an external GPU through the Oculink port. It also serves creators needing four simultaneous 4K 60Hz outputs over HDMI 2.1, DisplayPort 2.1 and USB4. Builders who require more than 128GB of RAM or more than 8TB of total M.2 storage should look elsewhere.

Verify DDR5 SO-DIMM compatibility and power needs

The board provides two SO-DIMM slots supporting DDR5 5600 MT/s up to 128GB total. Two M.2 2280 PCIe 4.0 x4 slots accept additional drives up to 8TB combined. The included 19V 6.32A 120W adapter powers the system; ensure your mains supply matches 100-240V AC input.

Points forts

  • Ryzen 9 8945HS delivers 8 cores up to 5.20 GHz for demanding workloads
  • 32 GB DDR5 5600 dual-channel memory expandable to 128 GB
  • 1 TB PCIe 4.0 SSD plus second M.2 slot for up to 8 TB total storage
  • Oculink PCIe x4 enables external GPU while dual 2.5 GbE LAN and WiFi 6 keep connections fast
  • Quad 4K 60 Hz output via HDMI 2.1 DP 2.1 and dual USB4 with Hyper Ice Chamber 2.0 cooling

Caractéristiques

BrandGMKtec
SeriesK11
Modelk11 32+1T
ColorBlack
CPU TypeAMD Ryzen 9 8945HS
CPU SocketTSMC 4nm FinFET
CPU Cores8-Core
North BridgeIntegrated SoC
South BridgeIntegrated FCH
Memory installed32GB
Memory slot2x SO-DIMM
Memory Type SupportedDDR5 5600 MT/s
Dual Channel Memory SupportedYes
Other2x M.2 2280 PCIe 4.0 SSD Slots, 1x Oculink (PCIe Gen4)
Storage Installed1TB PCIe 4.0 M.2 2280 SSD
M.2 Slot2x M.2 2280 PCIe 4.0 x4 (Supports up to 8TB total)
Integrated GraphicsAMD Radeon 780M
Onboard AudioALC269 (US Standard CTIA 3.5mm Jack)
Channel2 Channel (Stereo)
LAN2x Intel i226V 2.5Gbps Ethernet (RJ45)
Max LAN Speed2.5Gbps
Wireless LAN802.11ac
WiFi GenerationWiFi 6 (802.11ax)
BluetoothBluetooth 5.2
Front USB2x USB 3.2 Gen2 (10Gbps)
Other Front PortsPower Button, White Power Indicator LED
HDMI1x HDMI 2.1 (4K@60Hz)
DisplayPort1x DisplayPort 2.1 (4K@60Hz)
Rear USB2x USB 2.0 (Rear), 2x USB 3.2 Gen2 (Front)
RJ452
Rear Audio Ports1x 3.5mm Audio Jack (CTIA, US Standard)
Other Rear Ports1x USB4 (40Gbps, PD 3.0, DP 1.4), 1x Oculink (PCIe Gen4 x4), 1x DC IN 19V Power Port
Input100-240V AC, 50/60Hz
Power Supply120W DC Adapter (19V 6.32A), Internal CMOS Battery
Dimensions13.2 x 12.5 x 5.8 cm
Weight0.79 Pounds
FeaturesAuto Power On, Wake-on-LAN, 3 Performance Modes (Quiet/Balance/Performance), VRAM Allocation
PackagingRetail Box

Questions sur cet article

What DDR5 SO-DIMM modules do I need to add more memory to the two slots?

The board accepts DDR5 5600 MT/s SO-DIMMs in a dual-channel configuration up to 64 GB total across both slots.

Will my existing 2.5 GbE switch and Cat 5e cables work with the dual Intel i226V ports?

Yes, the two RJ45 ports run at 2.5 Gbps and are fully backward compatible with 1 GbE and 100 MbE gear.

How can I verify the Oculink port is providing a PCIe 4.0 x4 link to my eGPU enclosure?

In Device Manager check the link speed under the GPU's PCI Express root port; it should show Gen 4 x4 when the enclosure is active.
