Black rectangular 16-channel PoE network video recorder with front indicator lights and USB ports

Hanwha Techwin

Hanwha Techwin ARN-1610S-4TB 16 Channel PoE video recorder 4TB

SKU CH-HZKR-G5X3W MPN ARN-1610S-4TB

Records 16 channels at up to 8 megapixels with 4 TB storage and 16 PoE ports for plug-and-play camera power

  • Channel16 Channel
  • Supported ProtocolsIPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP,
  • Network InterfacePoE RJ-45(LAN, 10/100) 16 ea, RJ-45 1ea (WAN, 1Gbps)
  • PortsFront > Indicator: Power, Record, Network Reset: Support HDM
  • Compression FormatH.265, H.264, MJPEG
  • Storage Installed4TB
  • 16 PoE ports power cameras without extra cabling
  • 4 TB drive installed for immediate recording
  • 80 Mbps throughput handles 16 channels at 8 megapixel
  • HDMI 4K output and VGA for local monitoring
  • P2P QR code connect enables remote access in seconds

16-channel PoE NVR with 4TB

The Hanwha Techwin ARN-1610S-4TB is a 16-channel network video recorder that ships with a 4TB hard drive installed. It supports up to 16 cameras at 8 megapixel resolution and records using H.265, H.264 or MJPEG compression at up to 80Mbps total throughput. The unit provides 16 built-in PoE ports for direct camera power and data connections.

Plug-and-play PoE installation

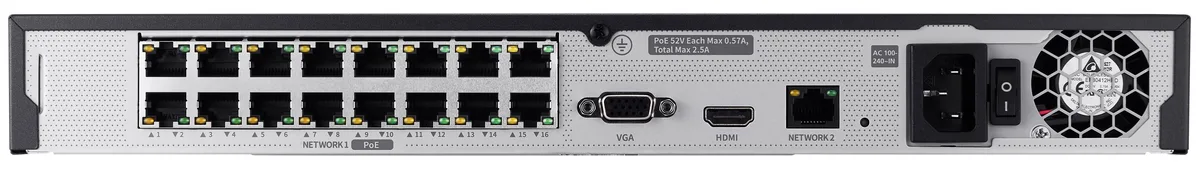

Sixteen PoE RJ-45 ports on the rear allow cameras to connect without separate injectors or switches, simplifying cabling for installers. A single 1Gbps WAN uplink handles network traffic while the PoE budget of 130W powers all attached cameras. Front-panel indicators show power, recording and network status, and a reset button is accessible for troubleshooting.

Suits small to mid-size IP camera systems

This recorder fits deployments needing up to 16 PoE-powered cameras with local 4K HDMI monitoring and remote access via P2P QR-code connection. It is not suited for installations requiring more than two internal drives, higher PoE power per port, or 10Gbps backbone links. Buyers needing larger onboard storage or non-PoE camera integration should consider alternative configurations.

Points forts

  • 16 PoE ports power cameras without extra cabling
  • 4 TB drive installed for immediate recording
  • 80 Mbps throughput handles 16 channels at 8 megapixel
  • HDMI 4K output and VGA for local monitoring
  • P2P QR code connect enables remote access in seconds

Caractéristiques

BrandHanwha Techwin
ModelARN-1610S-4TB
Channel16 Channel
Supported ProtocolsIPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
Network InterfacePoE RJ-45(LAN, 10/100) 16 ea, RJ-45 1ea (WAN, 1Gbps)
PortsFront > Indicator: Power, Record, Network
Reset: Support
HDMI: 1EA 3840x2160 30Hz
VGA: 1920x1080 30Hz
USB: 2EA(Front 2 x USB 2.0)
Power inlet: SMPS
Compression FormatH.265, H.264, MJPEG
Storage Installed4TB
Max Capacity2 x 6TB
Operating SystemWindows 10, macOS 10.13
Power SupplyPower Input: 100 ~ 240 VAC +/- 10%; 50/60 Hz
Power Consumption: Max 188.2W (2HDD, PoE On)
PoE Budget: 130W
FeaturesUp to 16 channels @ 8 megapixel supported
H.265, H.264, MJPEG codec supported
80Mbps network camera recording
Plug & play by 16 PoE ports
Maximum 2 HDDs (up to 6Tb each) supported
HDMI/VGA local monitor
P2P service (QR code connect) for easy remote access
Dimensions14.57" x 1.73" x 12.60"
Weight6.35 lbs.
Poids d’expédition3.18 kg
Dimensions du colis432 × 381 × 102 mm

Questions sur cet article

How do I confirm the ARN-1610S-4TB is recording all 16 channels after installation?

Connect a monitor via HDMI at 3840x2160 30Hz or VGA at 1920x1080 30Hz; the front Power, Record and Network indicators will show active recording status for each of the 16 PoE ports.

What comes with the ARN-1610S-4TB and what must I purchase separately?

The unit includes a pre-installed 4TB hard drive, 16 PoE RJ-45 LAN ports, one 1Gbps WAN port, HDMI, VGA, two front USB 2.0 ports and a 100-240 VAC power supply; additional cameras and a second hard drive up to 6TB are sold separately.

Which storage capacity should I choose for the ARN-1610S-4TB?

The recorder ships with 4TB installed and supports a second drive up to 6TB for a total of 10TB; select the second drive based on how many days of 80Mbps H.265 recording you need to retain.
