HP
HP DL380 Gen10 8B SFF 2x Xeon Gold 6134 128GB DDR4 4x 300GB SAS
Rackmount server with dual Xeon Gold 6134 CPUs, 128GB DDR4 and four 300GB 15K SAS drives
- TypeRackmount
- LEDsPower, Ethernet, USB
- CPU TypeGold 6134
- CPU Speed3.20GHz
- Number of CPU Cores8
- # of Processors Installed2
- Dual Xeon Gold 6134 CPUs deliver 16 cores at 3.20 GHz for demanding workloads
- 128 GB DDR4 memory supports multiple virtual machines and data-heavy applications
- Four 300 GB 15K SAS drives provide high-speed storage for databases and backups
- HP P408i-a RAID controller ensures data integrity and simplified storage management
- HP 331FLR quad-port 1 Gb Ethernet enables flexible network connectivity
Dual Xeon Gold 6134 Server

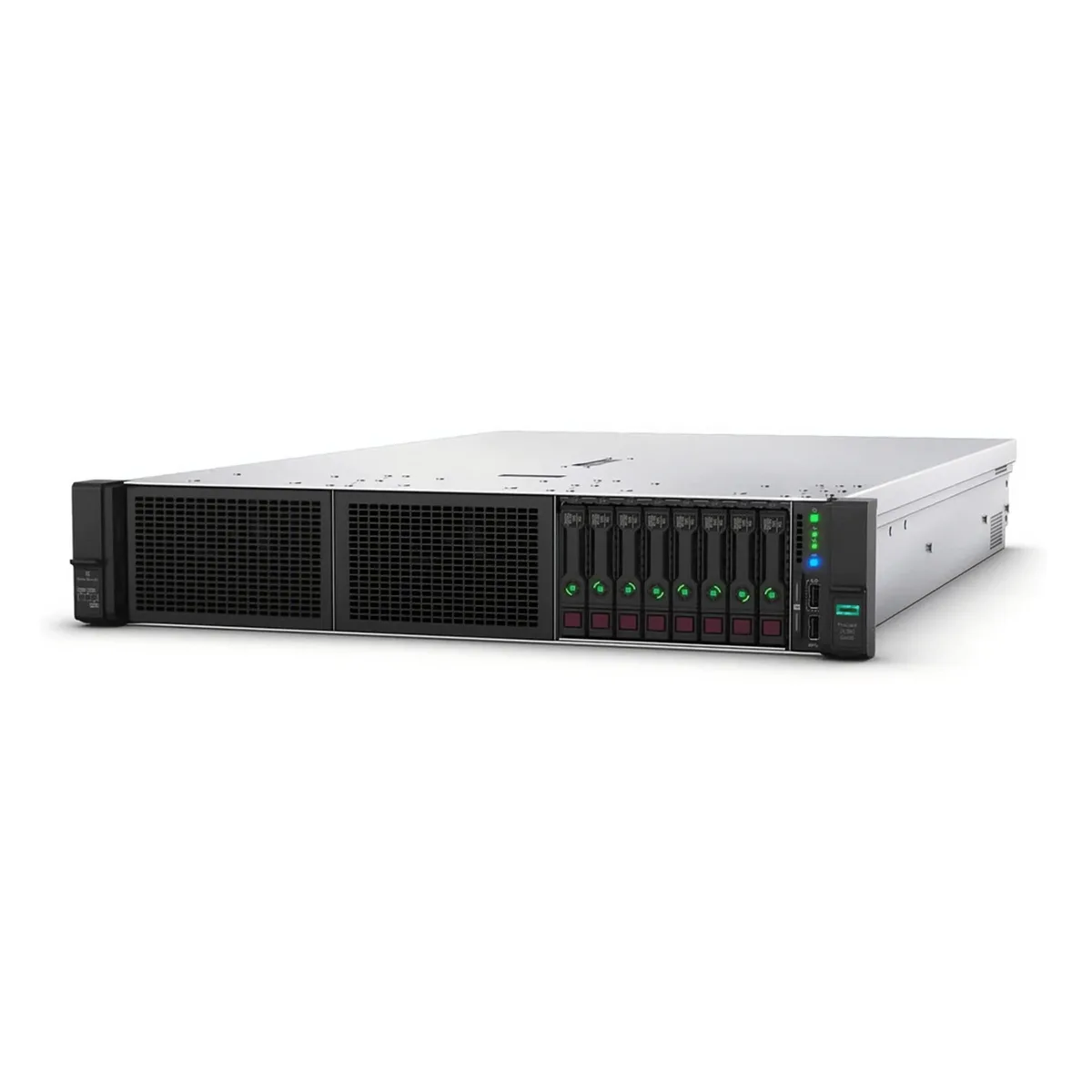

The HP DL380 Gen10 is a 2U rackmount server built for business workloads such as virtualization, databases, file storage, and application hosting. Dual Intel Xeon Gold 6134 processors run at 3.20GHz with 16 total cores to deliver dependable compute power for multi-service environments. 128GB of DDR4 RAM supports multiple virtual machines and data-heavy applications simultaneously.
Sustained Workload Behaviour
Four 300GB 15K SAS hard drives provide high-speed data access for continuous read and write operations typical of database and backup tasks. The integrated P408i-a storage controller manages RAID levels to maintain data integrity during extended duty cycles. Quad-port 1Gb Ethernet ensures stable network throughput when the system runs at capacity for long periods.
SAS Interface Practical Limits
The 12Gb/s SAS controller and 15K drives operate within the mechanical limits of spinning media, so random IOPS and latency are bounded by physical seek time. Eight 2.5-inch drive bays allow future expansion, but the installed configuration uses four bays for the supplied drives. Buyers needing solid-state latency or larger single-volume capacity should plan a different storage tier.
Points forts
- Dual Xeon Gold 6134 CPUs deliver 16 cores at 3.20 GHz for demanding workloads
- 128 GB DDR4 memory supports multiple virtual machines and data-heavy applications
- Four 300 GB 15K SAS drives provide high-speed storage for databases and backups
- HP P408i-a RAID controller ensures data integrity and simplified storage management
- HP 331FLR quad-port 1 Gb Ethernet enables flexible network connectivity
Caractéristiques
| Brand | HP |
|---|---|
| Type | Rackmount |
| LEDs | Power, Ethernet, USB |
| CPU Type | Gold 6134 |
| CPU Speed | 3.20GHz |
| Number of CPU Cores | 8 |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Memory Type | DDR4 |
| Max Memory Capacity | 3TB LRDIMM |
| GPU Type | Integrated |
| Expansion Bays | 8x 2.5" Drive Bays |
| Operating System | No |
| Weight | 60 |
Questions sur cet article
How loud and hot does the DL380 Gen10 get when both Xeon Gold 6134 CPUs run at 3.20GHz continuously?
The 2U chassis uses redundant fans that ramp up under load; expect noticeable airflow noise in a quiet room and plan for front-to-rear cooling clearance.
What rack hardware and cabling must I already have to install this server?
You need a standard 2U rack space, slide rails for a 60kg unit, C13 power cords for the redundant PSUs, and Cat5e or better patch cables for the four 1Gb Ethernet ports.
Can I keep using my existing 15K SAS drives and DDR4 memory with this system?
Yes — the P408i-a controller supports 15K SAS drives and the eight 2.5-inch bays accept them, while the 128GB DDR4 installed matches the memory type the platform requires.
